| Access from a mobile phone:: | Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app |
|---|---|
| Audio:: | Built-in microphone |
| Case:: | Dome - Metal |
| Colour:: | white |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.108 |

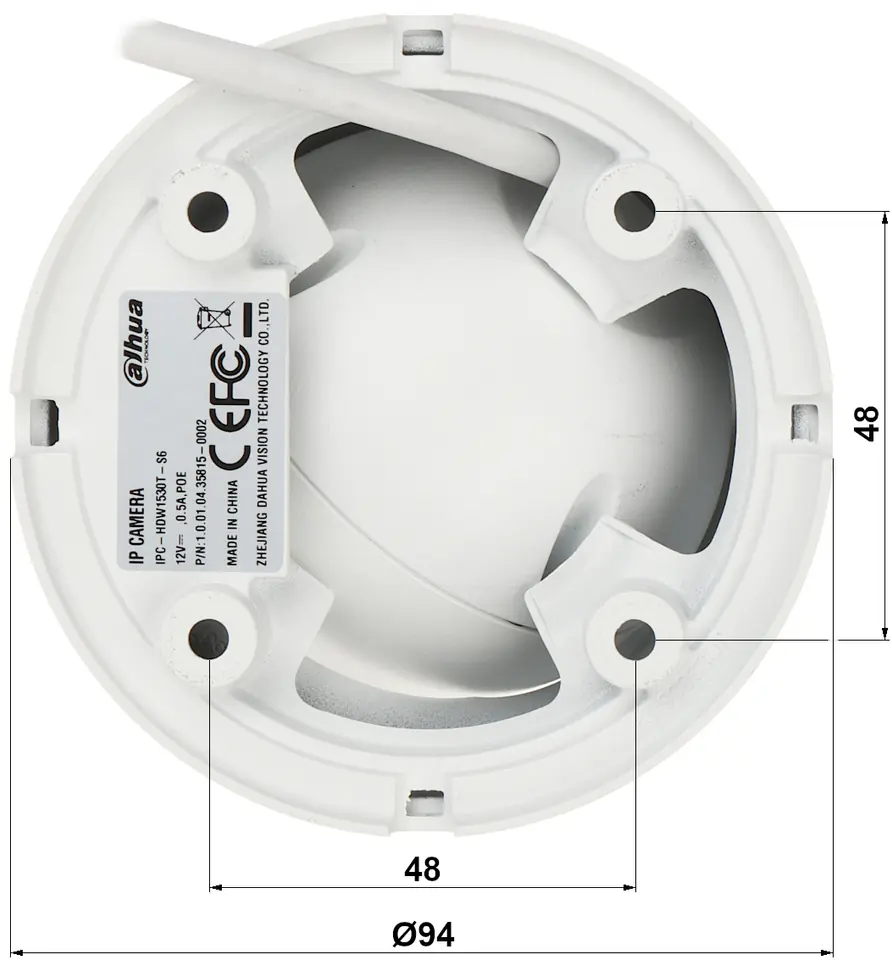

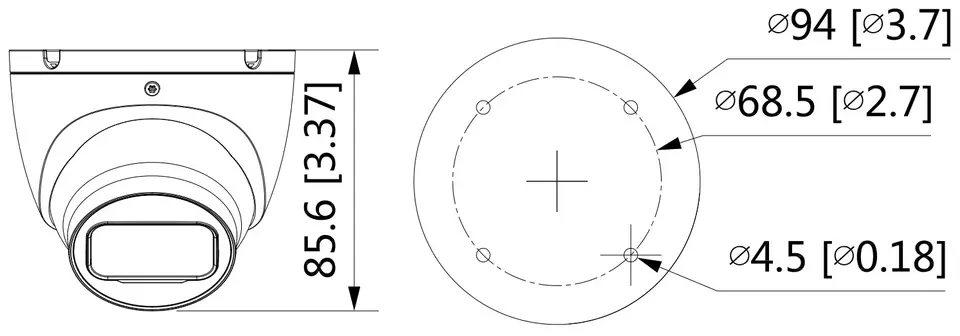

| Dimensions:: | Ø 94 x 85 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Ir illuminator range:: | 30 m |
| Main stream transmission speed:: | 20 fps @ 5 Mpx25 fps @ 4 Mpx |
| Manufacturer / brand:: | DAHUA |
| Matrix size:: | 5 Mpx |
| Max. number of on-line users:: | 20 |
| Network interface:: | 10/100 Base-T (RJ-45) |
| Network protocols:: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast |
| Objective:: | 3.6 mm |
| Onvif port:: | 80 |
| Onvif:: | 20.06 |
| Operating temperature :: | -40 °C ... 60 °C |
| Port of access via mobile application:: | 37777 |
| Ports for access via the pc application:: | 37777 |
| Power consumption:: | ≤ 4.5 W @ PoE ≤ 3.7 W @ 12 V DC |
| Power:: | PoE (802.3af), 12 V DC / 500 mA |
| Resolution:: | 2880 x 1620 - 5 Mpx ,2688 x 1520 - 4 Mpx ,2560 x 1440 - 3.7 Mpx ,2048 x 1536 - 3 Mpx ,2304 x 1296 - 3 Mpx ,1920 x 1080 - 1080p ,1280 x 960 - 1.3 Mpx ,1280 x 720 - 720p |
| Rtsp url:: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Stream mainrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
| S/n ratio:: | > 56 dB |
| Scales:: | 0.33 kg |
| Scanning system:: | Progressive |
| Sealing:: | IP67 |
| Selected features:: | WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - Improving the Quality of Selected BLC/HLC Image Fragments - Background Light / Strong Light Compensation Changeability, Quality and Bandwidth Motion Detection Customizable Privacy Zones D-ZOOM - Digital Zoom Mirror - Image Mirror |
| Standard:: | TCP/IP |
| Supported languages:: | English, Spanish, Russian |
| Transducer:: | 1/2.7" Progressive Scan CMOS |
| Viewing angle:: | 92° (manufacturer data) 87° (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80, 37777 |
| Web server:: | Built-in |
IP camera with efficient H.264 / H.265 image compression algorithm for clearer and smoother image transmission at a maximum resolution of 5 MPx
The ability to power PoE, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
