| 4g lte: | N |
|---|---|
| Access from a mobile phone:: | Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app |
| Adjustment shutter speed: | Auto/Manual |
| Audio codecs: | G.711a, G.711Mu, G726 |
| Audio:: | Built-in microphone |
| Bluetooth: | No |
| Built-in loudspeaker: | No |
| Built-in microphone: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Case:: | Dome - Metal |
| Closest focusing distance: | 0.8 m |
| Colour:: | Black |
| Connectivity technology: | Wired |
| Dc output voltage: | 12 |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.108 |
| Depth: | 94 mm |

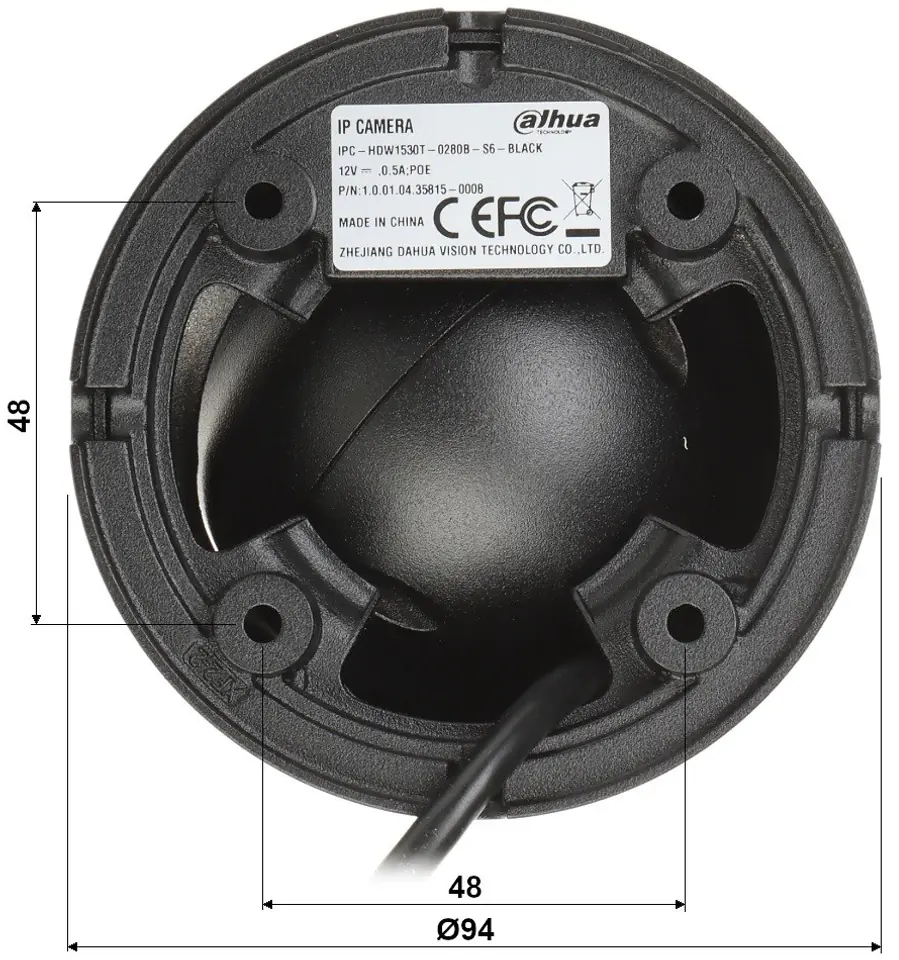

| Dimensions:: | Ø 94 x 85 mm |
| Ethernet interface type: | 10 Megabit Ethernet, 100 Megabit Ethernet |
| Focal length range: | 2.8 mm |
| Form factor: | Tube/dome |
| Frame rate: | 20 fps |
| Height: | 85.6 mm |
| Horizontal rotation angle: | 0 - 360° |
| Housing material: | Metal, Plastic |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| International protection (ip) code: | IP67 |
| Ir illuminator range:: | 30 m |
| Led type: | IR |
| Lens type: | Fixed focal length lens |
| Lens viewing angle, horizontal: | 106° |
| Lens viewing angle, vertical: | 56° |
| Main stream transmission speed:: | 20 fps @ 5 Mpx25 fps @ 4 Mpx |
| Manufacturer / brand:: | DAHUA |
| Matrix size:: | 5 Mpx |
| Max. number of on-line users:: | 20 |
| Maximum aperture number: | 2 |
| Maximum resolution: | 2880 x 1620 pixels |
| Minimum illumination: | 0.03 lx |
| Mobile operating systems supported: | Android, iOS |
| Motion detection: | Yes |
| Mounting type: | Wall/ceiling |
| Network interface:: | 10/100 Base-T (RJ-45) |
| Network protocols:: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast |
| Networking standards: | IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 30 m |
| Number of cameras: | 1 |
| Number of illumination leds: | 1 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Objective:: | 2.8 mm |
| Onvif port:: | 80 |
| Onvif:: | 20.06 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature :: | -40 °C ... 60 °C |
| Operating temperature (t-t): | -40 - 60 °C |
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
| People detection: | Yes |
| Placement supported: | Outdoor |
| Port of access via mobile application:: | 37777 |
| Ports for access via the pc application:: | 37777 |
| Power consumption (power over ethernet (poe)): | 4.5 W |
| Power consumption (typical): | 3.7 W |
| Power consumption:: | ≤ 4.5 W @ PoE ≤ 3.7 W @ 12 V DC |
| Power source type: | DC, PoE |
| Power:: | PoE (802.3af), 12 V DC / 310 mA |
| Product colour: | Black |
| Progressive scan: | Yes |
| Ram capacity: | 128 MB |
| Resolution:: | 2880 x 1620 - 5 Mpx ,2688 x 1520 - 4 Mpx ,2560 x 1440 - 3.7 Mpx ,2048 x 1536 - 3 Mpx ,2304 x 1296 - 3 Mpx ,1920 x 1080 - 1080p ,1280 x 960 - 1.3 Mpx ,1280 x 720 - 720p |
| Rom capacity: | 16 MB |
| Rtsp url:: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Stream mainrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
| Scales:: | 0.33 kg |
| Sealing:: | IP67 |
| Selected features:: | WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - Improving the Quality of Selected BLC/HLC Image Fragments - Background Light / Strong Light Compensation Changeability, Quality and Bandwidth Motion Detection Customizable Privacy Zones D-ZOOM - Digital Zoom Mirror - Image Mirror |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 56 dB |
| Standard:: | TCP/IP |
| Storage temperature (t-t): | -40 - 60 °C |
| Supported languages:: | English, Spanish, Russian |
| Total megapixels: | 5 MP |
| Transducer:: | 1/2.7" Progressive Scan CMOS |
| Two-way talk: | N |
| Type: | IP security camera |
| Vertical rotation angle: | 0 - 78° |
| Video compression formats: | H.264, M-JPEG, H.265+, H.264+, H.265 |
| Video streaming: | Yes |
| Viewing angle, diagonal: | 125° |
| Viewing angle:: | 106° (manufacturer data) 101° (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80, 37777 |
| Web browser: | Yes |
| Web server:: | Built-in |
| Web-based management: | Yes |
| Weight: | 320 g |
| Wi-fi: | No |
| Wide dynamic range (wdr): | DWDR |
| Width: | 94 mm |
IP camera with efficient H.264 / H.265 image compression algorithm for clearer and smoother image transmission at a maximum resolution of 5 MPx
The ability to power PoE, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
