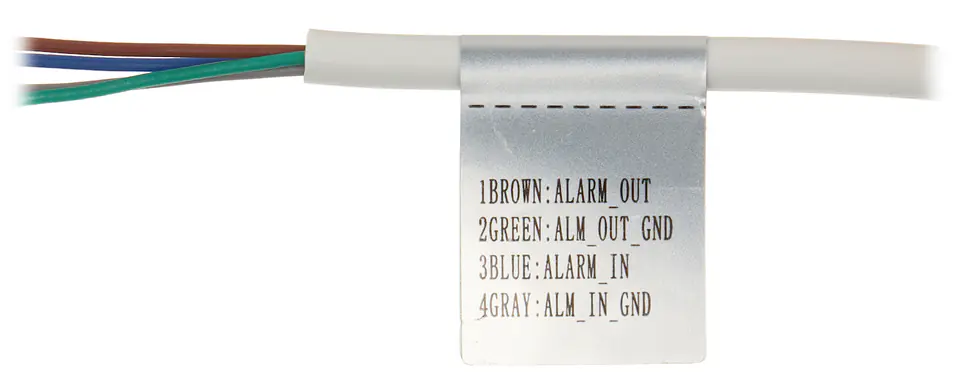

| Alarm input channels: | 1 |
|---|---|
| Alarm input/output: | Yes |
| Alarm inputs / outputs: | 1 / 1 |
| Alarm output channels: | 1 |
| Angle of rotation: | 355° |

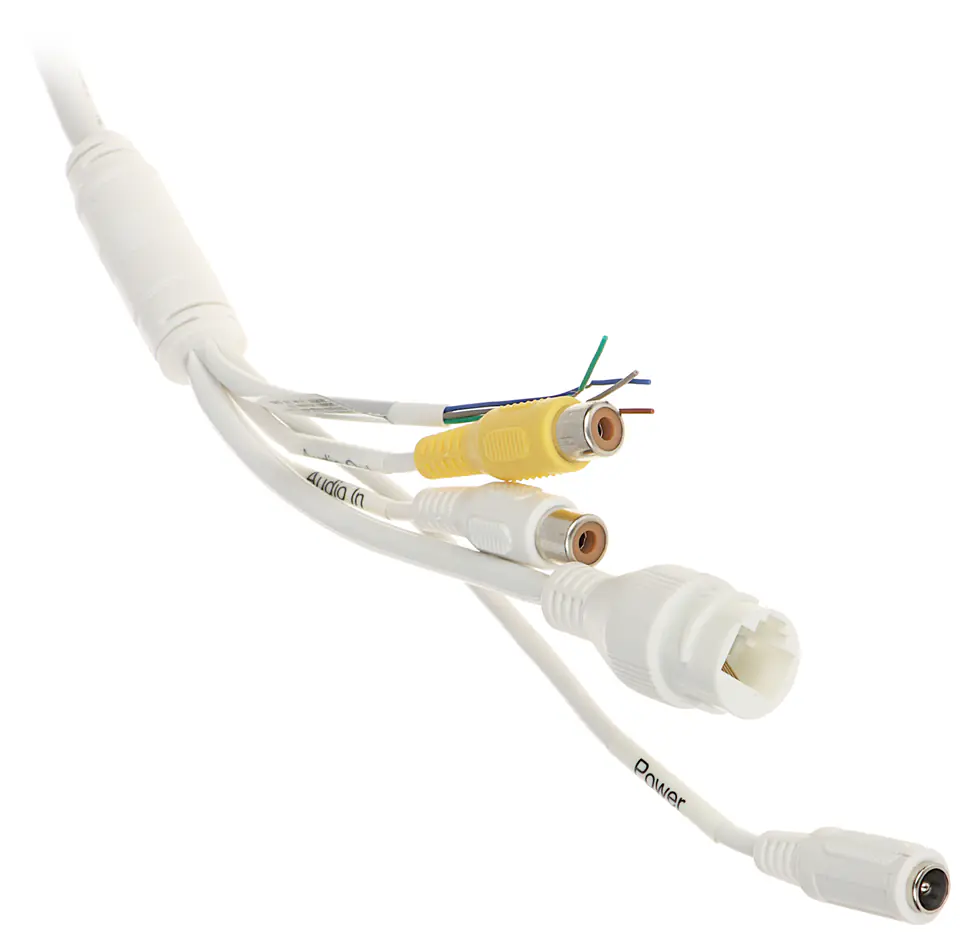

| Audio: | Built-in microphone Sound detection External microphone input Audio output Built-in speaker Network audio streaming |
| Audio formats supported: | G.711, PCM, G.726, G.723 |
| Audio input channels: | 1 |
| Audio output channels: | 1 channels |
| Bit rate control: | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Built-in microphone: | Yes |
| Camera shutter speed: | 1/3 – 1/100000 |
| Case: | Dome - Metal + Plastic |
| Closest focusing distance: | 1.75 m |
| Colour: | white |
| Compatible memory cards: | SD |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output voltage: | 12 |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.108 |
| Detect distance (tele): | 128.6 m |
| Detect distance (wide): | 60.4 m |
| Diameter: | 12.6 cm |

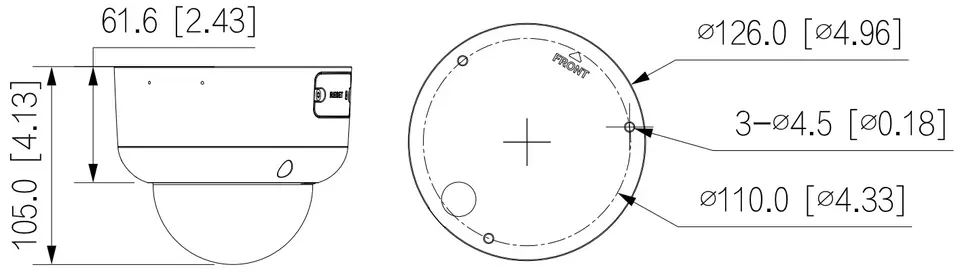

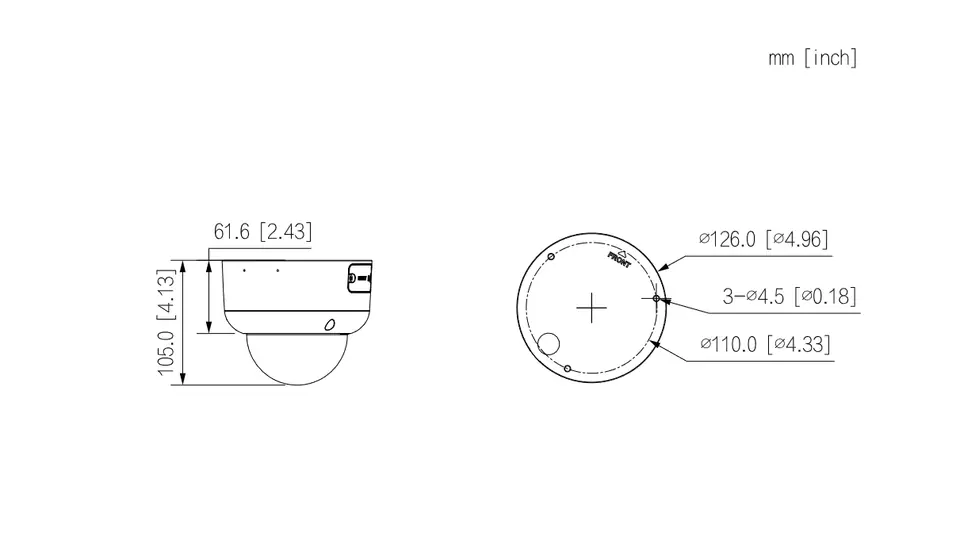

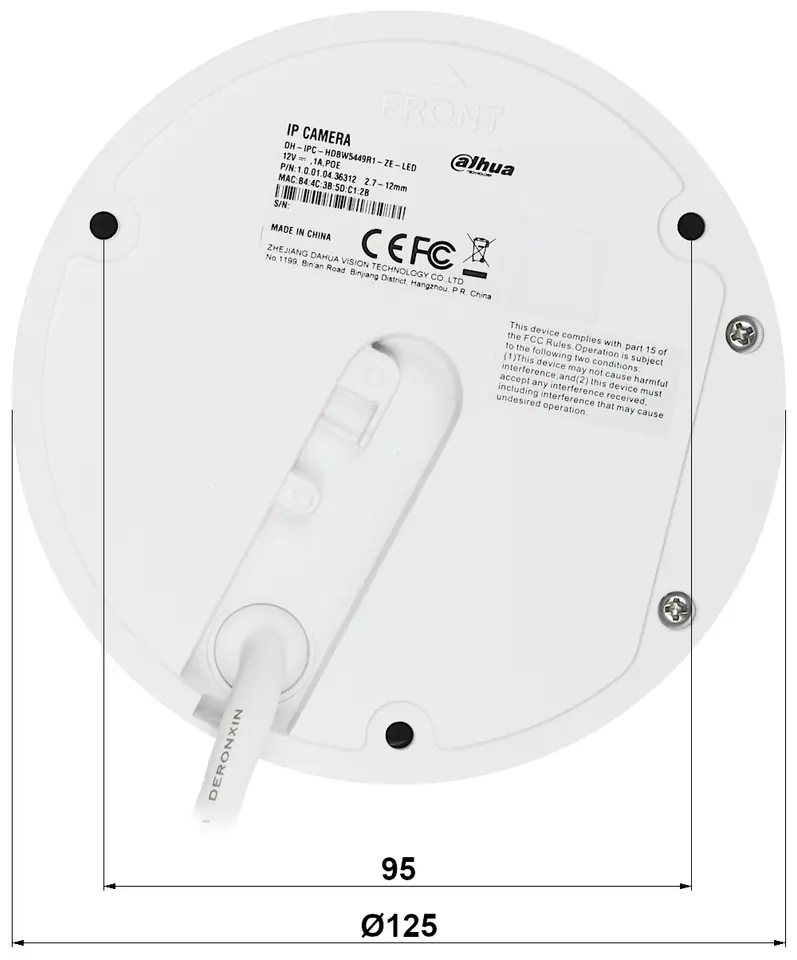

| Dimensions: | Ø 126 x 105 mm |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Focal length range: | 2.7 - 12 mm |
| Focus: | Motorized |
| Form factor: | Dome |
| Frame rate: | 60 fps |
| Height: | 105 mm |
| Housing material: | Metal |
| Identify distance (tele): | 12.8 m |
| Identify distance (wide): | 6 m |
| Ik code: | IK10 |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Internal memory: | 512 MB |
| International protection (ip) code: | IP67 |
| Led type: | IR |
| Lens viewing angle, diagonal: | 142 - 55° |
| Lens viewing angle, horizontal: | 115 - 48° |
| Lens viewing angle, vertical: | 59 - 27° |
| Main stream transmission speed: | 25 fps @ 4 Mpx |
| Management software: | Smart PSS;DSS;DMSS |
| Max. number of on-line users: | 20 |
| Maximum aperture number: | 1 |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 2688 x 1520 pixels |

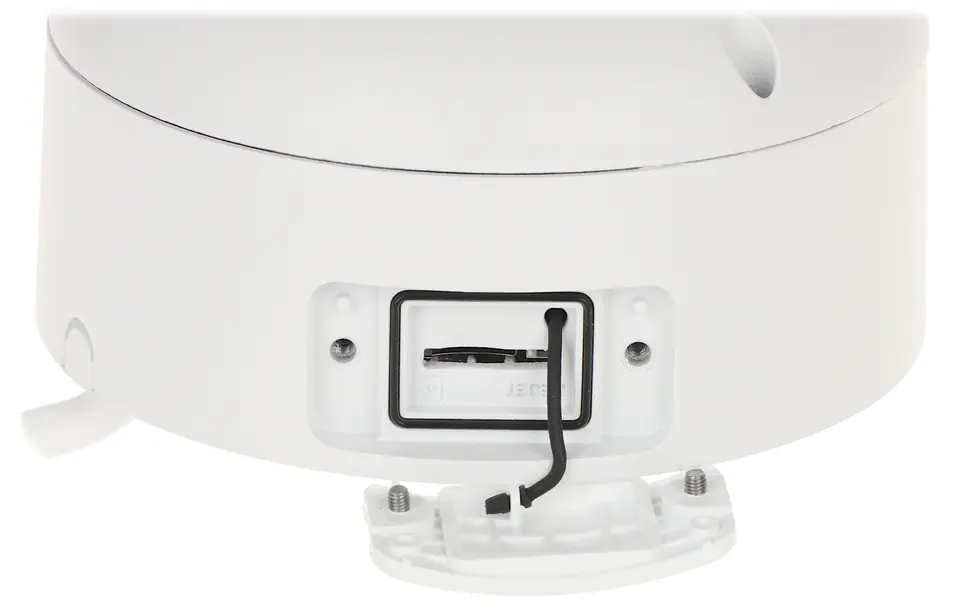

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Minimum illumination: | 0.0005 lx |
| Mirror: | Yes |
| Mobile app access port: | 37777 |
| Mobile operating systems supported: | iOS, Android |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Mounting type: | Ceiling |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, IEEE 802.1x, SNMP |
| Night vision: | Yes |
| Night vision distance: | 40 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of effective pixels (h x v): | 2688 x 1520 pixels |
| Number of illumination leds: | 3 |
| Number of users: | 20 user(s) |
| Objective: | 2.7 ... 12 mm |
| Observe distance (tele): | 51.4 m |
| Observe distance (wide): | 24.1 m |
| Onvif: | 20.12 |
| Operating temperature: | -30 °C ... 60 °C |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 1.8 mm (1 / 1.8") |
| Package weight: | 929.7 g |
| Pan range: | 0 - 355° |
| Pc app access ports: | 37777 |
| Placement supported: | Indoor & outdoor |
| Port onvif: | 80 |
| Power: | PoE (802.3af), ePoE, 12 V DC / 620 mA |
| Power consumption: | ≤ 9.0 W @ PoE≤ 7.4 W @ 12 V DC |
| Power consumption (max): | 7.4 W |
| Power consumption (power over ethernet (poe)): | 3.3 W |
| Power source type: | DC, PoE |
| Producer / brand: | DAHUA |
| Product colour: | White |
| Progressive scan: | Yes |
| Range of white light illuminator (led): | 40 m |
| Recognize distance (tele): | 27.5 m |
| Recognize distance (wide): | 12 m |
| Region of interest (roi) encoding: | Y |
| Resolution: | 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 MP, 2304 x 1296 - 3 MP, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 MP, 1280 x 720 - 720p |
| Rom capacity: | 128 MB |
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| S/n ratio (s/n): | > 56 dB |
| Scales: | 0.75 kg |
| Sealing: | IP67 |
| Selected features: | WDR - 140 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC/HLC - compensation of background light / strong light Ability to change resolution, quality and bandwidth Motion detection Configurable privacy zones Mirror - Mirror image IVS analysis : intrusion, line crossing - classification of people and vehicles, fast movement - classification of people and vehicles, People's Gathering Detection, Parking Detection, Scene Change, Face Detection, People Counting, Heat Map |
| Sensitivity: | 0.0005 Lux / F1.0 (color) |
| Sensor size: | 4 MP |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 56 dB |
| Standard: | TCP/IP |
| Storage temperature (t-t): | -40 - 60 °C |
| Supported graphics resolutions: | 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 640 x 480 (VGA), 352 x 288, 704 x 576, 1280 x 960, 2560 x 1440, 704 x 480, 2688 x 1520, 352 x 240, 2304 x 1296 |
| Supported languages: | Polish, Czech, English, French, German, Italian, Russian, Portuguese, Spanish |
| Supported video modes: | 1080p, 720p |
| Tilt angle range: | 0 - 80° |
| Total megapixels: | 4 MP |
| Transducer: | 1/1.8" Progressive Scan CMOS |
| Type: | IP security camera |
| Vandal-resistant: | IK10 |
| Video compression formats: | H.264B, H.264H, H.264 |
| Viewing angle: | 115 ° ... 48 ° (manufacturer data) 106 ° ... 47 (Our tests) |
| Warranty: | 3 years |
| Web access ports: | 80, 37777 |
| Web browser: | Yes |
| Web server: | Built-in |
| Weight (with stand): | 716.4 g |
| White balance: | Auto, Street lamp, Outdoor, Manual |
| Wide dynamic range (wdr): | Yes |
IP camera with efficient H.264 / H.265 image compression algorithm for clear and smoother image transmission at maximum resolution of 4 MPx
The ability to power PoE in accordance with the 802.3af standard makes the device even more versatile and easier to installThe FULL-COLOR series camera allows you to get crisp, colorful images even in very unfavorable lighting conditions
