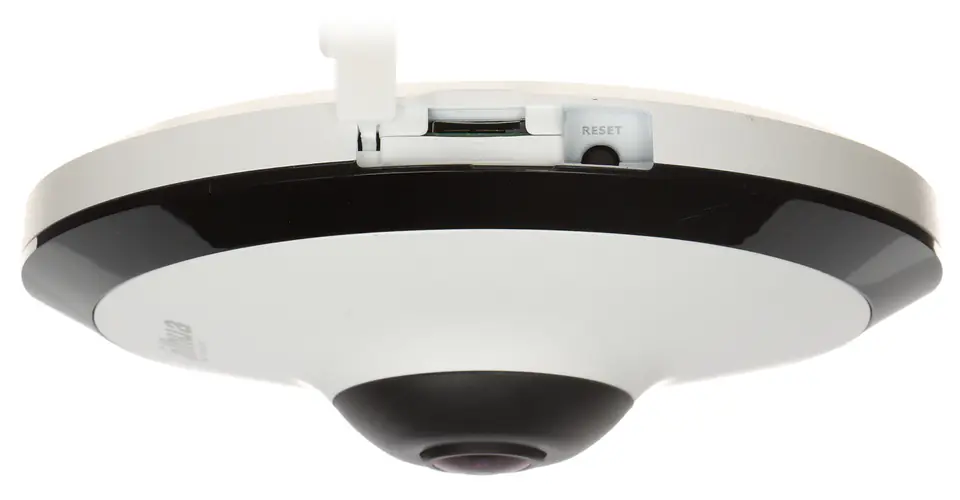

IP Camera with Wide-Angle Fisheye Lens
IP CAMERA IPC-EW5541-AS - 5 Mpx 1.4 mm - Fish Eye DAHUA
€522.10
Shipping from warehouse: D4
Estimated shipping: Wed, Nov 5 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- IPC-EW5541-AS / 6939554993855
Share this product:
Specification
| Alarm inputs / outputs: | 1 / 1 |
|---|---|

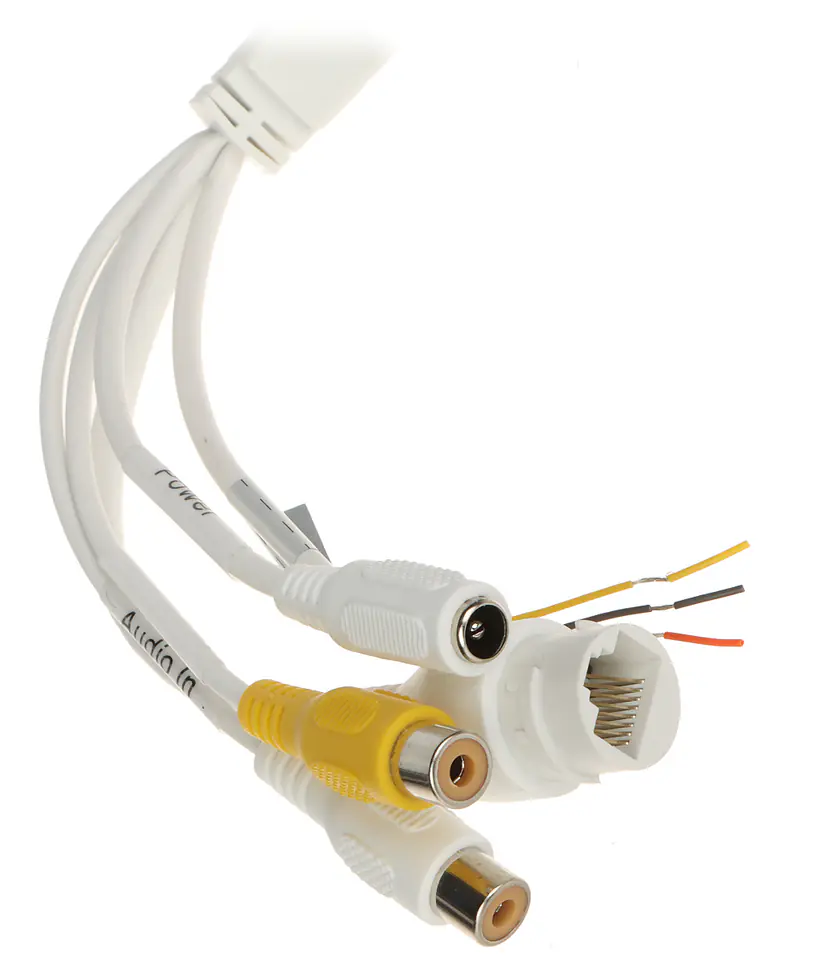

| Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio |
| Case: | Dome - Metal + Plastic |
| Colour: | White + Black |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.108 |

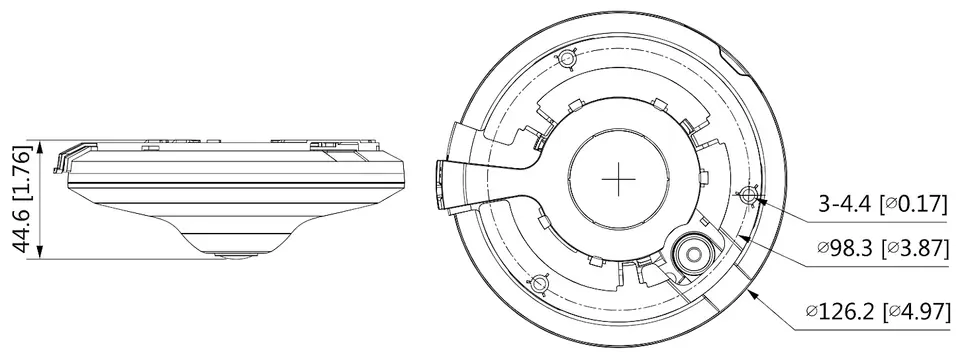

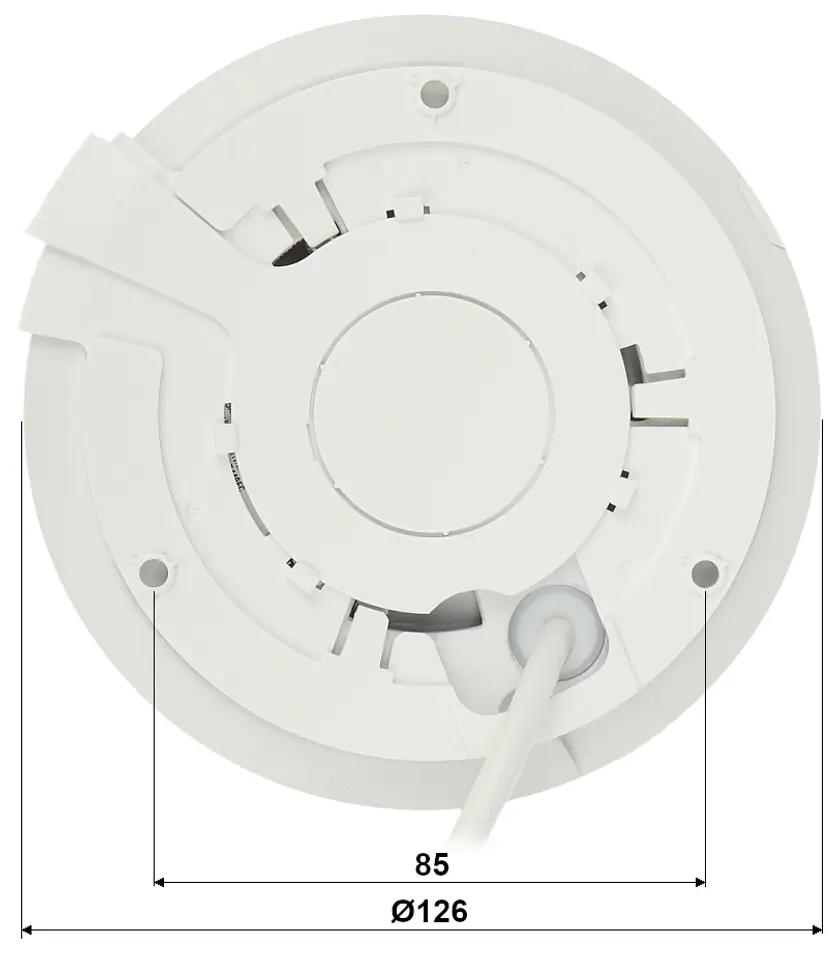

| Dimensions: | Ø 126 x 45 mm |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Ir illuminator range: | 10 m |
| Main stream transmission speed: | 25 fps @ 5 Mpx |
| Max. number of on-line users: | 20 |
| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Mobile app access port: | 37777 |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTCP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP |
| Objective: | 1.4 mm - Fish Eye |
| Operating temperature: | -10 °C ... 50 °C |
| Pc app access ports: | 37777 |
| Port onvif: | 80 |
| Power: | PoE (802.3af), 12 V DC / 610 mA |
| Power consumption: | ≤ 8.8 watts @ PoE ≤ 7.3 watts @ 12 volts DC |
| Producer / brand: | DAHUA |
| Resolution: | 2592 x 1944 - 5 Mpx, 2048 x 1536 - 3 Mpx, 1600 x 1200 - 2 Mpx, 1280 x 960 - 1.3 Mpx, 1280 x 720 - 720p |
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| S/n ratio (s/n): | > 56 dB |
| Scales: | 0.32 kg |
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image SSA - Smart Scene Adaptive - intelligent adaptation of the scene by automatically adjusting exposure parameters for a better image BLC/HLC - compensation of background light / strong light Configurable: brightness, contrast, saturation AGC - Automatic adjustment of image gain Ability to change the resolution, Quality and bandwidth Auto white balance Privacy zones - max. 4 Motion detection - max. 4 zones Heat map - marking areas with different traffic levels in the image with appropriate colors IVS analysis - line crossing, intrusion, counting people in a given area - support for 4 independent detection areas - Statistics reports |
| Sensor size: | 5 MP |
| Standard: | TCP/IP |
| Supported languages: | Polish, English, Czech, French, Italian, Spanish, Dutch, German, Portuguese, Russian |
| Transducer: | 1/2.7" Progressive Scan CMOS |
| Viewing angle: | 180 ° |
| Warranty: | 3 years |
| Web access ports: | 80, 37777 |
| Web server: | Built-in |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
