| Angle of rotation: | 360° |
|---|
| Anti-flicker: | Yes |
|---|
| Auto focus: | Yes |
|---|
| Back light compensation (blc): | Yes |
|---|
| Bit rate: | 32 Kbps - 8 Mbps |
|---|
| Bluetooth: | No |
|---|
| Built-in hdd: | No |
|---|
| Camera pan control: | Yes |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Camera tilt control: | Yes |
|---|
| Card reader integrated: | Yes |
|---|
| Case: | Compact, Metal |
|---|
| Colour: | white |
|---|
| Compatible memory cards: | MicroSDHC, MicroSDXC, MicroSD (TransFlash) |
|---|
| Composite video out: | 1 |
|---|
| Compression: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Connectivity technology: | Wired |
|---|
| Day/night mode: | Yes |
|---|
| Dc output current: | 0.9 A |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin/- |
|---|
| Default ip address: | 192.168.1.64 |
|---|
| Diameter: | 10.5 cm |
|---|
| Digital watermark: | Yes |
|---|

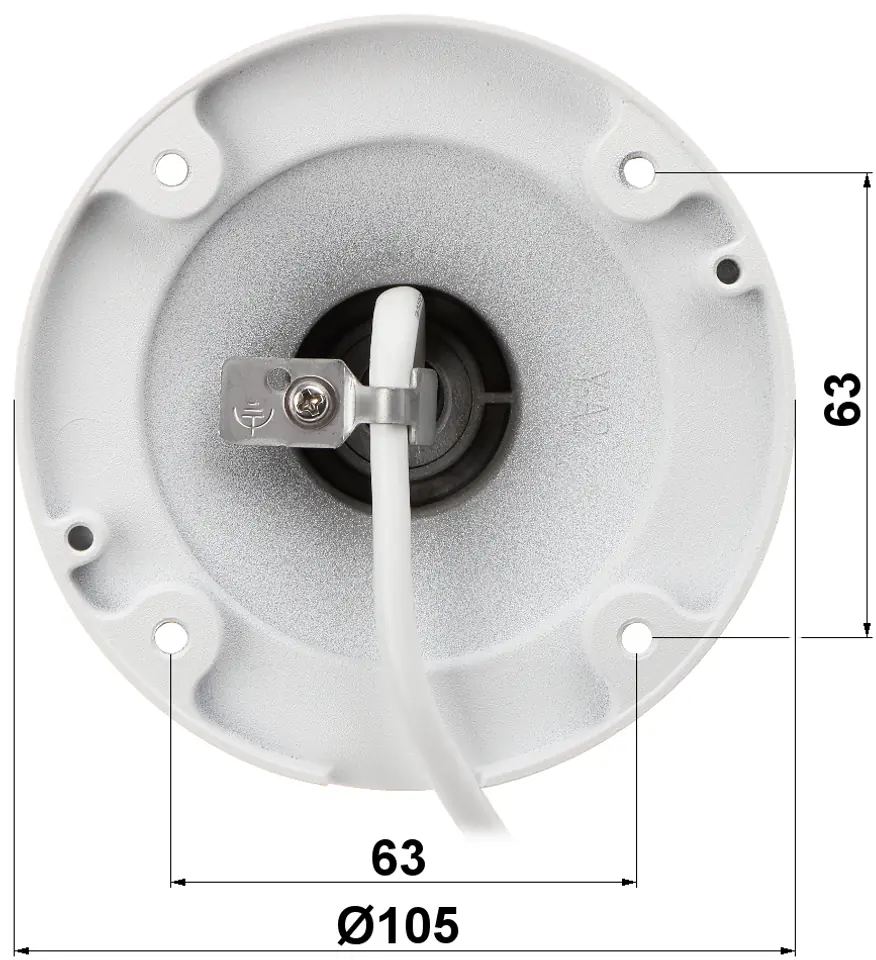

| Dimensions: | Ø 105 x 245 |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Form factor: | Bullet |
|---|
| Frame rate: | 30 fps |
|---|
| Gain control type: | Auto |
|---|
| Heartbeat: | Yes |
|---|
| Housing material: | Metal |
|---|
| Image quality adjustment: | Contrast, Sharpness, Saturation, Brightness |
|---|
| Infra-red wavelength: | 850 nm |
|---|
| Infrared (ir) cut-off filter: | Yes |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ir illuminator range: | 50 m |
|---|
| Led type: | IR |
|---|
| Length: | 24.4 cm |
|---|
| Lens viewing angle, diagonal: | 115° |
|---|
| Lens viewing angle, horizontal: | 98° |
|---|
| Lens viewing angle, vertical: | 51° |
|---|
| Main stream transmission speed: | 25 fps @ 1080p |
|---|
| Max. number of on-line users: | 6 |
|---|
| Maximum aperture number: | 1.6 |
|---|
| Maximum memory card size: | 128 GB |
|---|
| Maximum resolution: | 1920 x 1080 pixels |
|---|
| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Minimum illumination: | 0.01 lx |
|---|
| Mirror: | Yes |
|---|
| Mobile app access port: | 8000 |
|---|
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS (iPhone): Free Hik-Connect app |
|---|
| Mounting type: | Ceiling/wall |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6, Bonjour, UDP, SSL/TLS |
|---|
| Networking standards: | IEEE 802.1x, IEEE 802.3af |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 30 m |
|---|
| Noise reduction: | Yes |
|---|
| Noise reduction technology: | 3D noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of lenses: | 1 |
|---|
| Number of sensors: | 1 |
|---|
| Number of users: | 32 user(s) |
|---|
| Objective: | 2.8 ... 12 mm |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature: | -30 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -30 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
|---|
| Package weight: | 1.54 kg |
|---|
| Pan range: | 0 - 360° |
|---|
| Password protection: | Yes |
|---|
| Pc app access ports: | Port: 8000 or cloud access (P2P) |
|---|
| Placement supported: | Outdoor |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 900 mA |
|---|
| Power consumption: | ≤ 12.9 W @ PoE (802.3af) ≤ 11 W @ 12 V DC |
|---|
| Power consumption (max): | 11 W |
|---|
| Power consumption (power over ethernet (poe)): | 12.9 W |
|---|
| Power source type: | DC, PoE |
|---|
| Privacy masking: | Yes |
|---|
| Producer / brand: | Hikvision |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Yes |
|---|
| Quality of service (qos) support: | Yes |
|---|
| Region of interest (roi) encoding: | Yes |
|---|
| Reset button: | Yes |
|---|
| Resolution: | 1920 x 1080 - 1080p1280 x 720 - 720p |
|---|
| Rtsp url: | Main stream rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ - with authorization Secondary stream rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ - with authorization |
|---|
| Sap code: | 311316235 |
|---|
| Scales: | 0.72 kg |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | D-WDR - Wide dynamic range 3D-DNR - Digital noise reduction in the image ROI - improving the quality of selected parts of the image Anti-Flicker - Technology that eliminates the eye-straining effect of image flickering EXIR - technology of high-efficiency IR LEDs that evenly illuminate the entire scene, both the central point and the corners AGC - Automatic adjustment of image gain Automatic white balance BLC - configurable backlight compensation ICR - Mechanical IR Filter Day/Night Mode Motion Detection Configurable Privacy Zones Mirror - Image Mirroring Sharpness - Sharpening Image Contours |
|---|
| Sensor size: | 2.1 MP |
|---|
| Sensor type: | CMOS |
|---|
| Standard: | TCP/IP |
|---|
| Storage relative humidity (h-h): | 0 - 95% |
|---|
| Storage temperature (t-t): | -30 - 60 °C |
|---|
| Supported graphics resolutions: | 320 x 240, 640 x 360, 1280 x 720 (HD 720), 640 x 480 (VGA), 360 x 240, 1920 x 1080 (HD 1080) |
|---|
| Supported languages: | English, Ukrainian |
|---|
| Supported network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
|---|
| Tilt angle range: | 0 - 90° |
|---|
| Total megapixels: | 2 MP |
|---|
| Transducer: | 1/2.7" Progressive Scan CMOS |
|---|
| Type: | IP security camera |
|---|
| Video compression formats: | M-JPEG, H.265+, H.265, H.264+, H.264 |
|---|
| Video streaming: | Yes |
|---|
| Viewing angle: | 96 ° ... 36 ° (manufacturer's data) 94 ° ... 36° (our tests) |
|---|
| Viewing angle, diagonal: | 115° |
|---|
| Viewing angle, horizontal: | 98° |
|---|
| Viewing angle, vertical: | 51° |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80 |
|---|
| Web server: | Built-in |
|---|
| Web-based management: | Yes |
|---|
| Weight: | 1.01 kg |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | Yes |
|---|
