| 3d nr (noise reduction): | Y |
|---|
| Access point: | N |
|---|
| Alarm input/output: | N |
|---|
| Angle of rotation: | 360° |
|---|
| Angle of view: | 93° (manufacturer data) 94° (our tests) |
|---|
| Audio output: | No |
|---|
| Audio recording: | No |
|---|
| Back light compensation (blc): | Y |
|---|
| Bitrate: | 12 ... 8448 Kb/s - H.26532 ... 10240 Kb/s - H.264 |
|---|
| Bluetooth: | No |
|---|
| Built-in battery: | No |
|---|
| Built-in hdd: | No |
|---|
| Built-in ir leds: | Yes |
|---|
| Built-in microphone: | No |
|---|
| Built-in reflector: | No |
|---|
| Built-in speaker(s): | No |
|---|
| Cabling technology: | 10/100Base-T(X) |
|---|
| Camera pan control: | No |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Camera tilt control: | Yes |
|---|
| Cloud recording: | Yes |
|---|
| Cloud-managed: | Yes |
|---|
| Composite video in: | 1 |
|---|
| Connectivity technology: | Wired |
|---|
| Day/night mode: | Yes |
|---|
| Dc output voltage: | 12V |
|---|
| Dc-in jack: | Y |
|---|
| Dedicated application: | DMSS (Android, iOS), DSS Mobile2 (Android, iOS) |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.108 |
|---|
| Dfu / user manual: | Y |
|---|
| Diagonal angle of view (max): | 111° |
|---|
| Diameter: | 7 cm |
|---|
| Digital zoom: | 16x |
|---|
| Electronic fog removal: | Yes |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Fixed focal length: | 2.8 mm |
|---|
| Flip & mirror: | Y |
|---|
| Form factor: | Tube/dome |
|---|
| Frame rate: | 30 fps |
|---|
| Full hd: | Y |
|---|
| Highlight compensation (hlc): | Y |
|---|
| Horizontal rotation angle: | 0 - 360° |
|---|
| Housing material: | Metal |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Image sensor size: | 1/3" |
|---|
| Infrared (ir) cut-off filter: | Yes |
|---|
| Integrated antenna: | N |
|---|
| Internal memory: | 512 MB |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ir illuminator range: | 30 m |
|---|
| Led type: | IR |
|---|
| Length: | 164,4 mm |
|---|
| Lens diameter: | 2.8 mm |
|---|
| Lens mount interface: | M12 |
|---|
| Lens type: | Fixed focal length lens |
|---|
| Main stream transmission speed: | 20 fps @ 4 Mpx25 fps @ 3 Mpx |
|---|
| Management software: | Smart PSS, DSS,Easy4ip |
|---|
| Maximum aperture number: | 2 |
|---|
| Maximum data transfer rate: | 100 Mbit/s |
|---|
| Maximum frame rate: | 30 fps |
|---|
| Maximum resolution: | 2688 x 1520 pixels |
|---|
| Memory card slot(s): | No |
|---|
| Mimo: | N |
|---|
| Mirror: | Y |
|---|
| Mirror display mode: | Yes |
|---|
| Mobile app access port: | 37777 |
|---|
| Mobile operating systems supported: | iOS |
|---|
| Motion detection: | Yes |
|---|
| Motion sensor: | Yes |
|---|

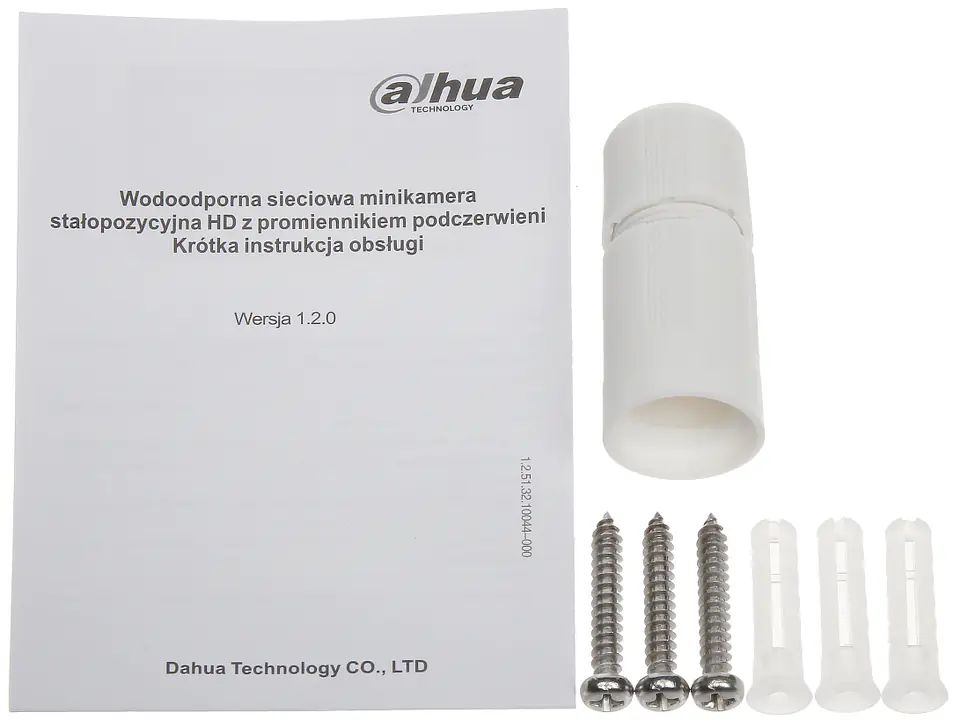

| Mounting kit: | Yes |
|---|
| Mounting type: | Ceiling/Wall/Pole |
|---|
| Multicast support: | Yes |
|---|
| Network protocols: | HTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, RTMP, SFTP, IEEE 802.1x, Multicast, ICMP, IGMP |
|---|
| Networking standards: | IEEE 802.3af |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 30 m |
|---|
| Noise reduction technology: | 3D-DNR digital noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of effective pixels (h x v): | 2688 x 1520 pixels |
|---|
| Number of illumination leds: | 18 |
|---|
| Number of infrared leds: | 18 |
|---|
| Number of lenses: | 1 |
|---|
| Number of users: | 20 user(s) |
|---|
| On screen display (osd) languages: | Russian, Czech, Portuguese, French , German, Italian, Dutch, Spanish, Polish, English |
|---|
| Onvif: | 18.12 |
|---|
| Onvif standard: | Yes |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature (t-t): | -40 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 3 mm (1 / 3") |
|---|
| Package weight: | 510 g |
|---|
| Pan range: | 0 - 360° |
|---|
| Pc app access ports: | 37777 |
|---|
| Placement supported: | Indoor/outdoor |
|---|
| Power consumption (max): | 5.7 W |
|---|
| Power consumption (typical): | 6 W |
|---|
| Power over ethernet (poe): | Yes |
|---|
| Power source type: | DC, PoE |
|---|
| Privacy masking: | Yes |
|---|
| Product colour: | Black |
|---|

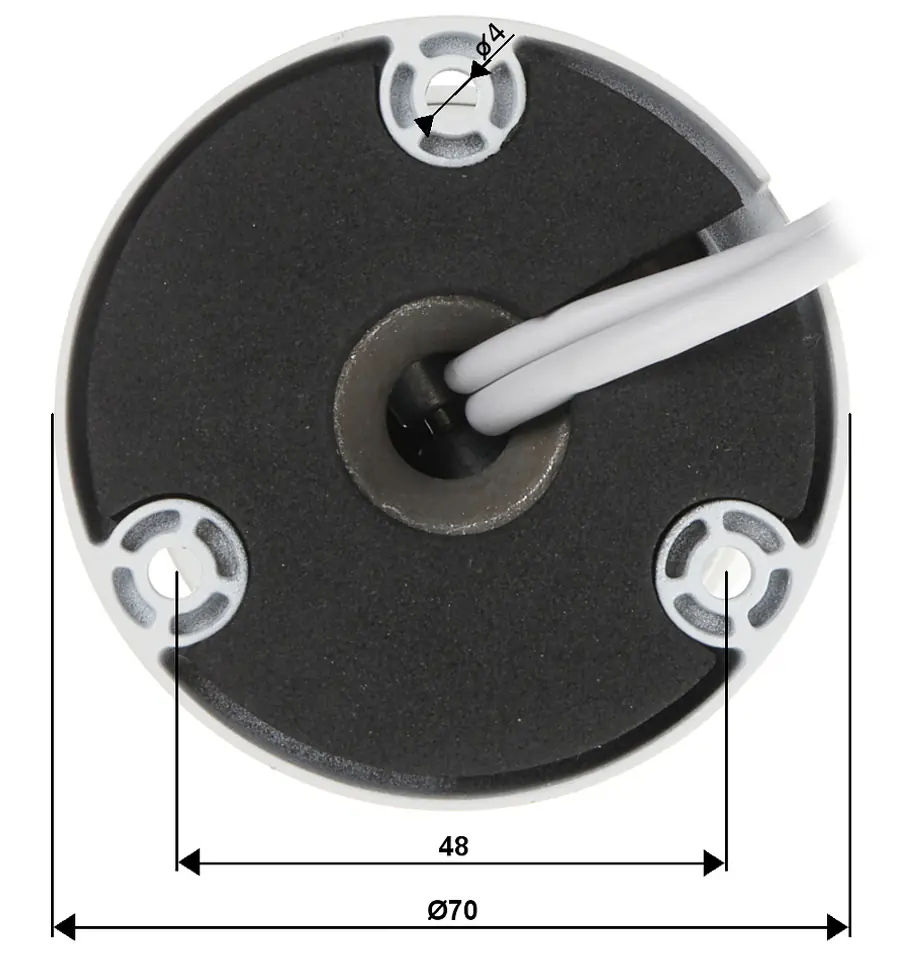

| Product diameter: | 70 mm |
|---|
| Progressive scan: | Y |
|---|
| Recording in colour: | Yes |
|---|
| Region of interest (roi) encoding: | Yes |
|---|
| Rj-45 ports quantity: | 1 |
|---|
| Rom capacity: | 32 MB |
|---|
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
|---|
| Scanning system: | Progressive |
|---|
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC/HLC - compensation of background light / strong light Ability to change resolution, quality and bandwidth Motion detection Configurable privacy zones Mirror - Mirror image |
|---|
| Sensor type: | Progressive Scan CMOS |
|---|
| Signal-to-noise ratio (snr): | 50 dB |
|---|
| Smart ir: | Y |
|---|
| Standard: | TCP/IP |
|---|
| Storage temperature (t-t): | -40 - 60 °C |
|---|
| Streaming method: | Multicast, Unicast |
|---|
| Supported graphics resolutions: | 1280 x 720 (HD 720), 2560 x 1440, 2688 x 1520, 1920 x 1080 (HD 1080), 2304 x 1296 |
|---|
| Supported languages: | Polish, Czech, English, French, German, Italian, Portuguese, Russian, Spanish |
|---|
| Supported network protocols: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE,DDNS, FTP, P2P |
|---|
| Supported video modes: | 1296p, 960p, 1520p, 720p, 1440p, 240p, 480p, 1080p, 576p |
|---|
| Tilt angle range: | 0 - 90° |
|---|
| Total megapixels: | 4 MP |
|---|
| Transducer: | 1/3" Progressive Scan CMOS |
|---|
| Two-way talk: | N |
|---|
| Type: | IP security camera |
|---|
| Vertical rotation angle: | 0 - 90° |
|---|
| Video compression formats: | H.265+, H.264+, H.265, H.264B, M-JPEG, H.264 |
|---|
| Video motion detection: | Y |
|---|
| Video streaming: | Y |
|---|
| Viewing angle, horizontal: | 93° |
|---|
| Viewing angle, vertical: | 53° |
|---|
| Web access ports: | 80, 37777 |
|---|
| Web-based management: | Yes |
|---|
| Weight: | 400 g |
|---|
| Weight (with stand): | 380 g |
|---|
| White balance: | Manual, Auto, Lamp, Outdoor, Natural |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | 120 dB |
|---|
| Zoom capability: | Y |
|---|
