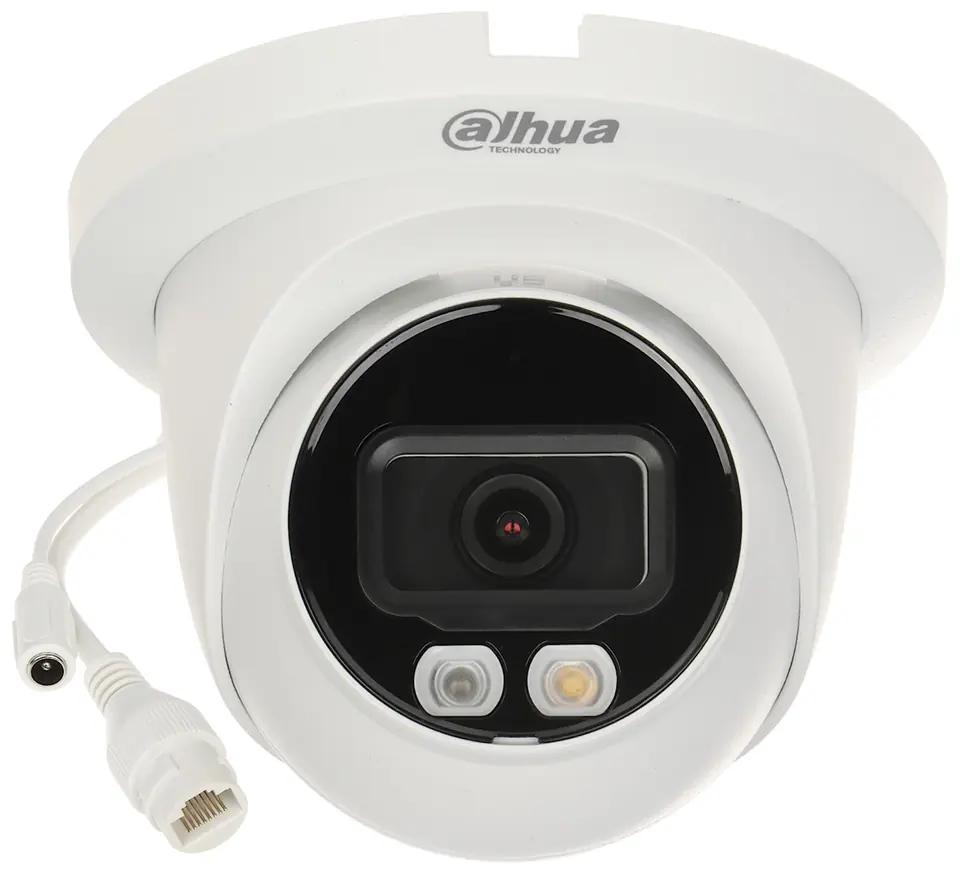

IP CAMERA DAHUA IPC-HDW2549TM-S-IL-0280B
This product is not available
- Availability:
- expected delivery
- Brand:
- Dahua
- Product code:
- IPC-HDW2549TM-S-IL-0280B / 6923172581624
Share this product:
Specification
| Adjustment shutter speed: | Auto/Manual |
|---|---|
| Audio formats supported: | G.711Mu, G.726, G.711a, PCM |
| Back light compensation (blc): | Yes |
| Bit rate: | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in hdd: | No |
| Built-in microphone: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Closest focusing distance: | 1.1 m |
| Connectivity technology: | Wired |
| Dc output voltage: | 12 |

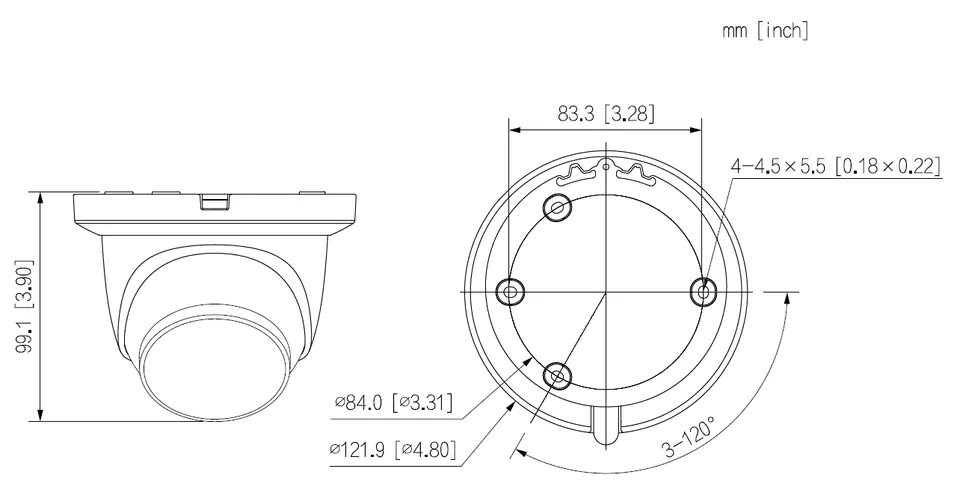

| Diameter: | 12.2 cm |
| Ethernet interface type: | Fast Ethernet |
| Focal length range: | 2.8 mm |
| Form factor: | Dome |
| Frame rate: | 30 fps |
| Gain control type: | Auto/Manual |
| Height: | 99.1 mm |
| Highlight compensation (hlc): | Yes |
| Housing material: | Metal, Plastic |
| Internal memory: | 256 MB |
| International protection (ip) code: | IP67 |
| Led type: | IR / White light LED |
| Lens type: | Fixed focal length lens |
| Lens viewing angle, diagonal: | 132° |
| Lens viewing angle, horizontal: | 111° |
| Lens viewing angle, vertical: | 58° |
| Maximum aperture number: | 1.6 |
| Maximum resolution: | 2960 x 1668 px |
| Minimum illumination: | 0.007 lx |
| Mirror function: | Yes |

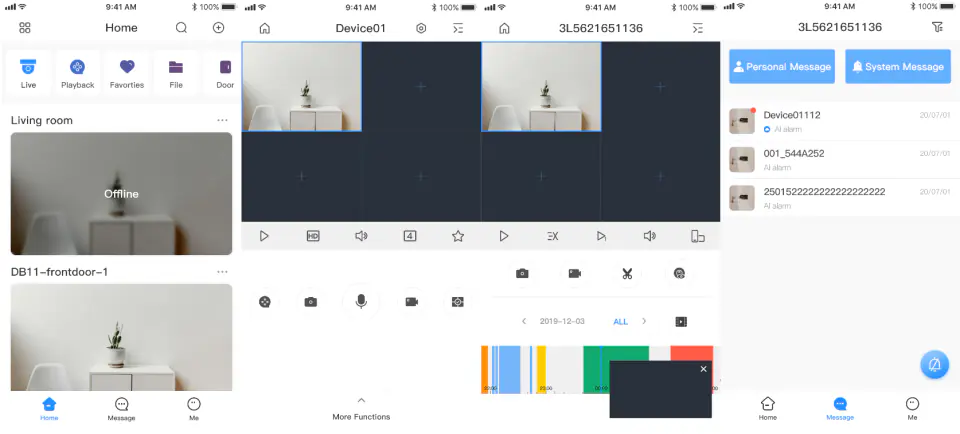

| Mobile operating systems supported: | iOS, Android |

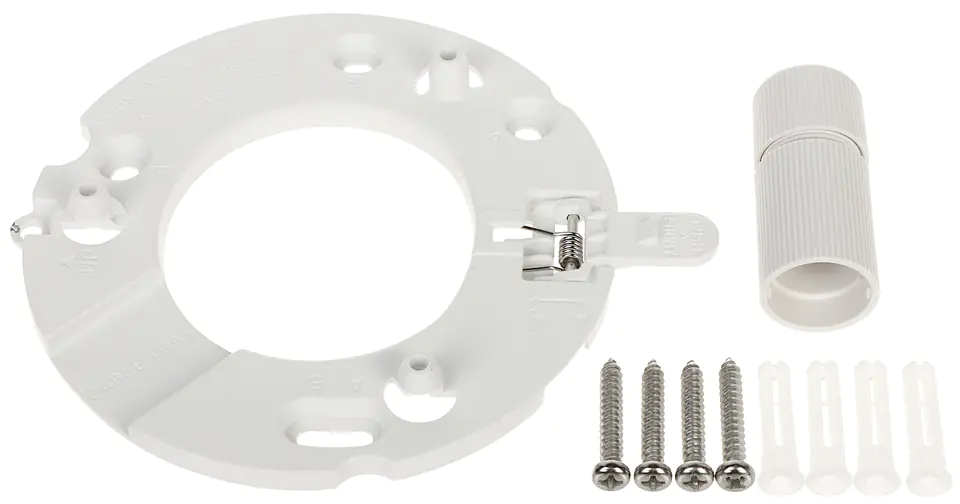

| Mounting type: | Ceiling |
| Networking standards: | IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 30 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of illumination leds: | 2 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 20 user(s) |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -40 - 60 °C |
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
| Pan range: | 0 - 360° |
| Placement supported: | External / Internal |
| Power consumption (max): | 4.6 W |
| Power consumption (power over ethernet (poe)): | 5.4 W |
| Power source type: | DC, PoE |
| Product colour: | White |
| Progressive scan: | Yes |
| Quality of service (qos) support: | Yes |
| Region of interest (roi) encoding: | Yes |
| Rom capacity: | 128 MB |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 56 dB |
| Storage temperature (t-t): | -40 - 60 °C |
| Supported graphics resolutions: | 352 x 288, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 640 x 480 (VGA), 1280 x 720, 2880 x 1620, 2960 x 1668, 704 x 480, 2688 x 1520, 352 x 240, 2304 x 1296, 704 x 576, 1280 x 960 |
| Tilt angle range: | 0 - 78° |
| Total megapixels: | 5 MP |
| Type: | IP security camera |
| Video compression formats: | H.265, H.264H, H.265+, H.264, M-JPEG, H.264+, H.264B |
| Video streaming: | Yes |
| Web browser: | Yes |
| Web-based management: | Yes |
| Weight: | 480 g |
| White balance: | Manual, Street lamp, Outdoor, Auto, Natural |
| Wi-fi: | No |
| Wide dynamic range (wdr): | 120 dB |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
