INVERTER WELDING MACHINE TECNOTIG 212 DC PULSE DIGITAL

Specifications:

Power 7,2 kW
Idle voltage 64 V
Maximum current 210 A / 25%
Operating current 60% 140 A
Welding electrode diameter 1.6 - 4.0
Welding current adjustment range 5 - 210 A
Current drawn from the mains 23 A
20A mains protection
Rated supply voltage 230 V 50Hz (1ph)
Protection class IP23S
Weight 7,2 kg without accessories
Overall dimensions L x W x H 375x134x240 mm



TECNOTIG 212 DC PULSE DIGITAL is a professional inverter welding machine for TIG and TIG PULS welding and MMA electrode coated with direct current (DC).
The device has four welding modes: TIG DC, TIG DC PULS, MMA.
The TIG DC and TIG DC PULS functions are used for welding stainless steel, carbon and low-alloy steels, copper and titanium.
The arc ignites in non-contact (HF) or tactile (LIFT) mode.
Clear and easy to use digital control panel allows accurate adjustment, and the device ensures stable parameters and high quality welding.
The digital display makes it easy to adjust the parameters of the welding machine.
Additional features of the device:
Digital parameter display
2-bar / 4-bar
The welding machine also has adjustable functions to facilitate the MMA welding process with a coated electrode:
ARC FORCE: short-circuit current regulation - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the electrode droplet comes into contact with the weld pool
HOT START: hot start - facilitates the ignition of the electrode by supplying more welding current with each arc ignition.
Single-phase power supply.
Fan-cooled.
Overload protection.



The set includes:

TIG welding torch 4m and parts for the torch,
electrode wire MMA 3m,
3m ground cable.

**

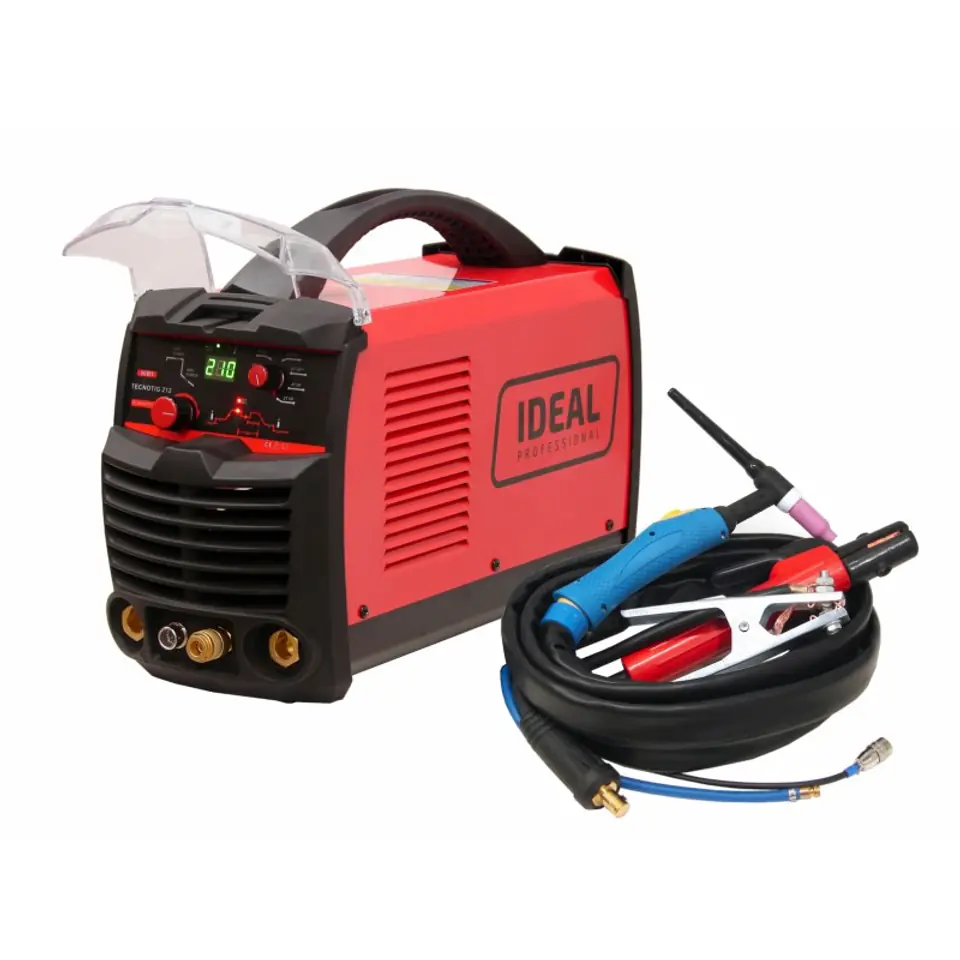

Illustrative photo.
