INVERTER WELDING MACHINE TECNOARC 211 IGBT MMA/TIG VRD

Specifications:

Current drawn from mains: 42A
Mains protection: 20 A
Rated supply voltage: 230V 50Hz (1ph)
Power: 7,3 kW
Idle voltage: 80 V
Maximum current: 200 A - 60%
Operating current 60%: 200 A
Welding electrode diameter: 1.6 - 4.0
Welding current adjustment range: 10 - 200 A
Protection class: IP23
Overall dimensions L x W x H: 360x130x230 mm
Package dimensions L x W x H: 400x220x290 mm



The TECNO ARC 211 IGBT MMA/TIG VRD is an inverter welding machine for MMA electrode coated with direct current (DC) and TIG direct current (DC) welding with short-circuit arc ignition. It allows welding with rutile electrodes, alkaline, stainless steel and cast iron. Electronically controlled, stepless regulation of welding current. Small size and weight make the device perfect for both workshop and field work.

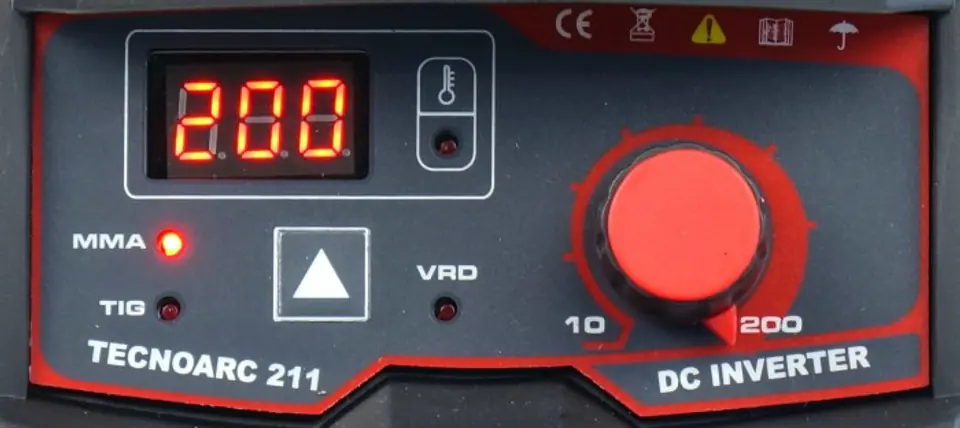

Clear digital display allows accurate adjustment of the device, ensures stable parameters and high quality welding

VRD (Voltage Reduction Device) function - reduces the idle idle voltage at the electrode to a safe value. Provides safety against electric shock when working in a humid environment.

The welding machine has functions that facilitate the MMA welding process with a coated electrode:
ARC FORCE: short-circuit current regulation - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the electrode droplet comes into contact with the weld pool

HOT START: hot start adjustment - facilitates the ignition of the electrode by supplying more welding current with each arc ignition.

ANTI STICK: short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents accidental formation of a welding arc

Physical parameters
The device has a fan cooling system, which significantly increases its efficiency.

The device is equipped with overload protection, which increases its reliability.

Power parameters
Single phase power supply 230V. The device is equipped with a power plug.

Equipment

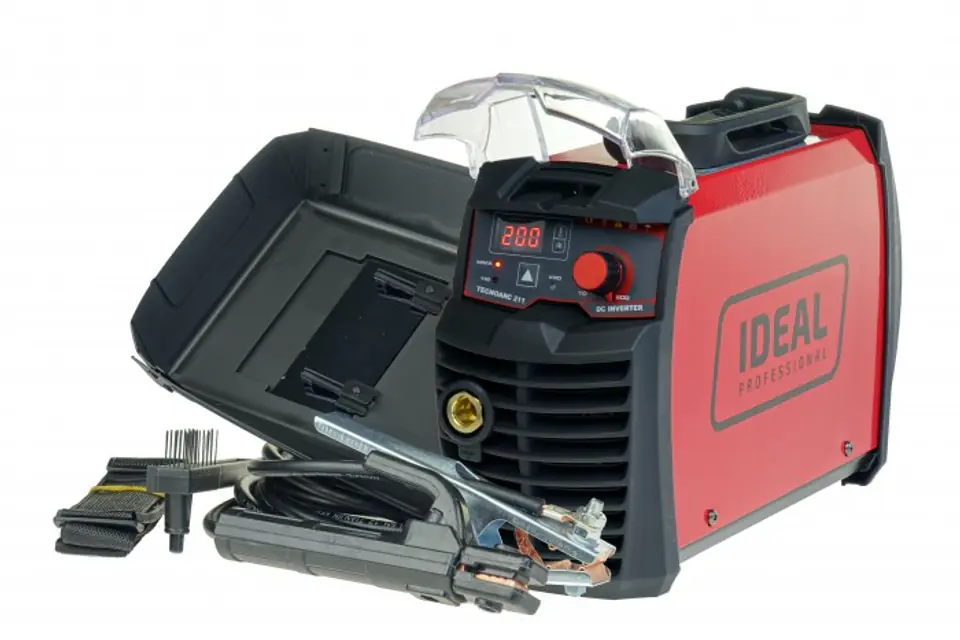

The delivery includes a device with a 3m MMA electrode wire, a 2m ground wire.


**

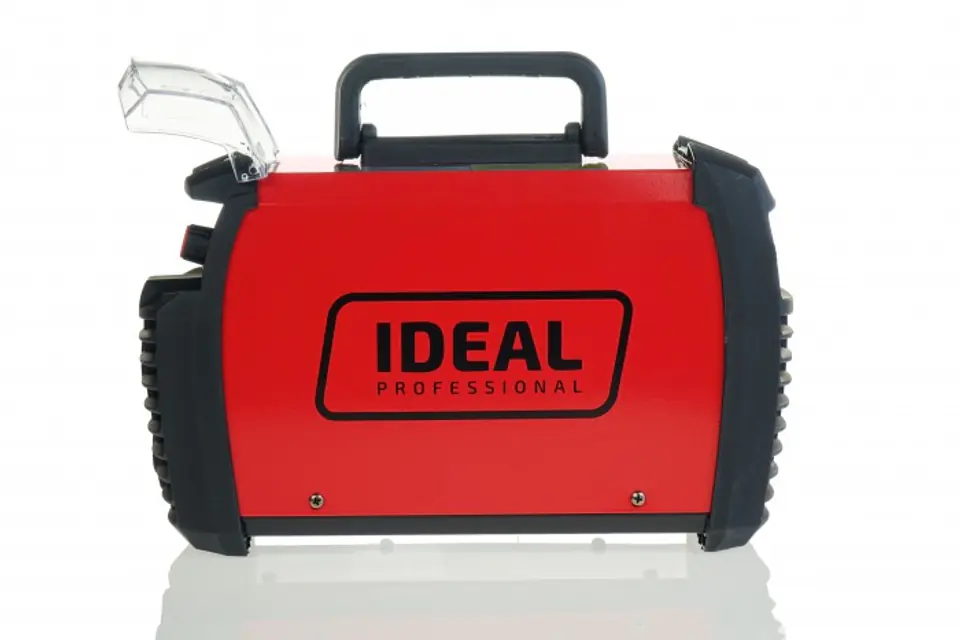

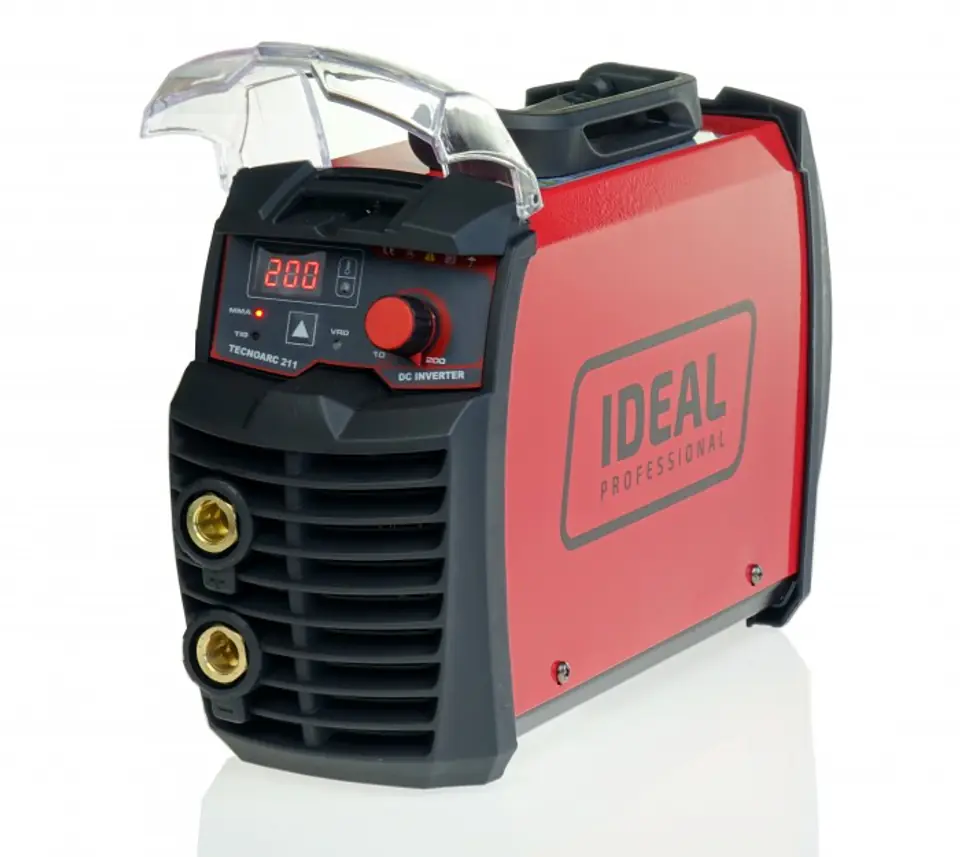

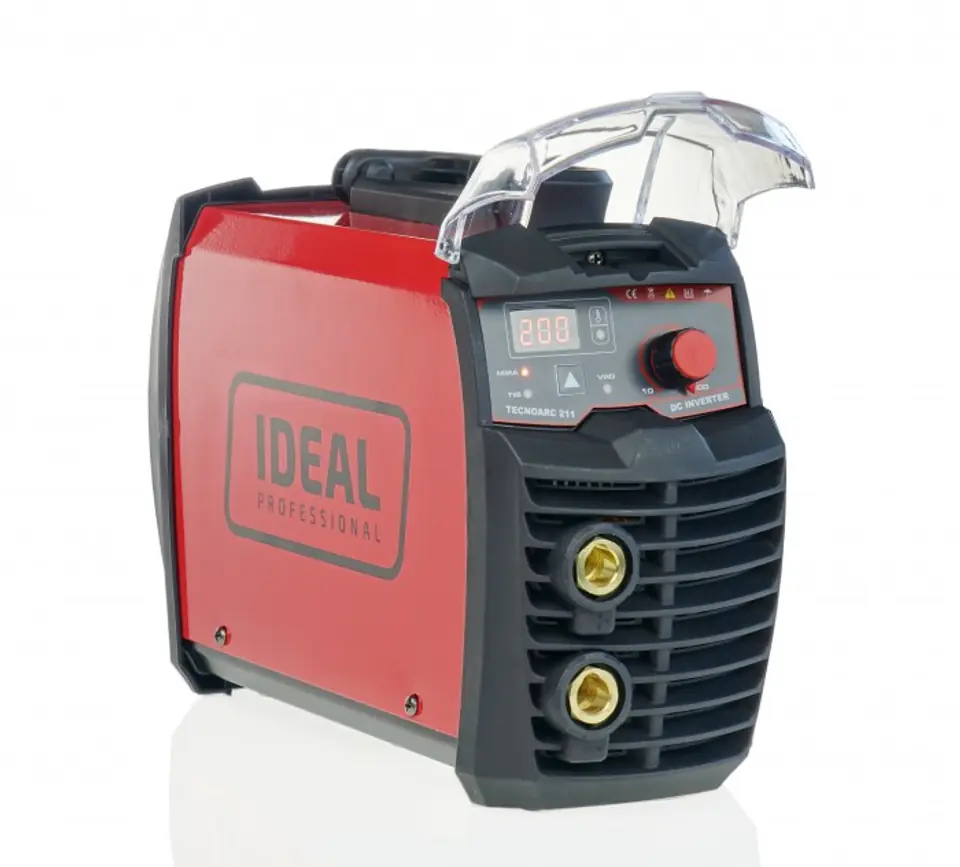

Illustrative photo
