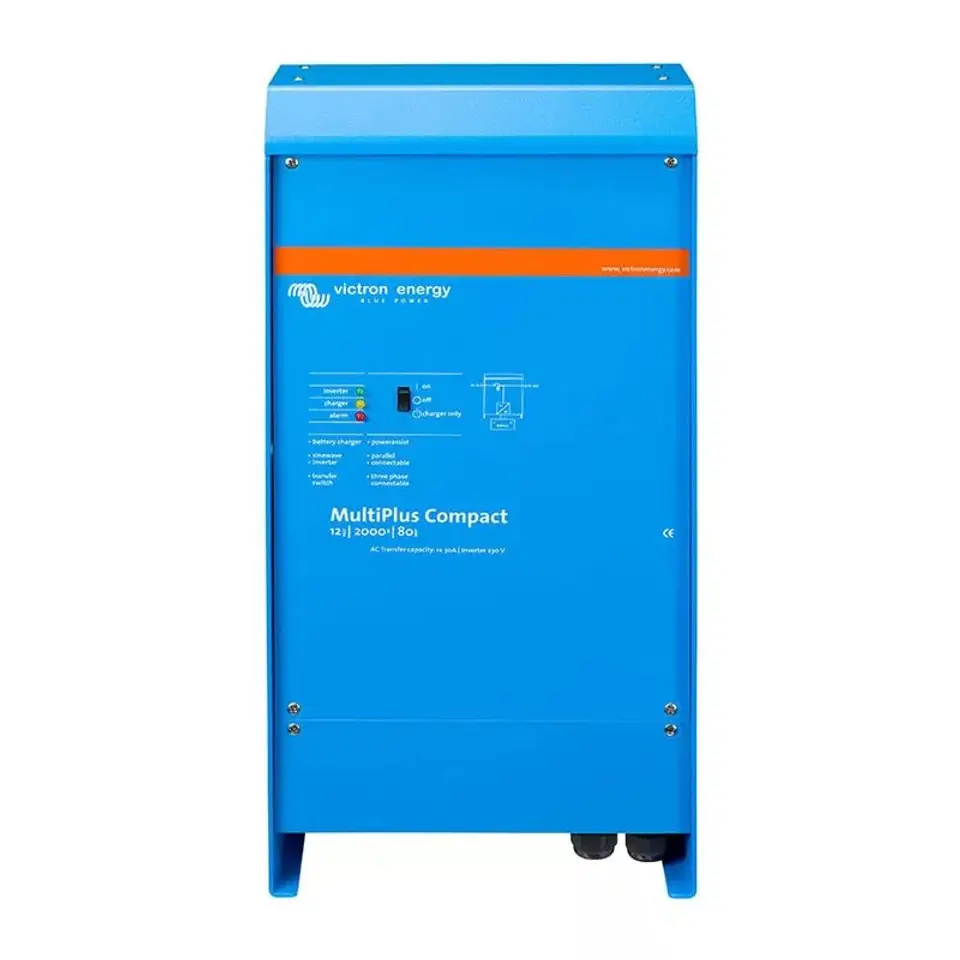

Inverter VICTRON ENERGY MultiPlus Compact 12/2000/80-30 230V VE.Bus (CMP122200000)
€1,464.04
Shipping from warehouse: H6
Estimated shipping: Wed, Apr 29 - Mon, May 4
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Victron Energy
- Product code:
- CMP122200000 / 8719076037538
Share this product:
Specification
| Ac input voltage: | 187 - 265 V |
|---|---|
| Apparent power: | 2000 VA |
| Brand compatibility: | Victron Energy |
| Built-in display: | No |
| Charging the current battery: | 80 A |
| Charging voltage (absorption): | 14.4 V |
| Charging voltage (liquid): | 13.8 V |
| Dc input voltage: | 12 V |
| Depth: | 125 mm |
| Dip switch: | Yes |
| Efficiency: | 93% |
| Frequency: | 50 Hz |
| Frequency range: | 45 - 65 Hz |
| Height: | 520 mm |
| Input voltage: | 9.5 - 17 V |
| International protection (ip) code: | IP21 |
| Material: | Aluminium |
| Mounting type: | M8 |
| Number of ve.bus ports: | 1 |
| Ongoing charging of the starter battery: | 4 A |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -40 - 65 °C |
| Output power at 25°c: | 1600 W |
| Output power at 40°c: | 1400 W |
| Output power at 65°c: | 1000 W |
| Output voltage: | 230 V |
| Peak power: | 4000 W |
| Power at zero load: | 9 W |
| Power current type: | DC/AC |
| Power protection features: | Over voltage, Overheating, Overvoltage protection, Over power, Under voltage |
| Product colour: | Blue |
| Protection class: | a - g |
| Purpose: | Solar panel |
| Quantity per pack: | 1 pc(s) |
| Three-phase and parallel operation: | Yes |
| Weight: | 12 kg |
| Width: | 255 mm |
