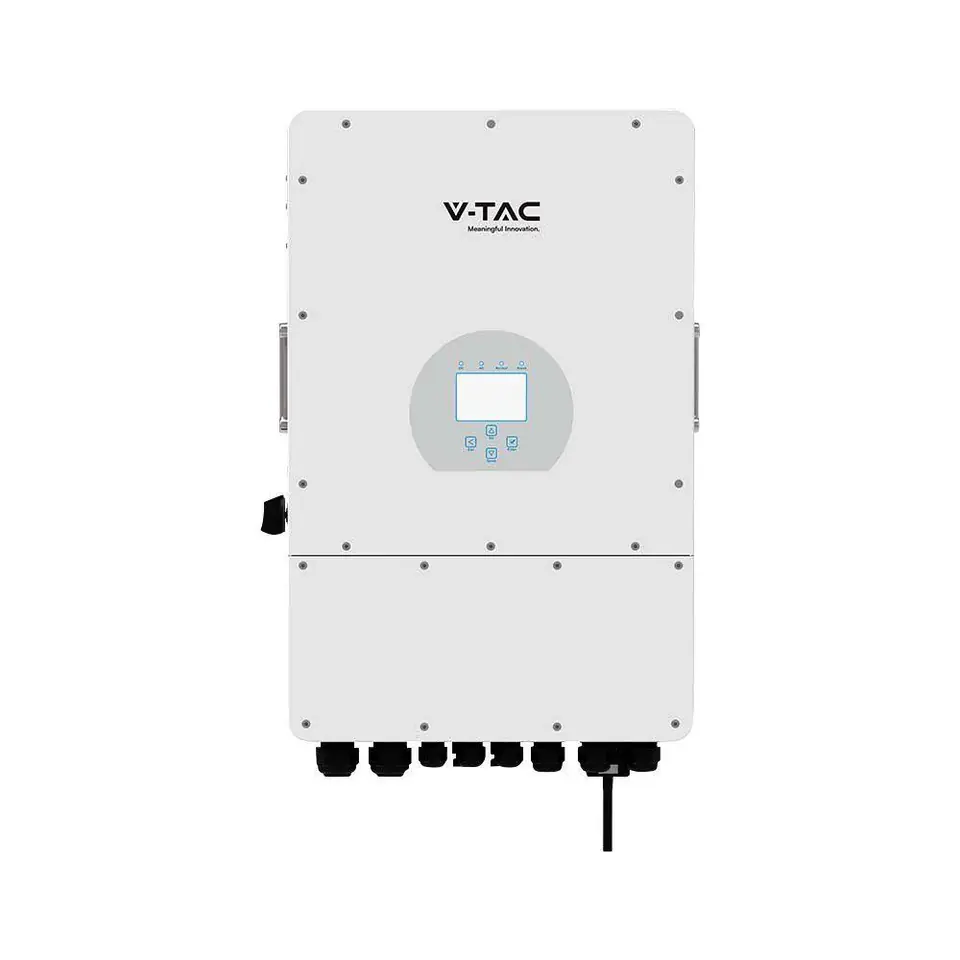

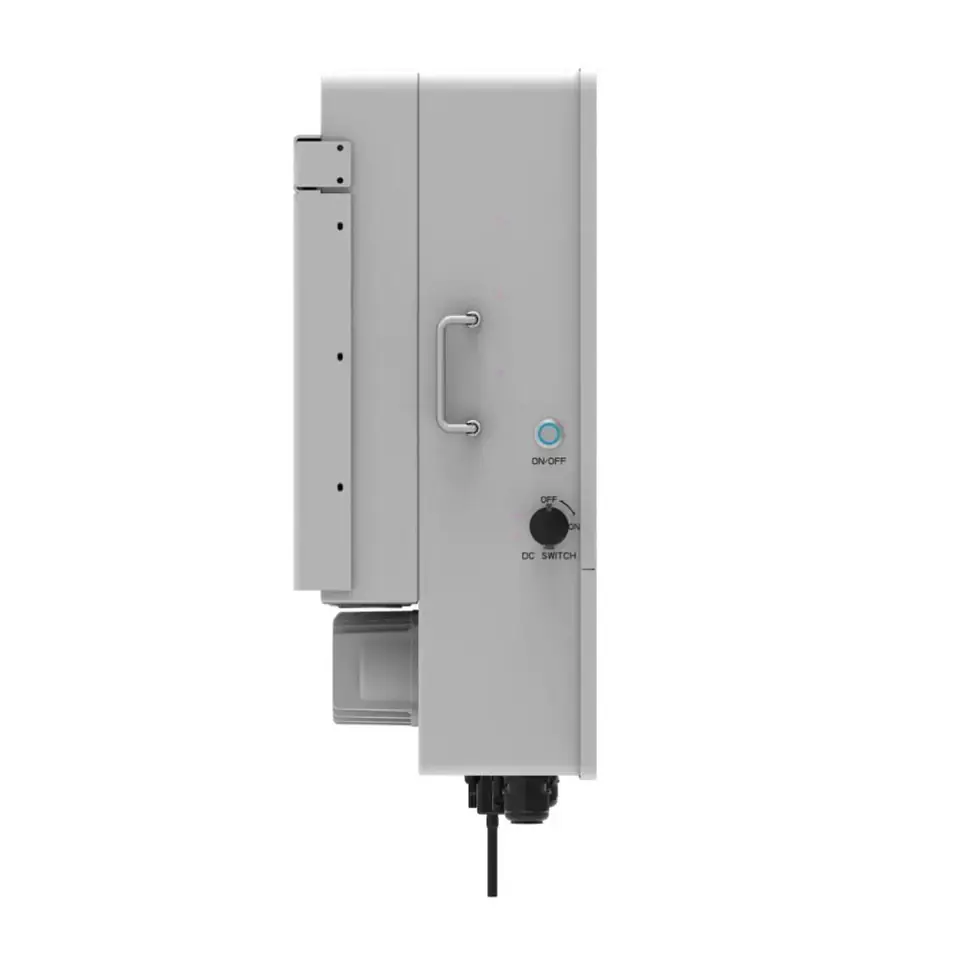

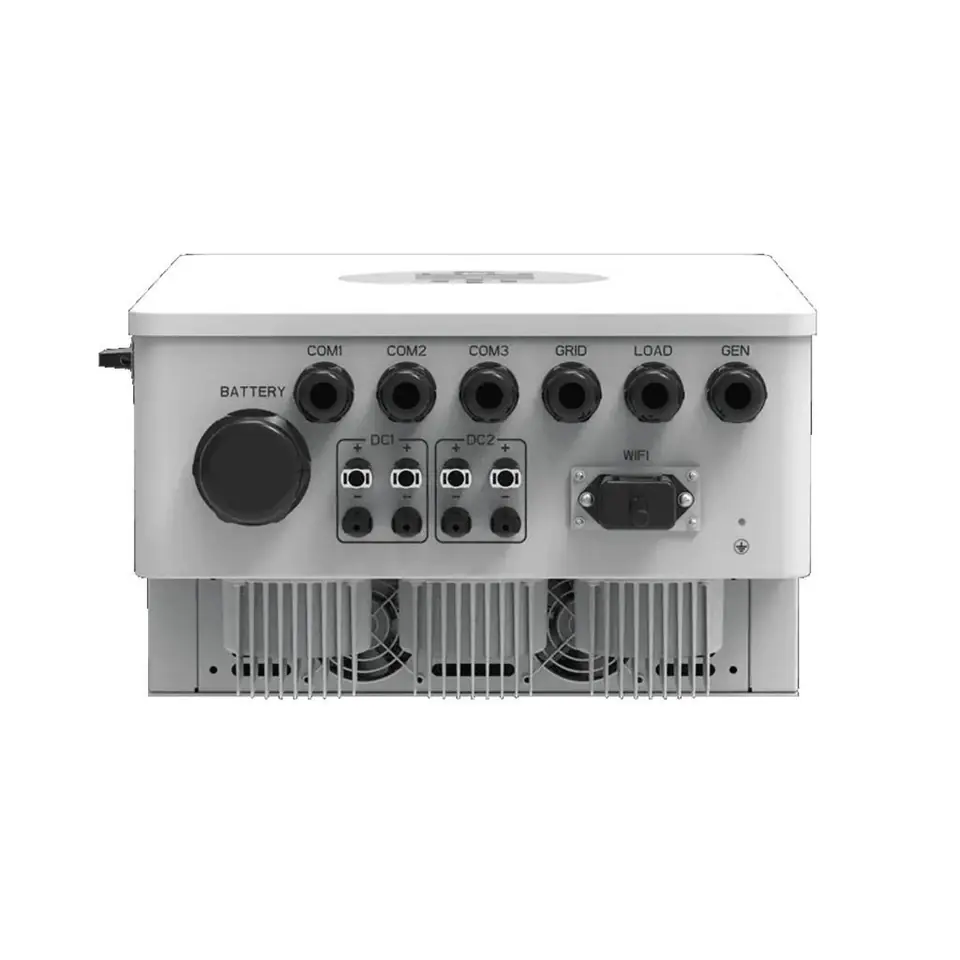

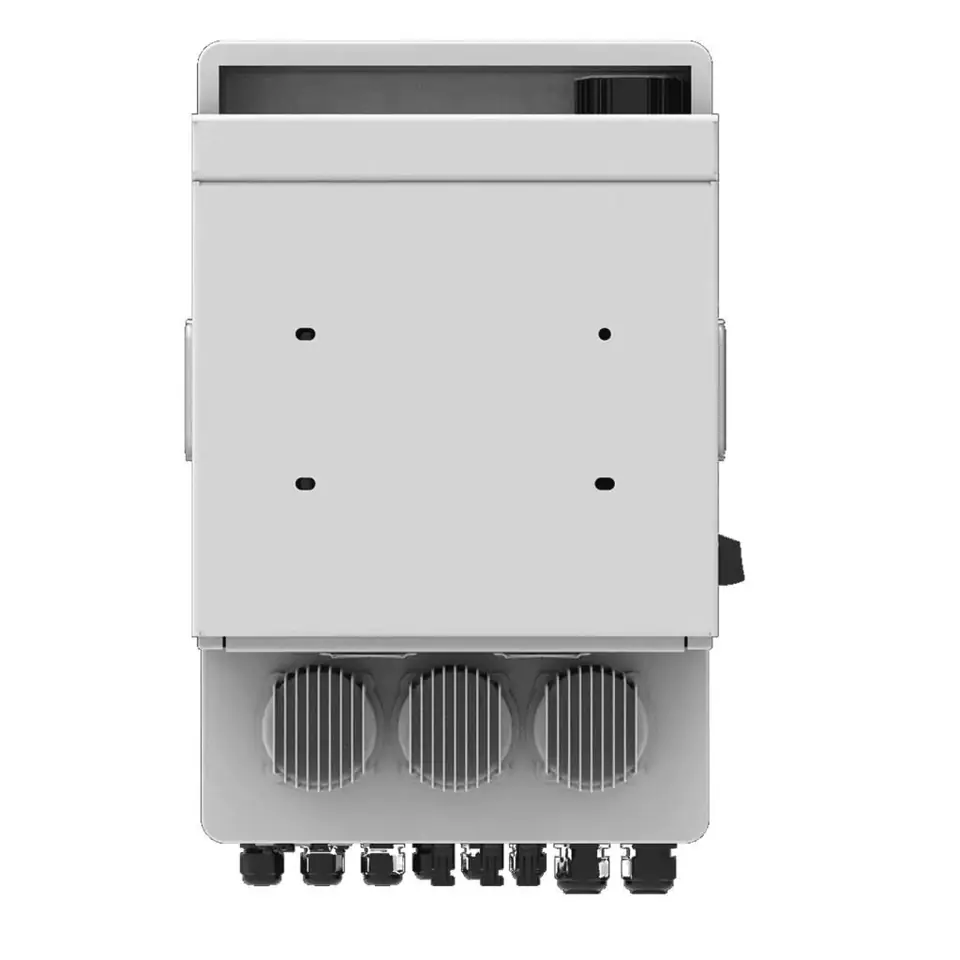

Inverter Inverter V-TAC 12KW ON GRID/OFF GRID HYBRID Three Phase SUN-12K-SG04LP3-EU SUN-12K-SG04LP3-EU
This product is not available
- Availability:
- expected delivery
- Brand:
- V-tac
- Product code:
- SKU11543 / 3800157697224
Share this product:
Specification
| Built-in display: | LCD |
|---|---|
| Dc voltage range: | 350 - 650 V |
| Depth: | 279 mm |
| Height: | 699.3 mm |
| Input current: | 26 + 13 A |
| International protection (ip) code: | IP65 |
| Maximum ac current: | 27.3/26.1 A |
| Maximum charging current: | 240 A |
| Maximum continuous ac current: | 40 A |
| Maximum discharge current: | 240 A |
| Maximum input power (dc): | 15600 W |
| Maximum output power: | 13200 W |
| Maximum pv isc current: | 34 + 17 A |
| Mppt voltage range: | 200 - 650 V |
| Noise level: | 45 dB |
| Nominal input voltage: | 550 V |
| Number of mpp trackers: | 2 |
| Number of phases: | 3 |
| Operating temperature (t-t): | -40 - 60 °C |
| Overcurrent protection: | Yes |
| Overvoltage protection: | Y |
| Polarity reverse circuit protection: | Yes |
| Power current type: | DC/AC |
| Product colour: | White |
| Protection class: | AC: III; DC: ll |
| Quantity per pack: | 1 pc(s) |
| Rated ac output power: | 12000 W |
| Rated current: | 18.2/17.4 A |
| Short circuit protection: | Yes |
| Standard interfaces: | RS485, CAN |
| Starting voltage: | 160 V |
| Strings for mpp tracker: | 2+1 |
| Touchscreen: | Yes |
| Weight: | 33.6 kg |
| Width: | 422 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
