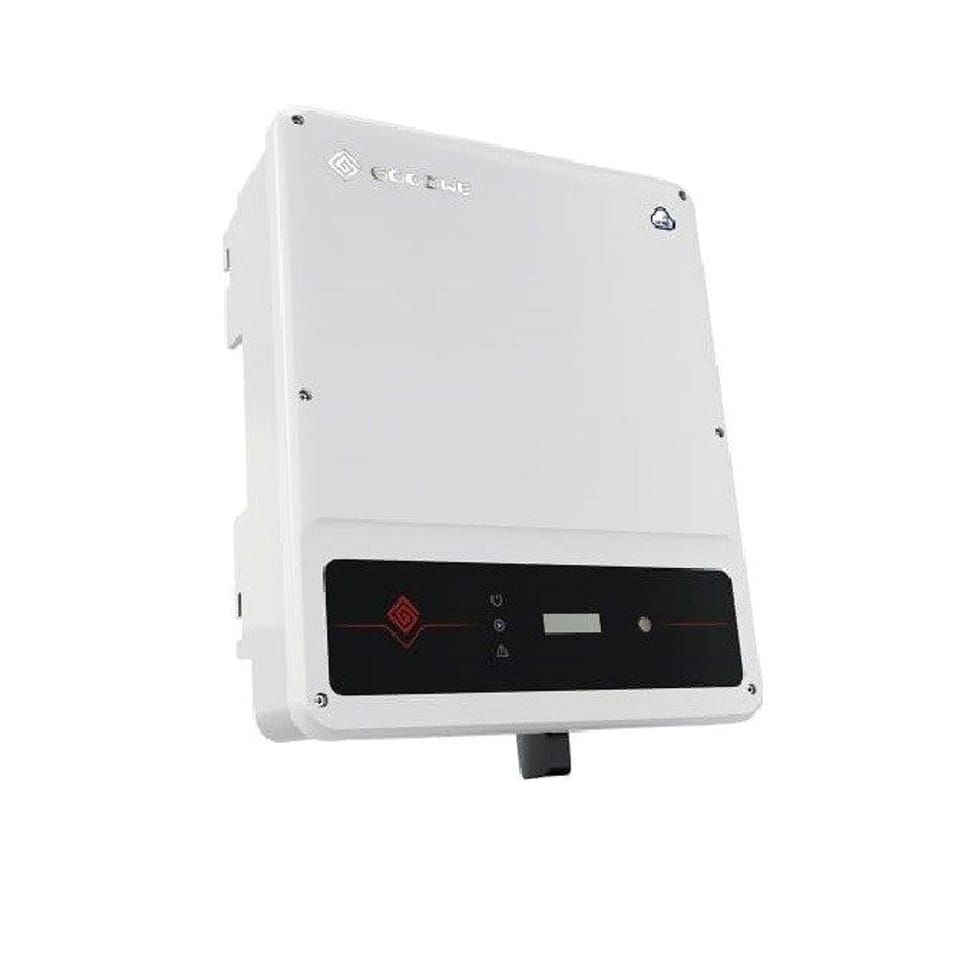

Inverter GoodWe GW5K-DT SDT G2 series 3-phase
This product is not available
- Availability:
- expected delivery
- Brand:
- GOODWE
- Product code:
- GW5K-DT /
Share this product:
Specification
| Apparent power: | 5500 VA |
|---|---|
| Built-in display: | Yes |
| Cooling type: | Convection |
| Dc input voltage: | 1000 V |
| Depth: | 147 mm |
| Display type: | LED |
| Efficiency: | 98.2% |
| Ethernet lan: | Yes |
| Frequency: | 50 / 60 Hz |
| Height: | 433 mm |
| International protection (ip) code: | IP65 |
| Led indicators: | Yes |
| Maximum input power: | 7500 W |
| Mppt voltage range: | 180 - 850 V |
| Nominal ac power: | 5000 W |
| Nominal voltage: | 620 V |
| Number of mppt ports: | 2 |
| Number of phases: | 3 |
| Operating relative humidity (h-h): | 0 - 100% |
| Operating temperature (t-t): | -30 - 60 °C |
| Output voltage: | 400 V |
| Overvoltage protection: | Y |
| Power current type: | DC-to-AC |
| Power supply type: | Indoor |
| Product colour: | White |
| Purpose: | Solar panel |
| Quantity per pack: | 1 pc(s) |
| Rs-485 ports: | 1 |
| Starting voltage: | 160 V |
| Weight: | 15 kg |
| Wi-fi: | Yes |
| Width: | 354 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
