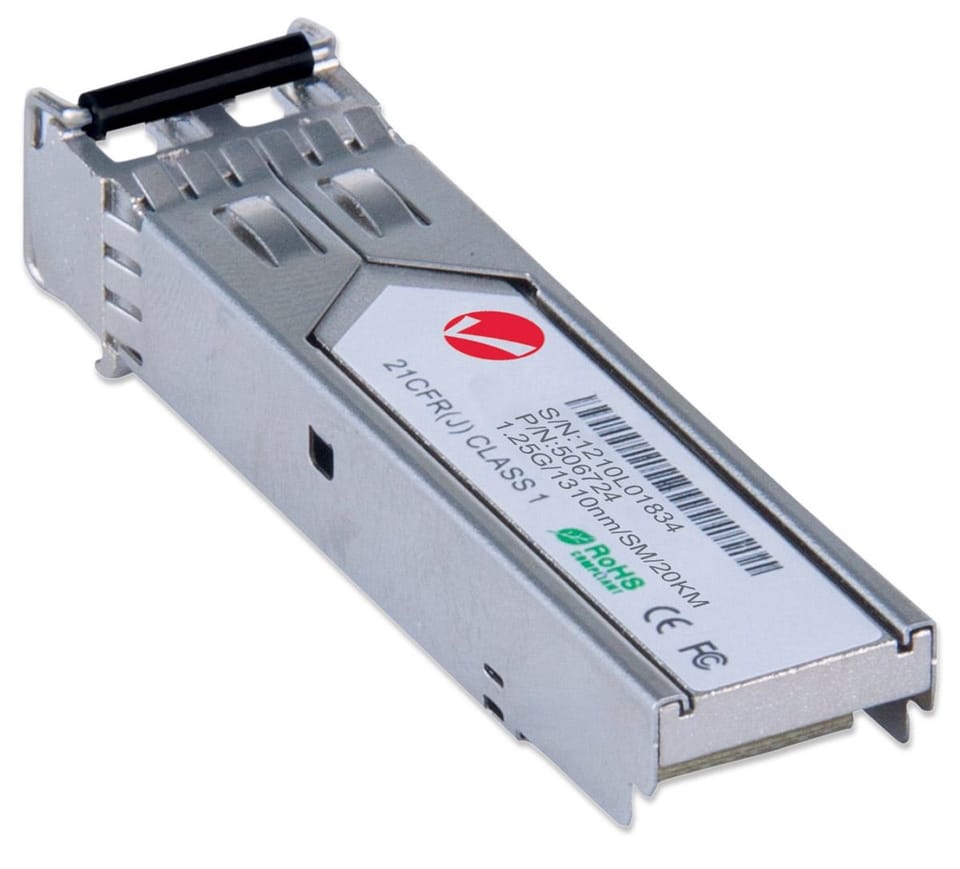

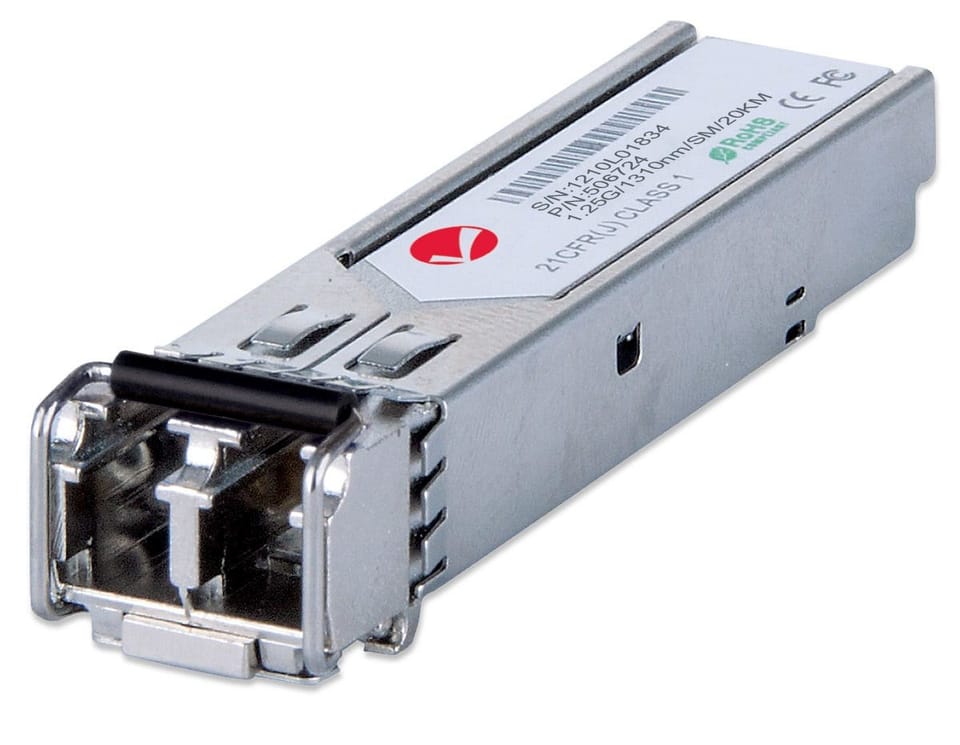

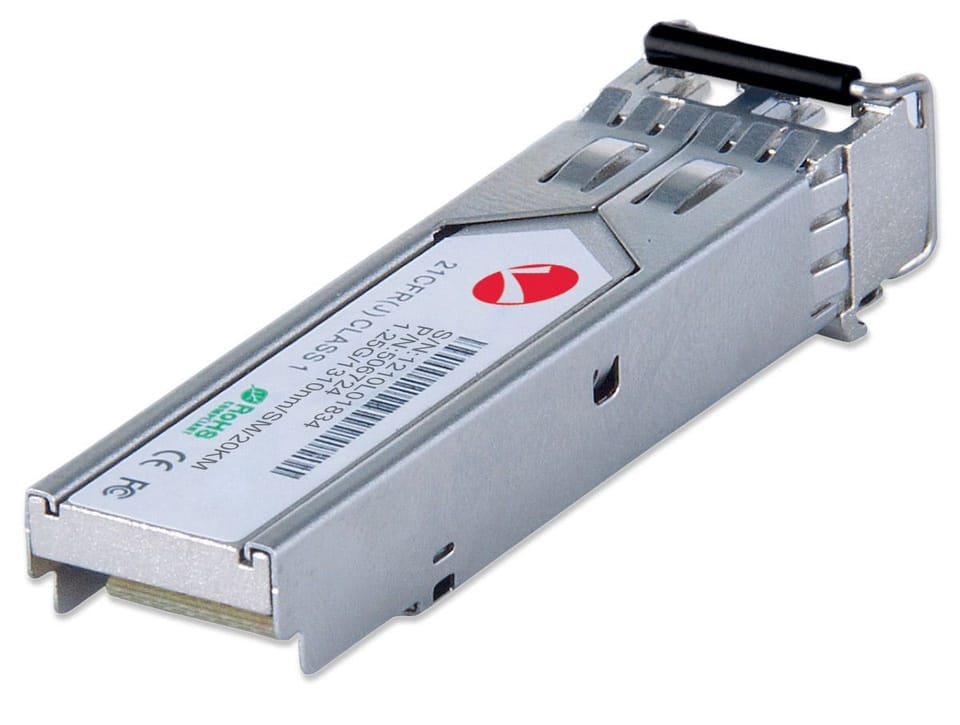

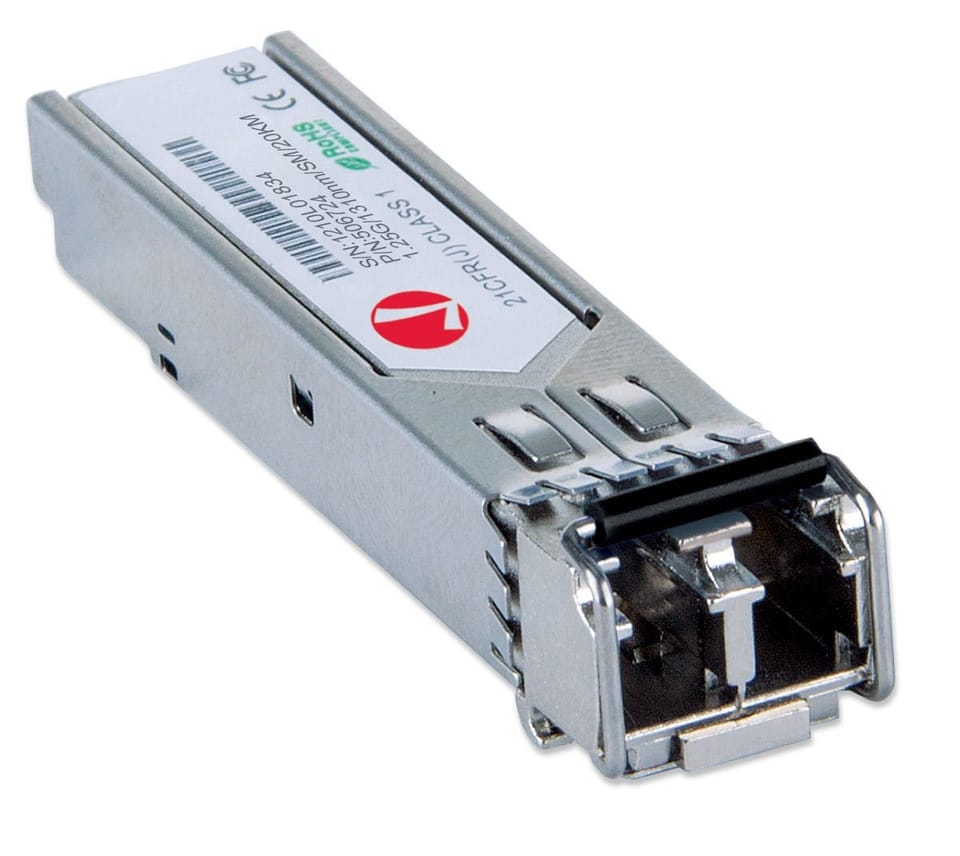

Intellinet Transceiver Module Optical, Gigabit Ethernet SFP Mini-GBIC, 1000Base-Lx (LC) Single-Mode Port, 20km, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Three Year Warranty
PLN 90.50
Shipping from warehouse: M7
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Intellinet
- Product code:
- 1919290 / 0766623506724
Share this product:
Specification
| Compliance certificates: | RoHS |
|---|---|
| Depth: | 55 mm |
| Duplex system: | Full, Half |
| Ethernet interface type: | Gigabit Ethernet |
| Fiber cable diameters supported (core/cladding): | 9/125 µm |
| Fiber optic connector: | LC |
| Harmonized system (hs) code: | 85369010 |
| Height: | 12 mm |
| Hot-plug support: | Yes |
| Input voltage: | 3.3 V |
| Interface type: | mini-GBIC |
| Link budget: | 8 dB |
| Maximum data transfer rate: | 1000 Mbit/s |
| Maximum transfer distance: | 20000 m |
| Multi-mode fiber (mmf) supported: | No |
| Networking standards: | IEEE 802.3z |
| Operating relative humidity (h-h): | 10 - 85% |
| Operating temperature (t-t): | 0 - 70 °C |
| Power consumption (typical): | 1 W |
| Product colour: | Aluminium |
| Quantity per pack: | 1 pc(s) |
| Sfp transceiver standard: | LX |
| Sfp transceiver type: | Fiber optic |
| Single-mode fiber (smf) supported: | Yes |
| Storage temperature (t-t): | -40 - 85 °C |
| Tx power (max): | -3 dBmW |
| Tx power (min): | -8 dBmW |
| Wavelength: | 1310 nm |
| Weight: | 62 g |
| Width: | 13 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
