- Can be powered from a PoE or PoE switch and provides power to up to 4 PoE network devices- It saves time and money by using existing network cables for power and data transmission- 10/100/1000 ports with automatic detection of optimum network speed- PoE / PoE + RJ45 output ports compliant with IEEE 802.3at / af"Green Ethernet" energy saving technology deactivates unused ports and adjusts power levels based on cable lengths.- It can be powered via PoE or with the supplied AC adapter- The total power of the PoE is 68W when the switch is powered from the AC adapter- Total PoE power is 26W when powered by PoE- Power output up to 30 W per port- Works with PoE devices compatible with IEEE 802.3at and IEEE 802.3af (wireless access points, VoIP phones, network cameras)IEEE 802.3 at / af detection and protection against short circuit, overload and overvoltage- MDIX auto-negotiation on all RJ-45 (auto uplink) ports- Store and forward switching architectureIEEE 802.3x flow control support in full duplex mode

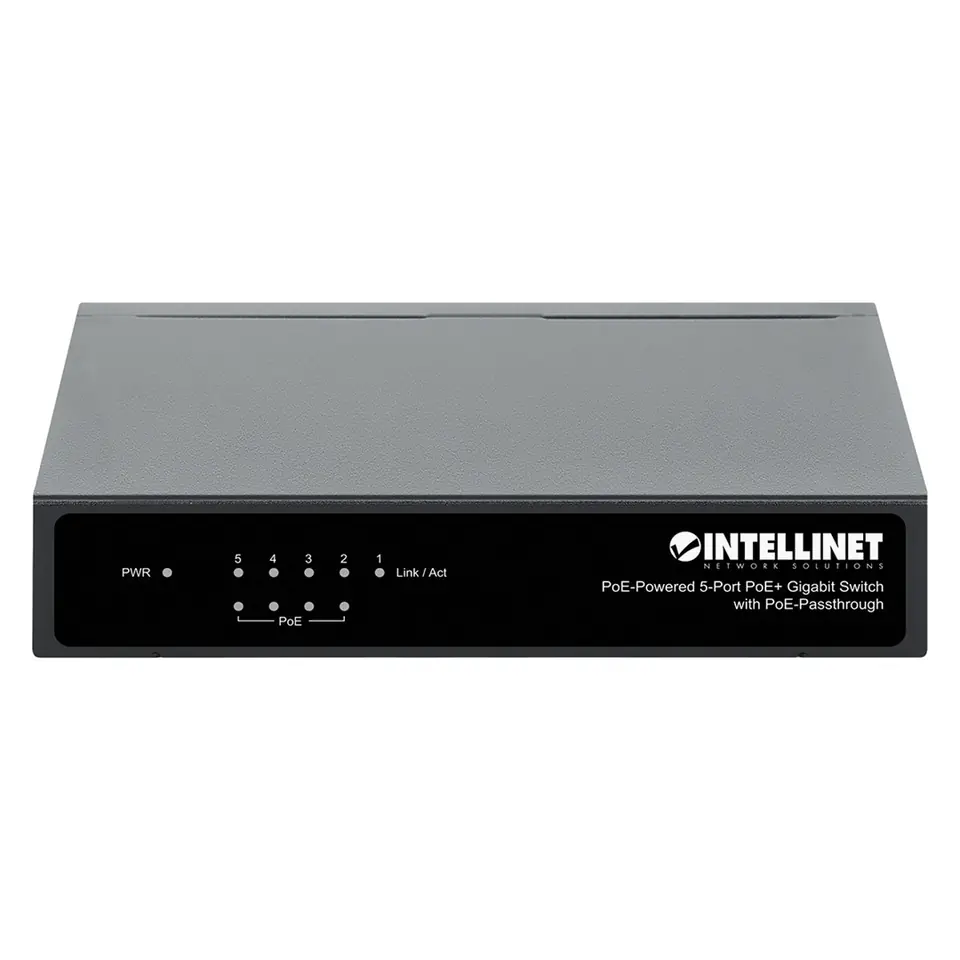

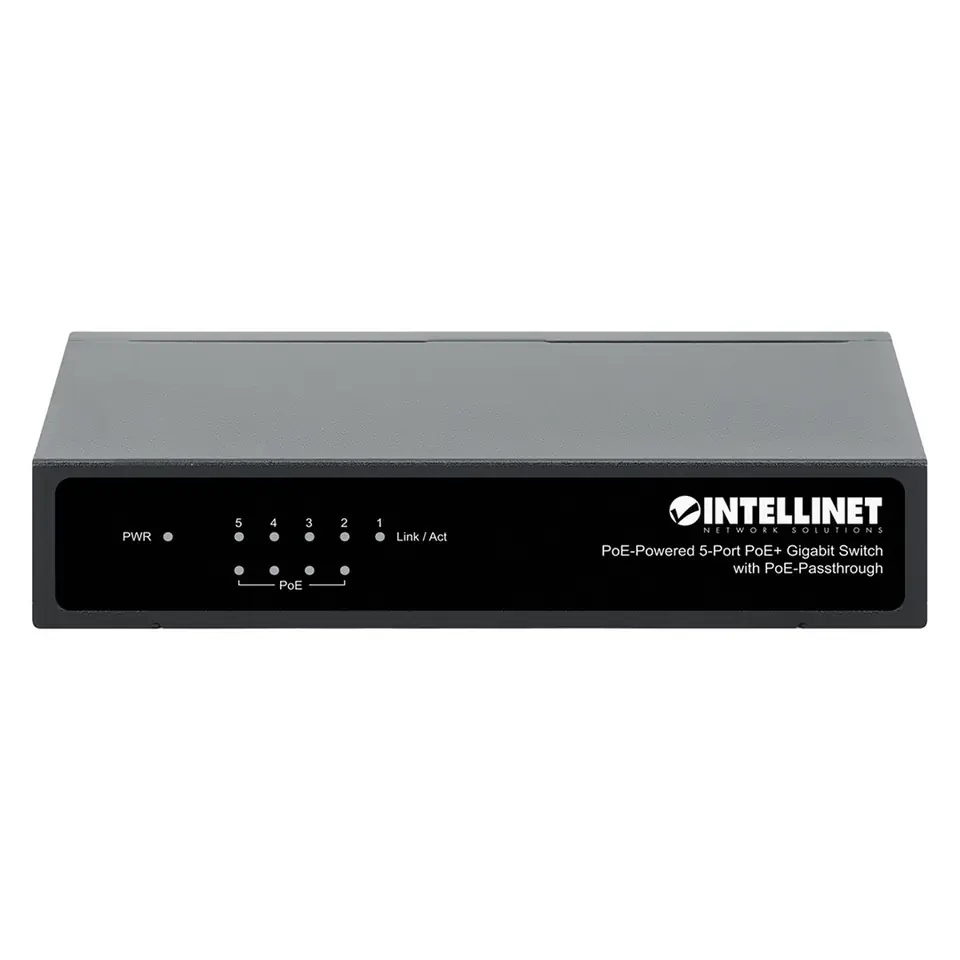

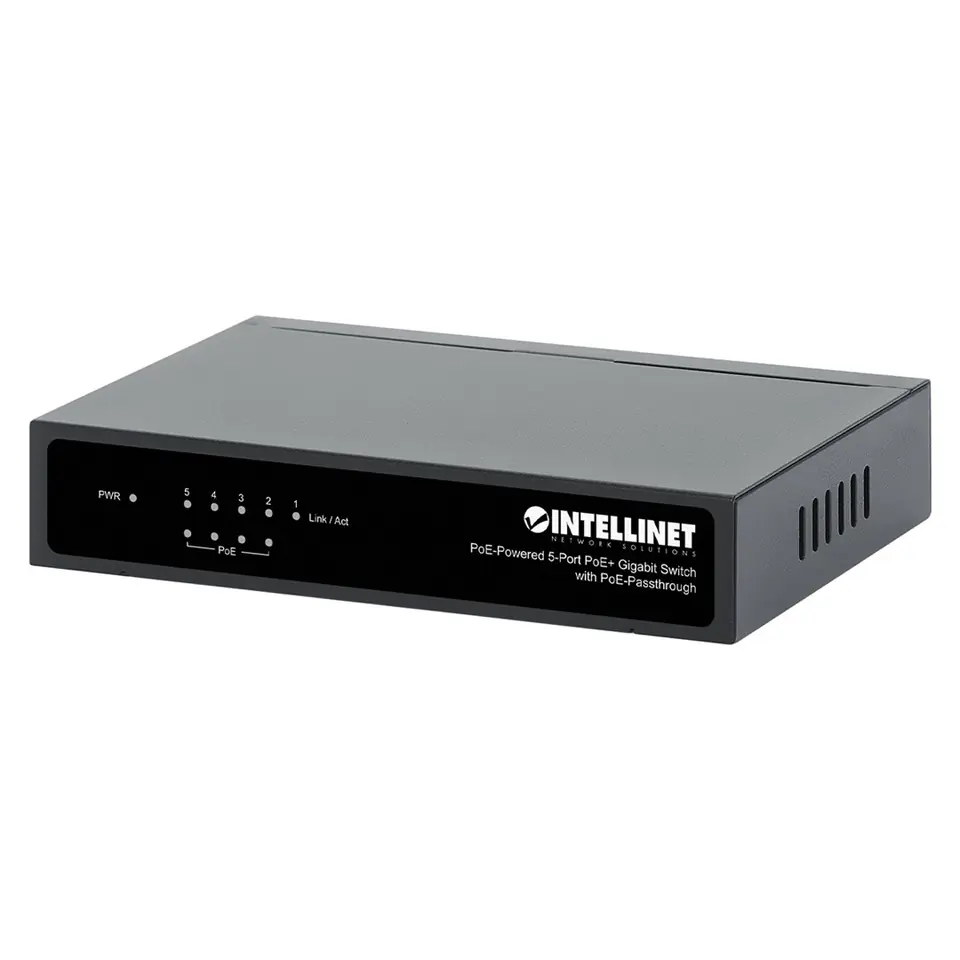

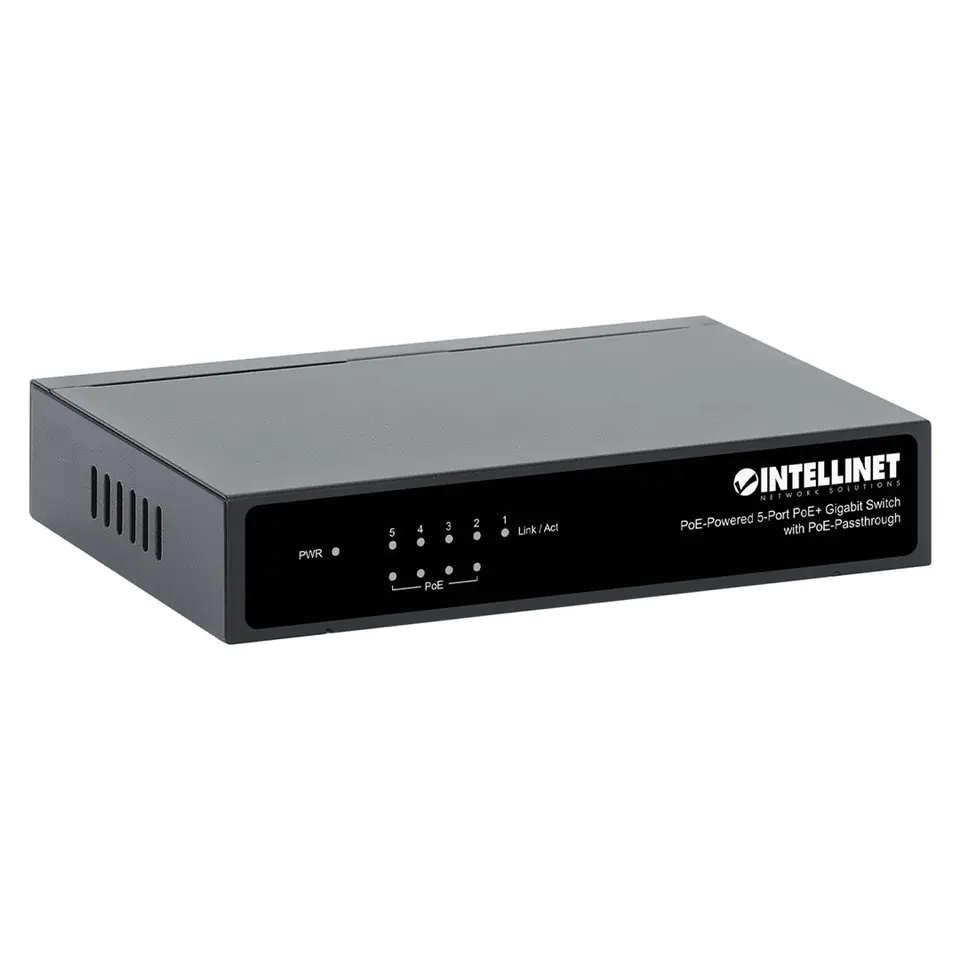

Intellinet PoE-Powered 5-Port Gigabit Switch with PoE Passthrough, 4 x PSE PoE ports, 1 x PD PoE port, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), IEEE 802.3az Energy Efficient Ethernet, Desktop (Euro 2-pin plug)
€70.32
Shipping from warehouse: M7
Estimated shipping: Tue, Aug 5 - Fri, Aug 8
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Intellinet
- Product code:
- 561082 / 0766623561082
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 5 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat5e, Cat6 |

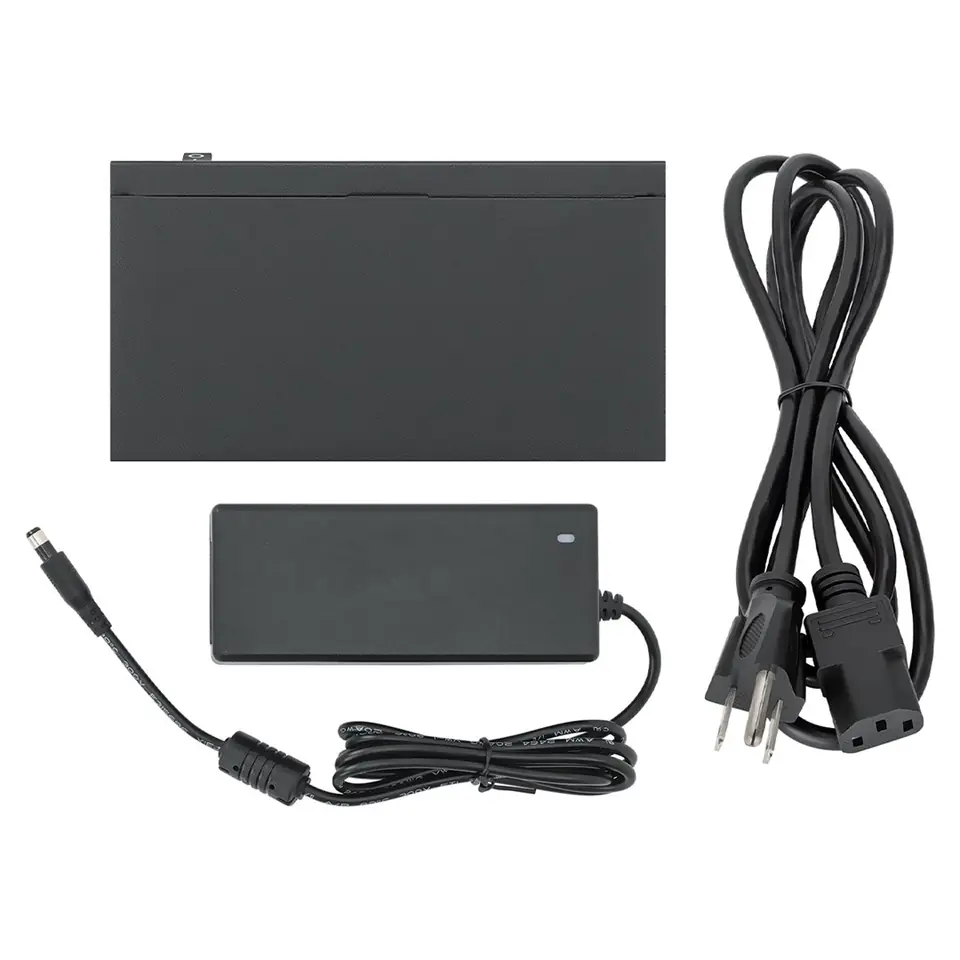

| Cables included: | AC |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth: | 78 mm |
| Flow control support: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 28 mm |
| Housing material: | Metal |
| Input current: | 2.5 A |
| Led indicators: | Link, Power, Activity |
| Mac address table: | 2048 entries |
| Manual: | Yes |
| Networking standards: | IEEE 802.3af, IEEE 802.3az, IEEE 802.3x, IEEE 802.3at, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet forwarding rate (1 gbps): | 1488000 pps |
| Packet forwarding rate (10 mbps): | 14880 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |
| Power consumption (max): | 75 W |
| Power over ethernet (poe): | Yes |
| Power supply included: | Yes |
| Product colour: | Black |
| Storage temperature (t-t): | 0 - 70 °C |
| Store-and-forward: | Yes |
| Switching capacity: | 10 Gbit/s |
| Total power over ethernet (poe) budget: | 26 W |
| Weight: | 600 g |
| Width: | 140 mm |
