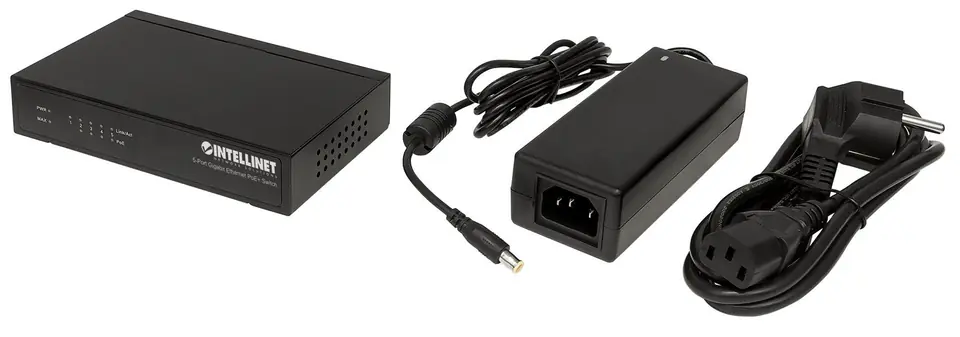

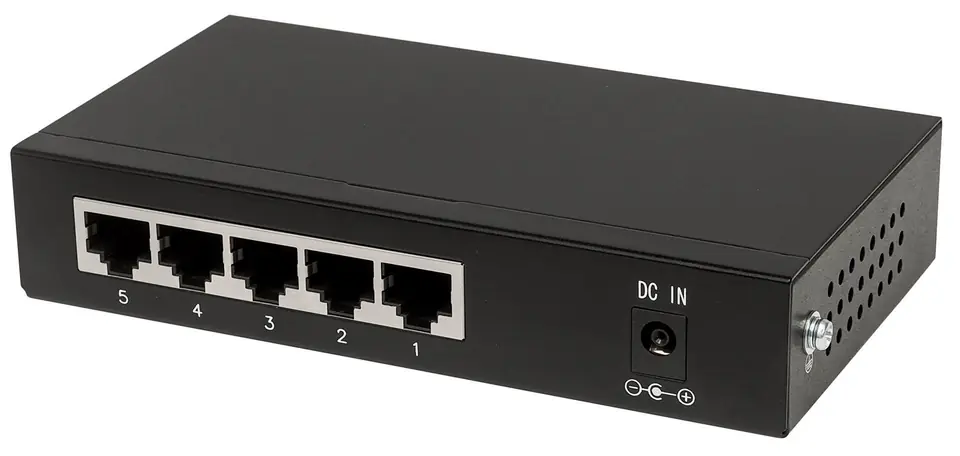

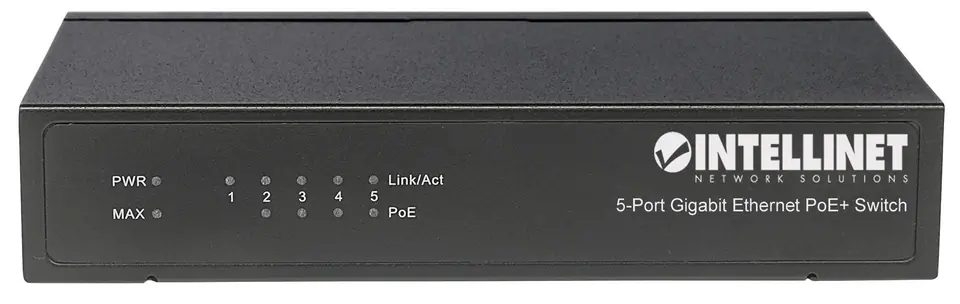

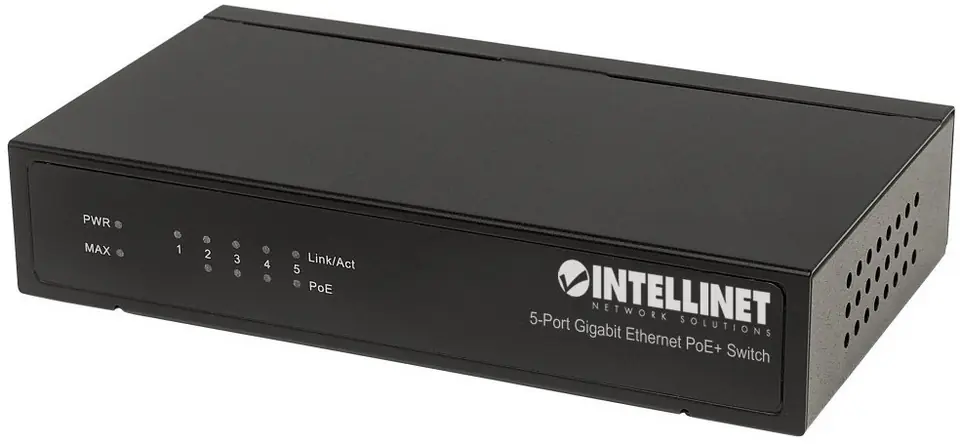

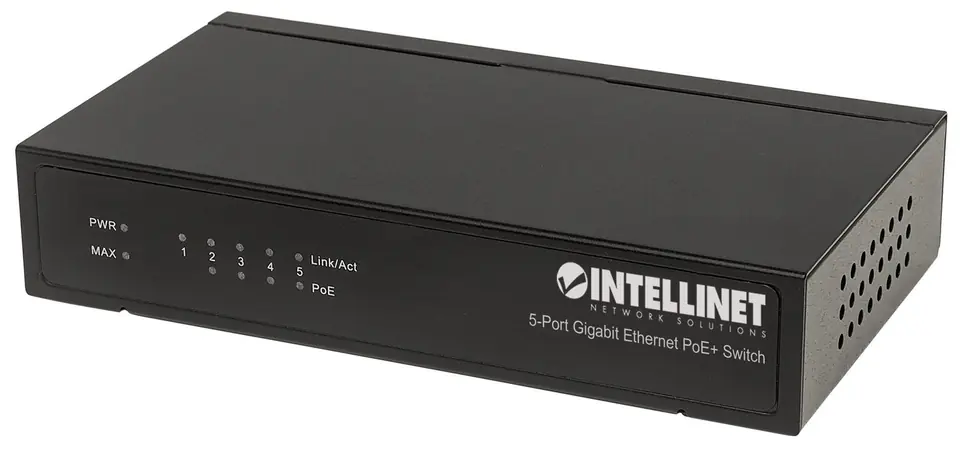

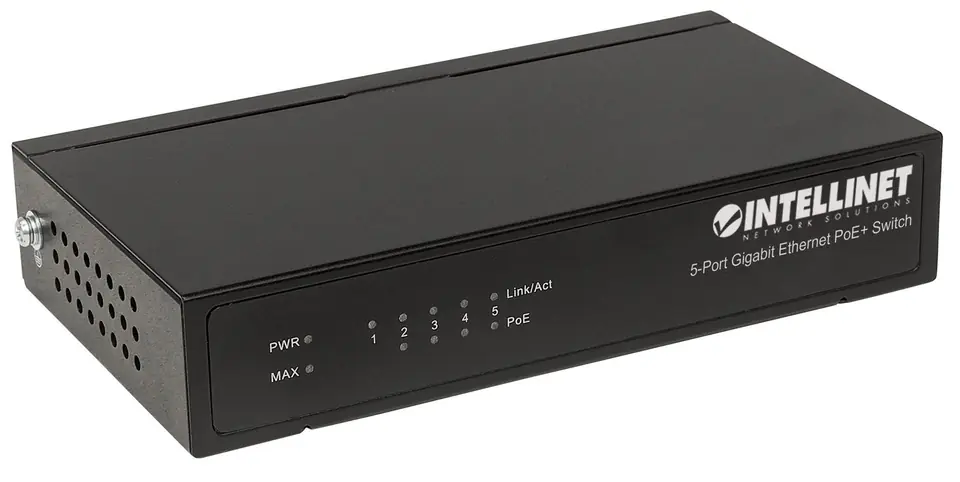

INTELLINET NETWORK SOLUTIONS 561228 5x 10/100/1000 PoE+ Switch
€79.83
Shipping from warehouse: M7
Estimated shipping: Thu, Nov 6 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Intellinet
- Product code:
- 561228 / 0766623561228
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 5 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Built-in memory: | Buffer 192 KB |
| Bus speed: | 10 Gbps |
| Cables included: | AC |
| Colour: | Black |
| Configuration and management: | no |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth: | 76 mm |
| Depth (mm): | 76 |
| Destiny: | Desk |
| Equipment: | Power Supply, User Manual |
| Flow control support: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 27 mm |
| Height (mm): | 27 |
| Housing material: | Metal |
| Jumbo frame support: | yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Link, Activity, PoE, Power |
| Mac address array size: | 2000 |
| Mac address table: | 2000 entries |
| Method of transmission: | Store and forward |
| Network ports: | 5x 10/100/1000 PoE+ |
| Networking standards: | IEEE 802.3af, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Operating humidity range (%): | 10 to 90 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Operating temperature range (deg. c): | 0 - 40 |
| Other parameters: | Metal housing |
| Packet buffer memory: | 0.192 MB |
| Packet forwarding rate (1 gbps): | 1488000 pps |
| Packet forwarding rate (10 mbps): | 14880 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |
| Power: | Network, PoE |
| Power consumption (max): | 70 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 5 |
| Power protection features: | Short circuit, Over voltage, Overload |
| Power supply included: | Yes |
| Product colour: | Black |
| Protocols and standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Quick start guide: | Yes |
| Rack mount kit: | Yes |
| Rack mounting: | No |
| Storage temperature (t-t): | -20 - 70 °C |
| Store-and-forward: | Yes |
| Switch type: | Unmanaged |
| Switching capacity: | 10 Gbit/s |
| Technologies: | RJ-45 |
| Throughput: | 1.488 mpps |
| Total power over ethernet (poe) budget: | 60 W |
| Warranty: | 3 years |
| Weight: | 710 g |
| Weight (g): | 710 |
| Width: | 140 mm |
| Width (mm): | 140 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
