Network Solutions Intellinet Fast Ethernet Media Converter has been specifically designed to offer the network designer a device to migrate from a copper-to-Ethernet Ethernet network to fiber optic. Now, the migration or extension of existing networks can be achieved with minimal costs and complexity.

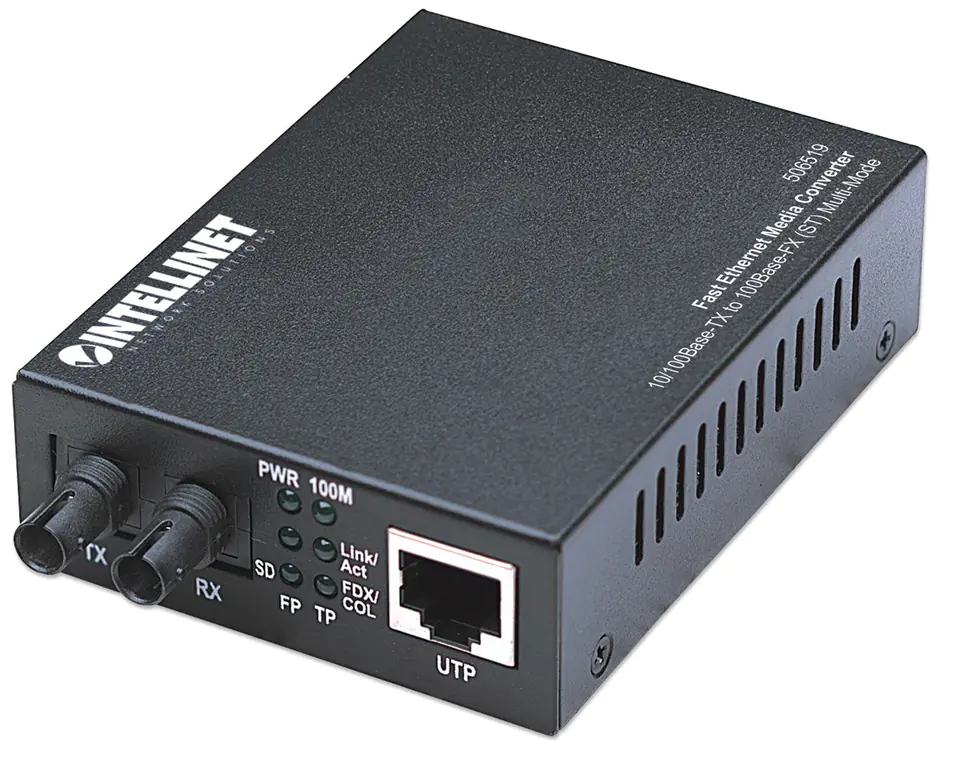

Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) (Euro 2-pin plug)
PLN 181.26
Shipping from warehouse: M7
Estimated shipping: Tue, Nov 4 - Fri, Nov 7
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Intellinet
- Product code:
- 506519 / 0766623506519
Share this product:
Specification
| Connectivity technology: | Wired |
|---|---|
| Dc-in jack: | Yes |
| Depth: | 107 mm |
| Duplex system: | Half, Full |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10, 100 |
| External power adapter: | Yes |
| Fiber cable diameters supported (core/cladding): | 50/125 µm |
| Fiber mode structure: | Multi-mode |
| Fiber optic connector: | ST |
| Fiber ports quantity: | 1 |
| Flow control support: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 26 mm |
| Housing material: | Metal |
| Input current: | 1 A |
| Internal: | No |
| Led indicators: | Link, Power, LAN |
| Manual: | Yes |
| Maximum data transfer rate: | 100 Mbit/s |
| Maximum transfer distance: | 2000 m |
| Networking standards: | IEEE 802.3, IEEE 802.3u |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 70 °C |
| Output voltage: | 5 V |
| Power consumption (max): | 2.5 W |
| Product colour: | Black |
| Sensitivity: | -30 dBmW |
| Storage temperature (t-t): | -45 - 85 °C |
| Tx power (max): | -12 dBmW |
| Tx power (min): | -22 dBmW |
| Wavelength: | 1310 nm |
| Weight: | 500 g |
| Width: | 70 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
