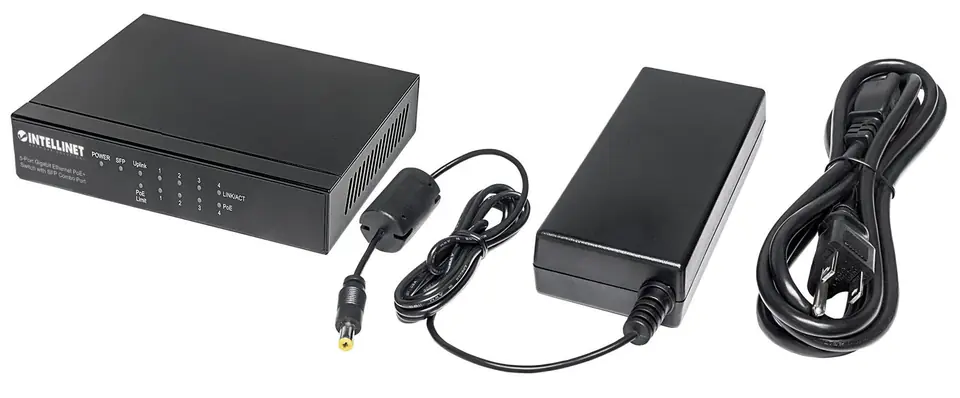

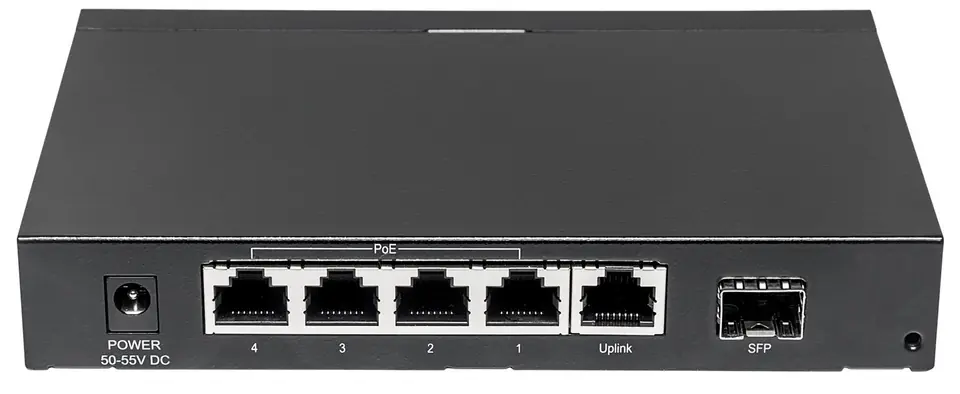

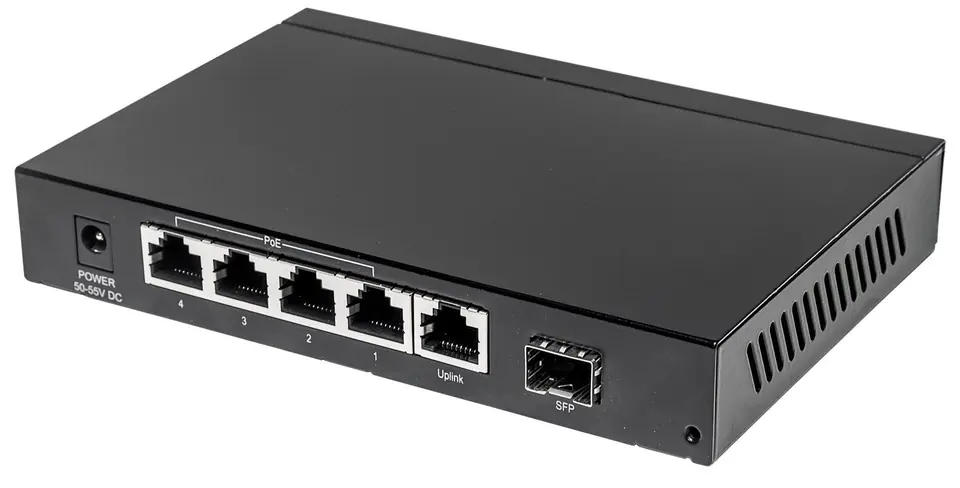

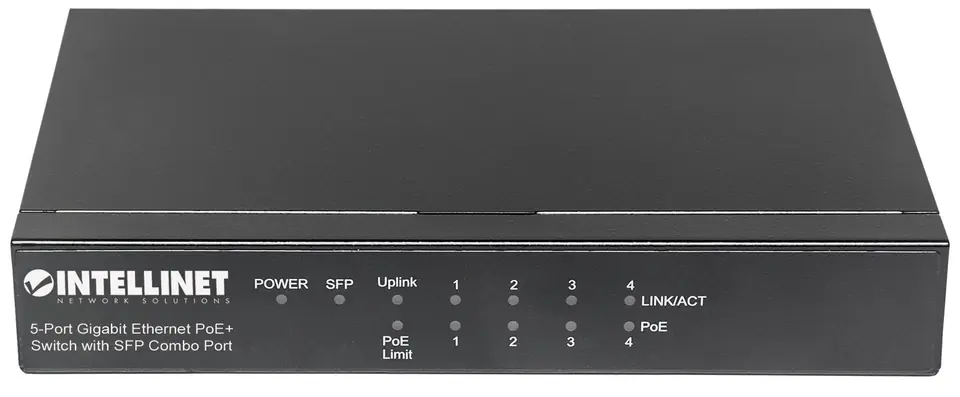

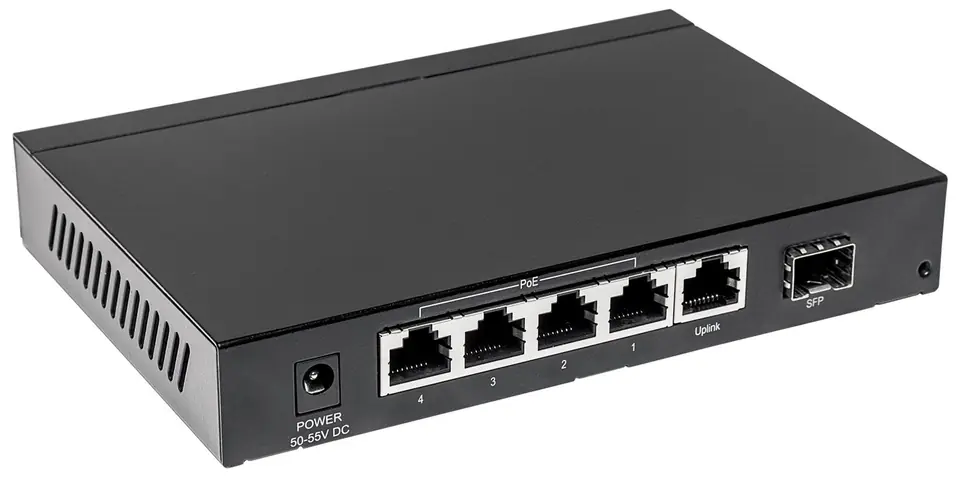

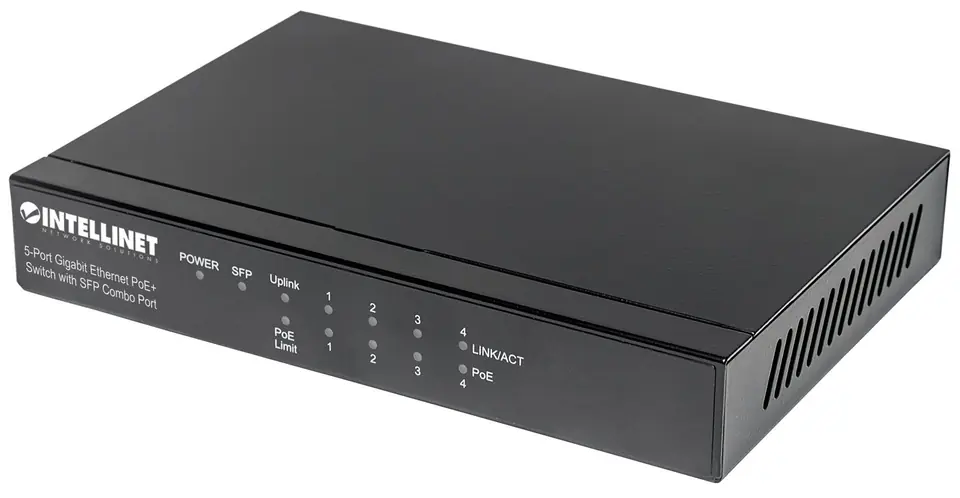

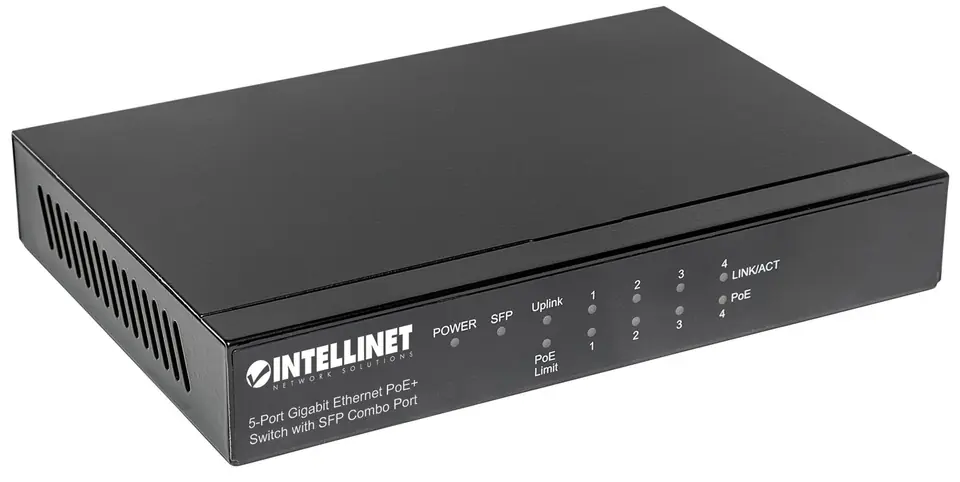

Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Combo Port, 4 x PSE Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 80 W, Desktop Euro 2-pin plug
€105.28
Shipping from warehouse: M7
Estimated shipping: Thu, Nov 6 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Intellinet
- Product code:
- 561174 / 0766623561174
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 5 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Combo sfp ports quantity: | 1 |
| Copper ethernet cabling technology: | 10BASE-T, 1000BASE-T, 100BASE-TX |
| Depth: | 110 mm |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 24 mm |
| Housing material: | Metal |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Power, PoE, Link, Activity |
| Mac address table: | 2000 entries |
| Manual: | Yes |
| Networking standards: | IEEE 802.3af, IEEE 802.3az, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet forwarding rate (1 gbps): | 1488000 pps |
| Packet forwarding rate (10 mbps): | 14880 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |
| Power connector: | DC-in jack |
| Power consumption (max): | 90 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 4 |
| Power supply included: | Yes |
| Product colour: | Black |
| Quick start guide: | Yes |
| Storage temperature (t-t): | -20 - 70 °C |
| Store-and-forward: | Yes |
| Switching capacity: | 10 Gbit/s |
| Total power over ethernet (poe) budget: | 80 W |
| Weight: | 950 g |
| Width: | 160 mm |
