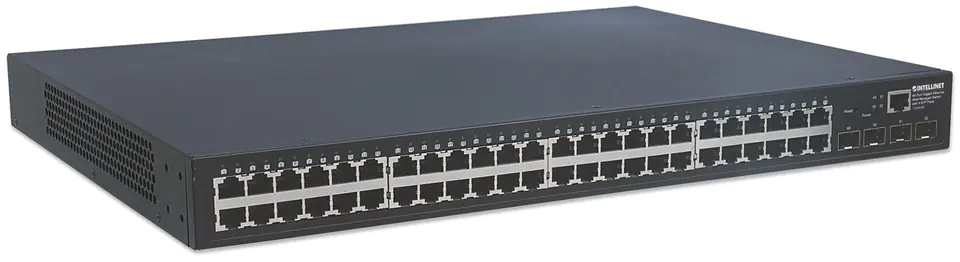

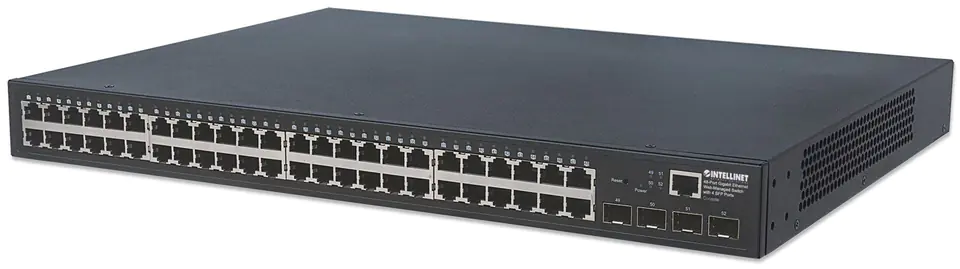

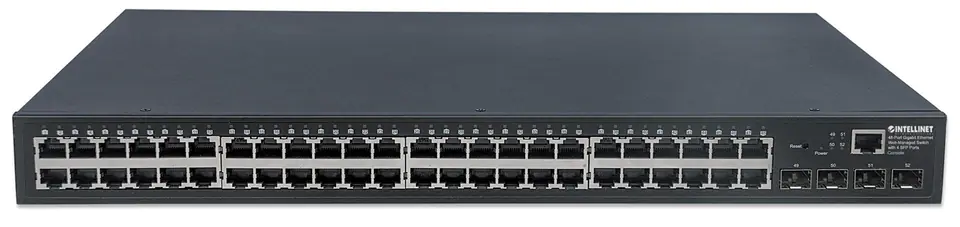

48-port Gigabit RJ45 4x SFP managed switch
Intellinet 48-Port Gigabit Ethernet Web-Managed Switch with 4 SFP Ports, 48 x 10/100/1000 Mbps RJ45 Ports + 4 x SFP, IEEE 802.3az Energy Efficient Ethernet, SNMP, QoS, VLAN, ACL, 19 Rackmount" (Euro 2-pin plug)
€534.26
Shipping from warehouse: M7
Estimated shipping: Thu, Nov 6 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Intellinet
- Product code:
- 561334 / 0766623561334
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 48 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Cable types supported: | Cat3, Cat5, Cat5e, Cat4 |
| Cables included: | AC |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth: | 335 mm |
| Fiber optic connector: | MiniGBIC |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Housing material: | Metal |
| Igmp snooping: | Yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Power, Speed, Link, Activity |
| Link aggregation: | Yes |
| Mac address table: | 8000 entries |
| Manual: | Yes |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 1.5 MB |
| Packet forwarding rate (1 gbps): | 1488000 pps |
| Packet forwarding rate (10 mbps): | 14880 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |
| Port mirroring: | Yes |
| Power consumption (max): | 36 W |
| Power over ethernet (poe): | No |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mount kit: | Yes |
| Rate limiting: | Yes |
| Security algorithms: | SNMP, SSH-2 |
| Sfp module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Storage temperature (t-t): | -20 - 70 °C |
| Store-and-forward: | Yes |
| Supported network protocols: | IPv4, IPv6 |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 104 Gbit/s |
| Virtual lan features: | Tagged VLAN, Port-based VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 4.2 kg |
| Width: | 440 mm |
