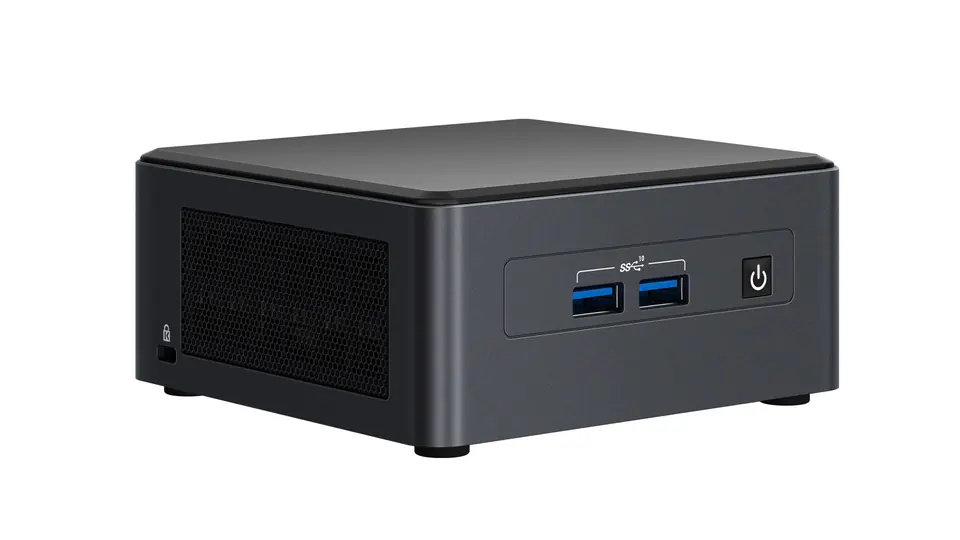

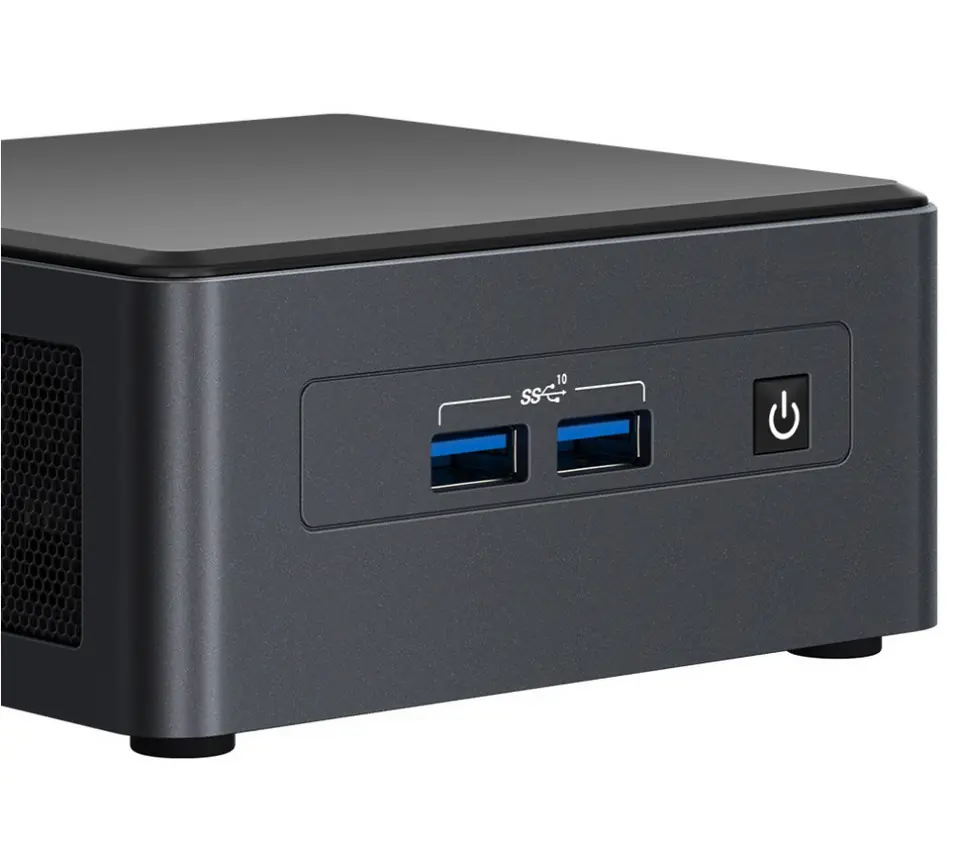

Intel NUC 11 Pro UCFF Black i5-1135G7
This product is not available
- Availability:
- expected delivery
- Brand:
- Intel
- Product code:
- BNUC11TNHI50000 99A8F6 / 5032037205016
Share this product:
Specification
| Ac adapter output voltage: | 12 - 24 V |
|---|---|
| Additional headers: | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Ark id: | 205594 |
| Bluetooth: | Yes |
| Built-in processor: | Yes |
| Built-in speaker(s): | No |
| Chassis type: | UCFF |
| Commodity classification automated tracking system (ccats): | G157815L2 |
| Cpu configuration (max): | 1 |
| Dc input voltage: | 12 - 20 V |
| Depth: | 112 mm |
| Discrete graphics card model: | Not available |
| Displayports quantity: | 1 |
| Ecc: | No |
| Embedded options available: | No |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Export control classification number (eccn): | 5A992C |
| Graphics card family: | Intel |
| Harmonized system (hs) code: | 84713000 |
| Hdd size: | 2.5" |
| Hdmi ports quantity: | 2 |
| Height: | 54 mm |
| Idle states: | Yes |
| Intel me firmware version: | 15 |
| Intel stable image platform program (sipp): | No |
| Intel trusted execution technology: | No |
| Intel virtualization technology (vt-x): | Yes |
| Intel virtualization technology for directed i/o (vt-d): | Yes |
| Intel vt-x with extended page tables (ept): | Yes |
| Intel® aes new instructions (intel® aes-ni): | Yes |
| Intel® optane™ memory ready: | No |
| Intel® platform trust technology (intel® ptt): | Yes |
| Internal usb 2.0 ports quantity: | 2 |
| Internal usb 3.2 gen 1 (3.1 gen 1) ports quantity: | 1 |
| Lan controller: | Intel I225-LM |
| Launch date: | Q1'21 |
| Linux operating systems supported: | Ubuntu 20.04 LTS, RedHat EL Linux |
| M.2 card slot (storage): | 2280 NVMe (M); 2242 SATA (B) |
| M.2 card slot (wireless): | 2230 (E-key) (E) |
| Maximum internal memory: | 64 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | SO-DIMM |
| Memory voltage: | 1.2 V |
| Motherboard form factor: | UCFF |
| Number of dimm slots: | 2 |
| Number of displays supported: | 4 |
| Number of memory slots: | 2 |
| Number of power supply units: | 1 |
| Number of sata connectors: | 1 |
| Number of sata iii connectors: | 1 |
| Number of storage drives supported: | 3 |
| On-board graphics card: | No |
| On-board graphics card model: | Intel Iris Xe Graphics |
| On/off switch: | Yes |
| Pci express slots version: | 4.0 |
| Power supply: | 28 W |
| Power supply type: | External AC adapter |
| Processor boost frequency: | 4.2 GHz |
| Processor cache: | 8 MB |
| Processor cores: | 4 |
| Processor family: | Intel® Core™ i5 |
| Processor generation: | 11th gen Intel® Core™ i5 |
| Processor lithography: | 10 nm |
| Processor manufacturer: | Intel |
| Processor model: | i5-1135G7 |
| Processor threads: | 8 |
| Product colour: | Black |
| Product type: | Mini PC barebone |
| Serial port via internal header: | Yes |
| Status: | Launched |
| Storage drive interface: | M.2, Serial ATA III |
| Storage drive sizes supported: | M.2, 2.5 |
| Supported memory clock speeds: | 3200 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive types: | HDD & SSD |
| Thermal design power (tdp): | 28 W |
| Thunderbolt 3 ports quantity: | 1 |
| Thunderbolt ports quantity: | 2 |
| Top wi-fi standard: | Wi-Fi 6 (802.11ax) |
| Usb 2.0 ports quantity: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb ports quantity: | 4 |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 6 (802.11ax) |
| Width: | 117 mm |
| Windows operating systems supported: | Windows 10 IoT Enterprise, Windows 10 x64 |
| Wlan controller model: | Intel Wi-Fi 6 AX201 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
