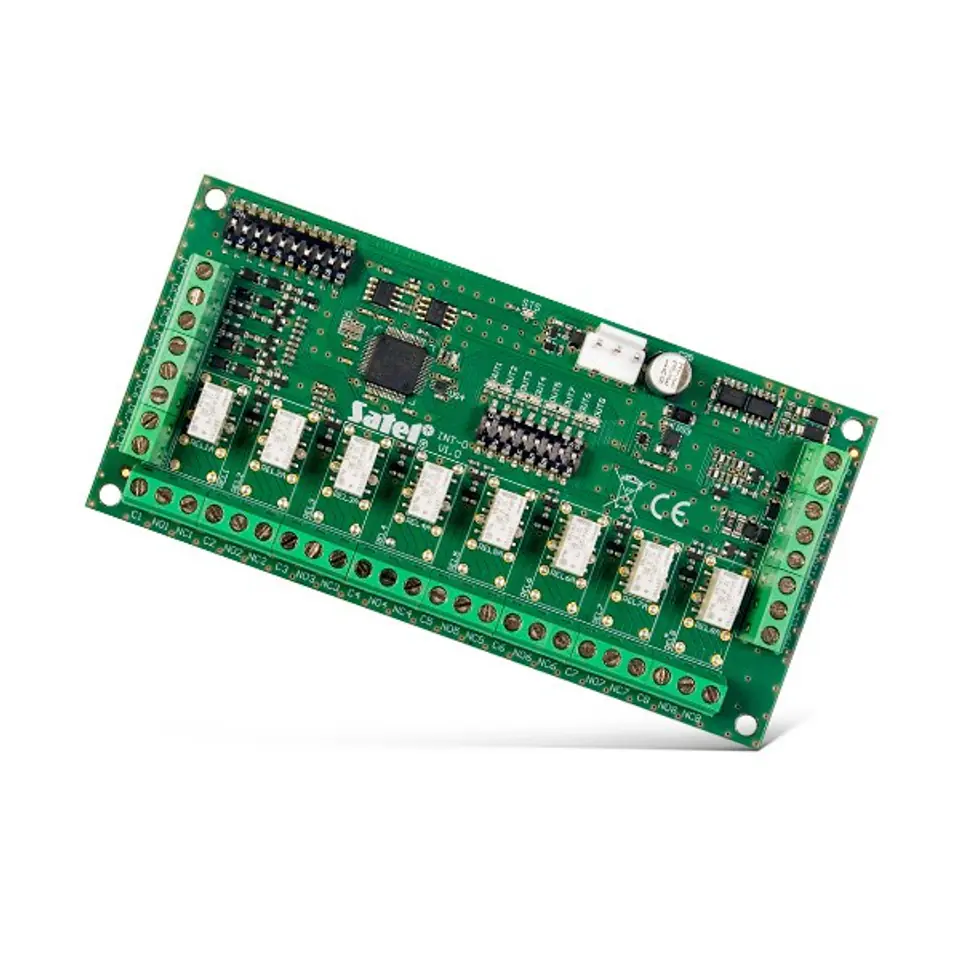

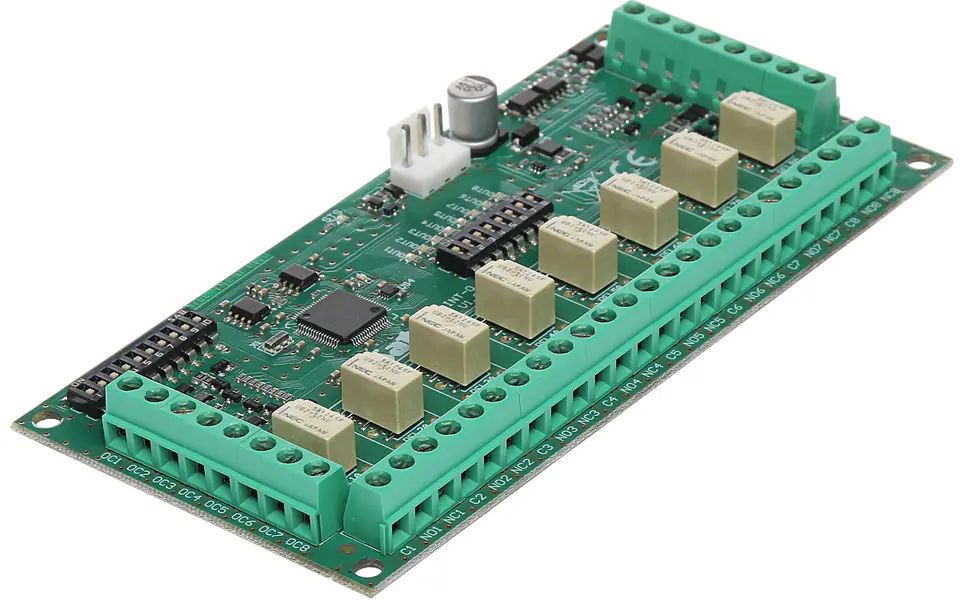

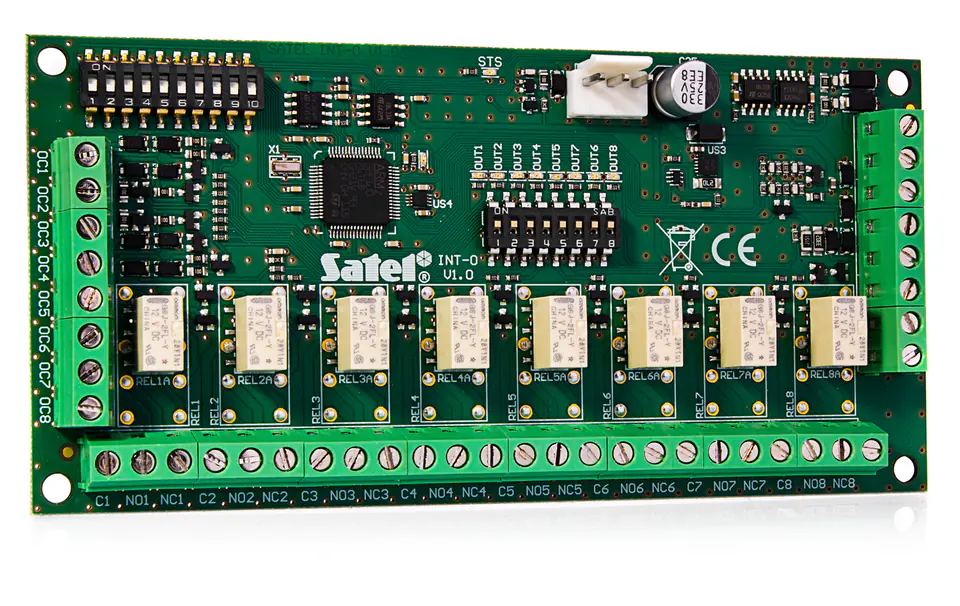

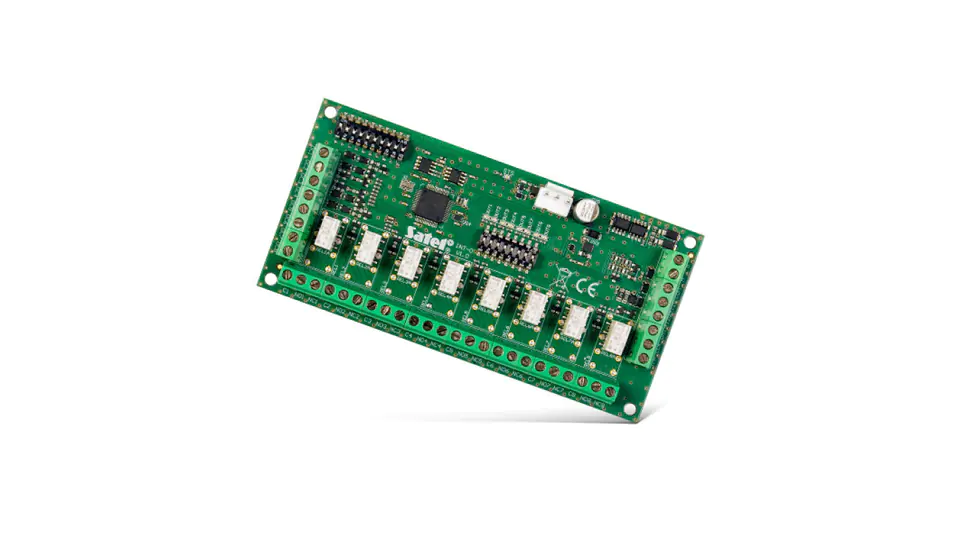

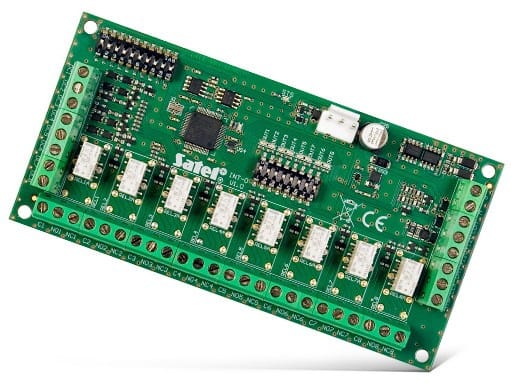

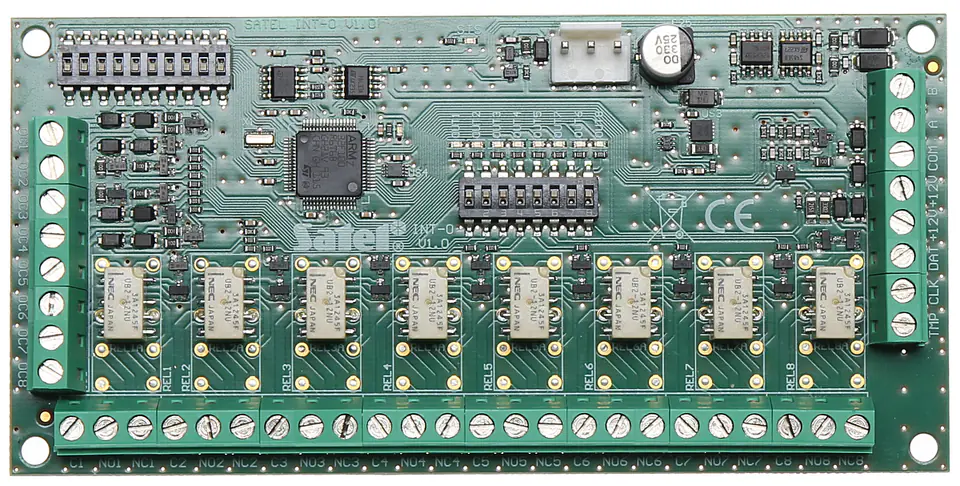

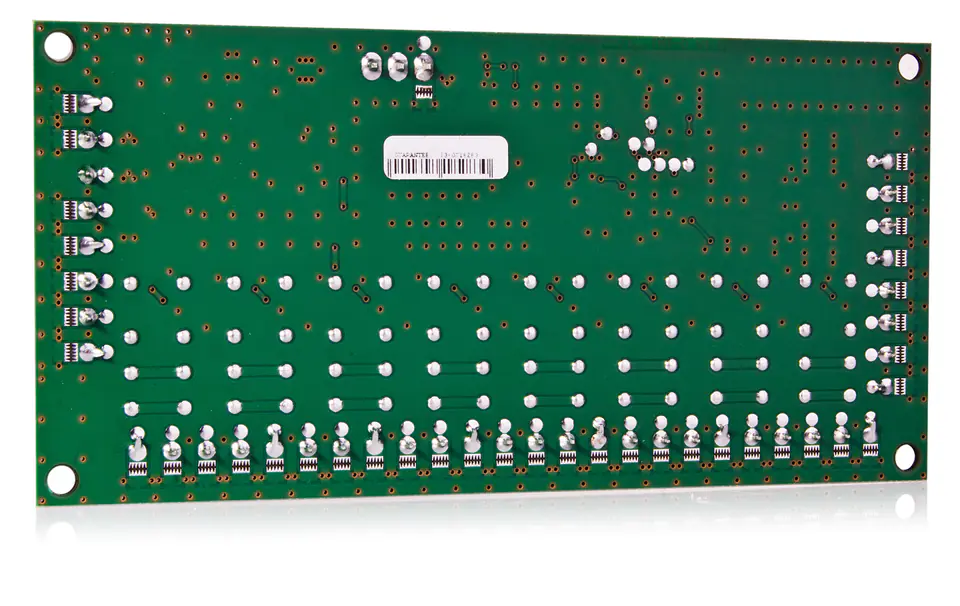

INT-O expander expands the system with 8 programmable wired outputs
The device is dedicated to INTEGRA, INTEGRA Plus, VERSA, PERFECTA control panels
INT-O EXPANDER 8 OUTPUTS SATEL
€64.41
Shipping from warehouse: H7
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- INT-O / 5905033331563
Share this product:
Specification
| Brand compatibility: | Satel |
|---|---|
| Current consumption: | 160 mA |
| Current consumption (without load on oc outputs and without active relays):: | 36 mA |
| Current consumption by active relay:: | 16 mA |
| Current switched by relay:: | Max. 2 A DC |
| Depth: | 68 mm |
| Device type: | Security alarm system |
| Dimensions:: | 140 x 68 mm |
| Load capacity of oc type programmable outputs:: | 50 mA / 12 VDC |
| Manufacturer / brand:: | SATEL |
| Number of outputs:: | 8 pcs. - programmable |
| Operating temperature:: | -10 °C ... 55 °C |
| Operating voltage: | 12 V |

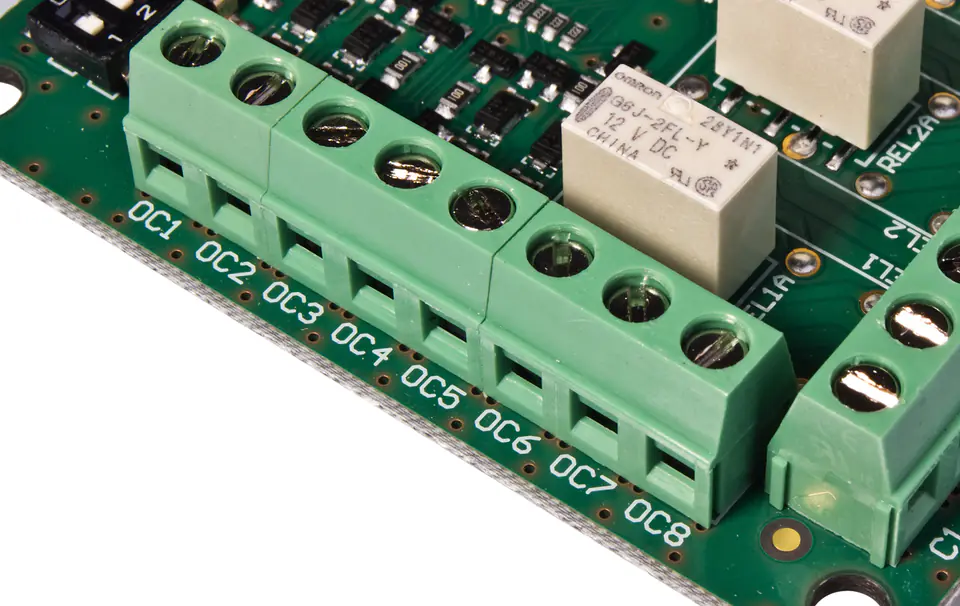

| Output type:: | 8 pcs. OC, 8 pcs. Relay |
| Power:: | 12 V DC / 160 mA (max.) |
| Quantity per pack: | 1 pc(s) |
| Scales:: | 0.09 kg |
| Selected features:: | Output load capacity +12V 2.5 A / 12 V DC Each OC type output connected in parallel to the relay output |
| Voltage switched by relay:: | Max. 24 VDC |
| Warranty:: | 2 years |
| Width: | 140 mm |
