Gun for internal measurements
Design: adapter thread for changing measuring heads, self-centering measuring head with three measuring sensors protruding from the side, offset by 120°, measuring sensor from 12 mm reinforced with cemented carbide. From 12mm measuring sensor to hole bottom, from 40mm measuring head made of aluminum to reduce weight. Delivery: basic device, measuring head, without indicating device, in case.
Application: for measuring through holes, blind holes and centering edges.

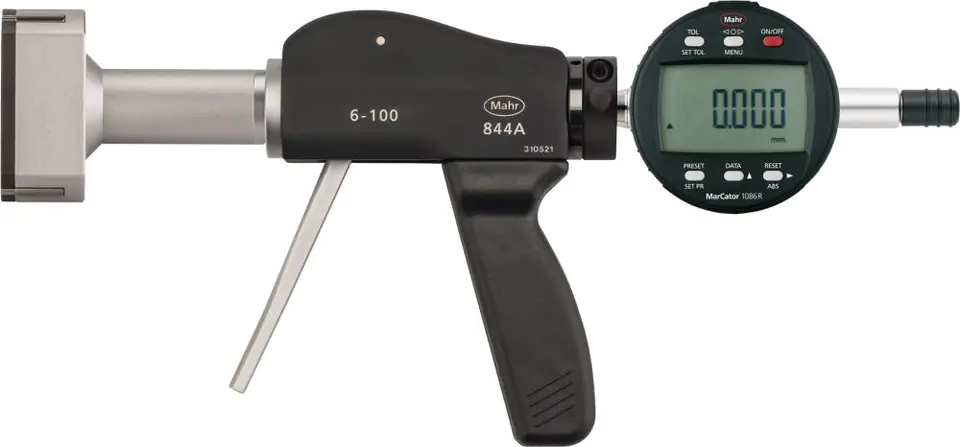

Inner measuring gun with measuring head 6.0-8.0 mm MAHR
€1,241.10
Shipping from warehouse: B6
Estimated shipping: Tue, Jul 8 - Fri, Jul 11
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Mahr
- Product code:
- 4487700 / 4059192021467
Share this product:
Specification
| Depth of measurement: | 58 mm |
|---|---|
| Error limit: | 3 μm |
| Measuring depth with extension: | 133 mm |
| Measuring range: | 6-8 mm |
