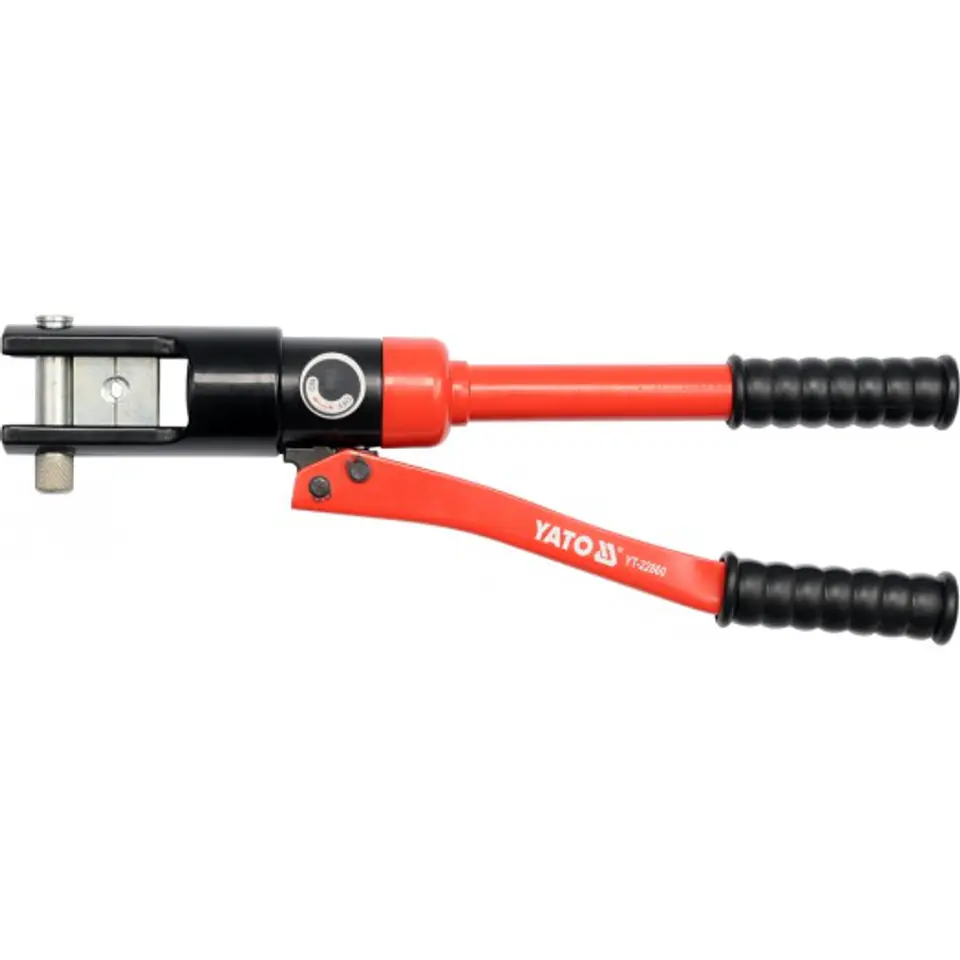

Manual press with hydraulic cylinder.
Designed for effective crimping of terminals on electrical wires or for clamping ropes.
Thanks to the hydraulic cylinder, clamping the large ends does not require effort.

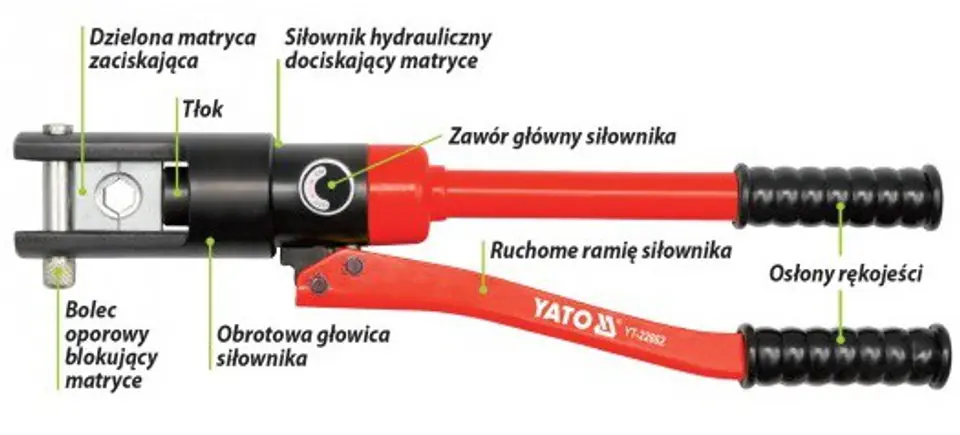

Characteristic features of the YATO brand
- Resistance pin blocking the dies
- Split clamping matrix
-Piston
- Rotating actuator head
- Actuator main valve
- Movable actuator arm
- Handle cover
Clamping range :
Aluminium: 10-185 mm2
Copper : 10-240 mm2
Length: L=470mm
Pressure : 12T

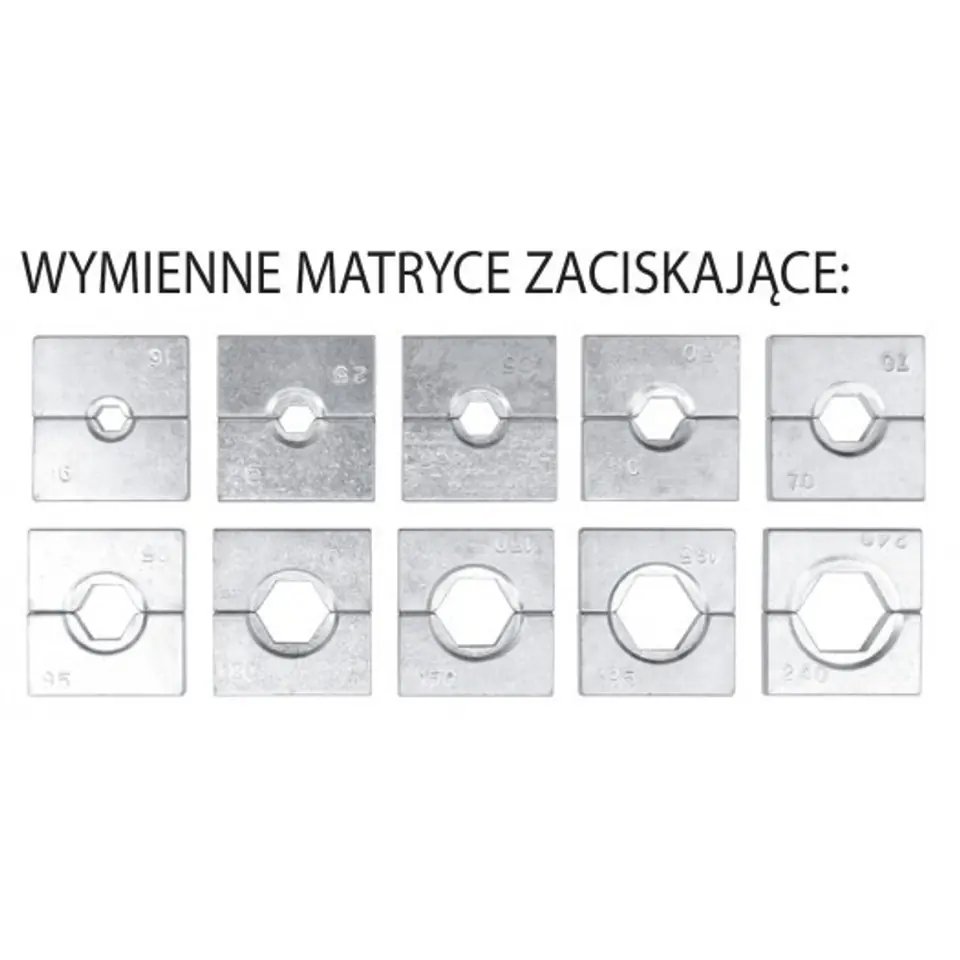

Clamping jaw size (mm2) : 16 25 35 50 70 95 120 150 185 240
Purpose / Application

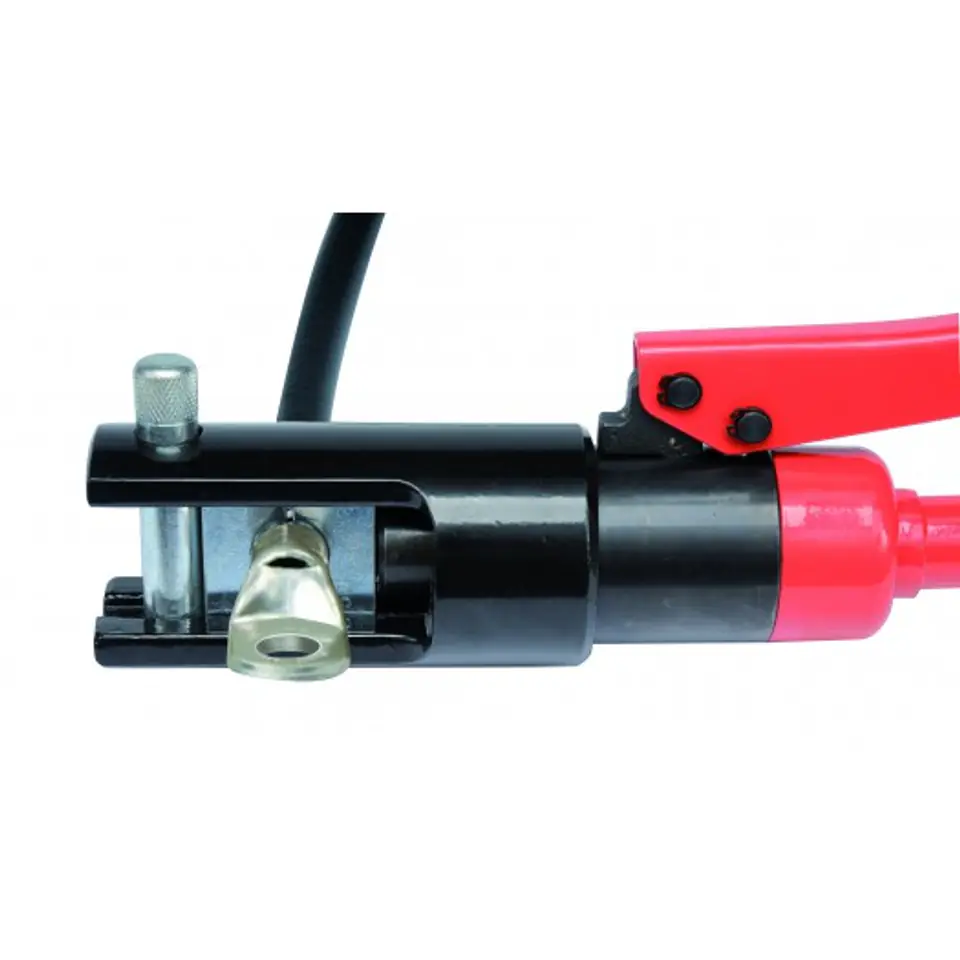

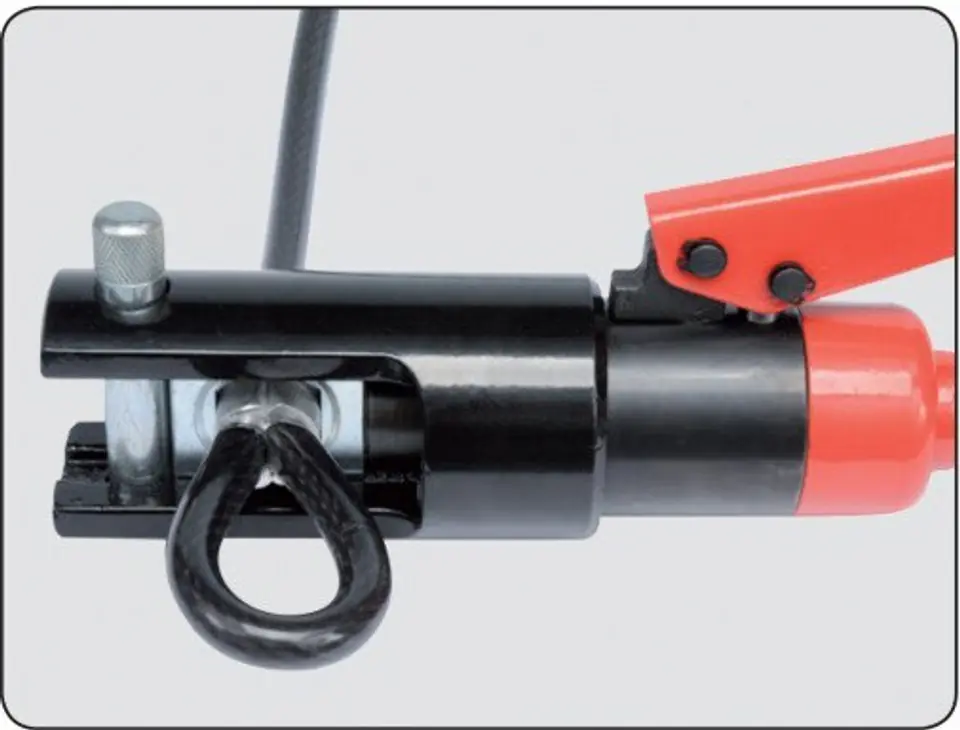

Effective crimping of terminals on electrical wires. Crimping steel ropes.
HYDRAULIC PRESS, MANUAL FOR CRIMPING ENDS 16-240MM2
€44.69
Shipping from warehouse: A3
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- YT-22861 / 5906083228612
Share this product:
Specification
| Dies included: | Yes |
|---|---|
| Length: | 470 mm |
| Material: | Metal |
| Pressing capacity (copper pipes): | 24 cm |
| Product colour: | Black |
| Quantity per pack: | 1 pc(s) |
| Removable dies: | Yes |
| Telescopic handles: | No |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
