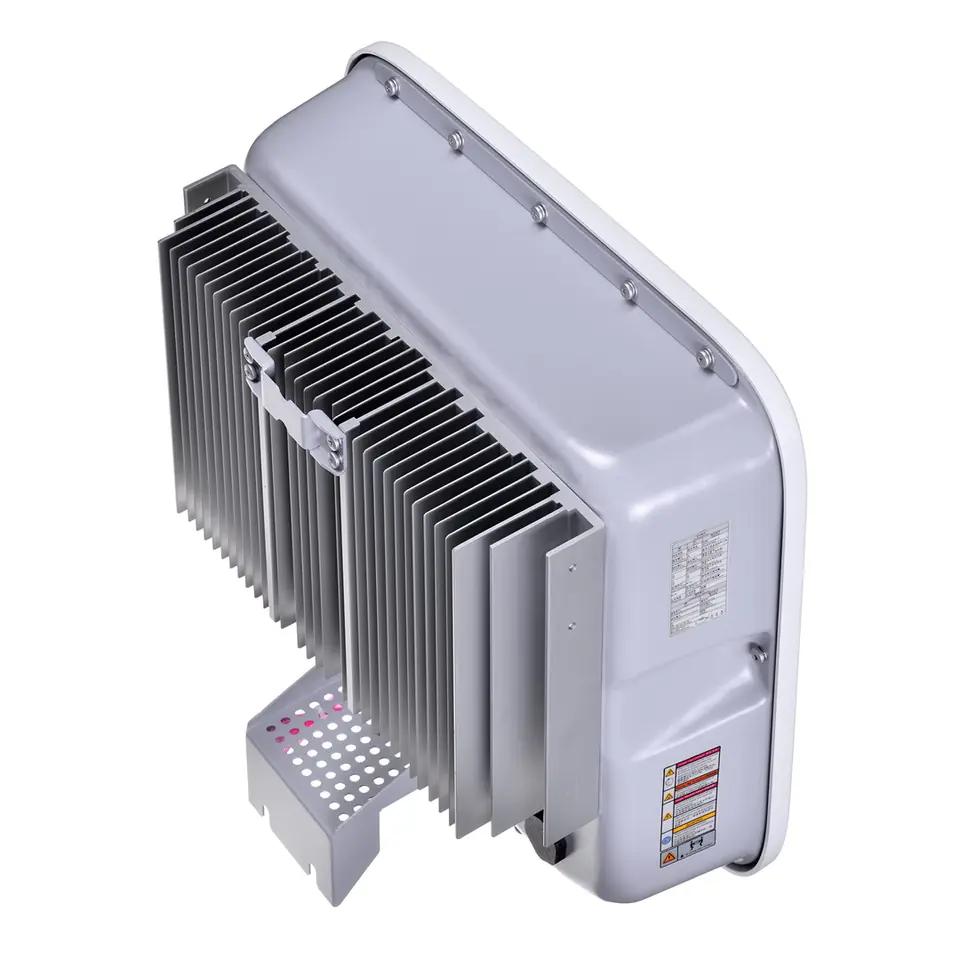

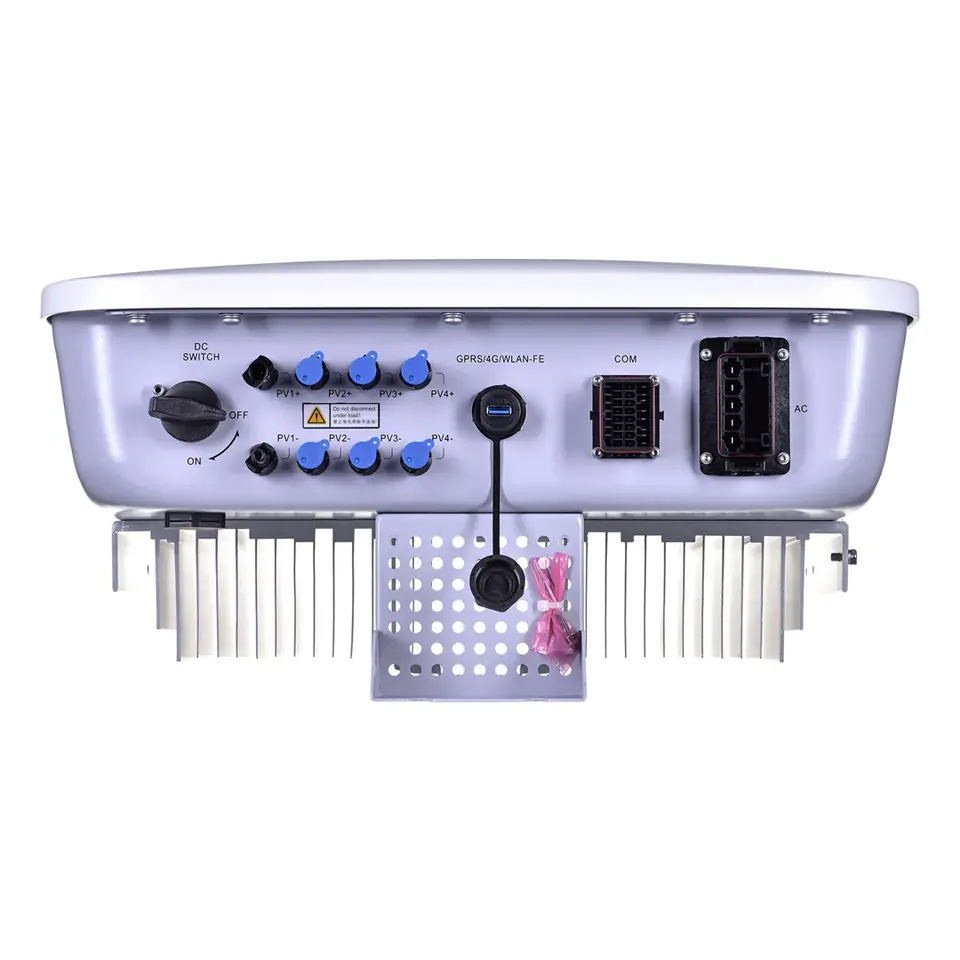

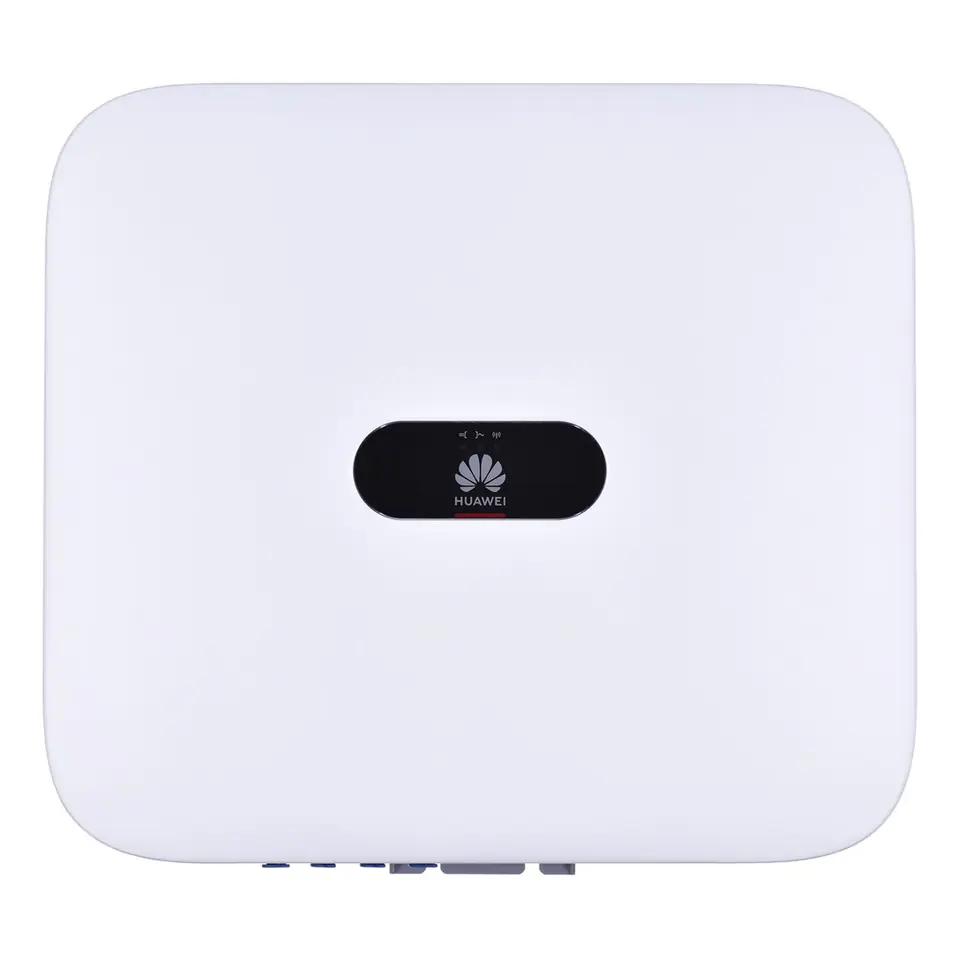

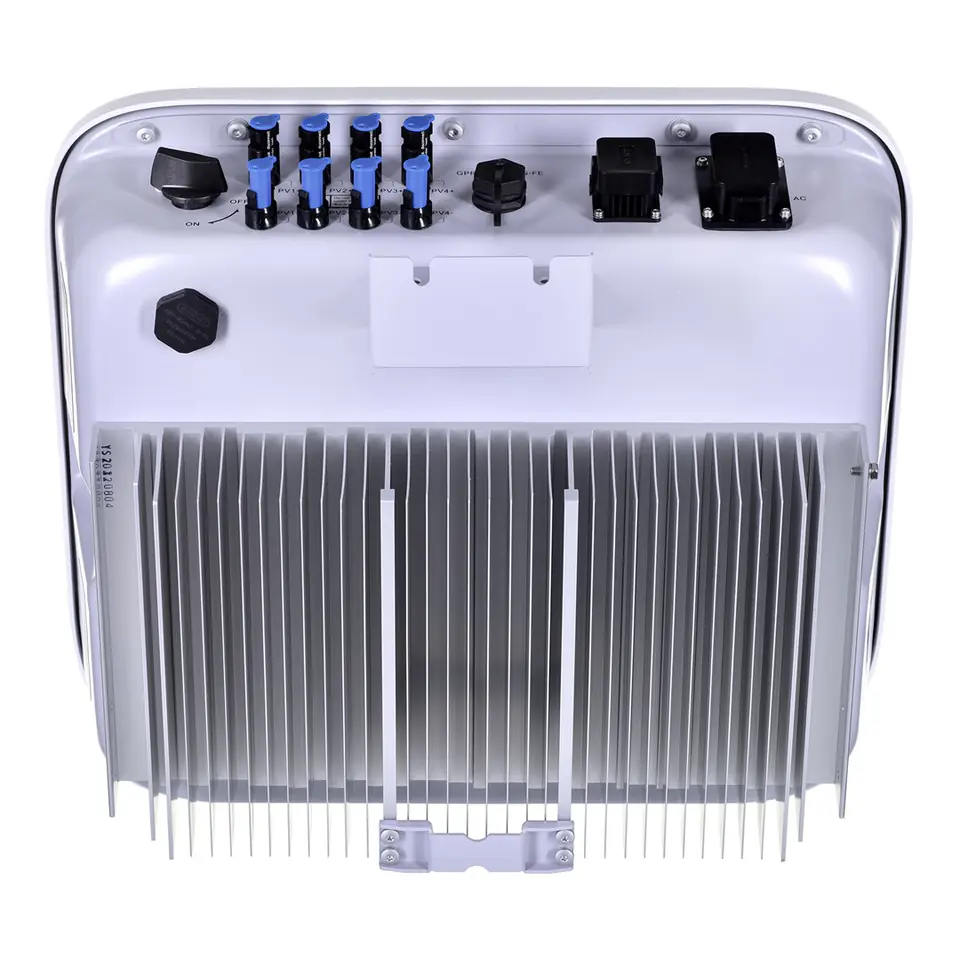

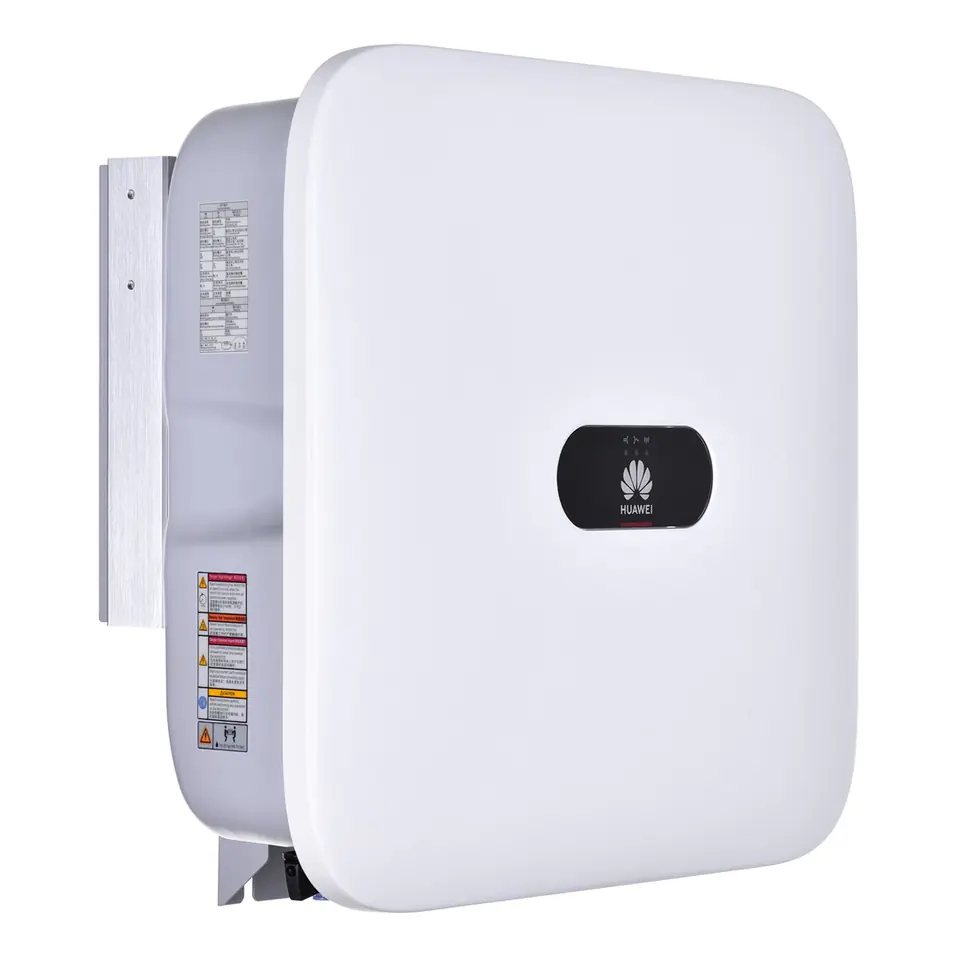

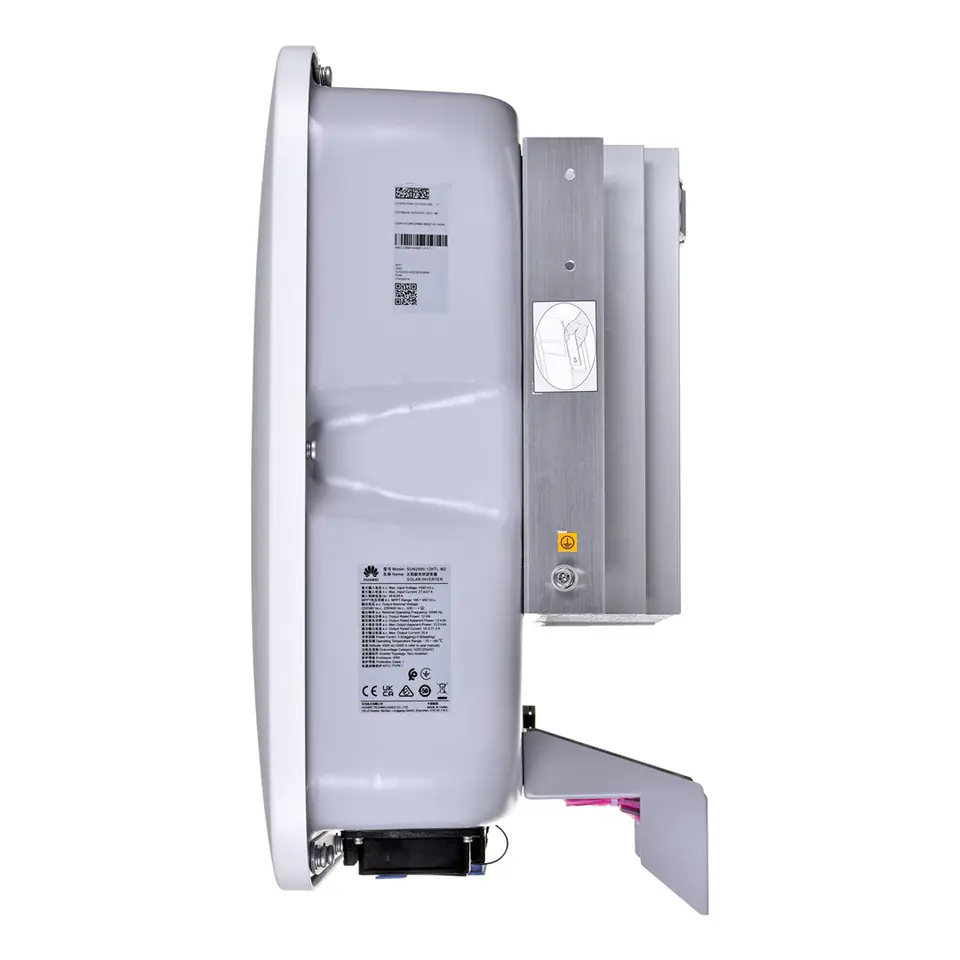

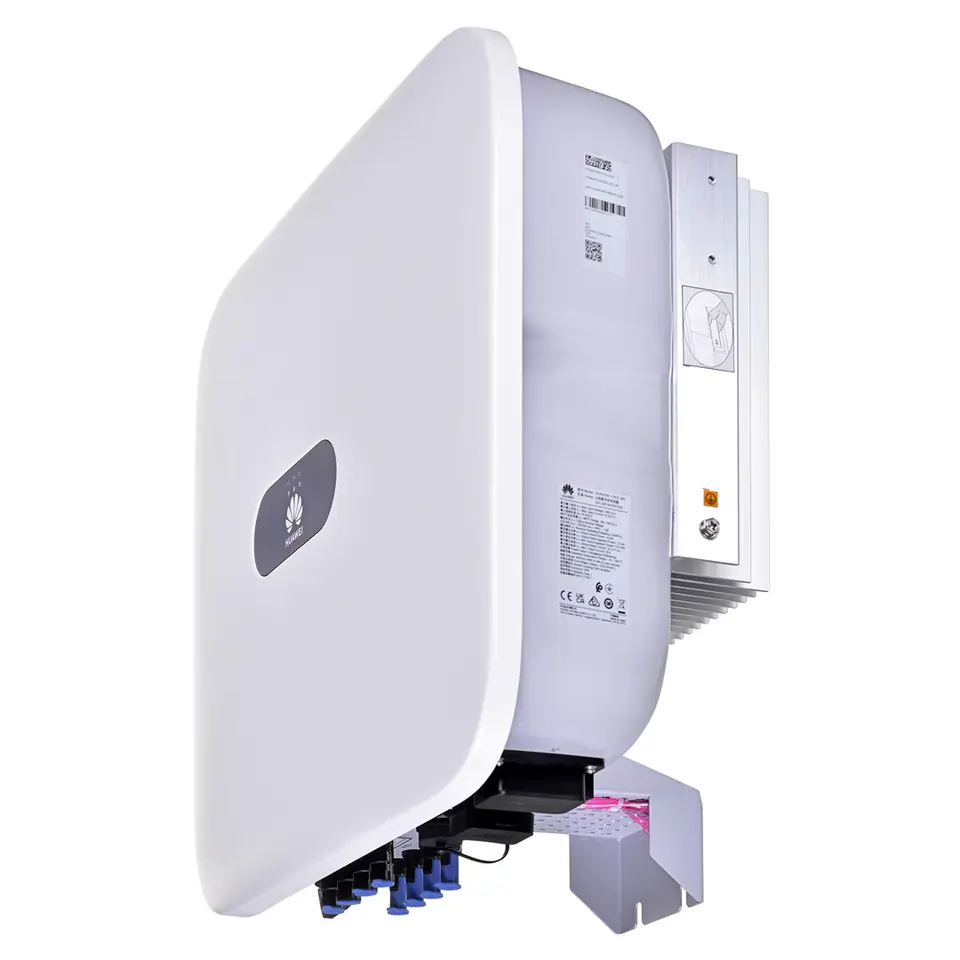

Huawei SUN2000-17KTL-M2-HC Inverter
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 3666 / 5905515610070
Share this product:
Specification

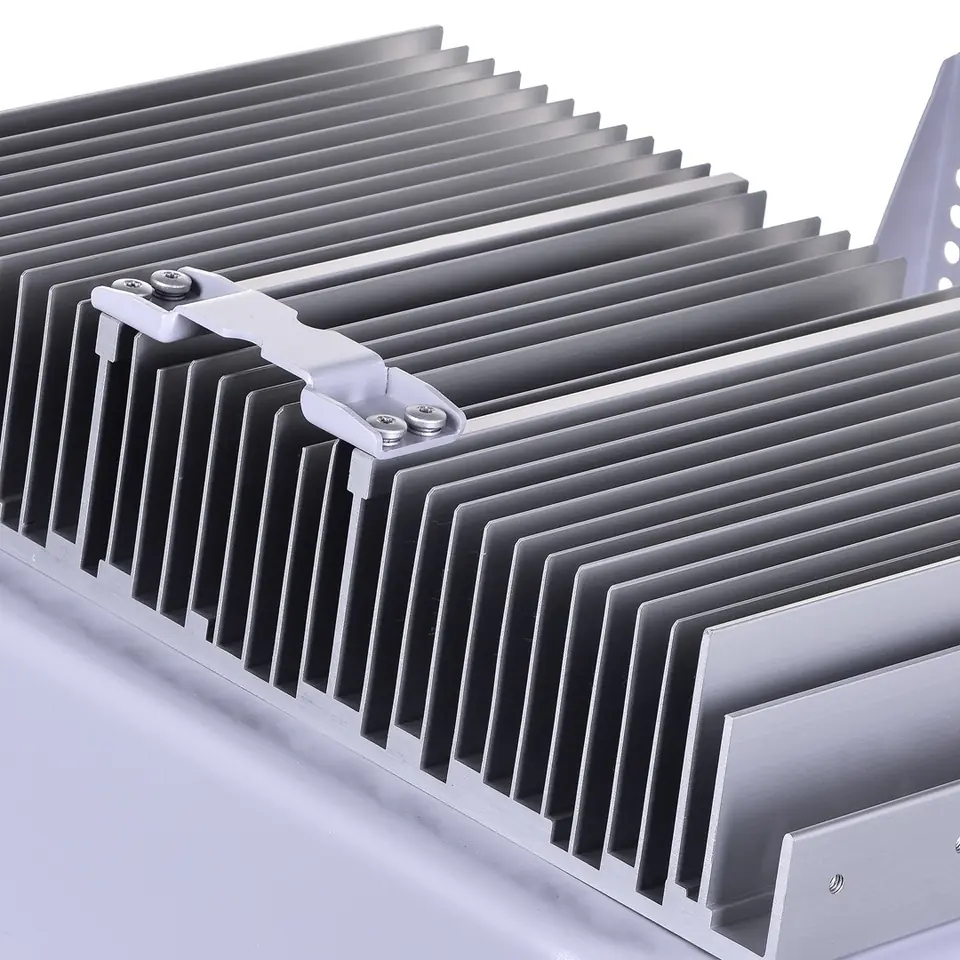

| Cooling type: | Passive |
|---|---|
| Depth: | 262 mm |
| Efficiency: | 98.5% |
| Height: | 470 mm |
| Input voltage: | 160 - 950 V |
| International protection (ip) code: | IP65 |
| Led indicators: | Yes |
| Max. number of inputs: | 4 |
| Maximum input voltage: | 1080 V |
| Maximum operating current mppt: | 27 A |
| Maximum output current: | 28.5 A |
| Number of mpp trackers: | 2 |
| Operating relative humidity (h-h): | 0 - 100% |
| Operating temperature (t-t): | -25 - 60 °C |
| Output frequency: | 50/60 Hz |
| Output power: | 17000 W |
| Output power capacity: | 18700 VA |
| Output voltage: | 220 - 400 V |
| Power current type: | DC-to-AC |
| Power supply type: | Outdoor |
| Product colour: | White |
| Purpose: | Solar panel |
| Quantity per pack: | 1 pc(s) |
| Recommended maximum pv power: | 25500 Wp |
| Short-circuit current: | 39 A |
| Start-up voltage: | 200 V |
| Suitable for outdoor use: | Yes |
| Weight: | 25 kg |
| Width: | 525 mm |
