Manufacturer no: 10060832

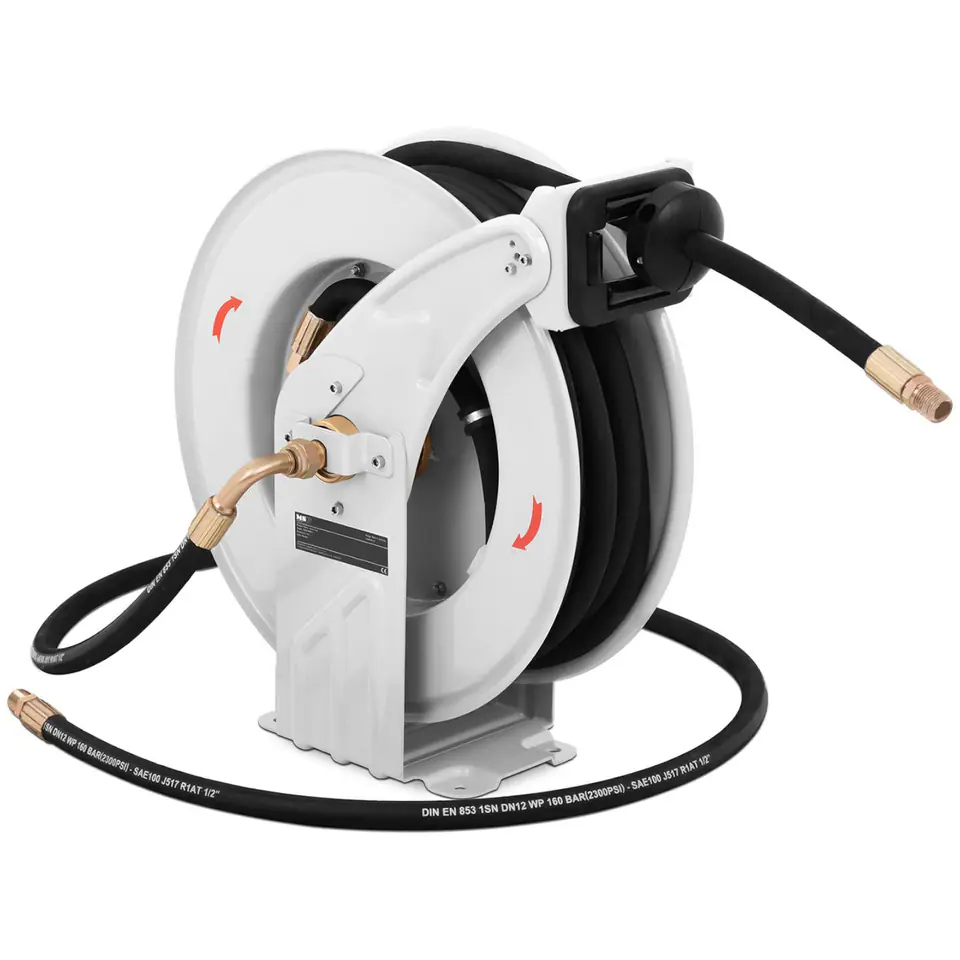

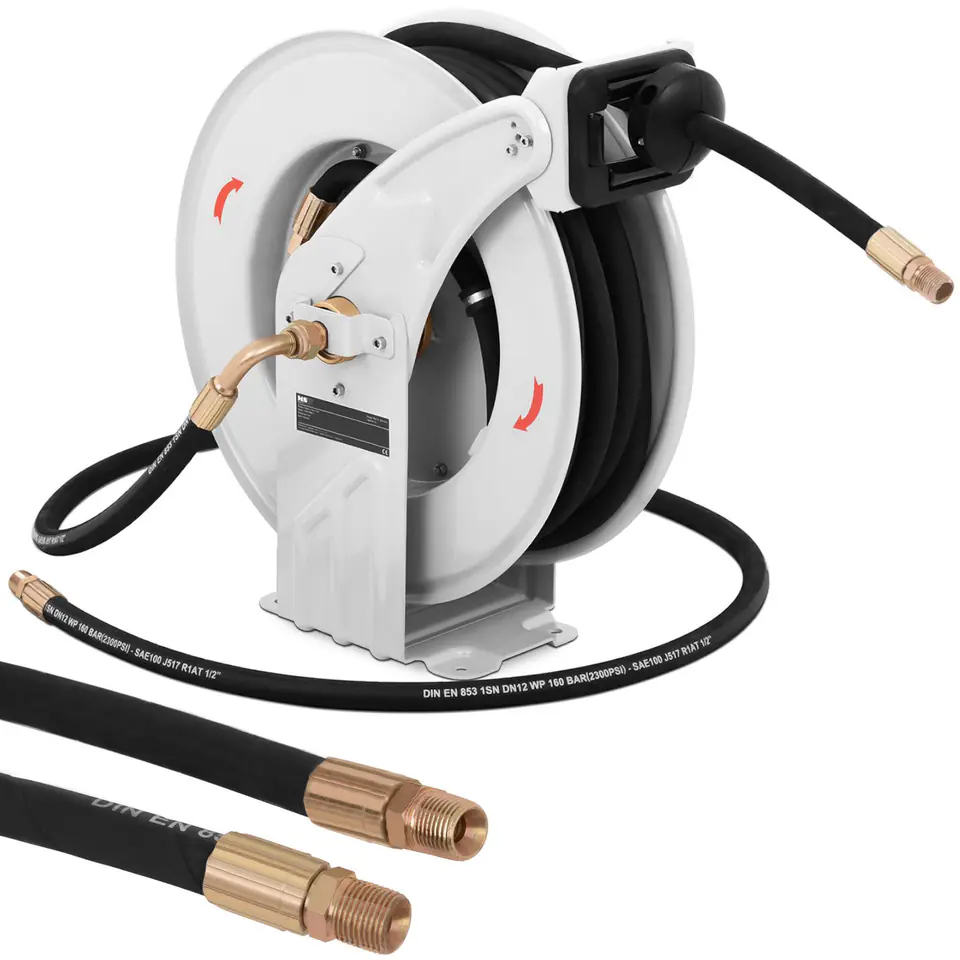

The pressure hose with the MSW retractor will work well in workshops, production plants, car services and in the household. It will successfully increase the operating range of pneumatic tools and other types of devices connected to a compressor or water source.

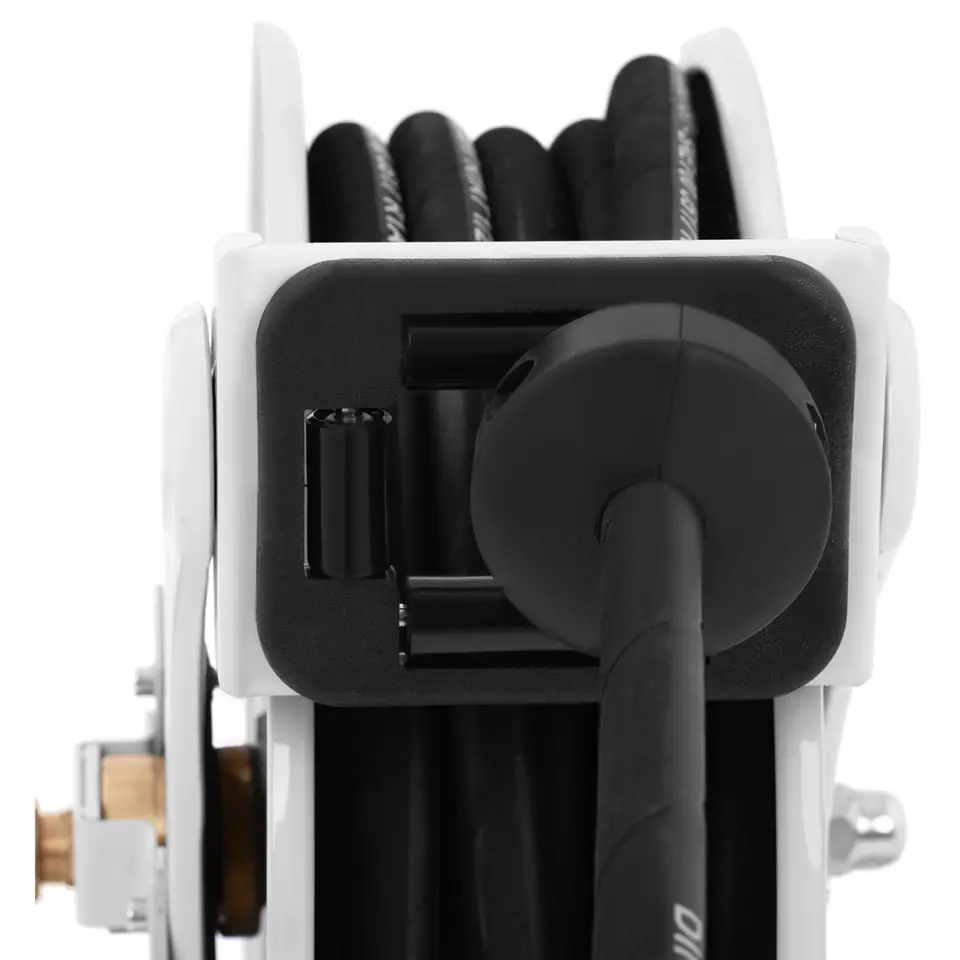

The 15 m cable allows freedom during operation. The latching mechanism has a lock that will lock the hose at the selected length (25 brake positions). The lock prevents the entire hose from winding onto the drum during adjustment. 4 rollers reduce the wear of the cable and thus prolong its service life. The spring-based automatic winding function allows you to quickly retract the hose when the task is complete and keep your workplace tidy. The housing is made of damage-resistant iron and covered with UV-resistant polyester paint. The hose is made of rubber designed to work in the temperature range of -20 to 40C. The hose remains elastic and does not swell. Also suitable for hot water up to 100C. The included accessories allow for quick installation. The L-shaped handle has 4 holes with which it is easy to screw to the floor, wall or ceiling.
Product features:
- - Versatility - range 15 m,
- - Operation at temperature - -20 to 40C,
- - Automatic winding mechanism,
- - Latching mechanism - 25 locking positions,
- - Easy operation - safe and simple installation.
- - Model - MSW-PHR15
- - Catalog number - 10060832
- - Article status - New
- - Housing material - Iron
- - Hose material - Rubber
- - Hose length - Max. 15 m
- - Inner/outer diameter of pressure line - 13/21 mm
- - Working pressure - Max. 160 bar
- - Operating temperature - -20 to 40C
- - Thread - NPT1/2'M
- - Dimensions (LxWxH) - 44 x 23 x 48 cm
- - Weight - 23.6 kg
- - Shipping dimensions (LxWxH) - 54.5 x 26 x 51 cm
- - Shipping weight - 28.8 kg
- - Snake
- - Retractor

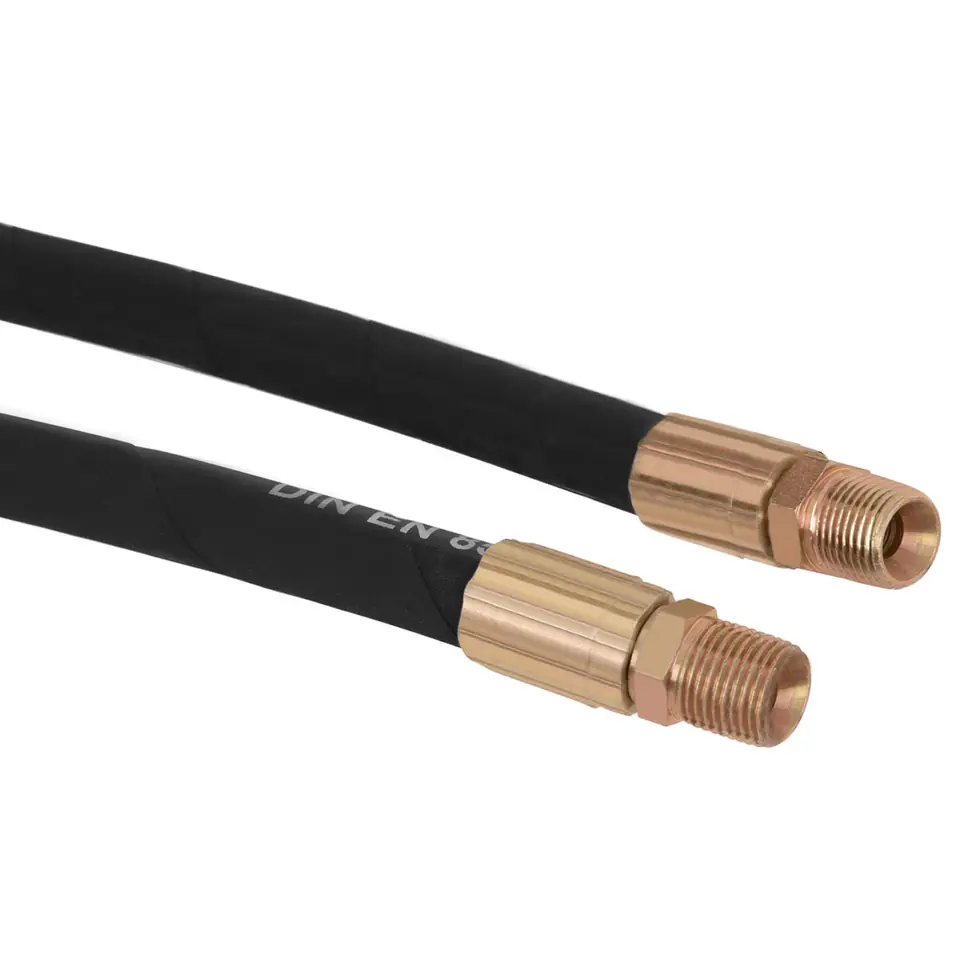

- - High pressure hose DN8 - 2 m
- - Instruction
