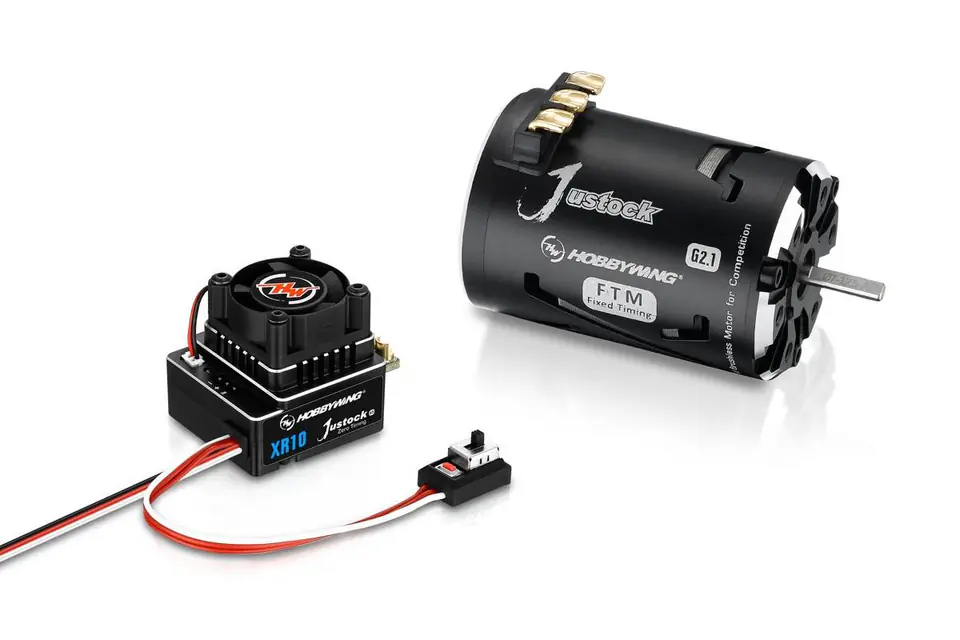

This Hobbywing powertrain includes the XR10 G3 regulator and the XERUN JUSTOCK 3650 13.5T G 2.1 engine. Carefully thought-out design and applied technological solutions make them perfect for various types of races.
The Hobbywing XR10 G3 controller will meet the expectations of even the most demanding users. It has a built-in capacitor and a BEC circuit. It is perfect for Zero Timing racing and supports the speed limit function. It has been equipped with a complex security system and is extremely user-friendly. Using it is facilitated by a special SET button.
One of the hazards to which various electrical systems are exposed is reverse polarity from the power source. It can occur due to a short circuit or accidental reversal of the terminals. To help you avoid similar problems, the XR10 G3 is equipped with a MOSFET. It provides effective protection against reverse polarity and increases the safety of use. The device has also been protected, among other things, against signal loss, too low voltage and overheating.
You no longer have to waste space and money on external capacitors - the XR10 G3 controller already has the right module built-in! The device is also equipped with a BEC system that supports a maximum output current of up to 8 A and an output voltage of 6 V or 7.4 V. This will ensure a constant power source even for high-speed servos available on the market today.
The Hobbywing XR10 G3 regulator is designed for zero-timing racing. It also allows you to set a speed limit. It supports up to 6 different speed levels (RPM), so it can meet the requirements of various competitions around the world. To program it, you just need to use the latest OTA Bluetooth module or a regular 3 in 1 programming card (not included).
Installation and operation of the regulator will not cause you a problem. With a dedicated programming port, you don't have to plug the cable into the receiver every time and then unplug it. What's more, there is the possibility of powering additional fans to ensure better heat dissipation. The user-friendly interface allows for simple and convenient installation - just connect a 3-in-1 LCD programming card or OTA Bluetooth module (not included) to the programming port.
Do not waste time on complicated configuration or parameter reset. The controller is equipped with a single SET button. With it, you can easily calibrate your device or perform a factory reset. Just one click!
Adjust the engine to your needs. The XR10 G3 controller supports 2 engine directions - CCW (counterclockwise) and CW (clockwise). Thanks to this, it will be perfect for various applications.
Hobbywing engineers are constantly working on improving their products. Get access to the latest features with software updates. To do this, simply connect the controller to the HW LINK app via the OTA Bluetooth module or to USB LINK via a computer.
The Hobbywing Justock G2.1 engine is the successor to the G2. It has improved response time and soldered connectors, making it ideal for racing, both classic and racing car models. The use of a heat-resistant aluminum housing with attached magnesiums and a double-insulated winding, high-precision and force-bearing bearings, as well as a solidly crafted rotor guarantees unparalleled performance and durability.
The built-in, precise hall sensor, combined with precision and in combination with a precisely balanced rotor, ensures smooth power delivery.
The aluminum housing with a unique design not only looks great, but also supports heat distribution.
The silicone o-ring seal helps deliver internal heat to the motor housing and prevents dust from entering the Hall sensor. The device is designed to be unfolded for regular cleaning and maintenance of easily consumable components such as the rotor and sensor module, extending the life of the motor and maintaining its effectiveness.
Copper soldering pads with extremely low impedance allow users to solder regulator wires directly to the motor fields for a durable and stable connection and easy wiring.
The engine works perfectly with the XR10 regulator as well as other Hobbywing regulators and is designed to work with a range of different on-road and off-road vehicles in 1/10 and 1/12 scale. It's the perfect choice for the Stock and Sport racing class, but it can also be great for beginners or for those looking for a training engine.
Hobbywing | Producent |
---|---|
XERUN XR10 JUSTOCK G3 | Model |
1/10th | Skala |
Bezszczotkowy | Rodzaj |
Tak | Czujniki |
Nie | Wodoodporność |
60 A / 380 A | Natężenie ciągłe/szczytowe |
2S LiPo | Napięcie wejściowe |
6 V / 7,4 V @4 A | Wyjście BEC |
Czarny, 14 AWG, 200 mm x2 | Kable wejścia |
Czarny, 14 AWG, 200 mm x3 | Kable wyjścia |
Nie | Złącza wejścia |
Nie | Złącza wyjścia |
25 x 25 x 10 mm | Wymiary wentylatora |
5-7,4 V | Kable wyjścia wentylatora |
Zasilanie przez BEC | Złącza wejścia wentylatora |
Tak | Programowanie przez przycisk SET |
Obsługiwana | Karta programująca LED |
Obsługiwana | Karta programująca LCD |
Obsługiwany | Moduł WiFi |
Obsługiwany | Moduł programujący OTA |
Obsługiwane | Aktualizacje oprogramowania |
40,9 x 33,9 x 32,1 mm | Wymiary |
75,4 g (wliczając przewody) | Waga |
SL BL / SD BL | Kompatybilne silniki |
1/10th Touring Cars i wyścigowe buggy | Kompatybilne pojazdy |
≥10.5T 3650 silnika | Współczynnik KV / liczba T |
Hobbywing | Producent |
---|---|
30408010 | Model |
3200 | KV |
2-3S | Zasilanie LiPo |
13,5 T | Ilość zwojów |
175 g | Waga |
35,9 mm | Średnica |
52,5 mm | Długość |
15 mm | Długość wału |
3,17 mm | Średnica wału |
215 W | Maksymalna moc |
65 A | Prąd szczytowy |
Fixed | Timing |
Φ7-12,5 | Wirnik |
1:10 Stock/Sport Class, 1/12 wyścigi on-road (np. zawody touring, F1, drift, Mini car, buggy, 2WD SCT, truck, trening, Rock Crawlers (21,5T i 25,5T) | Zastosowanie |
