Linearity of work
The built-in, precise hall sensor combined with the precision and balance of the rotor guarantee incredible linearity of the engine.

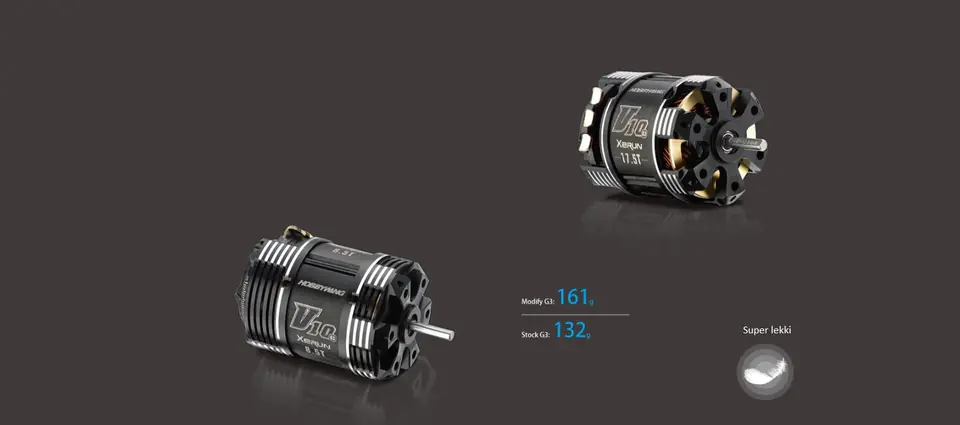

Super lightweight

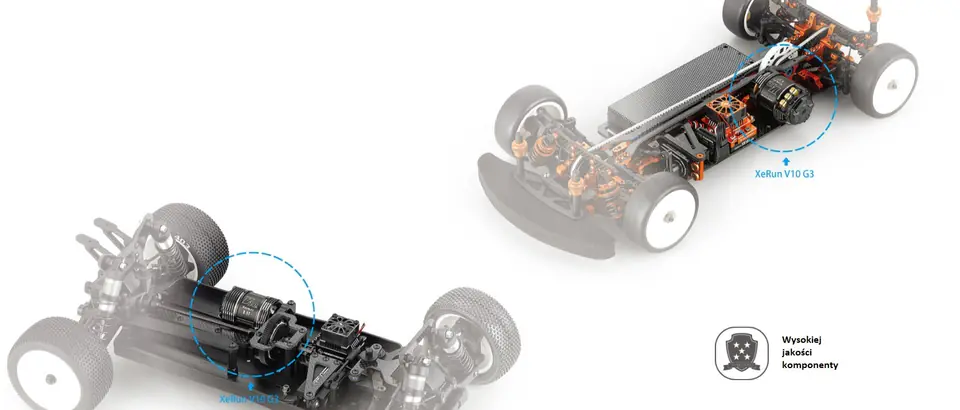

The G3 Modified and Stock engines weigh only 161 g and 132 g respectively. The weight has been reduced by 11% and 21% respectively compared to the V10 G2 singles. Thanks to the lower weight, drivers can easily set the balance of their vehicles.

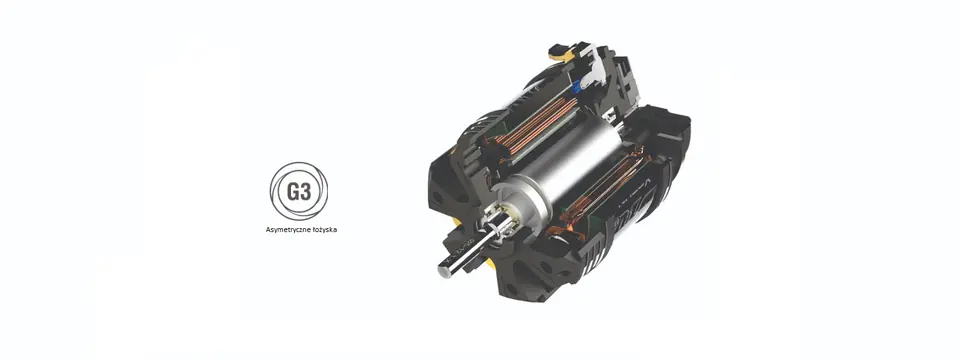

Asymmetric bearings
In order to increase load carrying capacity, the front bearing size of the G3 single has been increased by 26% compared to the G2 version. To reduce drag, the rear bearing has been reduced by 6%. The asymmetrical design will make the motor run much smoother and more stable.

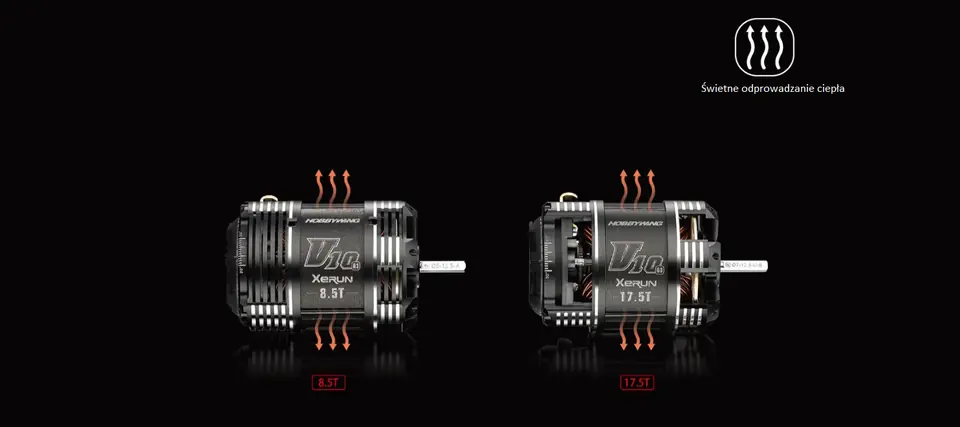

Great heat dissipation
The special housing design exposes the stator core to air, which maximizes cooling. Large openings* on the front and rear end plates ensure excellent heat dissipation from the engine.
* Please note that 5.5T~8.5T engines are usually used in off-road vehicles, so the factory end plates have small holes

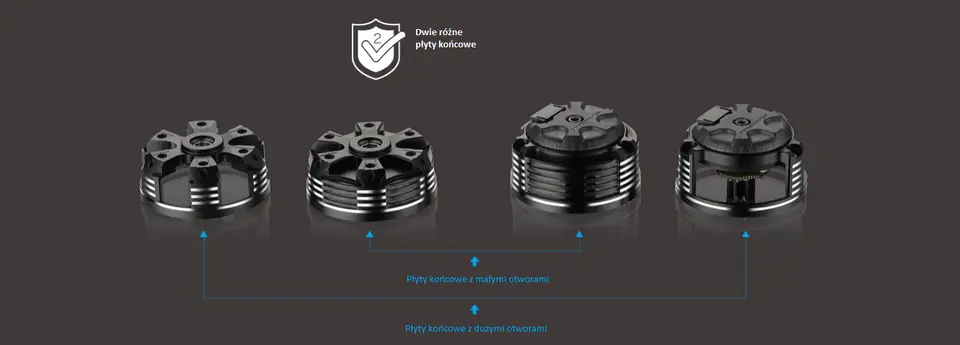

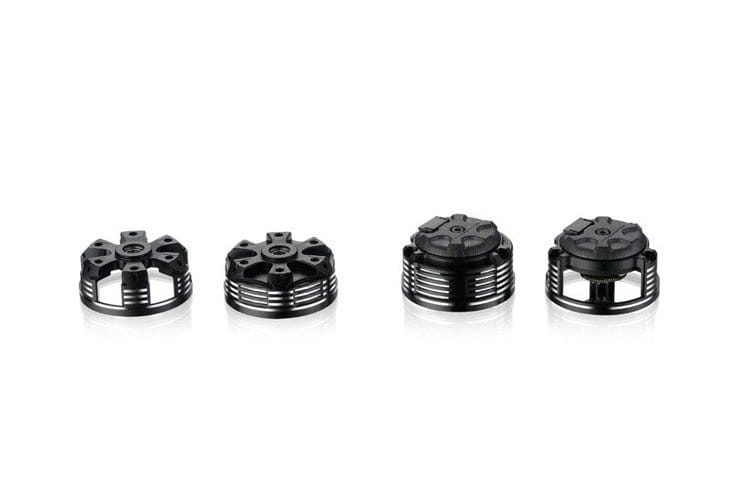

Two different end plates
The large bore end plates used in the 3.5T~5.0T and 10.5T~21.5T engines provide excellent heat dissipation from the engine for on-road vehicles.
Small hole end plates used in 5.5T~8.5T engines prevent the ingress of sand or other debris, which prevents damage to engines in off-road vehicles.
The user can purchase any end plates and mount them in his engine according to his needs.

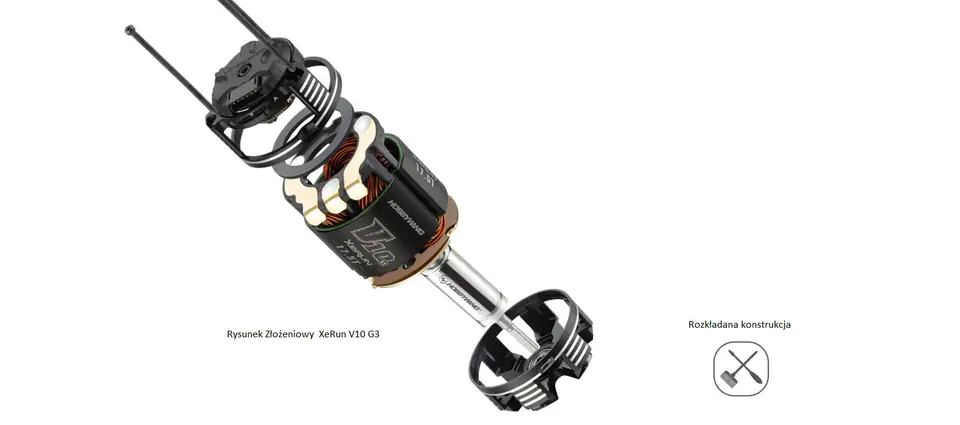

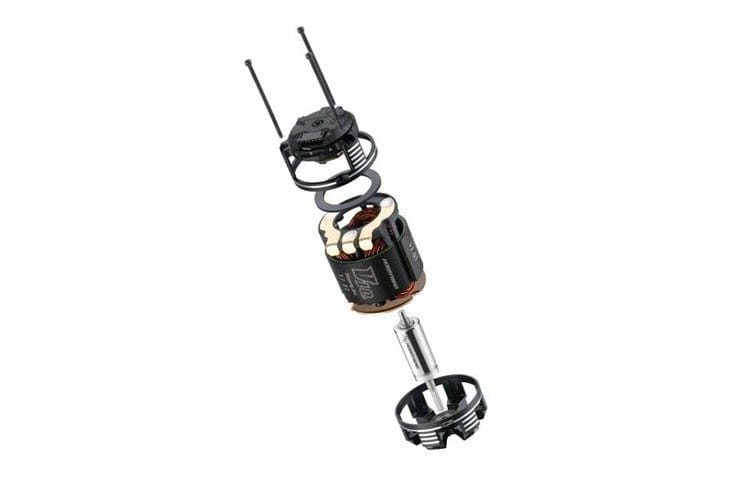

Extendable design
The design of the device allows it to be unfolded for regular cleaning and maintenance, which extends the life of the engine and allows it to maintain its effectiveness.

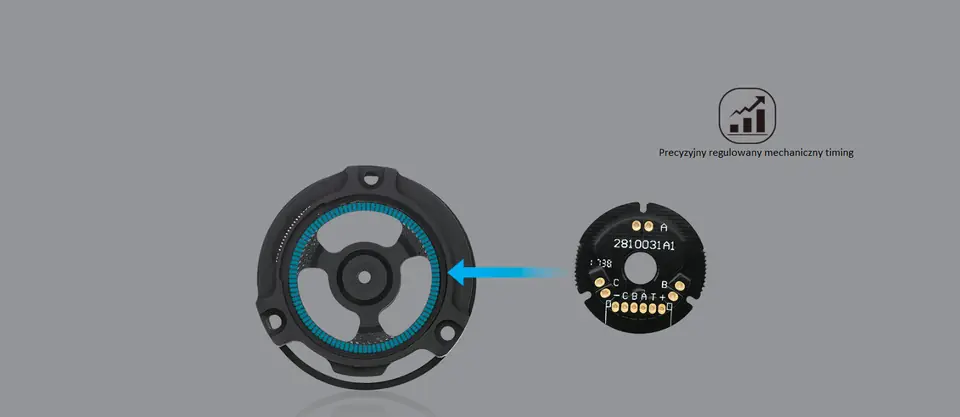

Infinitely adjustable timing
Mechanical timing allows for extremely precise and smooth correction of values. Non-slip lines at the rear of the engine guarantee the stability of the selected settings.
High quality components
The use of high-quality stator core, high temperature resistant pure copper coil and rotor, premium high-strength and precision bearings, as well as soldering pads with high current resistance guarantees great performance and durability.
Specification
| Model: | 30401112 |
|---|---|
| KV: | 4500 |
| LiPo power supply: | 2S |
| Number of coils: | 10.5 t |
| Scales | 133 g |
| Diameter | 35.9 mm |
| Length | 50.5 mm |
| Shaft length | 14 mm |
| Shaft diameter | 3.17 mm |
| Maximum power | 260 watts (Printing) |
| Peak current | 74 amps |
| Timing | 30 - 60 |
| Rotor | Φ7,3-12,5 |
| Use | 1:10 Drift, Stock Class, On-Road Racing |
