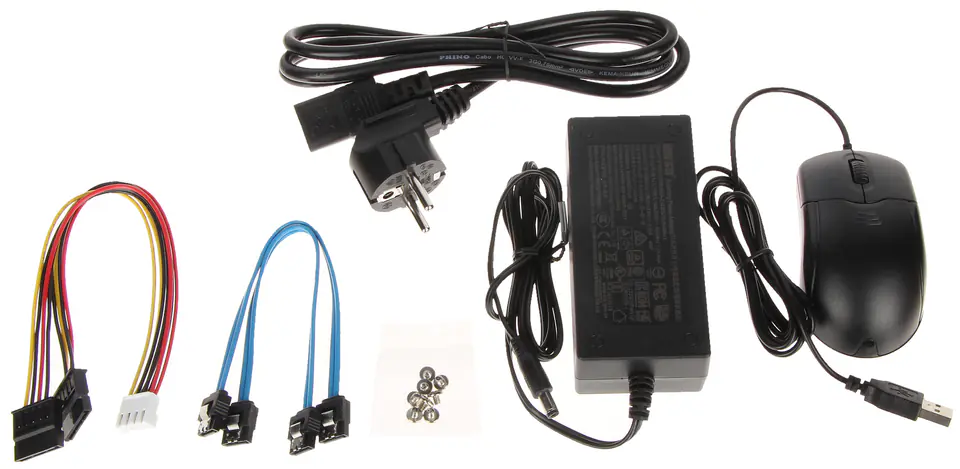

| Ac adapter included: | Yes |
|---|---|
| Analog signal format system: | PAL, NTSC |
| Artificial intelligence (ai) functions: | Yes |
| Audio formats supported: | G.711u |
| Audio input: | 1 |
| Audio output: | 1 |
| Audio system: | 2-way |
| Audio transfer rate: | 64 Kpbs |

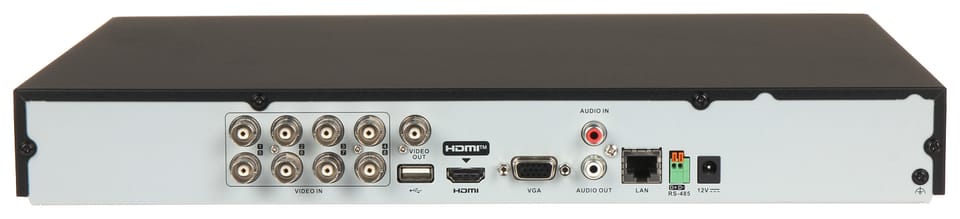

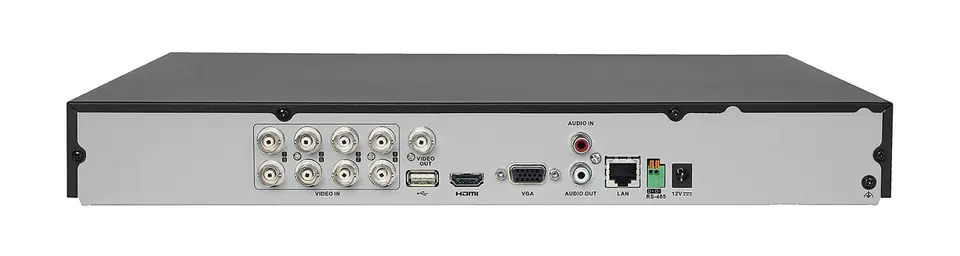

| Bnc input ports: | 8 |
| Bnc output ports: | 1 |
| Browser supported: | Microsoft Edge, Google Chrome, Safari, Firefox |
| Built-in display: | No |
| Built-in fan: | No |
| Built-in memory: | No |
| Channels quantity: | 8 + 2/4 (IP) |
| Current: | 2,5 A |
| Dc voltage: | 12 V |
| Dedicated application: | Hik-Connect (Android, iOS), iVMS 4500 (Windows, Mac OS), Hik-ProConnect (Android, iOS), iVMS 4200 (Android, iOS) |
| Depth: | 320 mm |
| Dual stream support: | Y |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10,100 Mbit/s |
| Filtering out false alarms: | Yes |
| Hdd interface: | SATA |
| Hdmi ports quantity: | 1 |
| Height: | 48 mm |
| Housing material: | Metal |
| Maximum hdd capacity: | 10000 GB |
| Maximum resolution of supported cameras: | 6 Mpix |
| Maximum video resolution: | 1920 x 1080 pixels |
| Motion detection 2.0: | Yes |
| Mounting: | tabletop / rack |
| Mouse included: | Yes |
| Number of hdds supported: | 2 |
| Number of users: | 64 user(s) |
| Operating modes: | AHD, CVI, TVI, CVBS, IP |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -10 - 55 °C |
| Oven control type: | Via the app, Website, OSD on-screen menu |
| Perimeter protection: | Yes |
| Power consumption (hdd standby): | 30 W |
| Power supply type: | External |
| Product main colour: | Black |
| Product type: | Monitoring recorder |
| Quantity: | 1 |
| Quick search: | Y |
| Remote control of ptz cameras: | Yes (via OSD and coaxial cable) |
| Rs-485 ports: | 1 |
| Shockproof: | No |
| Supported network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Supported video streaming resolutions: | 1920 x 1080, 1024 x 768, 1280 x 1024, 1280 x 720 |
| Usb 2.0 type-a ports quantity: | 2 |
| Vca (video content analytics): | Yes |
| Vga (d-sub) ports quantity: | 1 |
| Video capturing speed: | 30 fps |
| Video compression formats: | H.265, H.265 Pro+, H.264+, H.265 Pro, H.264 |
| Video transmission speed: | 32 Kbps - 6 Mbps |
| Waterproof: | No |
| Web-based management: | Yes |
| Weight: | 1.78 kg |
| Wi-fi connectivity via usb interface: | Yes |
| Width: | 380 mm |
