PoE switch DS-3E0109P-E/M(B) is an industrial-type device that provides smooth network transmission at 10 / 100 Mbps

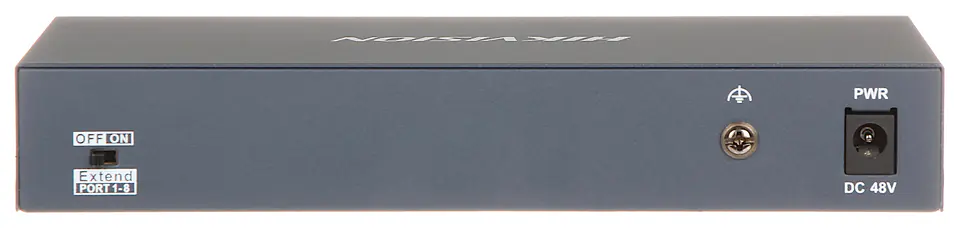

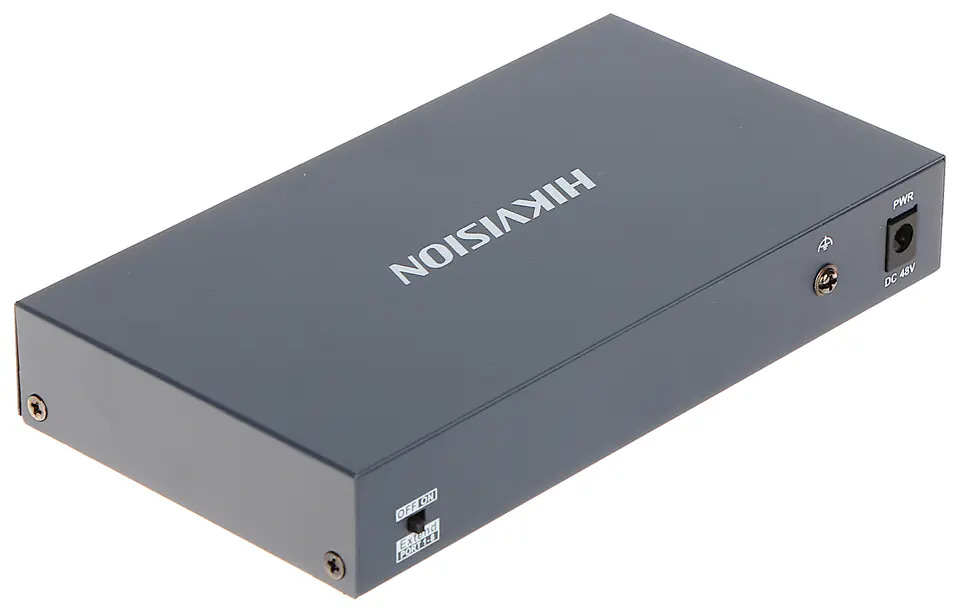

HIKVISION 8-PORT POE SWITCH DS-3E0109P-E/M B
€70.96
Shipping from warehouse: D4
Estimated shipping: Wed, May 15 - Mon, May 20
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DS-3E0109P-E/M(B) / 6941264013945
Share this product:
Specification
| Baud:: | 10 / 100 Mbps - 8 LAN & PoE Ports, 10 / 100 Mbps - 1 Uplink Port |
|---|---|
| Certificates:: | CE |
| Dimensions:: | 170 x 95 x 28 mm |

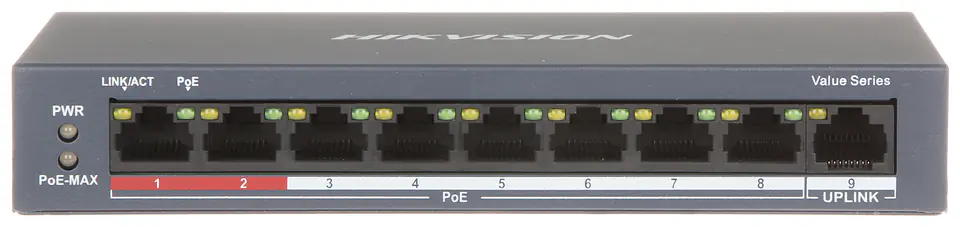

| Lan ports:: | 9 x RJ45 10/100 Base-TX ( 8 x PoE (802.3af/at) ) |
| Leds:: | Power, Link/Act, PoE |
| Mac address table:: | 2k |
| Manufacturer / brand:: | Hikvision |
| Maximum output power:: | 30 W/ PoE port |
| Maximum total power:: | 60 watts |
| Operating modes:: | Extend On : 150 m, 10 Mbps @ Hi-PoE (802.3bt) / 300 m, 10 Mbps @ PoE (802.3af/at) Extend Off : 100 m, 100 Mbps @ UTP cat. 5e, 6 |
| Operating temperature:: | -10 °C ... 55 °C |

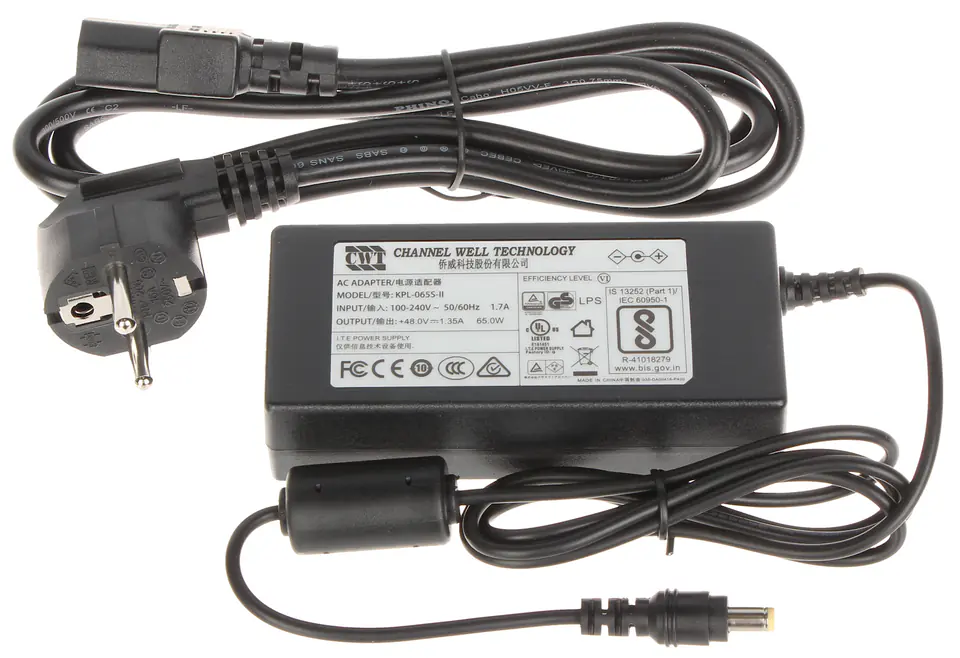

| Power:: | 48 V DC / 1.35 A (power supply included) |
| Sap code:: | 301801293 |
| Scales:: | 0.34 kg |
| Selected features:: | High Priority Ports : Port 1, 2 PoE Power Mode : The device supports 8-pin power supply |
| Warranty:: | 3 years |
