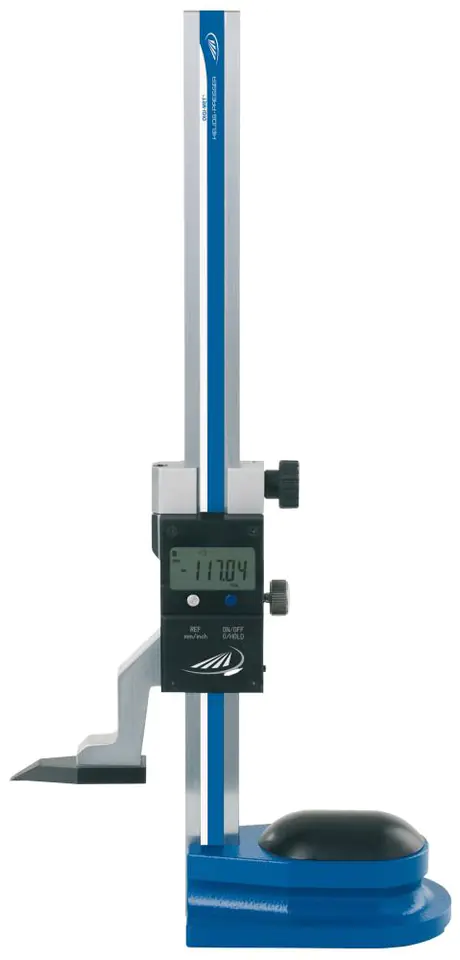

Altimeter and scribing device, digital, with rack and pinion

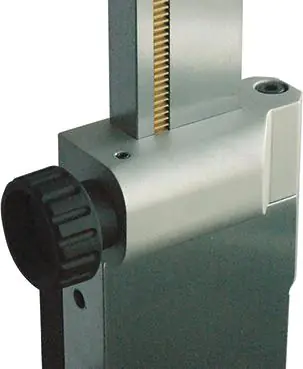

Material: special steel. With replaceable carbide offset stylus, precise adjustment with rear sprocket and gear setting knob. The height of the digits on the LCD display is 11 mm. The adhesion surface of the foot is ground flat. Delivery with CR2032 battery, 3 V, in transport packaging.
Functions: on and auto off, mm/inch switching, button lock for set zero position, reset possible in any position, preset function (preset of measured value), ABS (switch from relative to absolute measurement), change of counting direction, input of factors.
Application: for simple but precise routing, scanning and measuring workpieces and machine parts.
Height Stacker with sprocket,Digital 300mm HP
This product is not available
- Availability:
- expected delivery
- Brand:
- HELIOS PREISSER
- Product code:
- 0347722 / 4029713024482
Share this product:
Specification
| Foot dimensions: | 145 x 90 x 44 mm |
|---|---|
| Measuring range: | 300 mm |
| Read: | 0.01 mm |
