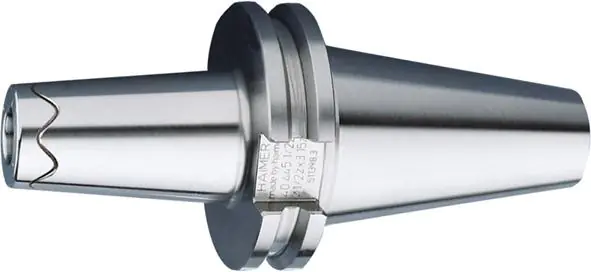

Heat Shrink Holder DIN69871, ADB SK40 SafeLock 16x65mm HAIMER

This product is not available
Availability:
expected delivery
Brand:
HAIMER
Product code:
40.445.16.37 / 4034221062680

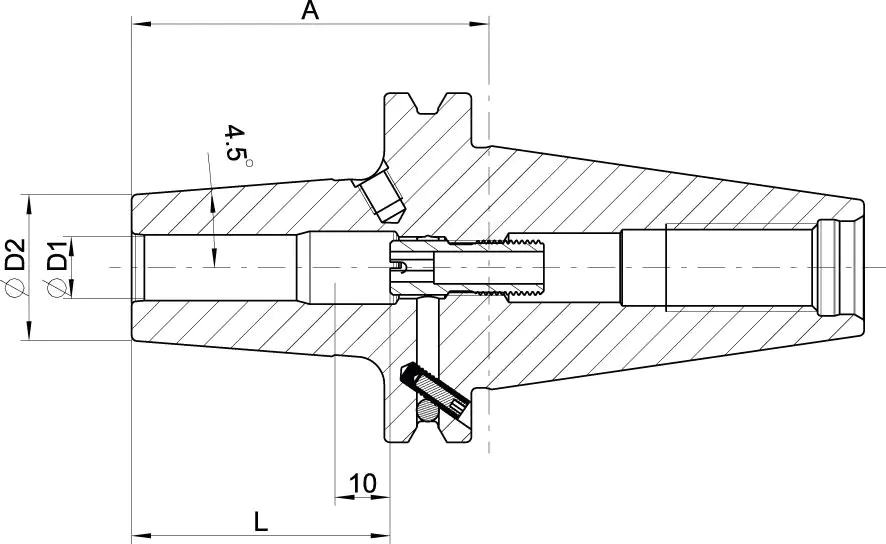

Specification

A:65 mm
Diameter d1:16 mm
Diameter d2:29.5 mm
L:50 mm
Sk:40

Uchwyt termokurczliwy Power Shrink Chuck – Safe-Lock

Material: heat-resistant steel for hot work. With Safe-Lock system. The optimal design combines high rigidity with vibration damping. Precise balancing with balancing screws. With lockable Cool Jet holes. All functional surfaces after finishing , guaranteed quality thanks to dual 100% control. Suitable for HSS and carbide tools.
Cone tolerance: AT3
Gripping tolerance: h6
Hardened to 54 -2 HRC.
Application: for heat-shrinkable induction, contact and hot air devices. Maximum cutting performance for high-speed and heavy-duty machining.
Scope of delivery: shrink holder with screw for length adjustment.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
