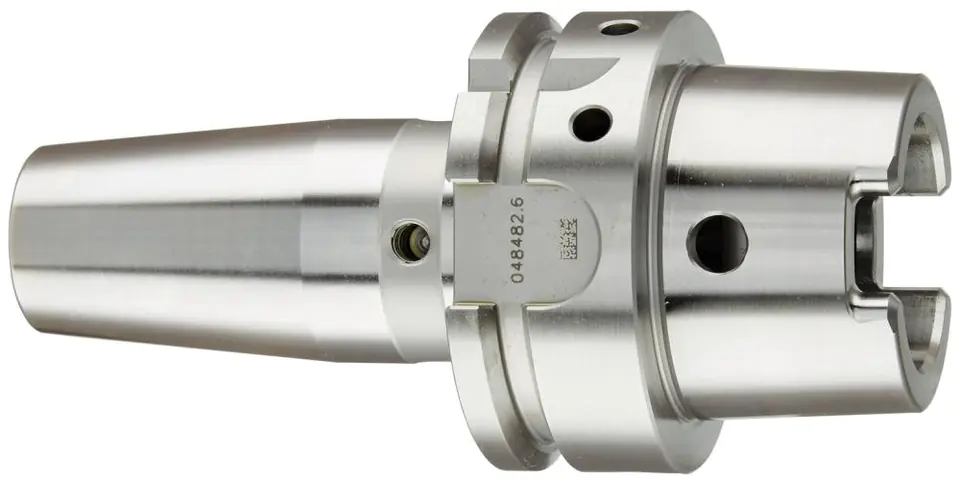

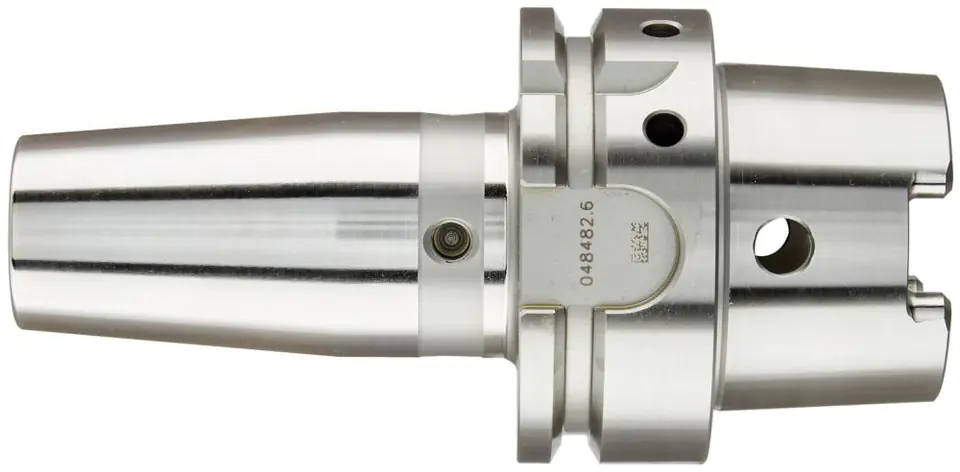

Shrink holder, DIN 69893, shape A, HSK 63
Execution: precisely balanced. All functional surfaces after finishing , guaranteed quality thanks to dual 100% control. More accurate than DIN. Made of heat-resistant steel for hot work. Precise balancing with balancing screws possible. For HSS tools and cemented carbides.
Gripping tolerance: h6
Hardness after hardening: 54 –2 HRC
Application: for heat-shrinkable induction, contact and hot air devices.
Scope of delivery: shrink holder with screw for length adjustment, without coolant supply tube.
Note: without adjustment screw, without thread for balancing screw, with coolant supply slots in the mounting hole. Note: without adjustment screw, without thread for balancing screw, with coolant supply slots in the mounting hole.
