Heat Shrink Holder DIN69863A, 3,0x60mm HAIMER

€271.72
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Apr 28 - Fri, May 1
14 days returnUnconditional return policy
Availability:
running out
Brand:
HAIMER
Product code:
A50.140.03 / 4034221032096

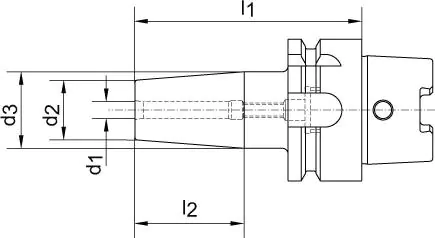

Specification

Diameter d1:3 mm
Diameter d2:10 mm
Diameter d3:–Mm
Hsk:50
L1:60 mm
L2:9 mm

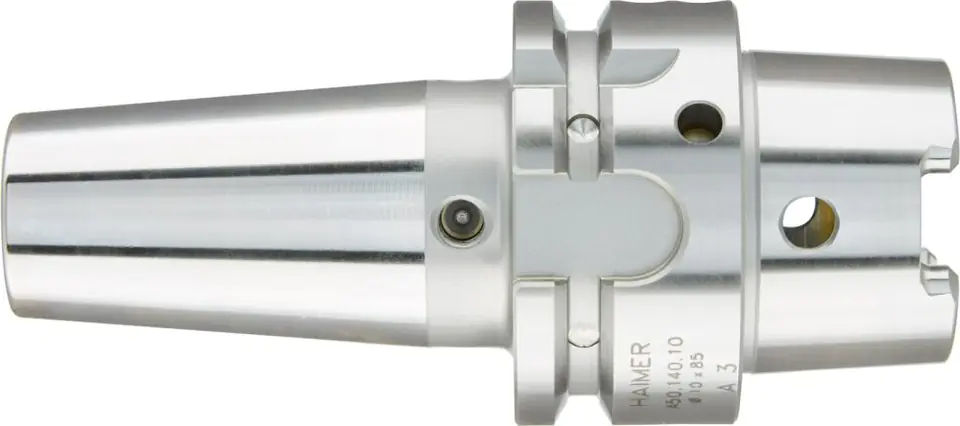

Heat Shrink Holder, DIN 69893, HSK 50, shape A

Execution: precisely balanced. All functional surfaces after finishing , guaranteed quality thanks to dual 100% control. More accurate than DIN. Heat-resistant hot steel, hardness after quenching: 54 -2 HRC. Precise balancing with balancing screws possible. Suitable for HSS and carbide tools.
Gripping tolerance: h6
Application: for heat-shrinkable induction, contact and hot air devices.
Scope of delivery: shrink holder with screw for length adjustment, without coolant supply tube.

Note: without adjustment screw, without thread for balancing screw, with coolant supply slots in the mounting hole. Note: without adjustment screw, without thread for balancing screw, with coolant supply slots in the mounting hole.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
