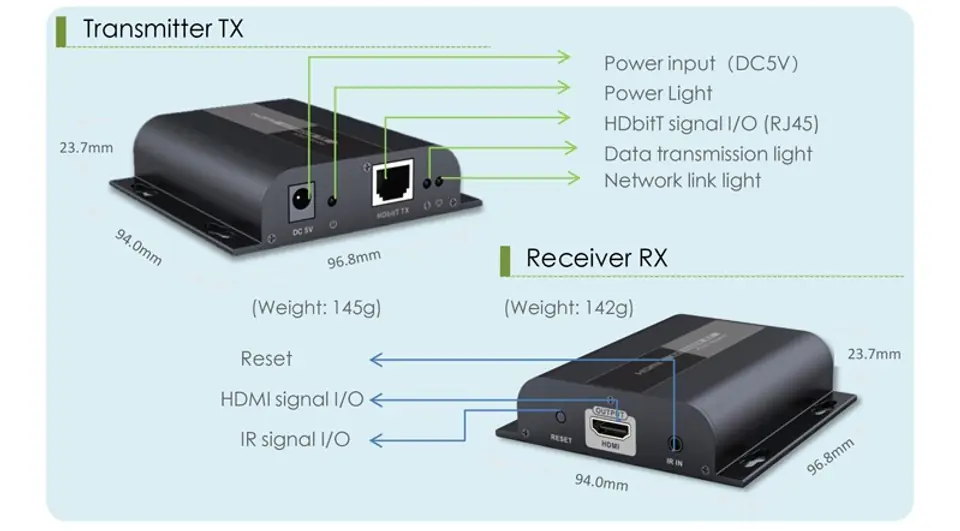

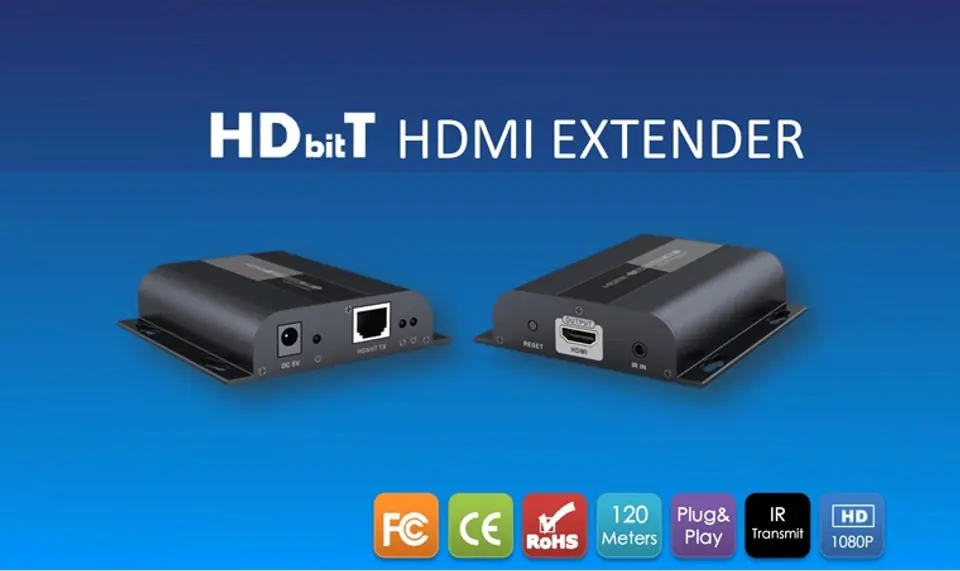

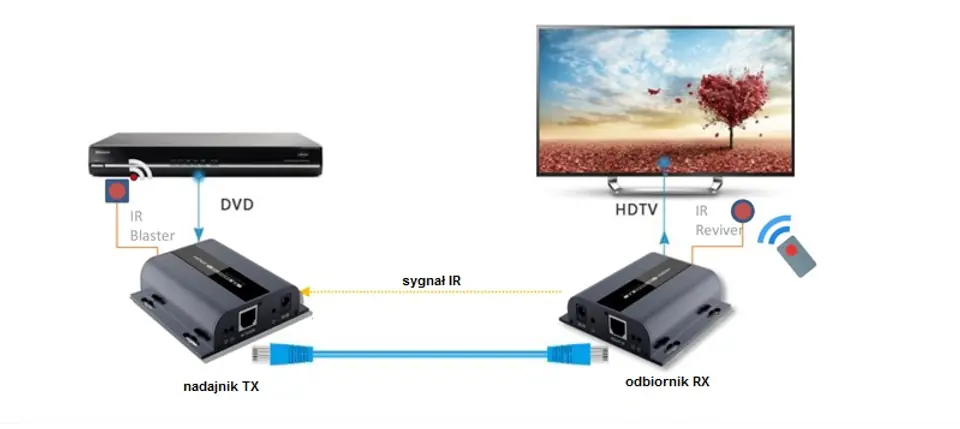

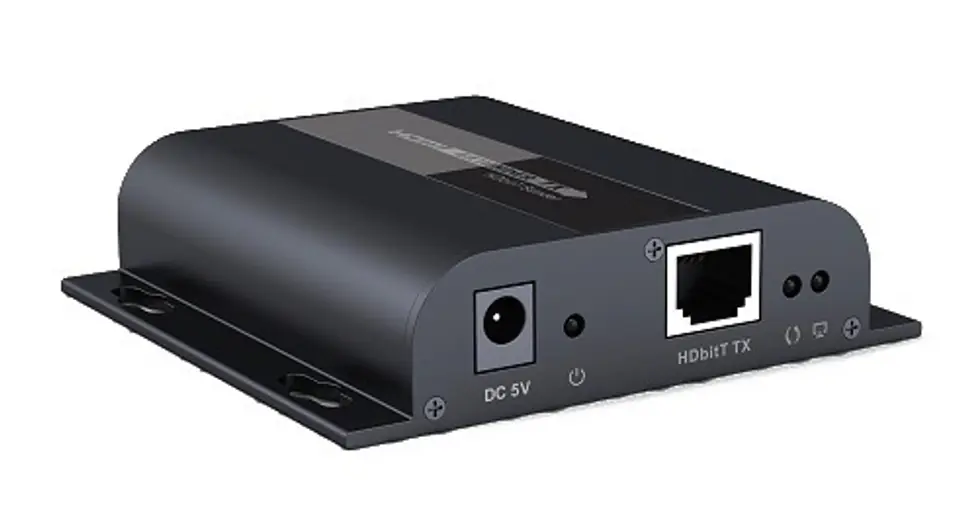

The HDMI to IP with IR converter allows you to send a high-definition (HD) signal to a receiver (TV, monitor, etc.) equipped with an HDMI connector via twisted-pair cat cable. 5 or higher. An additional advantage of the device is the transmission of the remote control functions using the included IR infrared. Transmitter (TX) included. We also offer the whole set - transmitter and receiver.

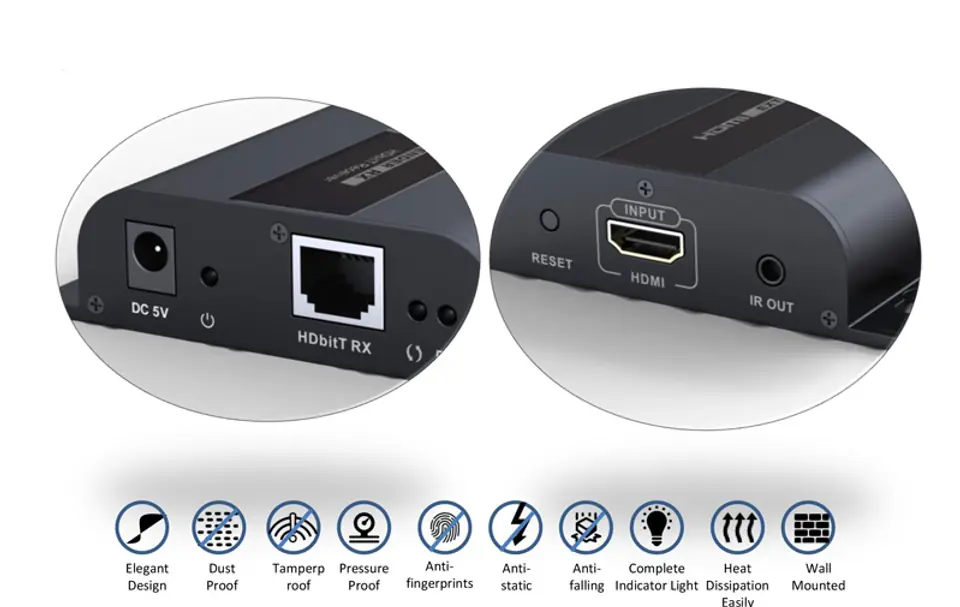

The device is perfect for connecting a satellite receiver, DVD player, computer or console to a receiver away from the devices. Wall mountable.
Main features:
- simultaneous HDMI and Internet transmission via a single CAT5 /5e/6 cable

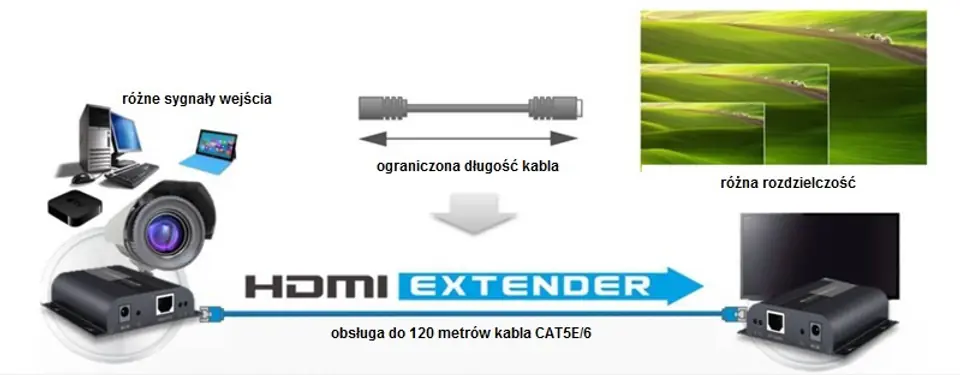

- transmission up to 120 meters

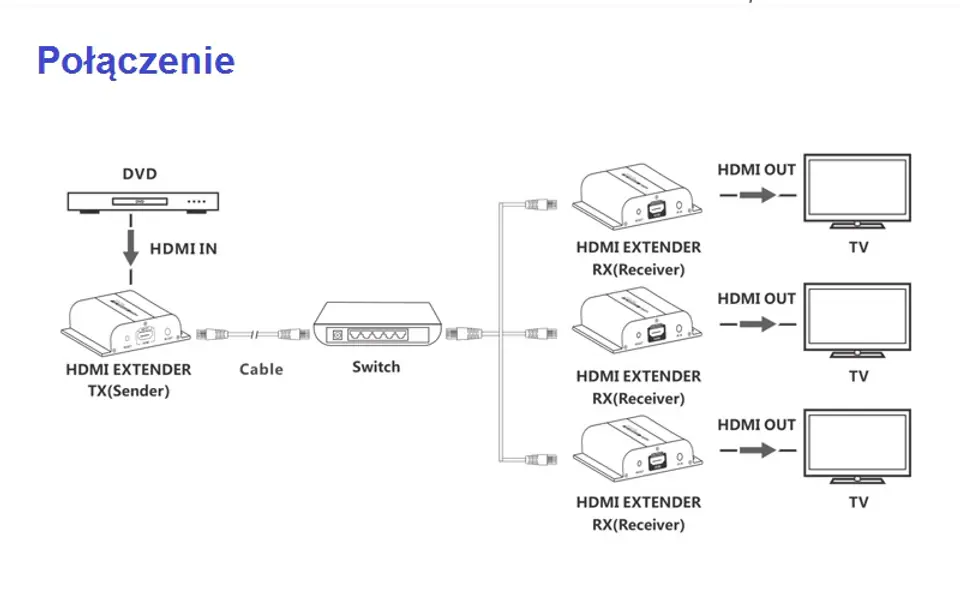

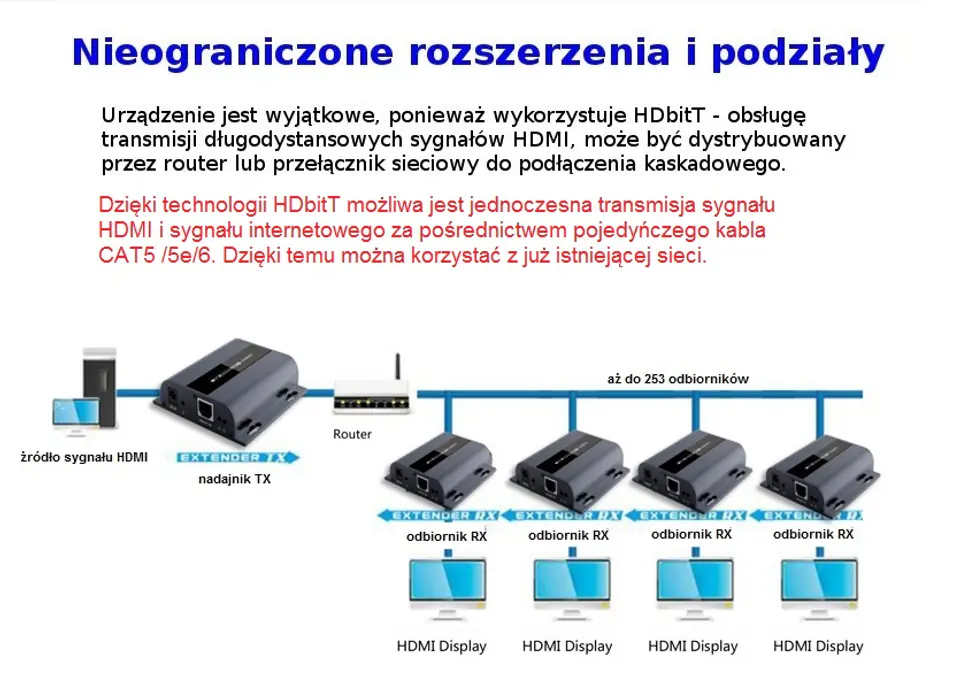

- the ability to divide the signal in the LAN into several receivers,
- does not interfere with the operation of the existing network,
- plug and play installation, i.e. without manual setting
Technical parameters:
- resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
- cable: UTP/STP Cat5/5e/6

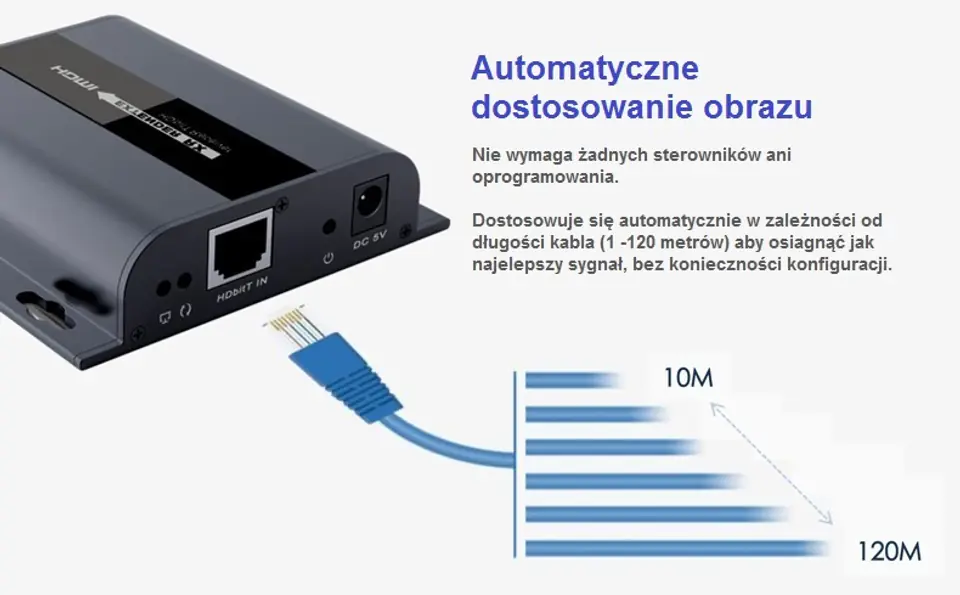

- transmission distance: up to 120 meters via single cable
- IR signal: support IR devices 20~60KHz
- working temperature: 0 - 60 degrees Celsius

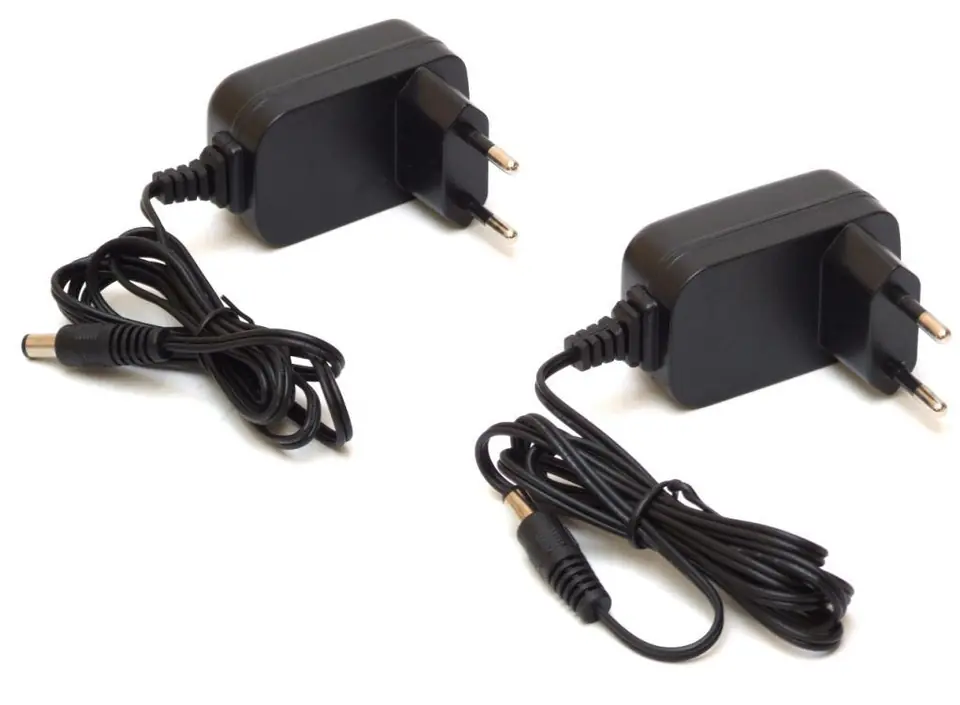

- asphylanie: DC5V/1A
- power consumption: TX: 3,5W; RX: 3W
