HDMI to HDMI to HDMI Extractor + Audio SPDIF 5.1, HDMI 7.1 and Jack 3.5mm Spacetronik SPH-AE10
HDMI converter allows you to split HDMI signal to HDMI + Audio- SPDIF + 3.5mm (Stereo) + HDMI 7.1 AMP. In practice, thanks to this, we can divide the signal, e.g. from a TV set-top box, into a TV image and sound that will go to a home theater system or headphones. Such an audio splitter is used in home entertainment centers, conference rooms, schools, monitoring centers, etc. The converter also has an ARC function, where the sound source can be the output screen - so there is no need to reconnect cables when you want to change the signal source.

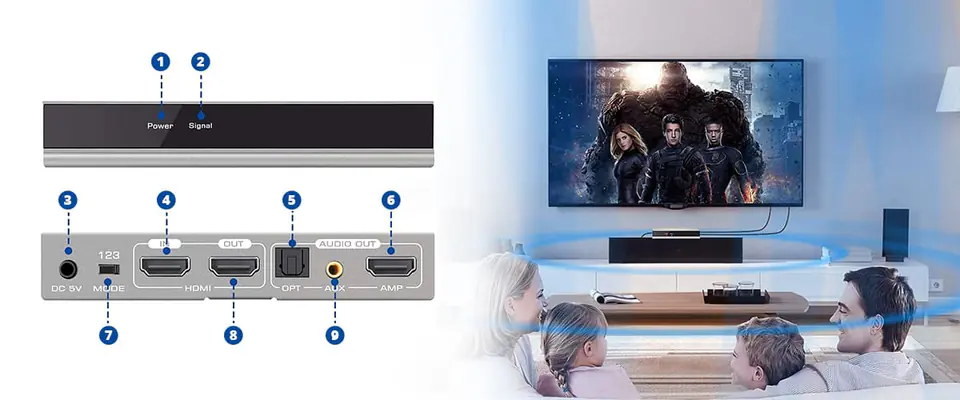

Items on your device
1. Power LED
2. LED indicating connection
3. Power socket
4. HDMI input
5. SPDIF output 5.1
6. AMP 7.1 output
7. 1/2/3 switch
8. HDMI output
9. 3.5mm jack output

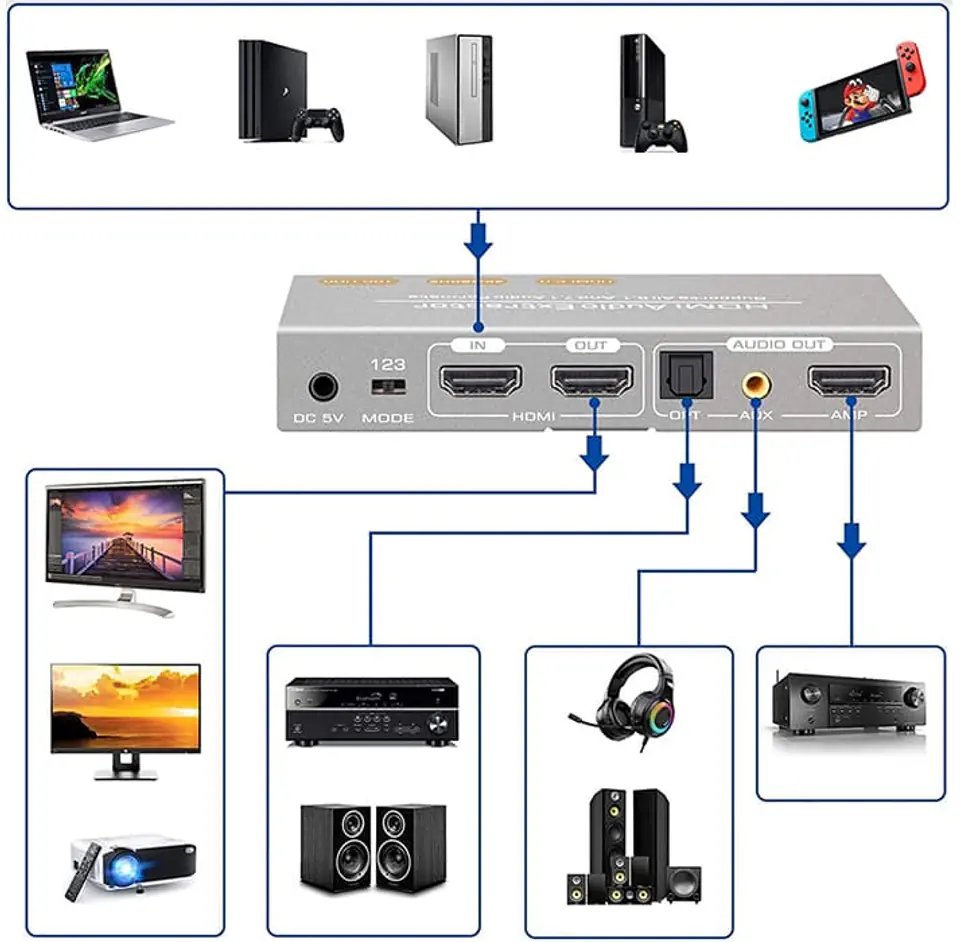

Connection diagrams
Features
- Inputs: 1x HDMI, 1x DC 5V
- Outputs: 1x HDMI, 1x HDMI 7.1 Audio, 1x SPDIF (Optical), 1x 3.5mm Jack
- Resolution: 4K@60Hz, 4K@30Hz, 1080p@60Hz and lower
- 7.1 Audio port supports: Dobly 7.1CH ATMOS, DTS:X, DTS Digital, DTS-HD Master, Dolby/DTS/HDMI Display
- SPDIF port supports: Dolby Digital, DTS 5.1

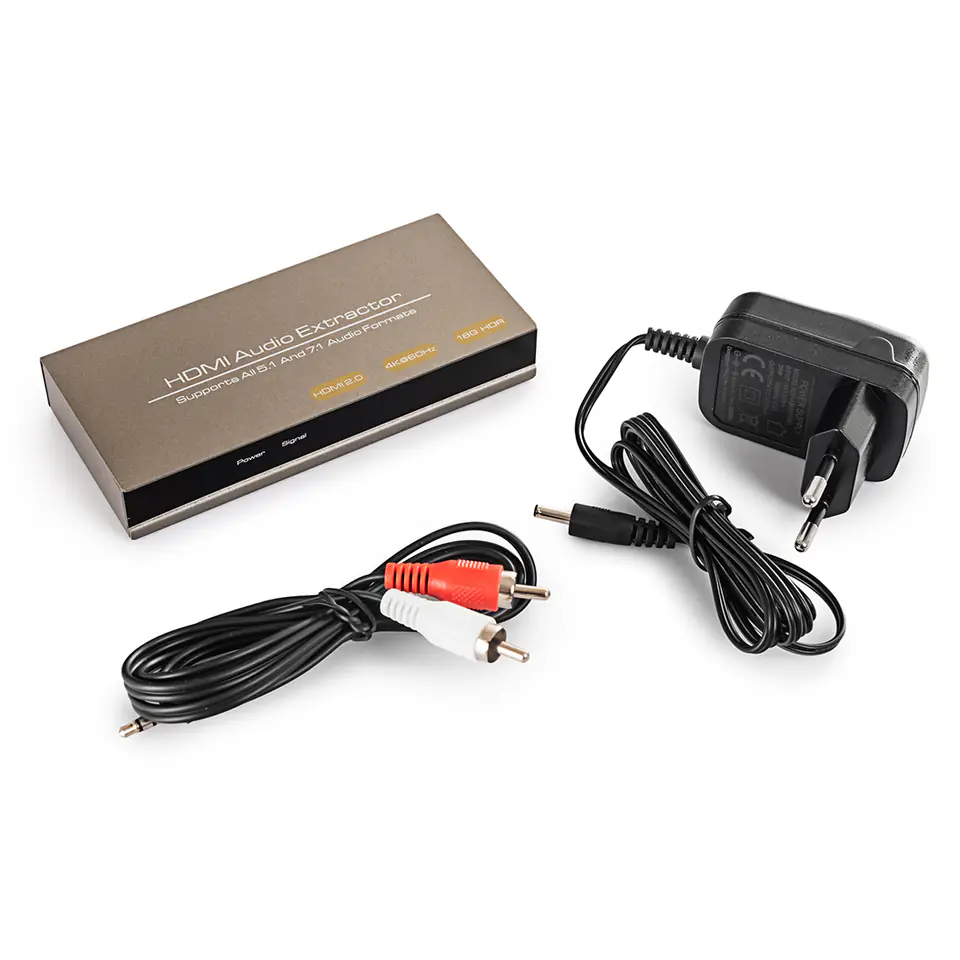

Contents
HDMI Audio Extractor 1pc
Power supply 5 V DC 1 pc
User manual 1 pc
