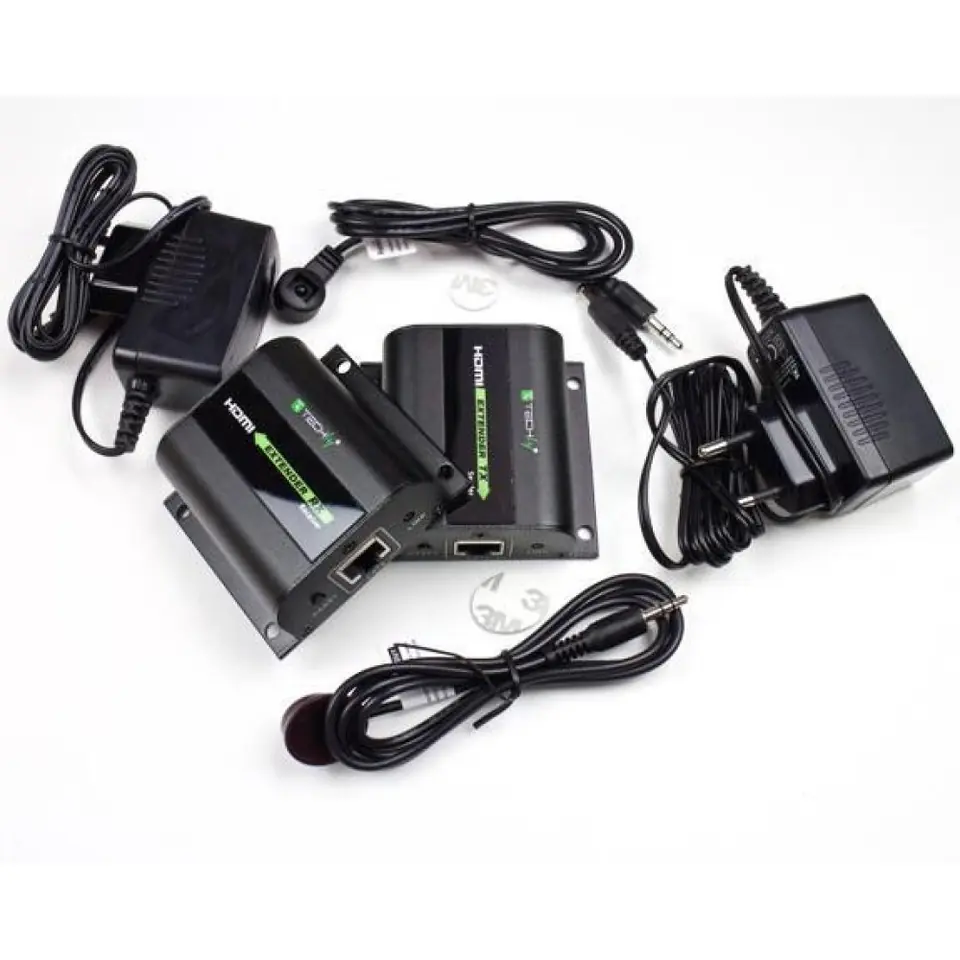

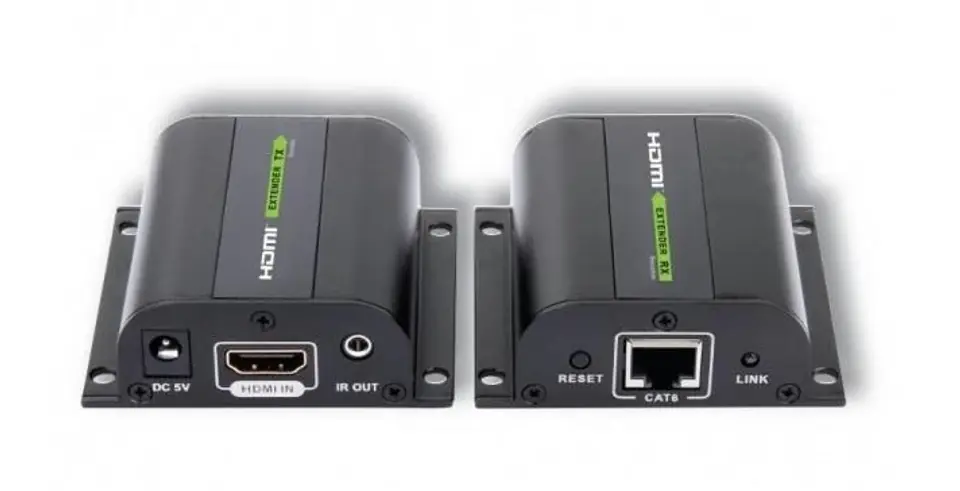

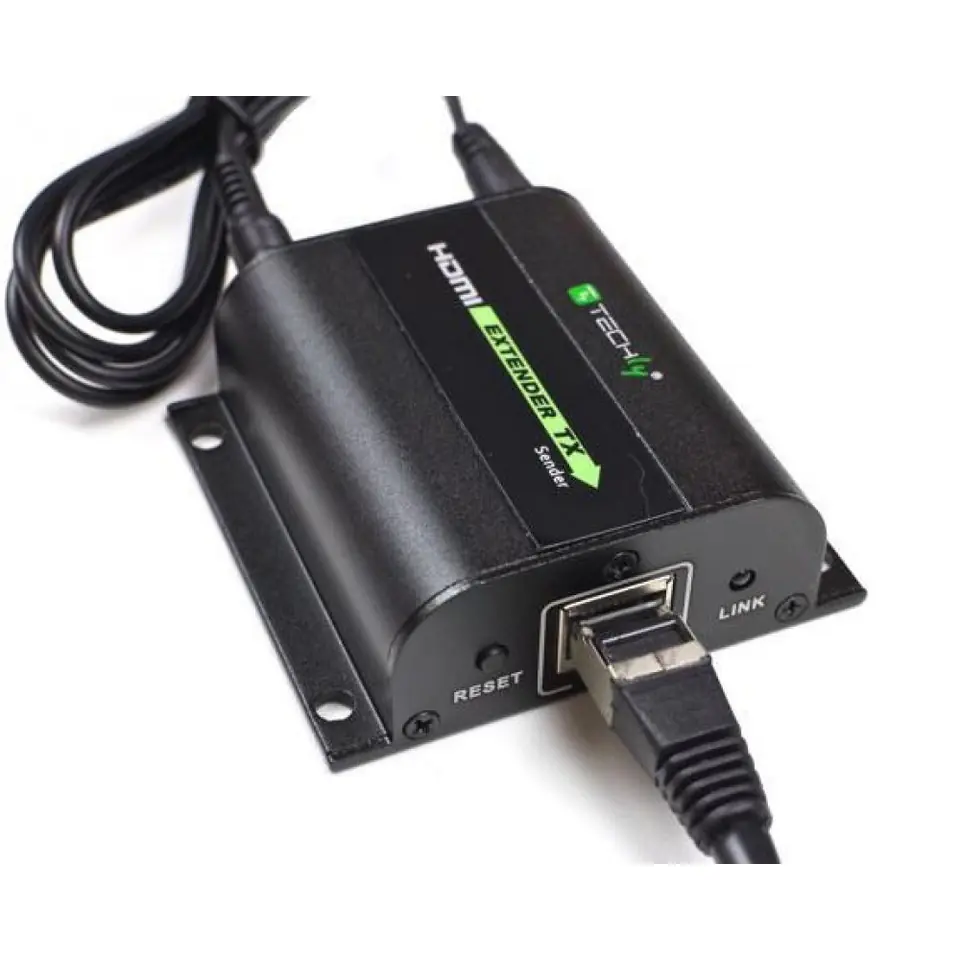

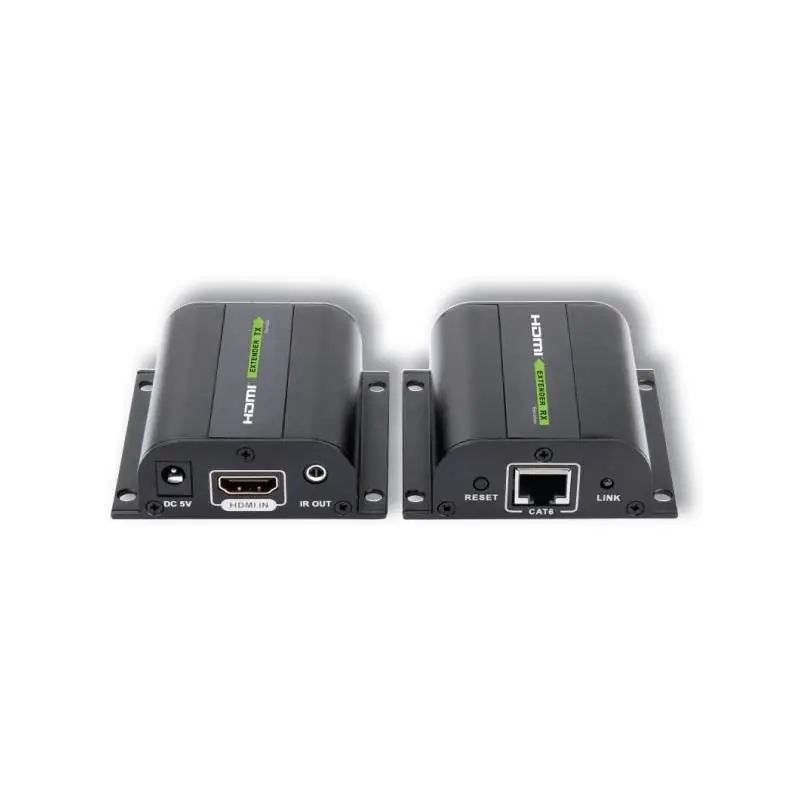

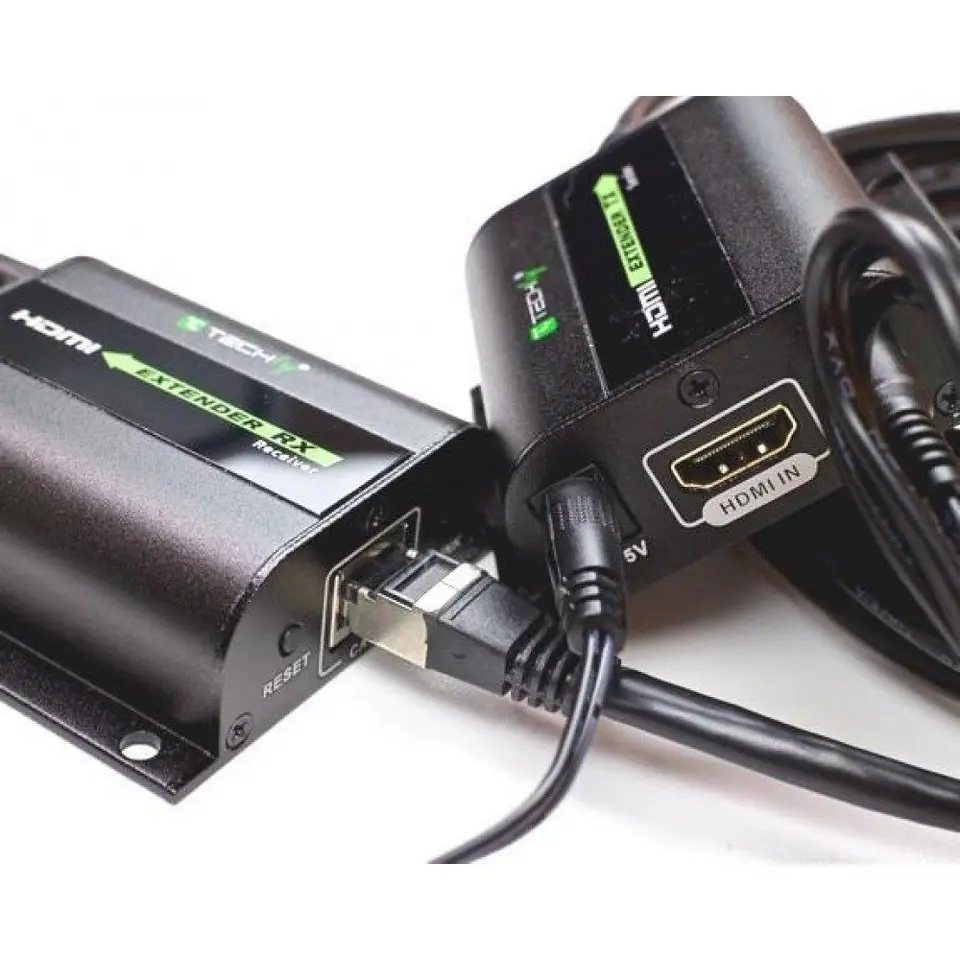

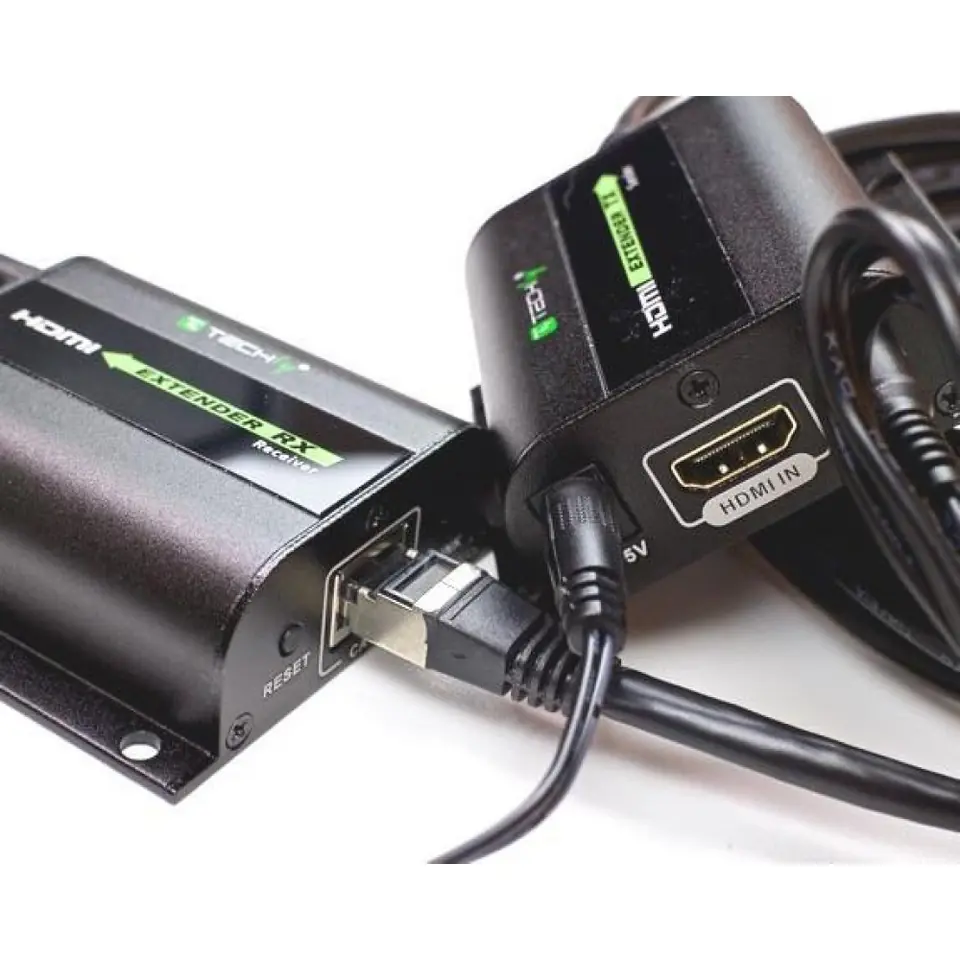

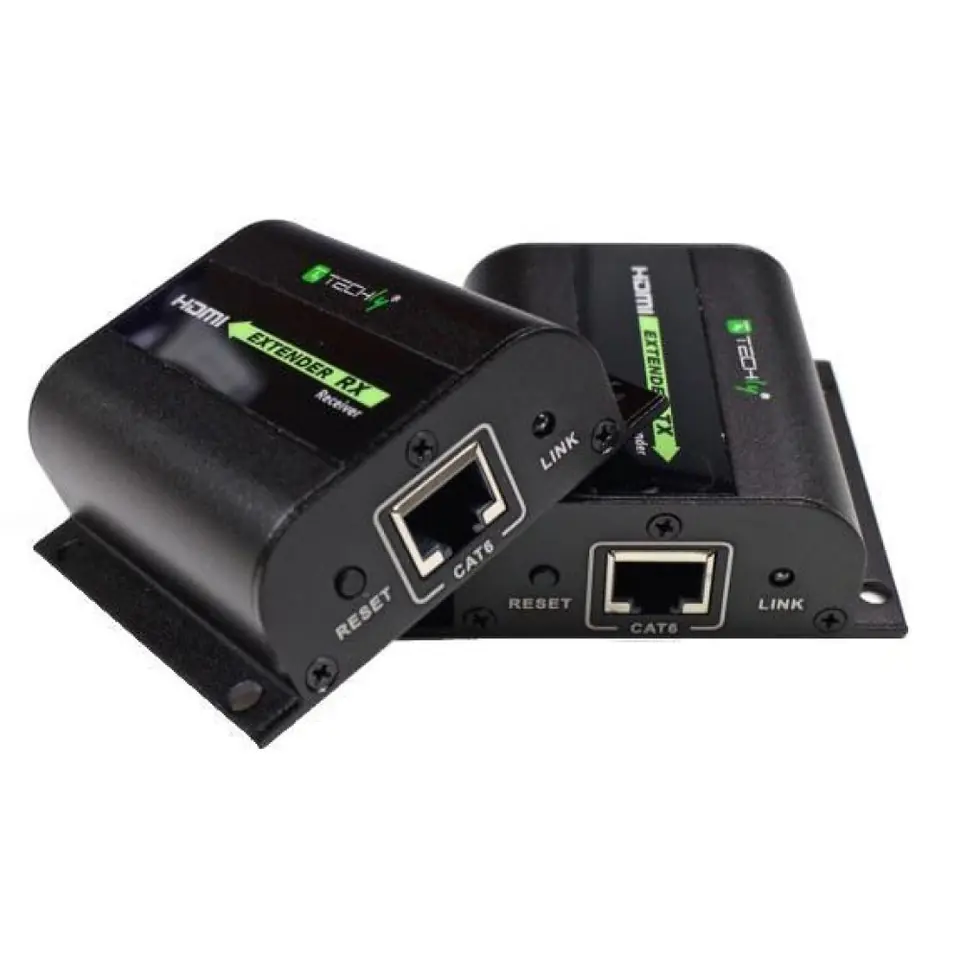

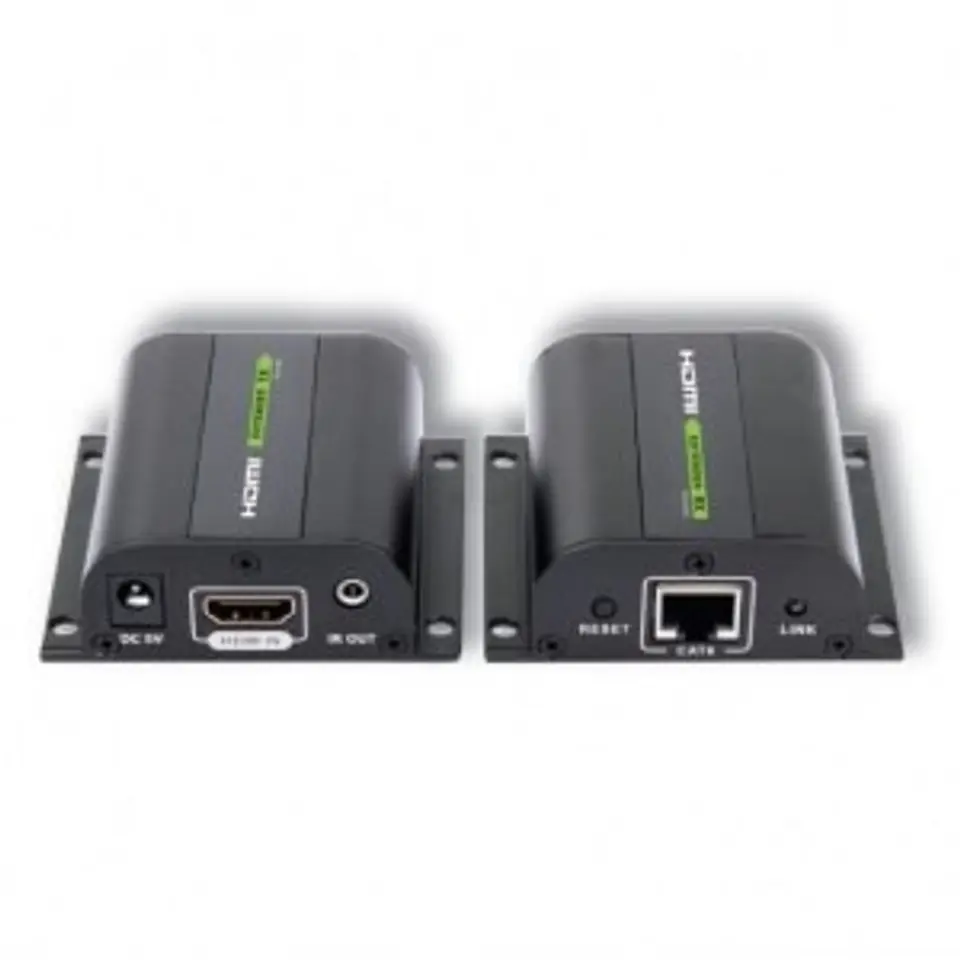

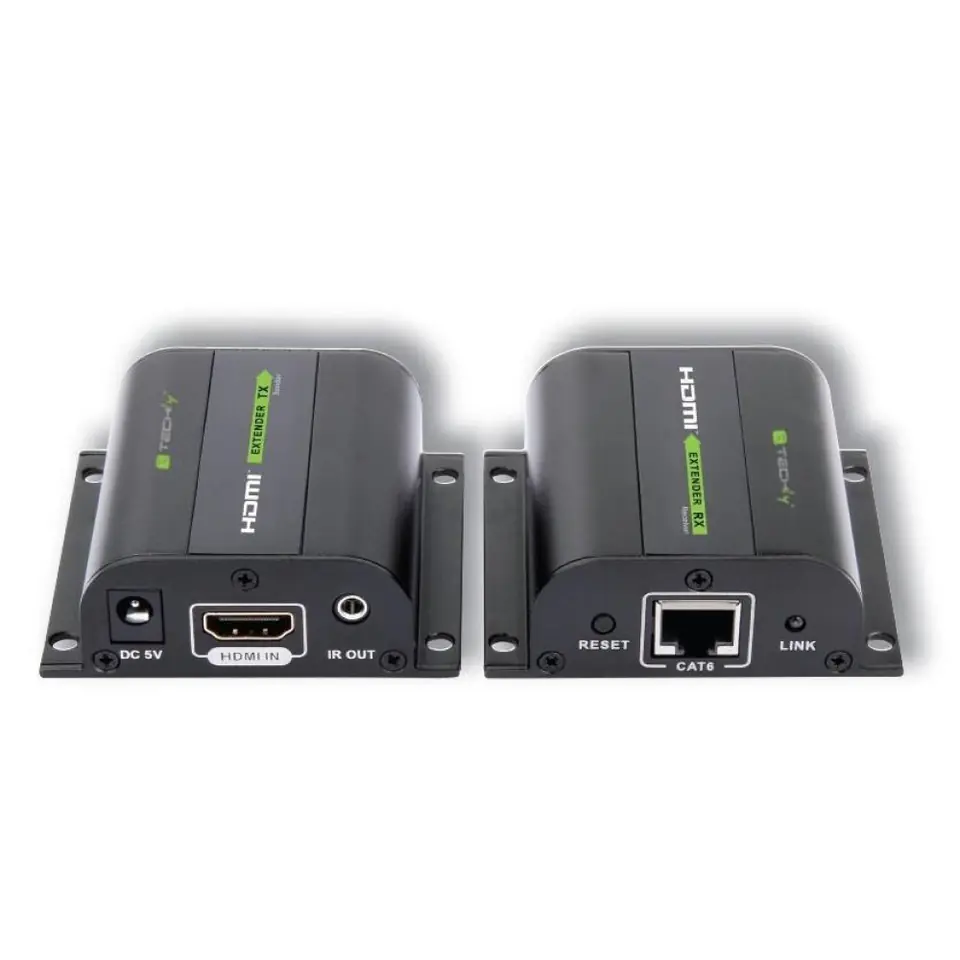

HDMI Extender after cable Cat.5e/6/6a/7 up to 60m, with IR receiver
- Simple way to extend HDMI 1.3 b signal using Cat6 / Cat7 cabling
- Allows you to place the monitor in a convenient location

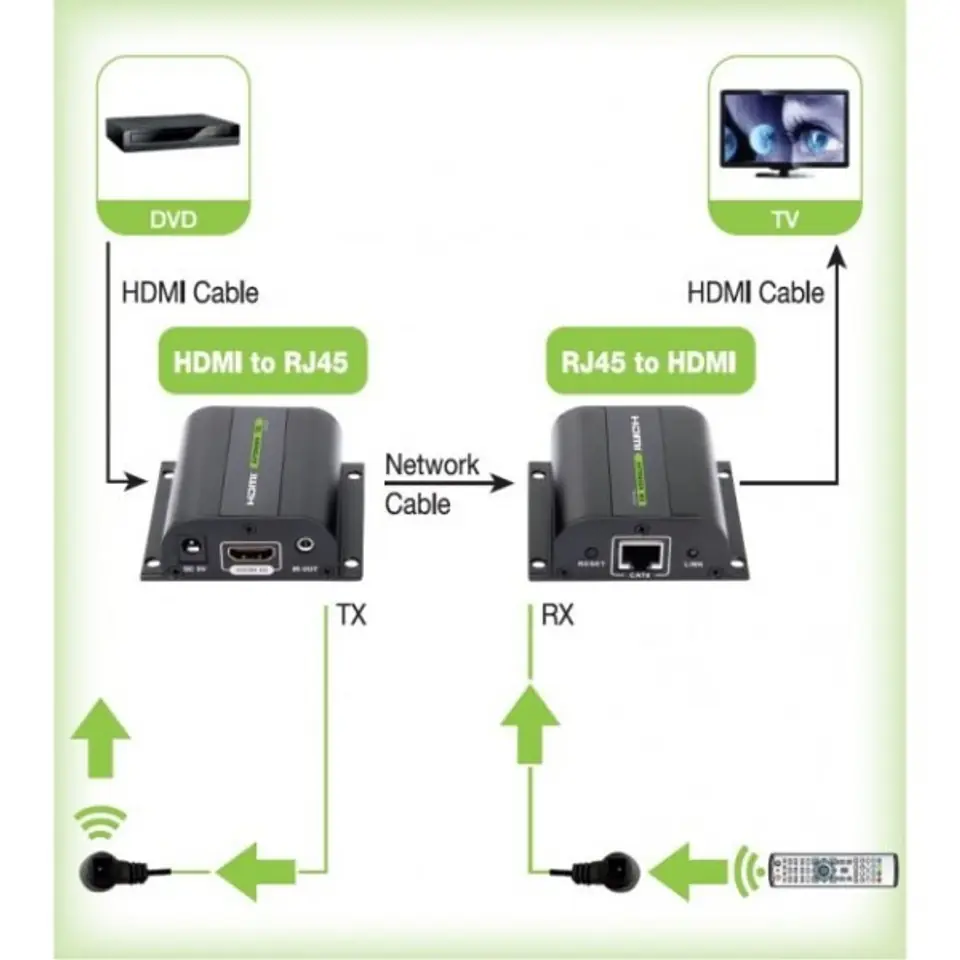

- Receiver and IR transmitter - You can remotely control your signal source (eg DVD) from the receiver (LCD) using the standard remote control (20-60kHz)
- Industrial metal housing for easy mounting to the substrate
- Providing A / V signal transmission up to 60m at 1080p resolution using a single Cat6 / Cat7 UTP RJ45 cable - For best picture quality, use only fully-featured copper cables - such as Intellinet
- Compact size
- Supports 8-bit color depth (Deep color) per channel (24-bit for all channels)
- Supports stereo PCM sound
- Automatic adjustment allows you to adjust the settings according to different cable lengths from 1 to 60m, for the best possible view.
HDMI Extender on Cat.5e/6/6a/7 twisted pair cable, with IR receiver, black
€65.14
Shipping from warehouse: M7
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Techly
- Product code:
- 020355 / 8054529020355
Share this product:
Specification
| 3d: | Yes |
|---|---|
| Ac adapter included: | Yes |
| Audio support: | Yes |
| Audio system: | stereo |
| Bandwidth: | 10.2 Gbit/s |
| Cable types supported: | Cat6a, Cat6, Cat7, Cat5e |
| Colour depth: | 8 bit |
| Current: | 1 A |
| Dc-in jack: | Yes |
| Depth: | 66.6 mm |
| Dimensions (wxdxh): | 71.6 x 66.6 x 24.8 mm |
| Ethernet lan: | Yes |
| Hdcp: | Yes |
| Hdmi in: | 1 |
| Height: | 24.8 mm |
| Led indicators: | Yes |
| Manual: | Yes |
| Maximum transfer distance: | 60 m |
| Number of hdmi outputs: | 1 |
| Operating voltage: | 5 V |
| Power consumption (receiver) (max): | 5 W |
| Power consumption (transmitter) (max): | 5 W |
| Product colour: | Black |
| Receiver dimensions (wxdxh): | 66.6 x 71.6 x 24.8 mm |
| Rj-45 input ports: | 1 |
| Rj-45 output ports: | 1 |
| Supported video modes: | 1080i, 480p, 1080p, 720p |
| Sustainability certificates: | RoHS, CE |
| Transmitter dimensions (wxdxh): | 66.6 x 71.6 x 24.8 mm |
| Type: | AV transmitter & receiver |
| Vendor code: | 020355 |
| Weight: | 479 g |
| Width: | 71.6 mm |
