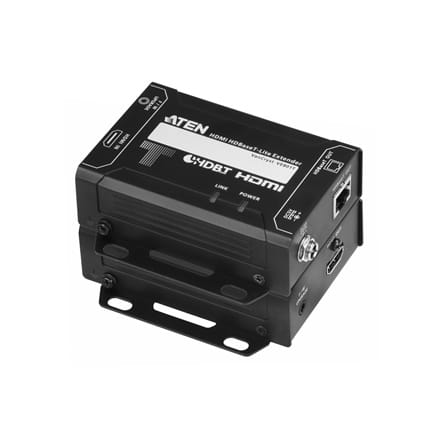

The VE801 HDMI HDBaseT-Lite extender allows you to extend the transmission distance of the HDMI signal up to 70 m from the HDBaseT source with a single Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K resolution, and Dolby Digital 5.1, DTS HD audio, and is HDCP compliant. The universal design of the VE801 offers an easy method to mount the device anywhere. The side panel includes non-slip grooves to help prevent accidental dropping during installation. The grooves also make the status LEDs more visible. The VE801 is ideal for digital entertainment centers or any installation that requires long-distance HDMI video transmission.
HDBase T-Lite Extender (4K@40m)
€350.29
Shipping from warehouse: K2
Estimated shipping: Wed, Jul 30 - Mon, Aug 4
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ATEN
- Product code:
- VE801-AT-G / 2000001254684
Share this product:
Specification
| Ac adapter included: | Y |
|---|---|
| Bandwidth: | 340 MHz |
| Cable types supported: | Cat5, Cat6, Cat6a |
| Connectivity technology: | Wired |
| Dc-in jack: | Y |
| Hdcp: | Y |
| Hdmi in: | 1 |
| Led indicators: | Y |
| Master (outer) case gross weight: | 4.6 kg |
| Master (outer) case height: | 175 mm |
| Master (outer) case length: | 325 mm |
| Master (outer) case net weight: | 3.9 kg |
| Master (outer) case width: | 250 mm |
| Material: | Metal |
| Maximum resolution: | 3840 x 2160 pixels |
| Maximum transfer distance: | 70 m |
| Number of hdmi outputs: | 1 |
| Operating relative humidity (h-h): | 0 - 80% |
| Operating temperature (t-t): | 0 - 50 °C |
| Package depth: | 239 mm |
| Package height: | 160 mm |
| Package weight: | 841 g |
| Package width: | 59 mm |
| Product colour: | Black |
| Products per master (outer) case: | 5 pc(s) |
| Receiver dimensions (wxdxh): | 34.3 x 98.6 x 30 mm |
| Receiver weight: | 250 g |
| Rj-45 input ports: | 1 |
| Rj-45 output ports: | 1 |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported video modes: | 1080p |
| Sustainability certificates: | RoHS |
| Transmitter dimensions (wxdxh): | 34.3 x 98.6 x 30 mm |
| Transmitter weight: | 240 g |
| Type: | AV transmitter & receiver |
| Weight: | 780 g |
