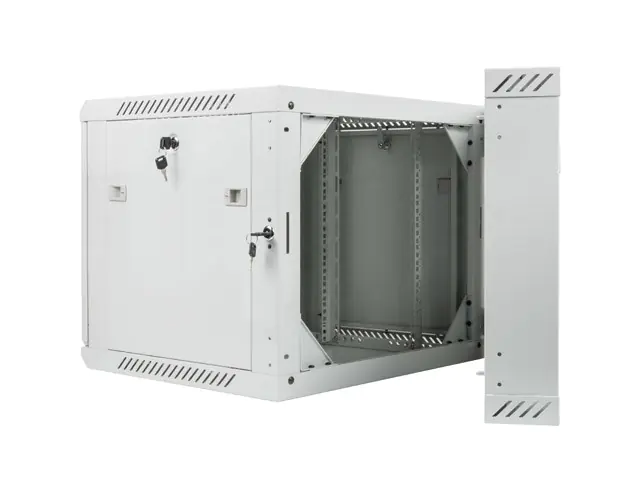

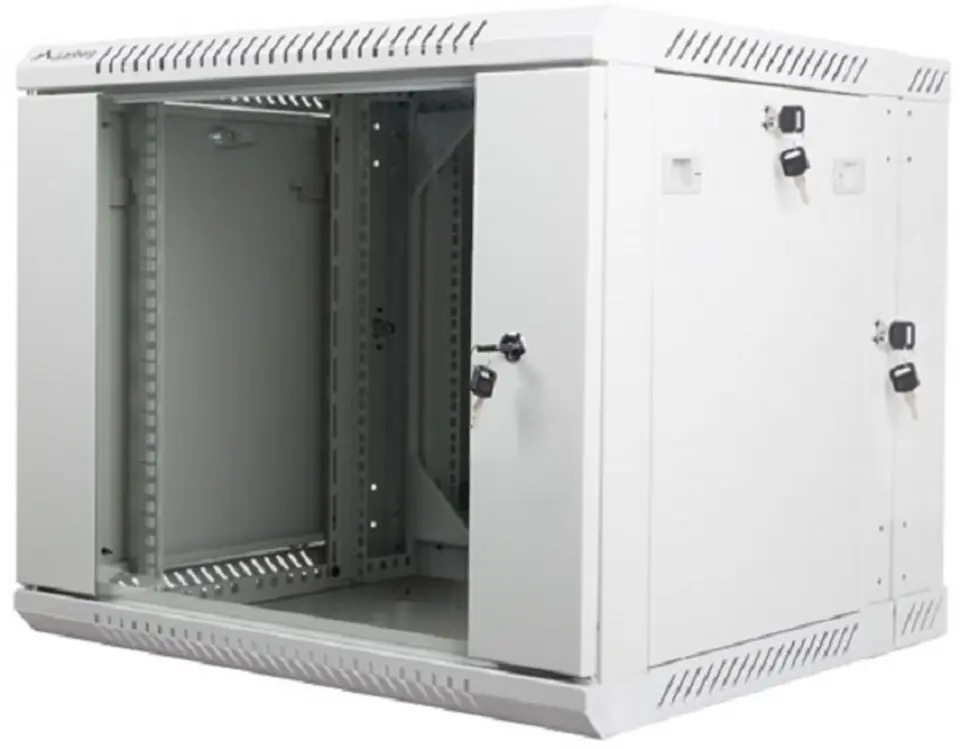

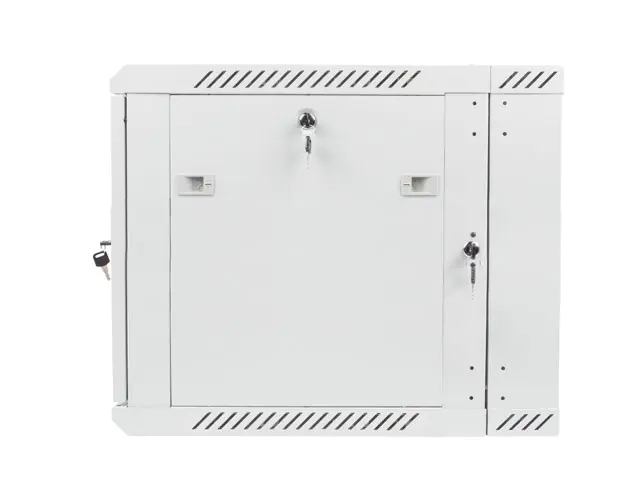

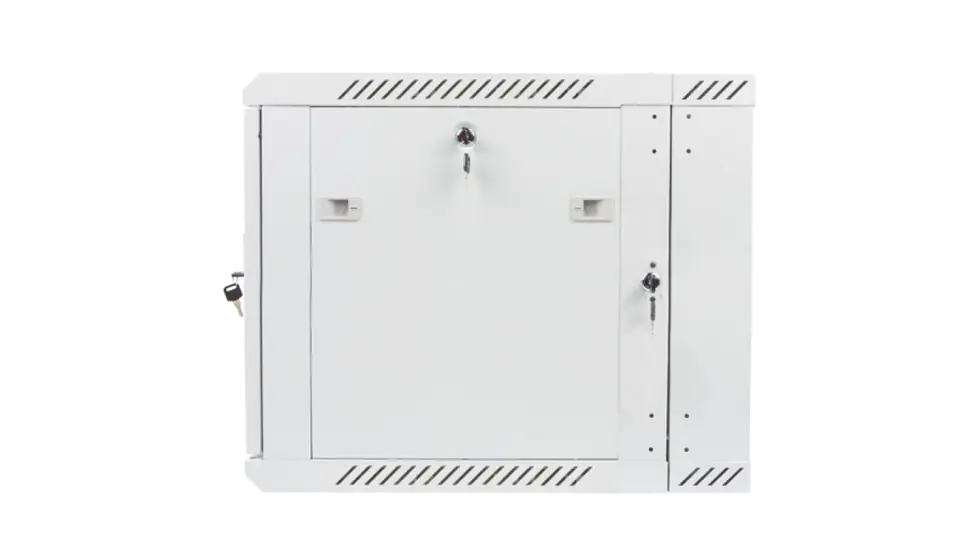

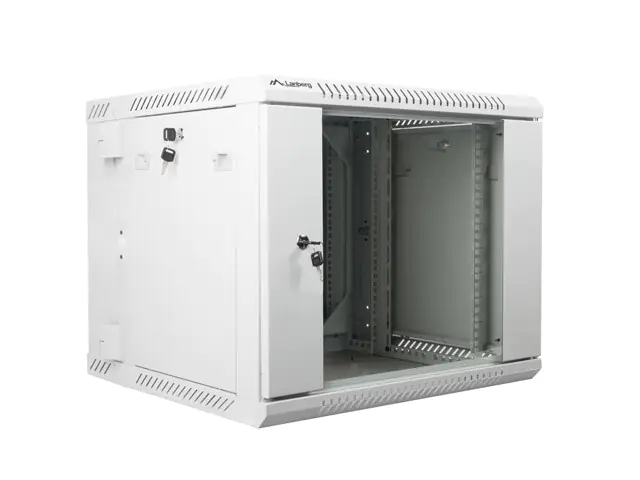

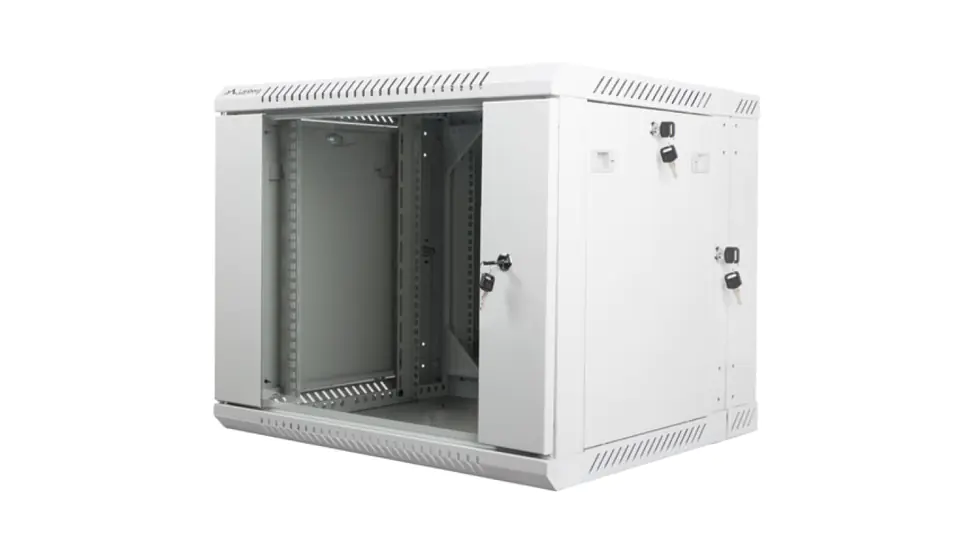

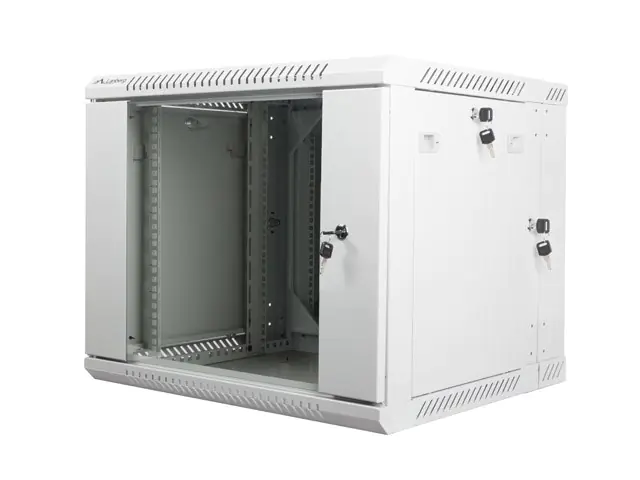

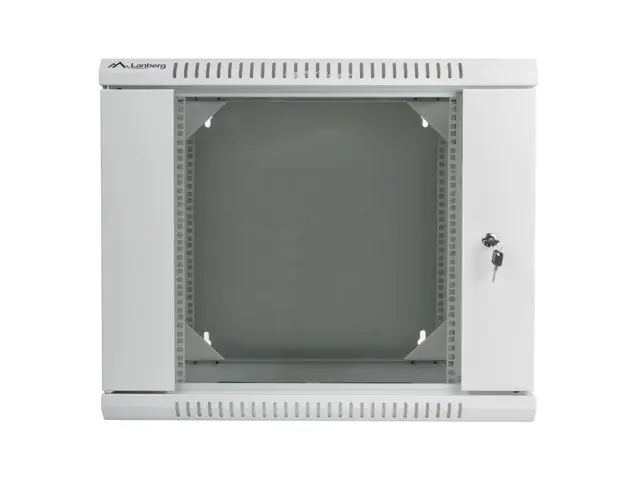

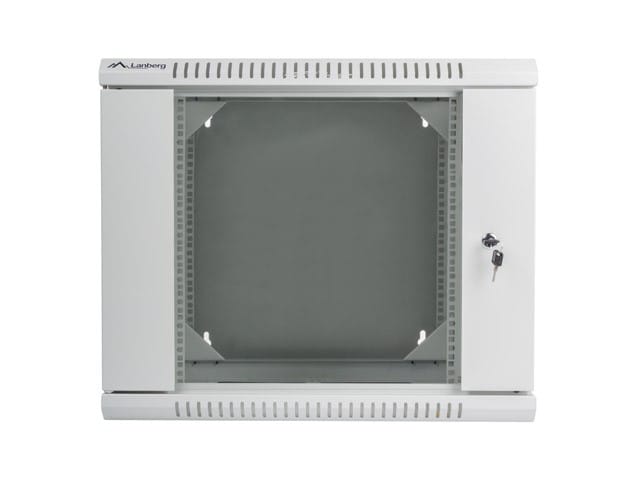

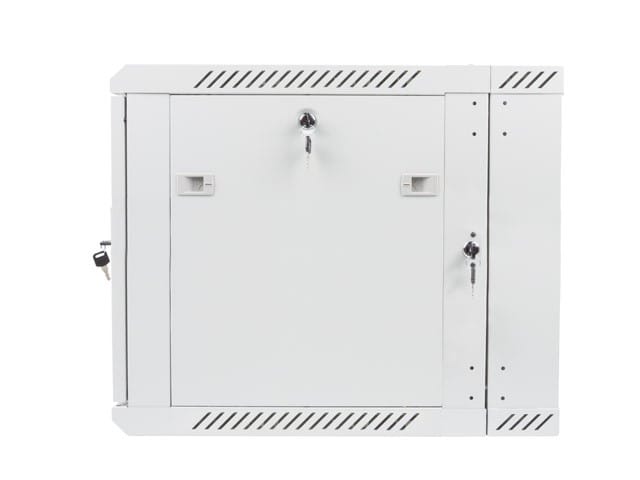

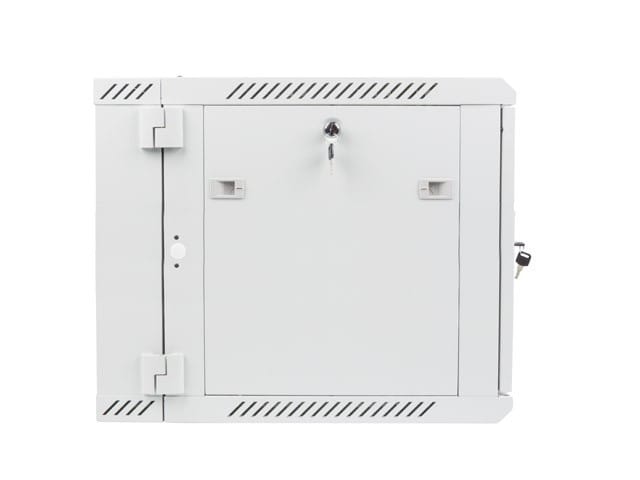

Wardrobe hanging two sections Lanberg WF02-6609-10S is a solution designed to expand the network cabling wiring and flexible equipment installation in size 19 "with a maximum total capacity of up to 60 kg.It can be used in networks and server rooms in small and medium-sized companies. It is also ideal in low-voltage systems such as cable television networks, alarm systems, fire protection, access control and monitoring systems CCTV and IP. The design is made using high-quality cold-rolled steel has an excellent design and craftsmanship. Thanks to the two sections can easily lead fittings in the rear, make a service included in the hardware or upgraded by installing new devices. The cabinet is equipped with a front door made of tempered glass with a lock, can be mounted left or right sided. The equipment also allows installation on both sides of the rear section, which is supplied with a lock. It has removable side panels (locks included). There is the possibility of wiring closed by top and bottom panels. With the construction of the self-assembly (flat pack), all located in the flat-pack for easy transport. Additionally, in the consignment are attached accessories for DIN rail mounting, M6 screws and plugs entry panels.
Hanging cabinet 19'' 9U 600X600mm grey
€143.52
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- WF02-6609-10S / 5901969403930
Share this product:
Specification
| Ac input voltage: | 220 V |
|---|---|
| Available number of slots: | 9U |
| Colour: | Grey |
| Depth: | 600 mm |
| Depth (mm): | 600 |
| Destiny: | 19 inch |
| Equipment: | Front and rear door lock, M6 bolts, Side locks |
| Front door: | Openable, Glass |
| Front door key lock: | Yes |
| Height: | 507.3 mm |
| Height (mm): | 501 |
| Kind: | Hanging |
| Manual: | Yes |
| Material: | Steel |
| Maximum payload (kg): | 60 |
| Maximum weight capacity: | 60 kg |

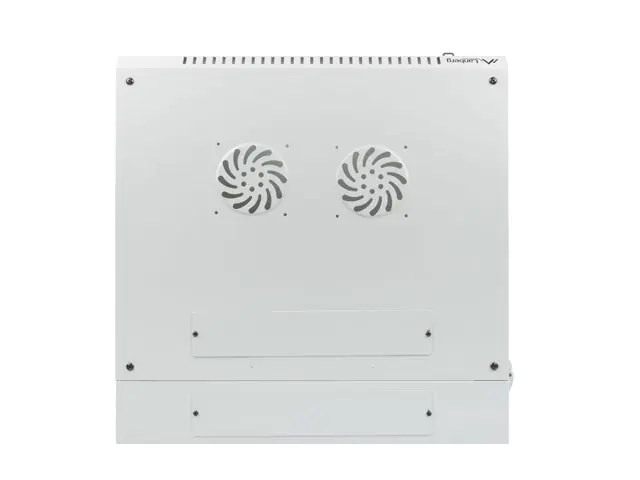

| Number of fans: | 2 fan(s) |
| Nuts included: | Yes |
| Other parameters: | Compliance with standards: ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982 |
| Other physical parameters: | Two-section, Do-it-yourself |
| Product colour: | Grey |
| Protection: | IP20 |
| Rack capacity: | 9U |
| Rear door: | Lockable |
| Side guards: | Demountable, Lockable |
| Side panel key lock: | Yes |
| Size (imperial): | 48.3 cm (19") |
| Thickness of elements: | Mounting rail thickness: 1.5 mm, Front door thickness: 5 mm, Side panel thickness: 1 mm, Other panel thickness: 1.2 mm, Top and bottom panel thickness: 1 mm |
| Type: | Wall mounted rack |
| Warranty: | 2 years |
| Weight: | 24 kg |
| Weight (kg): | 24 |
| Width: | 600 mm |
| Width (mm): | 600 |
