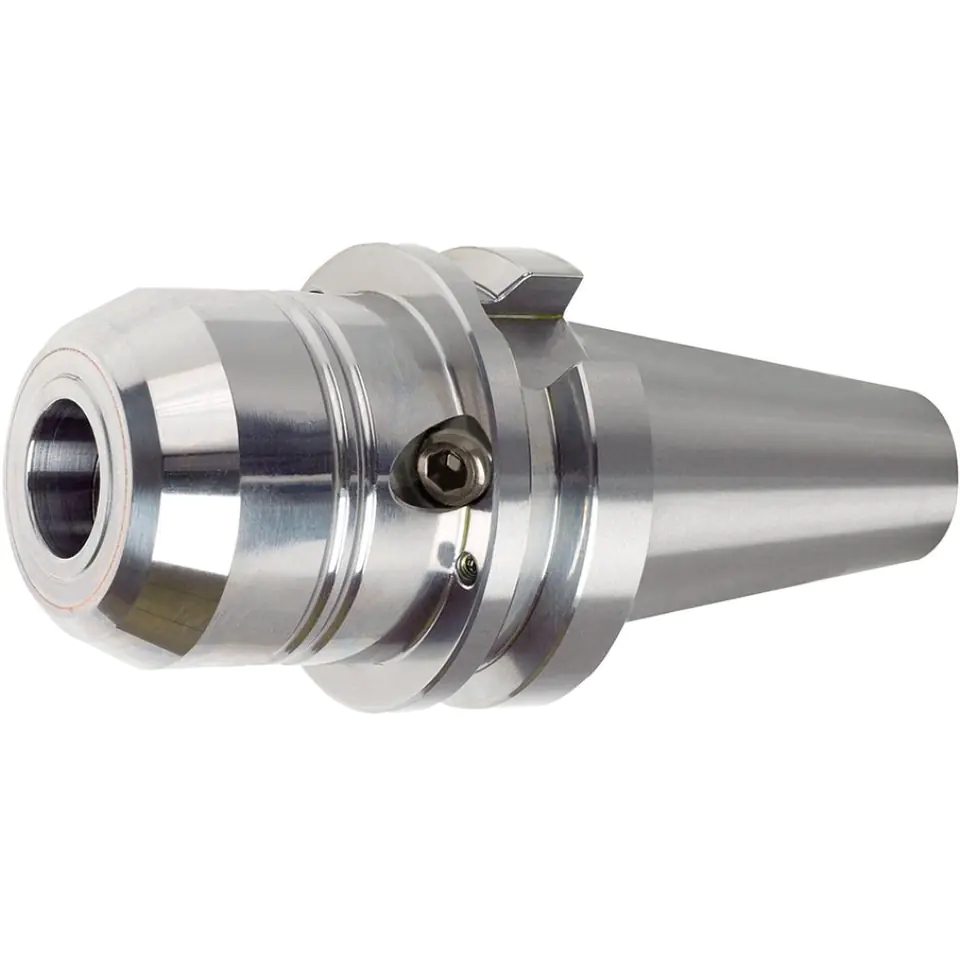

Hydraulic clamping chuck, factory code, AD/B shape, with internal cooling

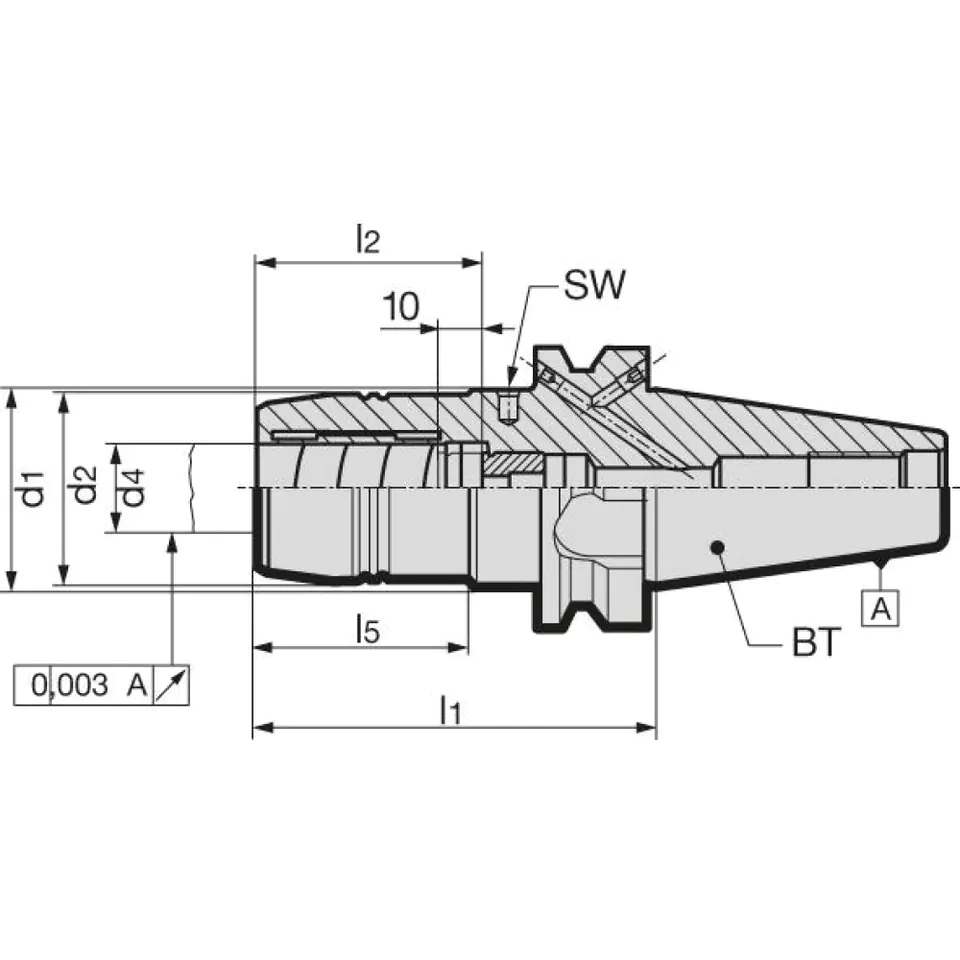

Execution: SK 40 DIN JISB 6339, shape AD/B, factory standard, balance accuracy: G 2.5/25.000 rpm, axial length adjustment, for grip tolerance h6. By means of a hexagon wrench with a cross handle, the hydraulic oil is compressed by a hydraulic clamping kit (pressure screw, pressure pin and gasket). As a result of the pressure created, the expansion sleeve is evenly deformed, which leads to a precise tool shank clamp with minimal radial runout. B-shaped holes closed on delivery with threaded screws.
Delivery: hydraulic clamping chuck.
