HAND PUMP K 5

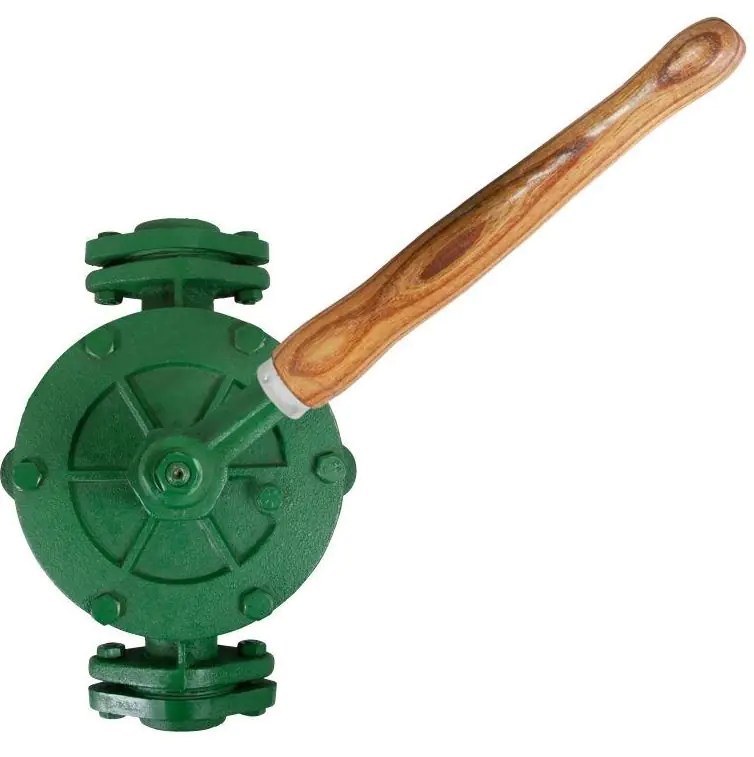

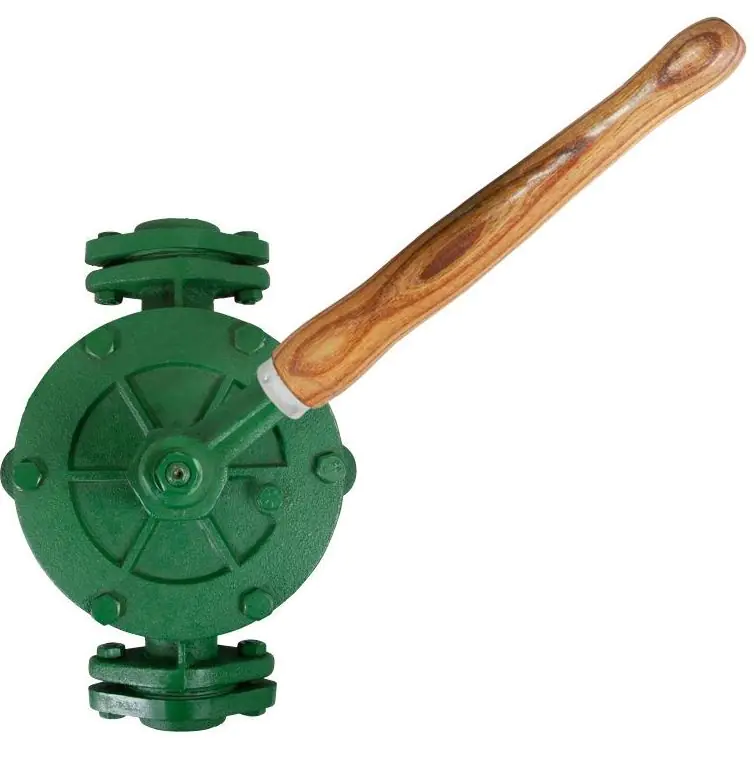

K5 hand pump

USE:
KN hand pumps, also called wing pumps, are suction and pressure pumps, and this feature allows water to be sucked in
from a depth of up to 7 meters and can also be pressed under pressure.
The performance and pressure parameters depend on the size of the pump.
Pumping is carried out due to the rotational-turning movement of the wing located in the housing.
This movement is transmitted from the handle mounted centrally on the lid of the pump.
KN pumps can also pump oily media of not very high density.
KN pumps are mounted to a vertical wall or other supporting structure,
But they can also be used as portable for emptying kegs and other tanks.

Specifications:
Operating temperature range:35°C
Material execution:
-Housing -cast iron
-Piston -cast iron
Maximum capacity: 65 l/min
Maximum lifting height: 18 m
Pressure connection: 11''x 11''
