Manual lever press
Design: hardened and ground spindle, with a long guide. T-key milled centrally according to DIN 650, adjustable working height. Lever with return spring.
Highest efficiency with maximum deflection of the lever.
Application: for economical pressing, riveting, pressing, punching, etc. Highest efficiency with maximum deflection of the lever.
Application: for economical pressing, riveting, pressing, punching, etc.

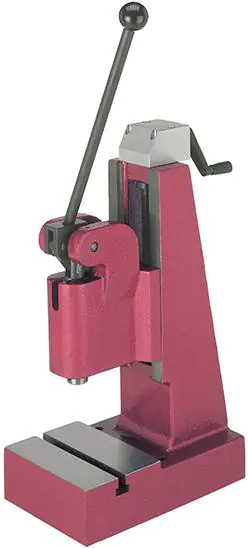

Hand Lift Press 1700kp, travel 60mm Berg + Schmid Pressentechnik
€1,341.36
Shipping from warehouse: B6
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Berg & Schmid Pressentechnik
- Product code:
- 30056 / 4330816412534
Share this product:
Specification
| Base surface: | 260 x 130 mm |
|---|---|
| Force: | 17 kN |
| Force transmission: | knee lever |
| Groove width: | 14 mm |
| Jump: | 60 mm |
| Model: | HK 1700 |
| Outreach: | 105 mm |
| Spindle bore: | 10 H 7 mm |
| Spindle guide: | 110 mm |
| Spindle ø: | 25 mm |
| Stand height: | 415 mm |
| Table surface: | 170 x 130 mm |
| Weight: | 35.0 kg |
| Working height: | 75-180 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
