Manual lever press
Design: hardened and ground spindle, with a long guide. T-key milled centrally according to DIN 650, adjustable working height. Lever with return spring.
Constant pressure during operation, stroke adjustment with locking screw.
Application: for economical pressing, riveting, pressing, punching, etc. Constant pressure during operation, stroke adjustment with locking screw.
Application: for economical pressing, riveting, pressing, punching, etc.

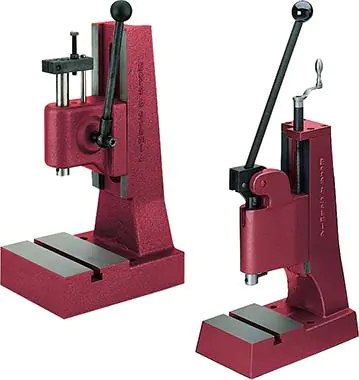

Hand lever press with toothed slats 150kp Berg + Schmid Pressentechnik
€568.97
Shipping from warehouse: B6
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Berg & Schmid Pressentechnik
- Product code:
- 30005 / 4330816412541
Share this product:
Specification
| Base surface: | 115 x 175 mm |
|---|---|
| Force: | 1.5 kN |
| Force transmission: | Sprockets |
| Groove width: | 10 mm |
| Jump: | 40 mm |
| Model: | HZ 150 |
| Outreach: | 70 mm |
| Spindle bore: | 10 H 7 mm |
| Spindle guide: | 50 mm |
| Spindle ø: | 20 mm |
| Stand height: | 290 mm |
| Table surface: | 115 x 70 mm |
| Weight: | 9.5 kg |
| Working height: | 75-170 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
