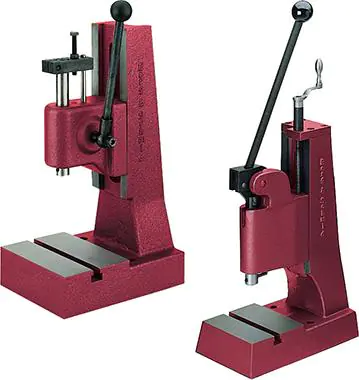

Manual lever press
Design: hardened and ground spindle, with a long guide. T-key milled centrally according to DIN 650, adjustable working height. Lever with return spring.
Highest efficiency with maximum deflection of the lever.
Application: for economical pressing, riveting, pressing, punching, etc. Highest efficiency with maximum deflection of the lever.
Application: for economical pressing, riveting, pressing, punching, etc.
Hand Lever Press 800kp Berg + Schmid Pressentechnik
€658.61
Shipping from warehouse: B6
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Berg & Schmid Pressentechnik
- Product code:
- 30045 / 4330816412558
Share this product:
Specification
| Base surface: | 160 x 230 mm |
|---|---|
| Force: | 8 kN |
| Force transmission: | knee lever |
| Groove width: | 12 mm |
| Jump: | 40 mm |
| Model: | HK 800 |
| Outreach: | 90 mm |
| Spindle bore: | 10 H 7 mm |
| Spindle guide: | 75 mm |
| Spindle ø: | 24 mm |
| Stand height: | 410 mm |
| Table surface: | 120 x 160 mm |
| Weight: | 22.0 kg |
| Working height: | 50-200 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
