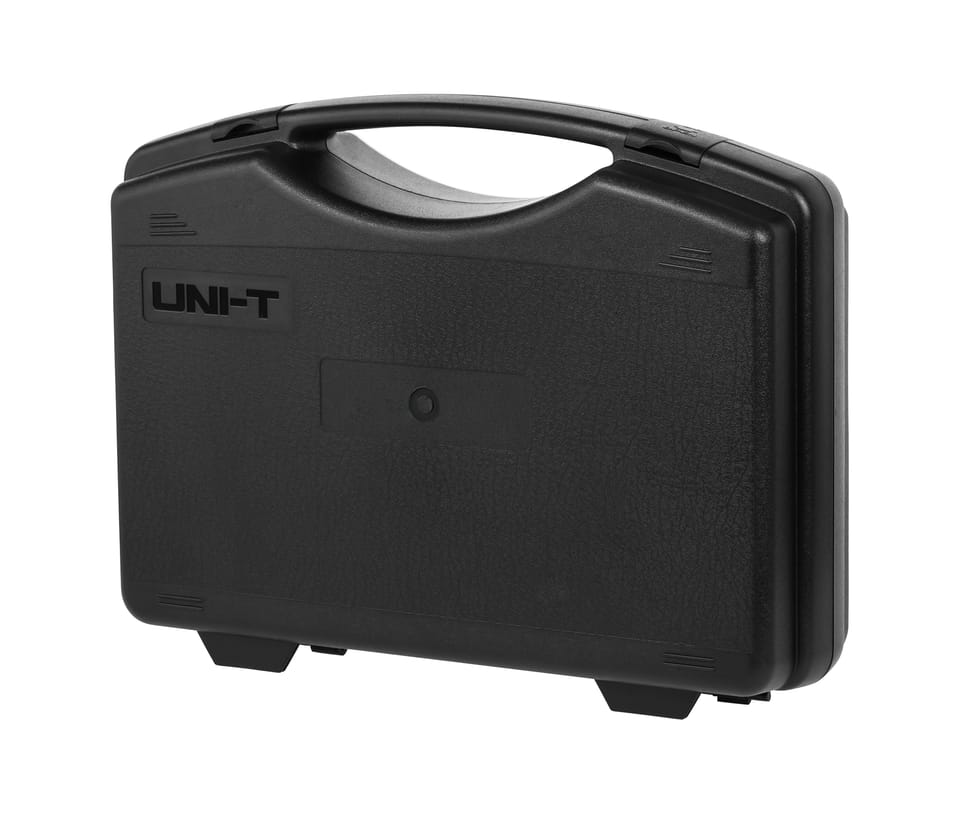

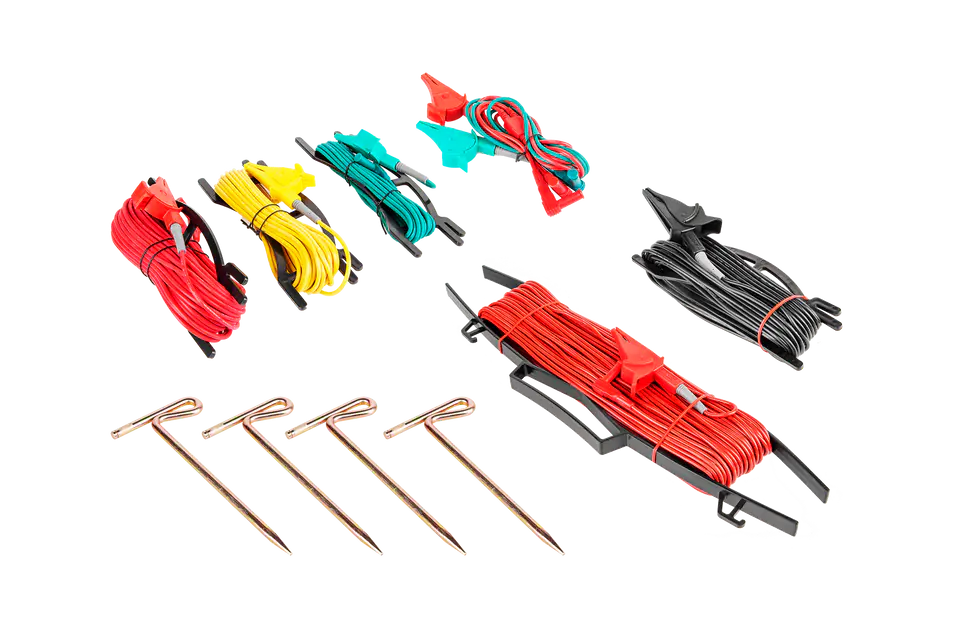

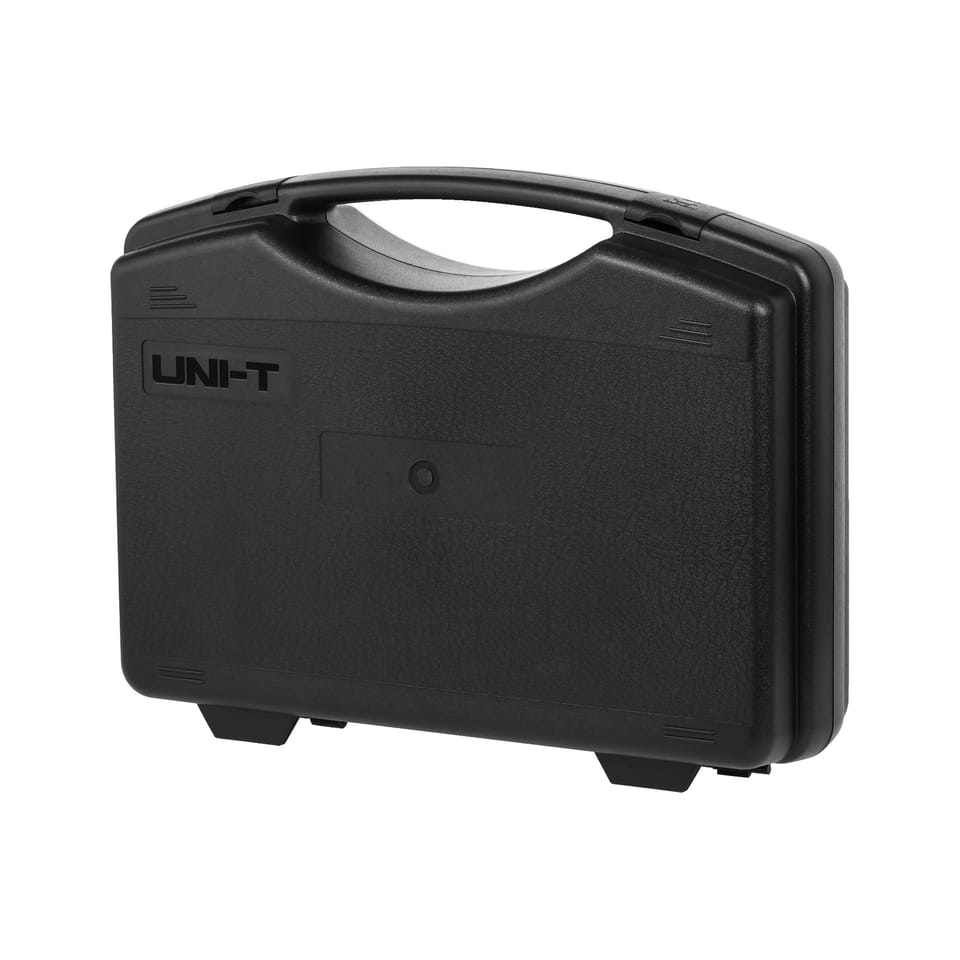

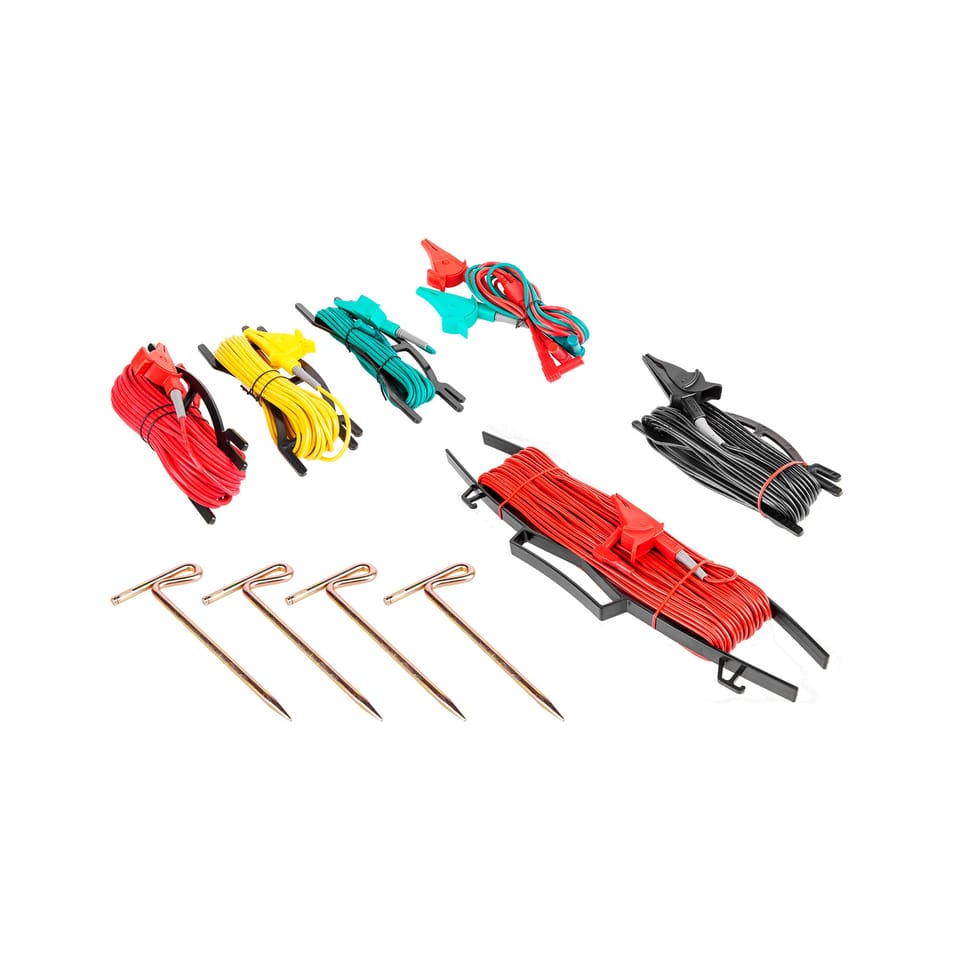

MEASURING RANGESGround determination (Re): 4 Ohm / 40 Ohm / 400 Ohm / 4 kOhm / 40 kOhm ? (3%+5) Ground resistivity (p): 4 Ohm / 40 Ohm / 400 Ohm / 4 kOhm / 40 kOhm (dependent on the error of the basic measurement Re in the 4p system, but not less than ?1 digit)Stray current voltage: 50 V ? (3%+3) Wandering current frequency: 40 Hz~500 Hz ? (1%+2) ADDITIONAL FUNCTIONS Manual change of measurement ranges 2/3/4-point test (test current frequency)Measurement of ground resistivity at a distance of 1~40 mAutomatic shutdownFreezing of the last indicationSimight of readings: 20 LCD backlightLow battery indicatorGENERAL SPECIFICATIONSpower: 8x 1.5 V (LR6) battery Display: 125 x 37 mmDimensions: 210 x 175 x 90 mmWeight: 1100 gAccessories: batteries, 7x measuring cable with crocodile, 2x measuring electrode, case

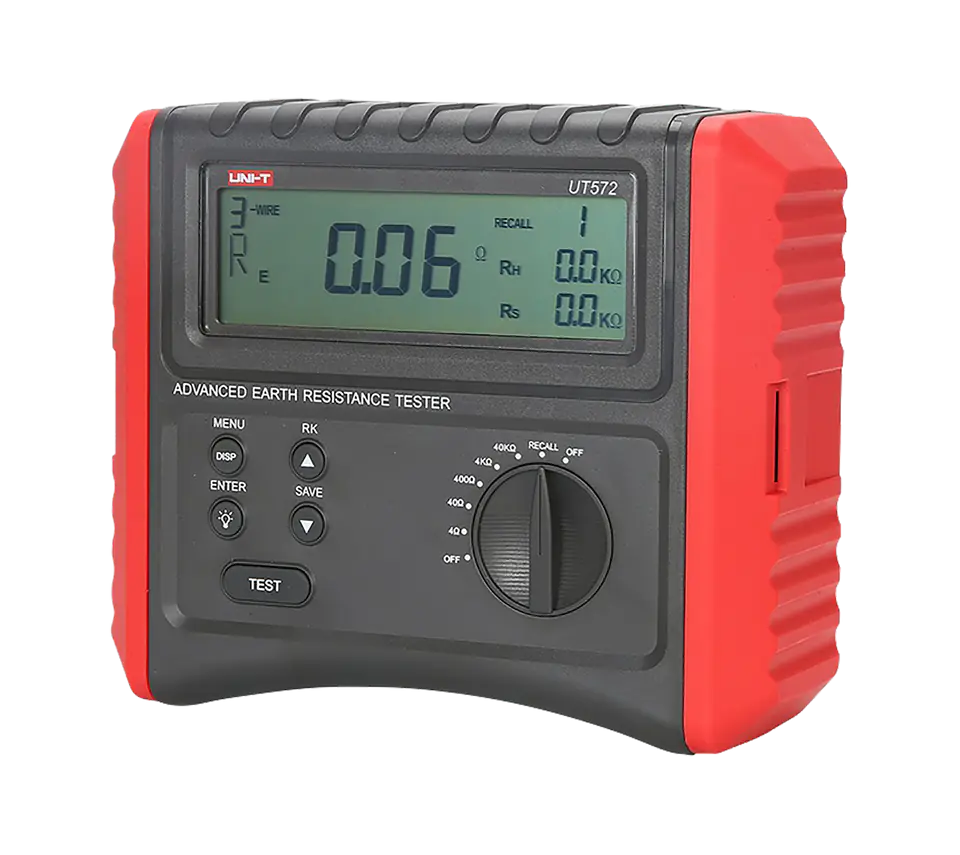

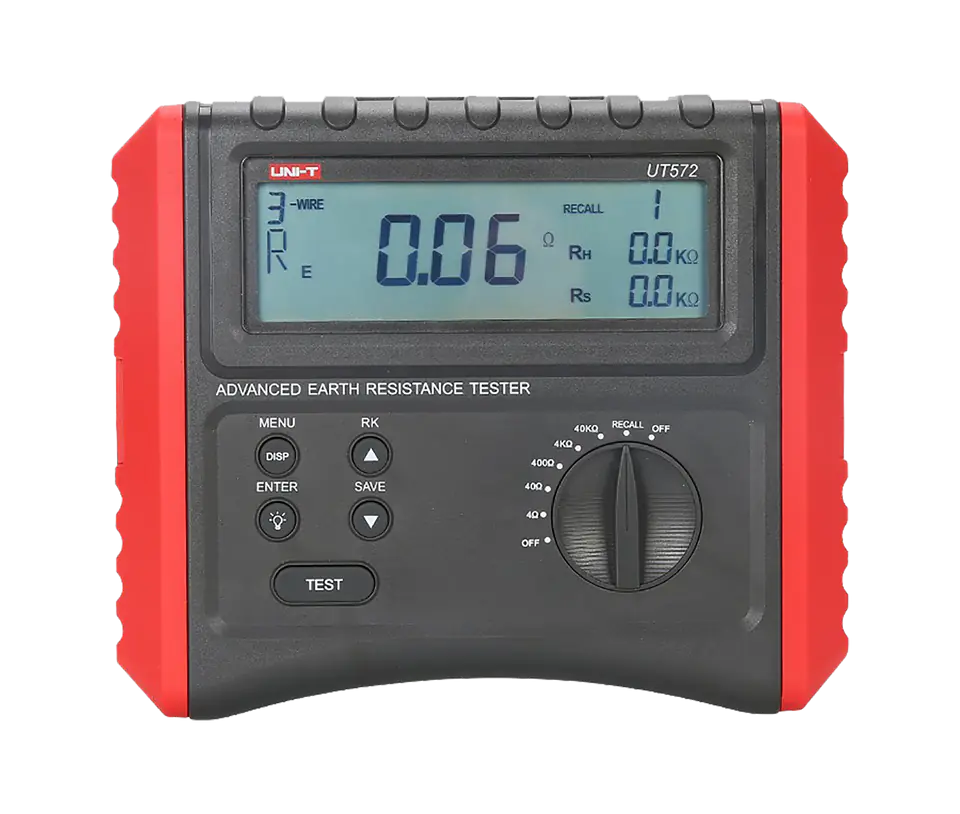

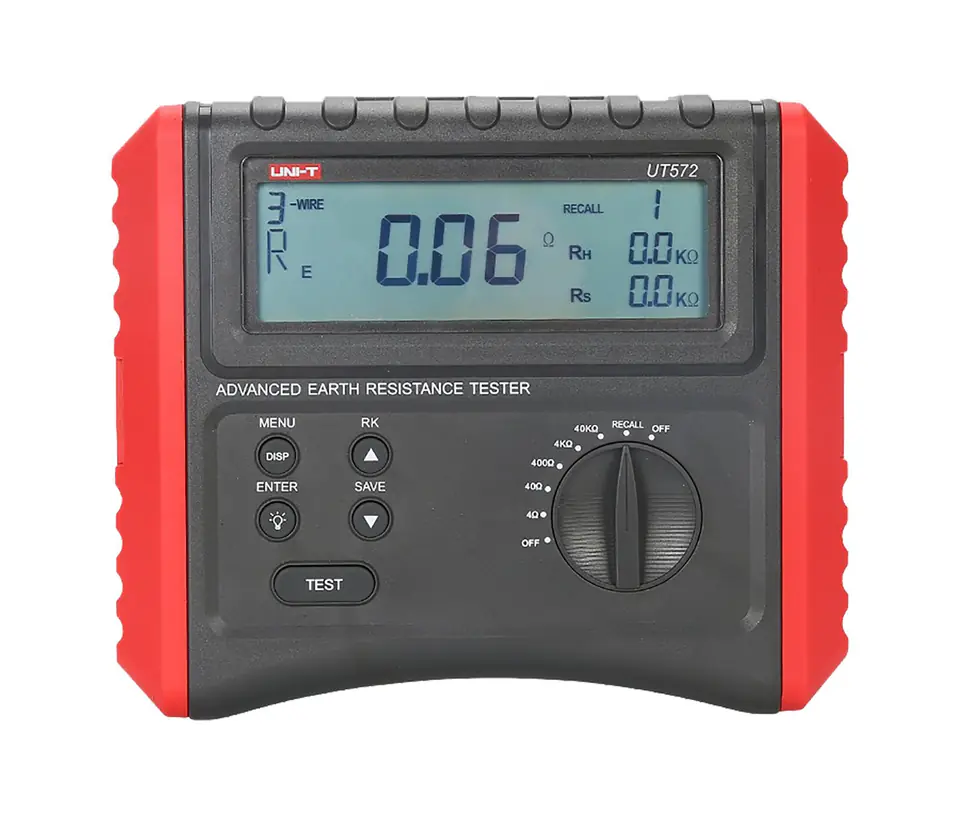

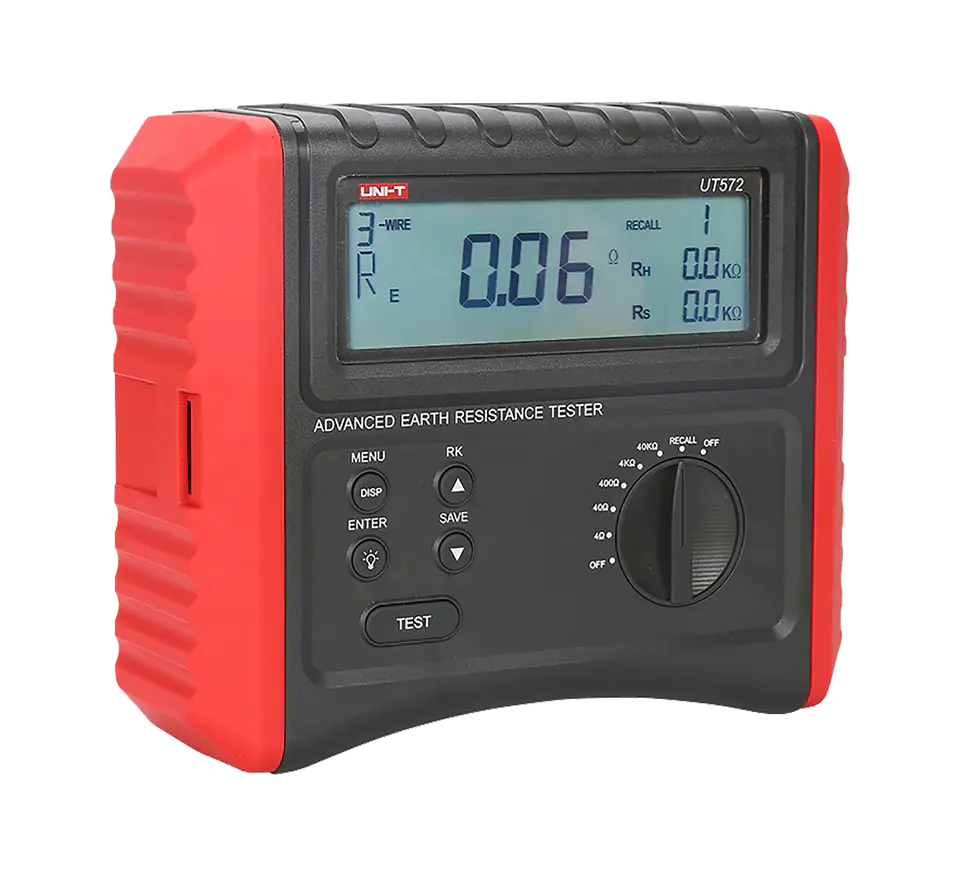

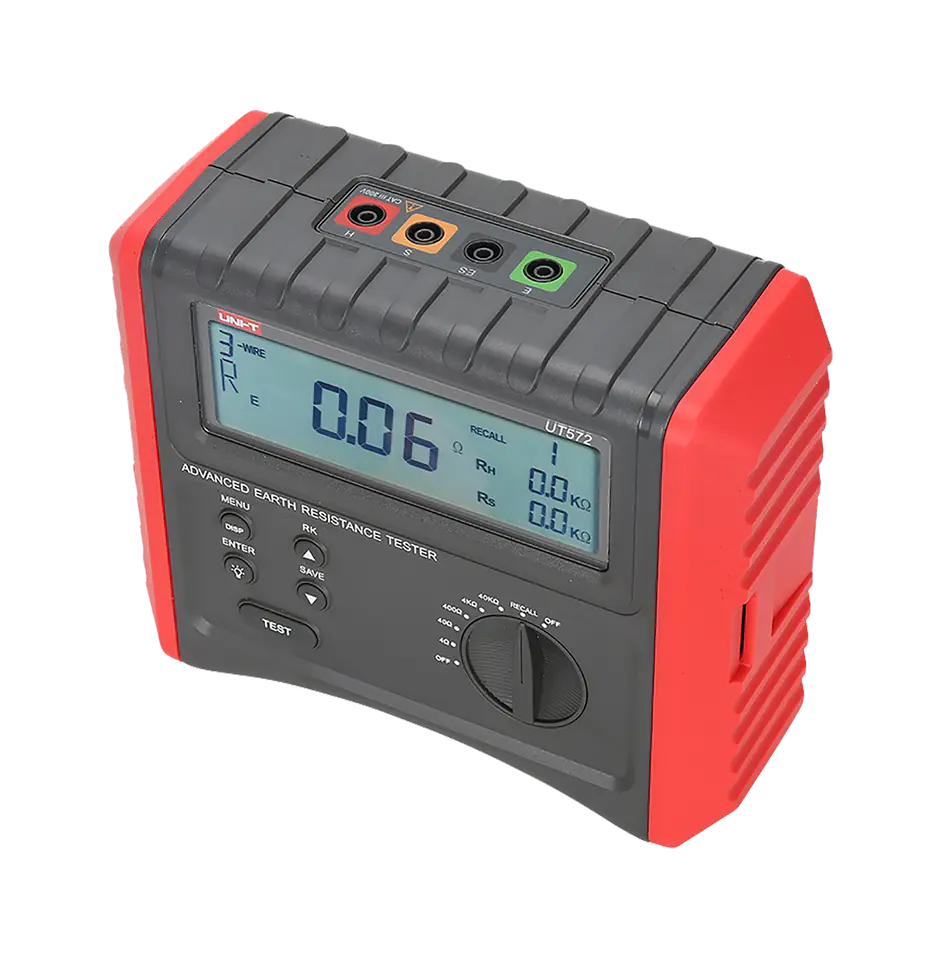

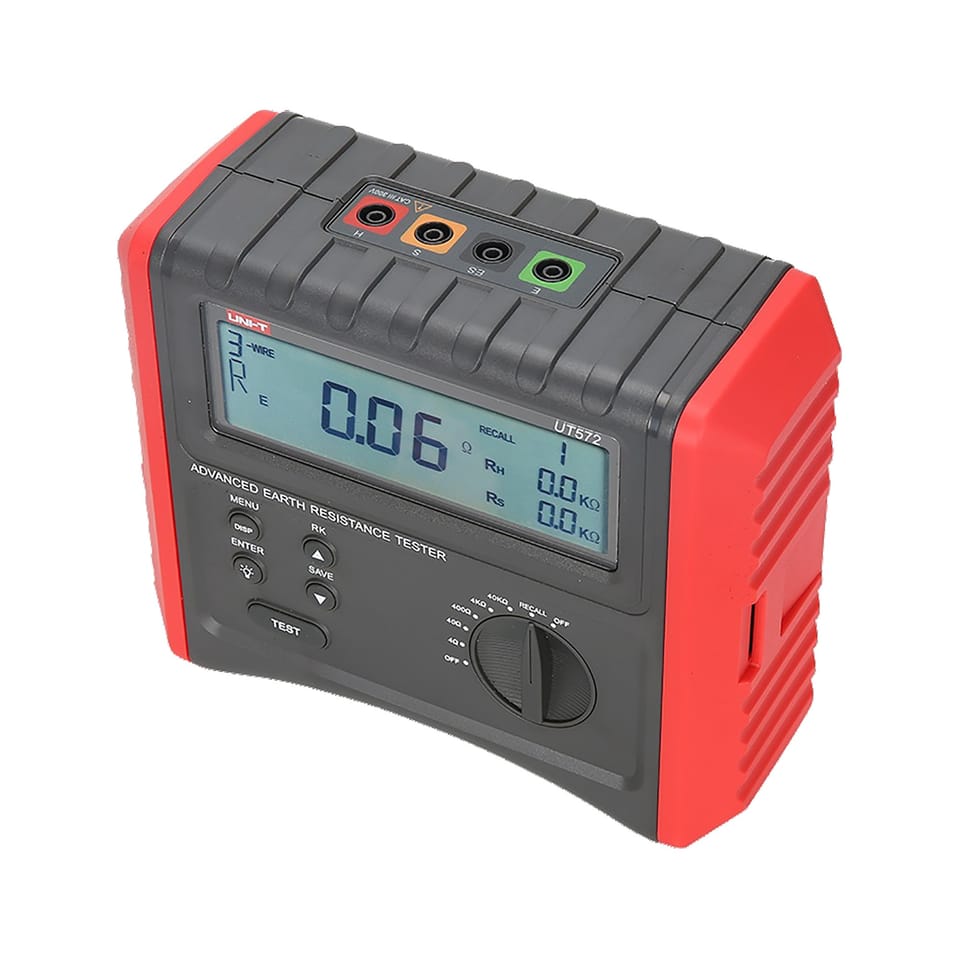

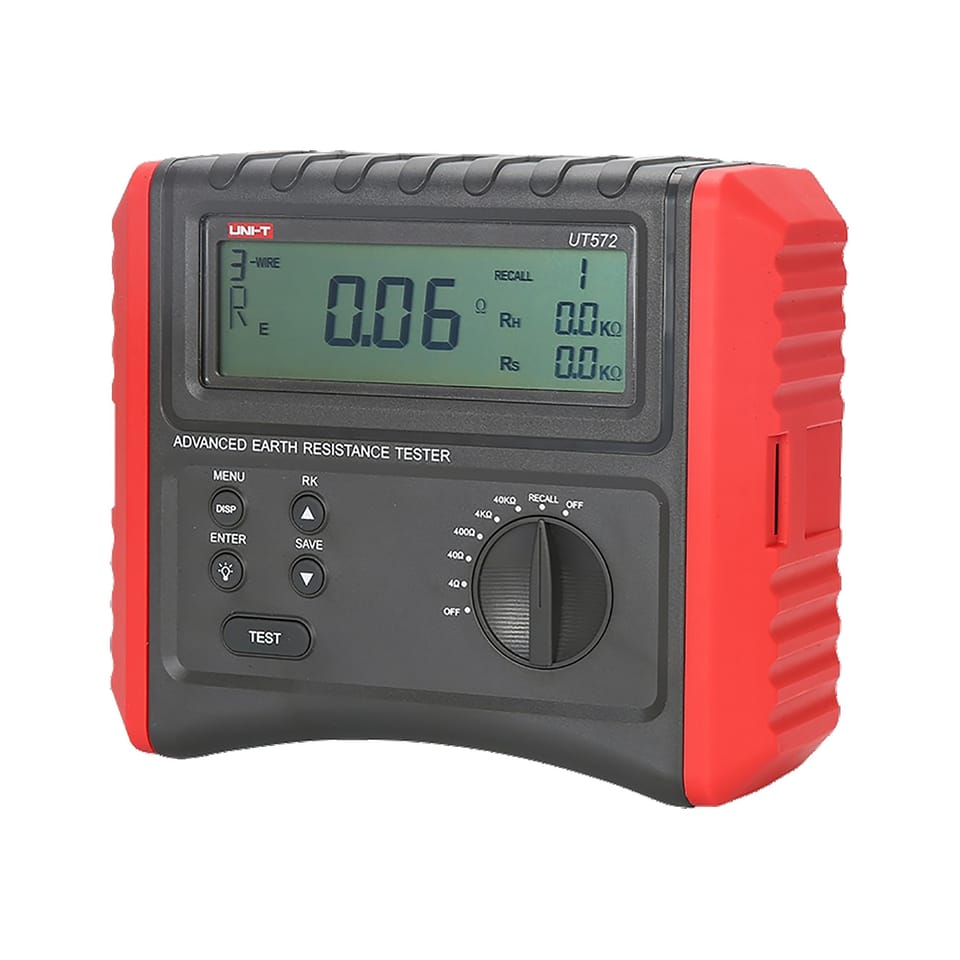

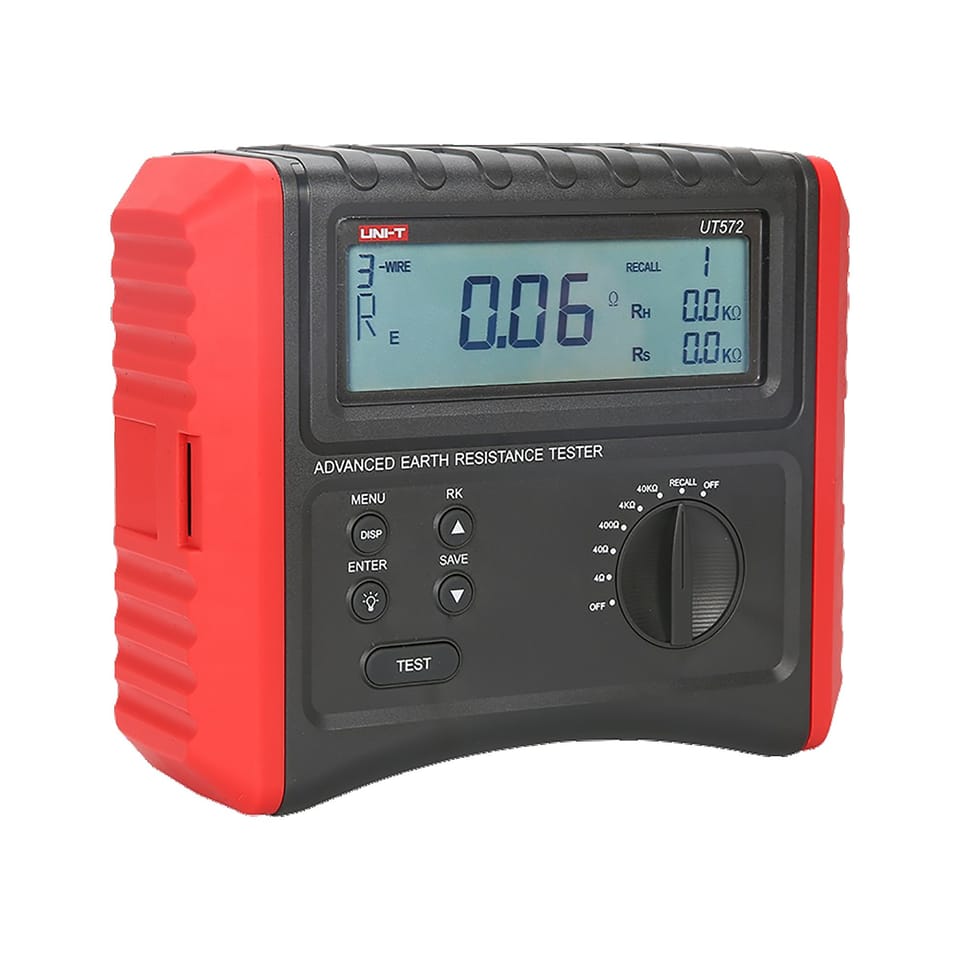

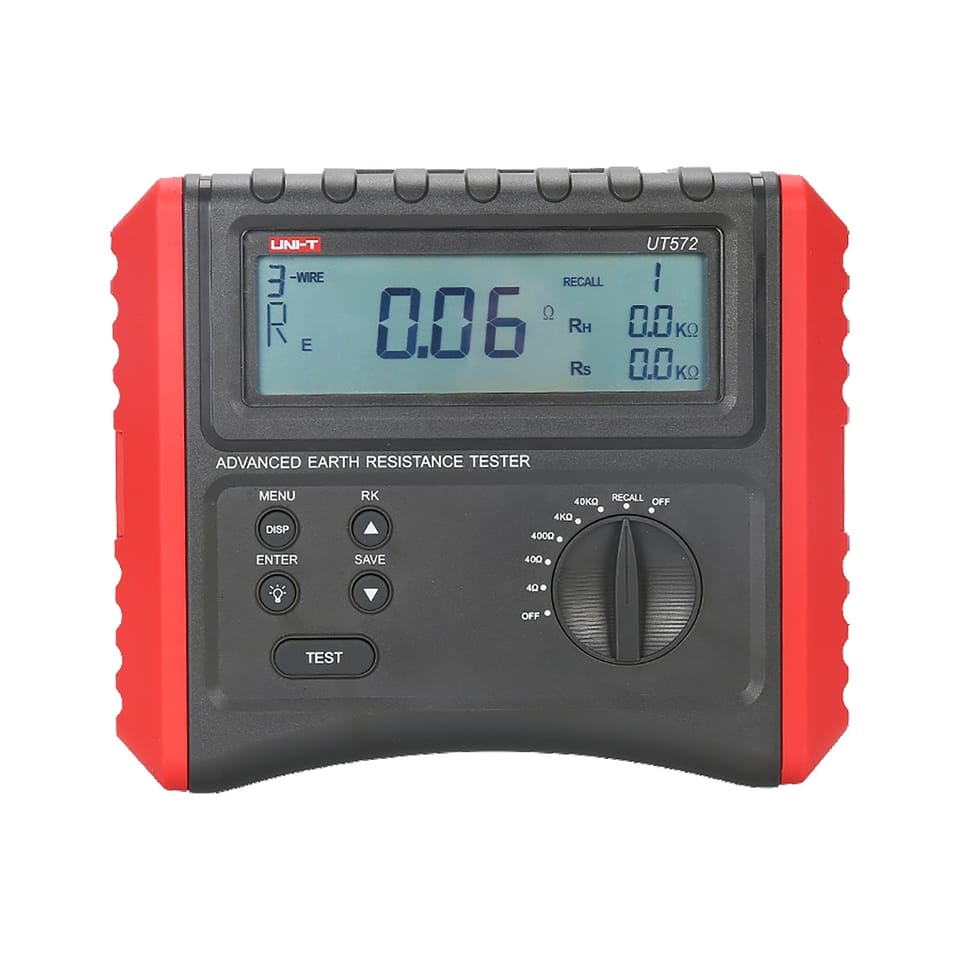

Ground resistance meter Uni-T UT572
€507.20
Shipping from warehouse: A3
Estimated shipping: Mon, May 12 - Wed, May 14
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Uni-T
- Product code:
- MIE0351 / 5901890044950
