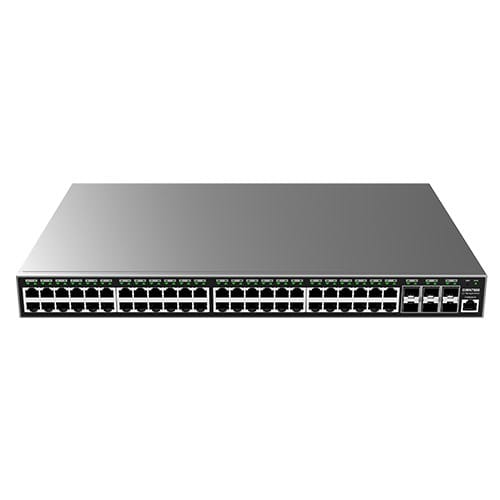

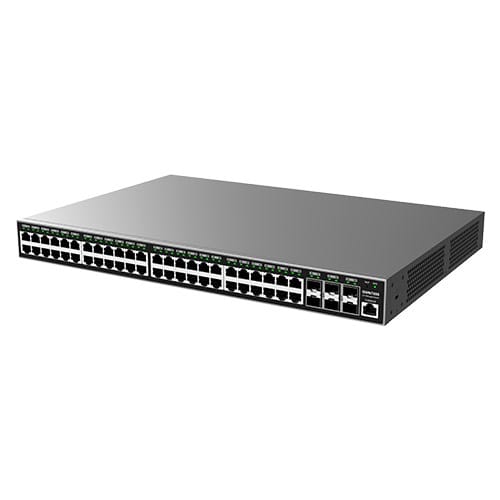

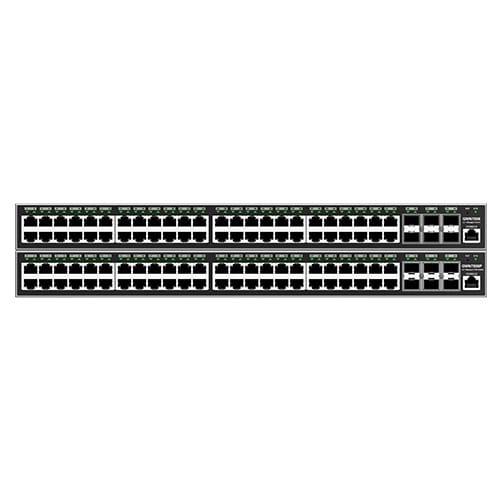

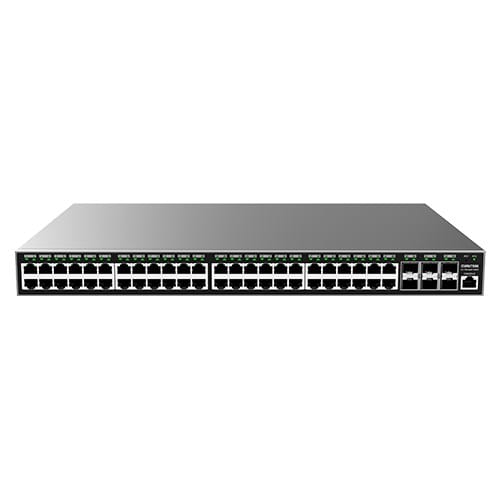

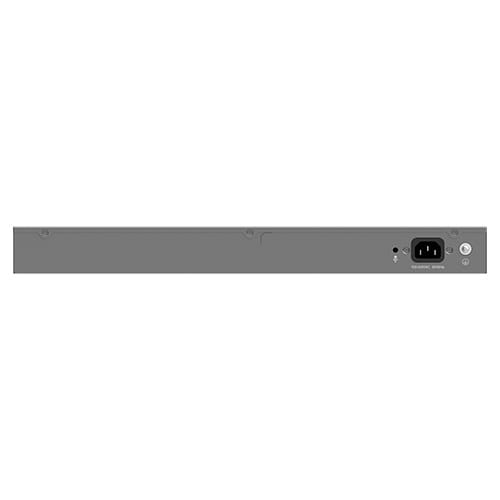

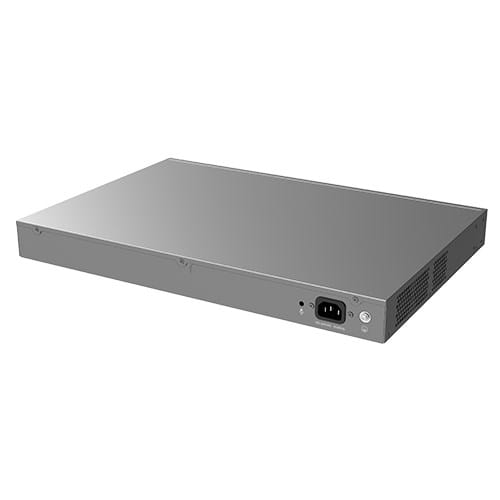

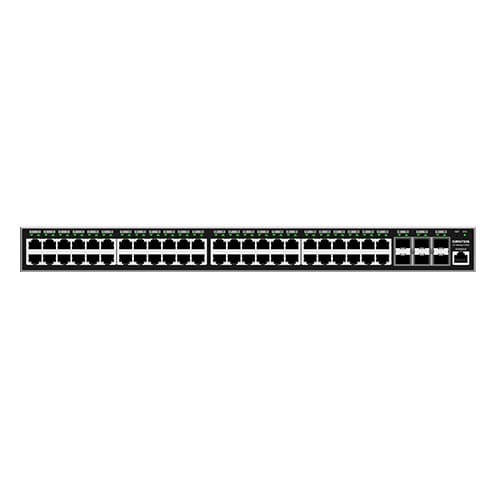

Grandstream GWN 7806 48GbE 6SFP+ Managed L2+ Switch | Web | L2+ Switches
This product is not available
- Availability:
- expected delivery
- Brand:
- Grandstream
- Product code:
- GWN7806 / 6947273704584
Share this product:
Specification
| 10g support: | No |
|---|---|
| Access control list (acl): | Yes |
| Access control list (acl) ipv4 entries: | 4000 |
| Access control list (acl) ipv6 entries: | 4000 |
| Arp inspection: | Yes |
| Authentication type: | AAA, RADIUS, TACACS+ |
| Basic switching rj-45 ethernet ports quantity: | 48 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Cables included: | AC |
| Cloud-managed: | Yes |
| Depth: | 440 mm |
| Dhcp features: | DHCP relay, DHCP snooping, DHCP server, DHCP Option 82 |
| Forwarding rate: | 160.704 Mpps |
| Garp vlan registration protocol (gvrp): | Yes |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 32000 entries |
| Networking standards: | IEEE 802.1D, IEEE 802.3u, IEEE 802.3at, IEEE 802.1w, IEEE 802.3z, IEEE 802.1x, IEEE 802.3af, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i |
| Number of fans: | 3 fan(s) |
| Number of vlans: | 4000 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 45 °C |
| Packet buffer memory: | 16 MB |
| Password protection: | Yes |
| Physical stacking (units): | 16 |
| Port mirroring: | Yes |
| Power consumption (typical): | 60 W |
| Power over ethernet (poe): | No |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Grey |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | WRR+SP, WFQ+SP, WFQ, Weighted Round Robin (WRR), SP |
| Quick start guide: | Yes |
| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Security algorithms: | 802.1x RADIUS, SNMP |
| Sfp+ module slots quantity: | 6 |
| Spanning tree protocol: | Yes |
| Stackable: | Yes |
| Static route: | Yes |
| Storage relative humidity (h-h): | 10 - 90% |
| Storage temperature (t-t): | -10 - 60 °C |
| Store-and-forward: | Yes |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 216 Gbit/s |
| Throughput: | 108 Gbit/s |
| Traffic shaping: | Yes |
| Virtual lan features: | Tagged VLAN |
| Vlan support: | Yes |
| Weight: | 4 kg |
| Width: | 301 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
