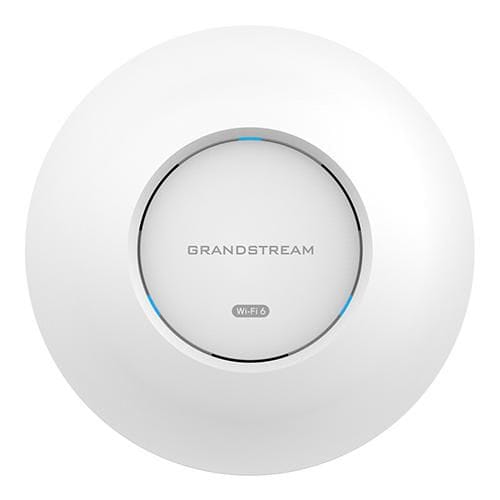

Grandstream GWN 7660 ACCESS POINT
€109.62
Shipping from warehouse: A3
Estimated shipping: Tue, Dec 16 - Fri, Dec 19
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Grandstream
- Product code:
- GWN7660 / 6947273703518
Share this product:
Specification
| 2.4 ghz: | Yes |
|---|---|
| 5 ghz: | Yes |
| Cable lock slot: | Yes |
| Captive portal: | Y |
| Cloud-managed: | Yes |
| Depth: | 40.8 mm |
| Ethernet lan (rj-45) ports: | 2 |
| Fast roaming: | Yes |
| Gamepad: | Y |
| Height: | 180.4 mm |
| Led indicators: | Yes |
| Mac address filtering: | Yes |
| Management software: | Yes |
| Maximum data transfer rate: | 1170 Mbit/s |
| Maximum data transfer rate (2.4 ghz): | 573.5 Mbit/s |
| Maximum data transfer rate (5 ghz): | 1201 Mbit/s |
| Maximum transmission power (5 ghz): | 22 dBm |
| Maximum tx power (2.4 ghz): | 24 dBm |
| Mounting kit: | Yes |
| Mounting style: | Ceiling, wall |
| Mu-mimo: | Yes 2x2:2 |
| Mu-mimo technology: | Yes |
| Network interface: | Base-T 10/100/1000 with auto detection |
| Networking standards: | IEEE 802.11ac, IEEE 802.11k, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11r, IEEE 802.11b, IEEE 802.11v |
| Number of ssid supported: | 32 |
| Number of users: | 256 user(s) |
| Ofdma: | Y |
| Operating temperature (t-t): | 0 - 40 °C |
| Poe standard: | IEEE 802.3af/at |
| Power over ethernet (poe): | Yes |
| Product colour: | White |
| Qos support: | 802.11e/WMM, TOS, VLAN |
| Quality of service (qos) support: | Yes |
| Receiver sensitivity 2.4 ghz: | 802.11n 20 MHz: -73 dBm at MCS7, 802.11g: -93 dBm at 6 Mb/s, -75 dBm at 54 Mb/s, 802.11ax 20 MHz: -60 dBm at MCS11, 802.11n 40 MHz: -70 dBm at MCS7, 802.11b: -96 dBm at 1 Mb/s, -88 dBm at 11 Mb/s, 802.11ax 40 MHz: -58 dBm at MCS11 |
| Receiver sensitivity 5 ghz: | 802.11ax 20 MHz: -60 dBm at MCS11, 802.11n 40 MHz: -70 dBm with MCS7, 802.11a: -92 dBm at 6Mbps, -74 dBm at 54Mbps, 802.11ac 80 MHz: -59 dBm at MCS9, 802.11ac: HT40: -63 dBm at MCS9, 802.11ax 80 MHz: -56 dBm with MCS11, 802.11n 20 MHz: -73 dBm at MCS7, 802.11ac 20 MHz: -67 dBm at MCS8, 802.11ax 40 MHz: -58 dBm at MCS11 |
| Reset button: | Yes |
| Safe start-up: | Yes |
| Security algorithms: | WPA, WPA2-TKIP, WPA2-PSK, WEP, WPA2-Enterprise, WPA2-AES |
| Shooting distance: | 175 m |
| Suitable for outdoor use: | No |
| Supported network protocols: | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| Total power over ethernet (poe) budget: | 9 W |
| Vlan support: | Yes |
| Webgui: | Yes |
| Weight: | 443 g |
| Width: | 180.4 mm |
