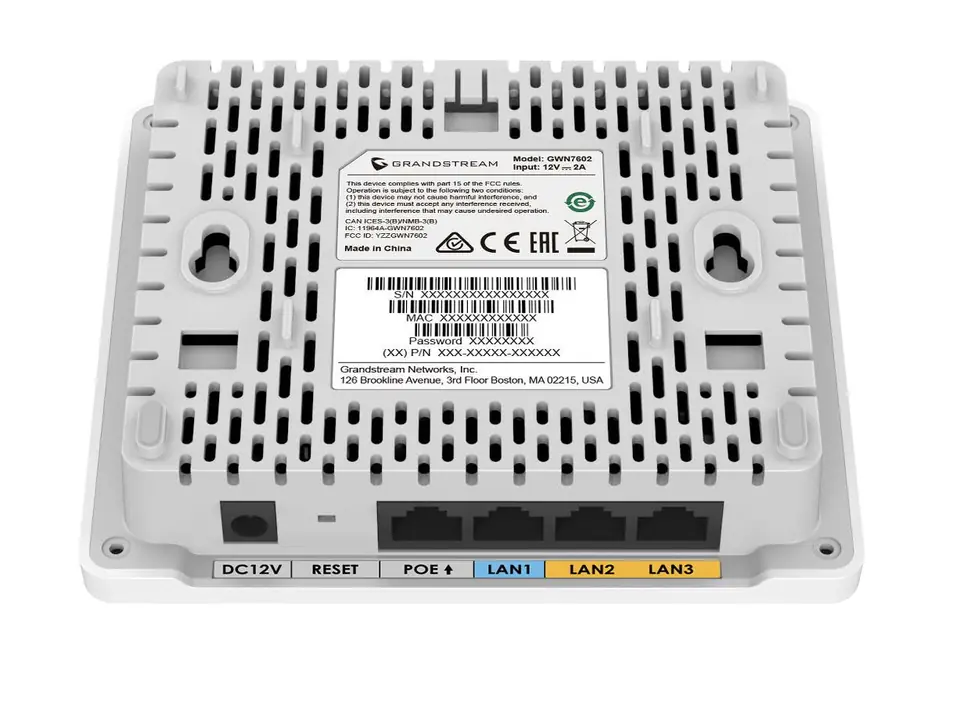

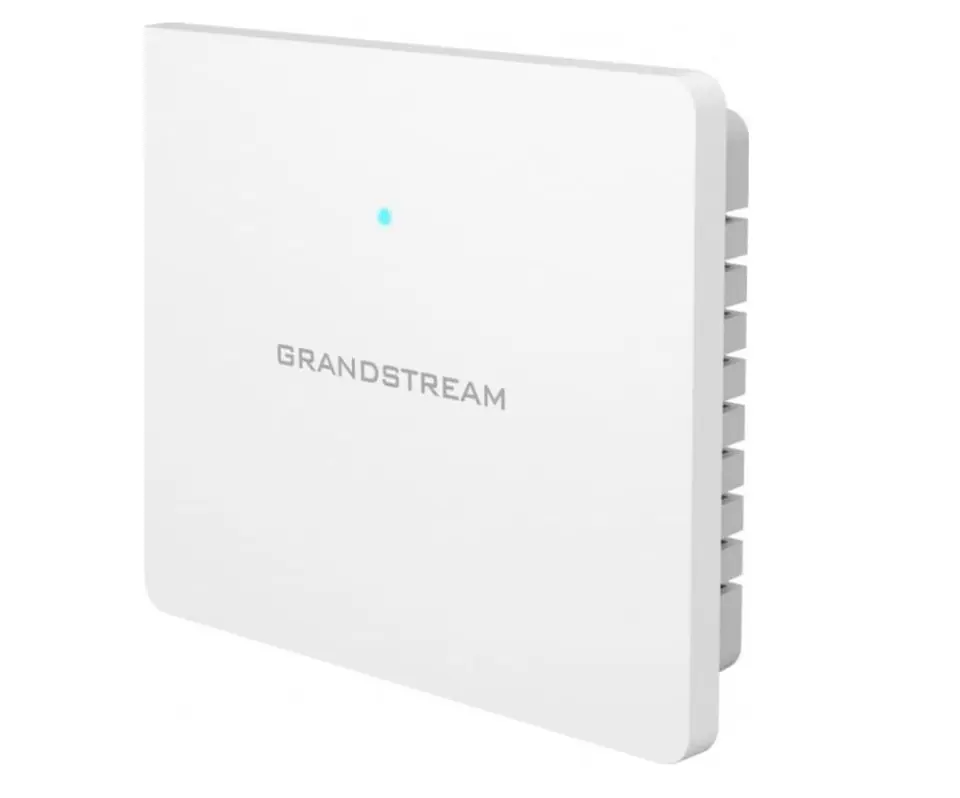

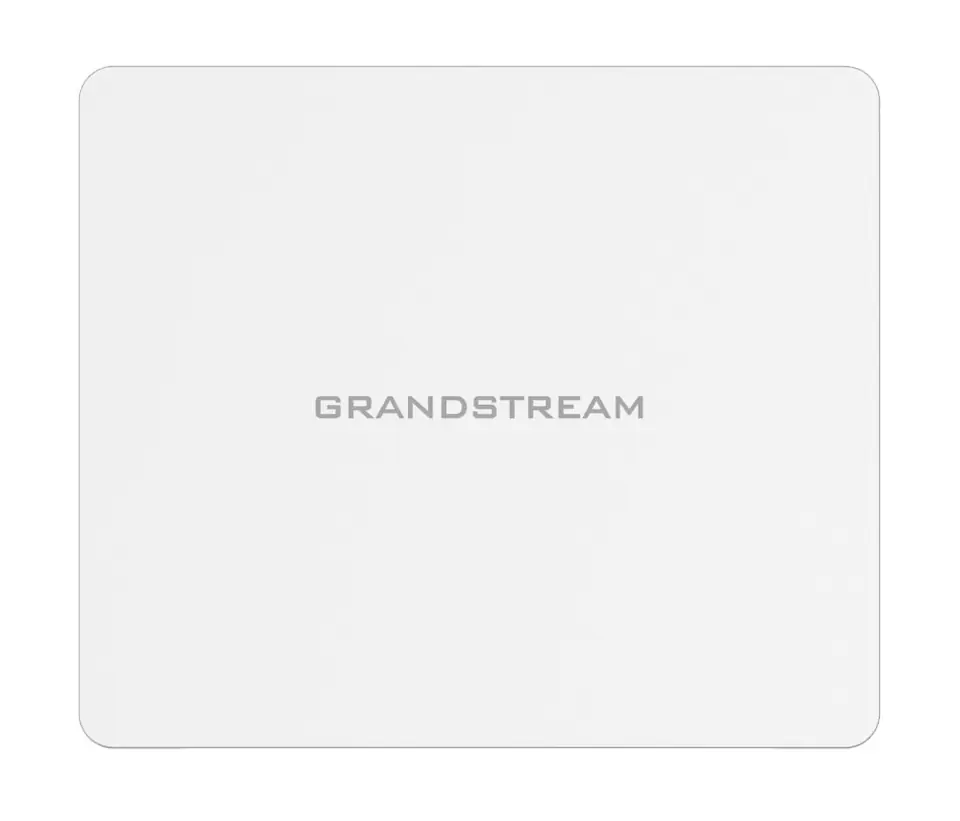

Grandstream GWN 7602 ACCESS POINT
This product is not available
- Availability:
- expected delivery
- Brand:
- Grandstream
- Product code:
- GWN7602 / 6947273703006
Share this product:
Specification
| 2.4 ghz: | Yes |
|---|---|
| 5 ghz: | Yes |
| Cable lock slot: | No |
| Captive portal: | Y |
| Cloud-managed: | Yes |
| Depth: | 30 mm |
| Ethernet lan (rj-45) ports: | 4 |
| Fast roaming: | Yes |
| Gamepad: | N |
| Height: | 115 mm |
| Led indicators: | Yes |
| Mac address filtering: | Yes |
| Management software: | Yes |
| Maximum data transfer rate: | 1170 Mbit/s |
| Maximum data transfer rate (2.4 ghz): | 300 Mbit/s |
| Maximum data transfer rate (5 ghz): | 867 Mbit/s |
| Maximum transmission power (5 ghz): | 21 dBm |
| Maximum tx power (2.4 ghz): | 21 dBm |
| Mounting kit: | Yes |
| Mounting style: | Ceiling, wall |
| Mu-mimo: | Yes 2x2:2 |
| Mu-mimo technology: | Yes |
| Network interface: | Base-T 10/100/1000 with auto detection |
| Networking standards: | IEEE 802.11a, IEEE 802.11r, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11v, IEEE 802.11k, IEEE 802.11g, IEEE 802.11n |
| Number of ssid supported: | 8 |
| Number of users: | 80 users |
| Operating temperature (t-t): | 0 - 40 °C |
| Poe standard: | IEEE 802.3af/at/az |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 6 W |
| Product colour: | White |
| Qos support: | TOS, 802.11e/WMM, VLAN |
| Quality of service (qos) support: | Yes |
| Receiver sensitivity 2.4 ghz: | 802.11g: -93 dBm at 6 Mb/s, -75 dBm at 54 Mb/s, 802.11b: -96 dBm at 1 Mb/s, -88 dBm at 11 Mb/s, 802.11n 40MHz: -88.5dBm at MCS0, -71 dBm at MCS7, 802.11n 20MHz:-92 dBm at MCS0, -73 dBm at MCS7 |
| Receiver sensitivity 5 ghz: | 802.11ac:VHT40: -87.5dBm at MCS0; -69.5dBm at MCS7, -62dBm at MCS9, 802.11ac:VHT20: -89.5dbm at MCS0, -71.5dBm at MCS7, -64dBm at MCS8, 802.11ac:VHT80: -83.5dBm at MCS0, -65.5dBm at MCS7, -58.5dBm at MCS9, 802.11a: -91dBm at 6Mbps, -73.5dBm at 54Mbps |
| Reset button: | Yes |
| Safe start-up: | Yes |
| Security algorithms: | WPA2-PSK, WPA2-TKIP, WPA, WEP, WPA2-Enterprise, WPA2-AES |
| Shooting distance: | 100 m |
| Suitable for outdoor use: | No |
| Supported network protocols: | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| Total power over ethernet (poe) budget: | 20 W |
| Vlan support: | Yes |
| Webgui: | Yes |
| Weight: | 188 g |
| Width: | 135 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
