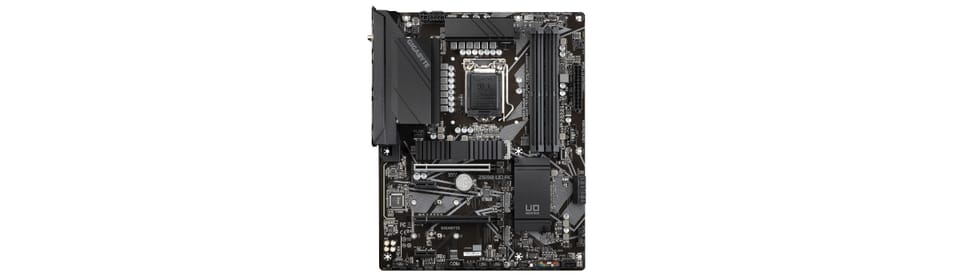

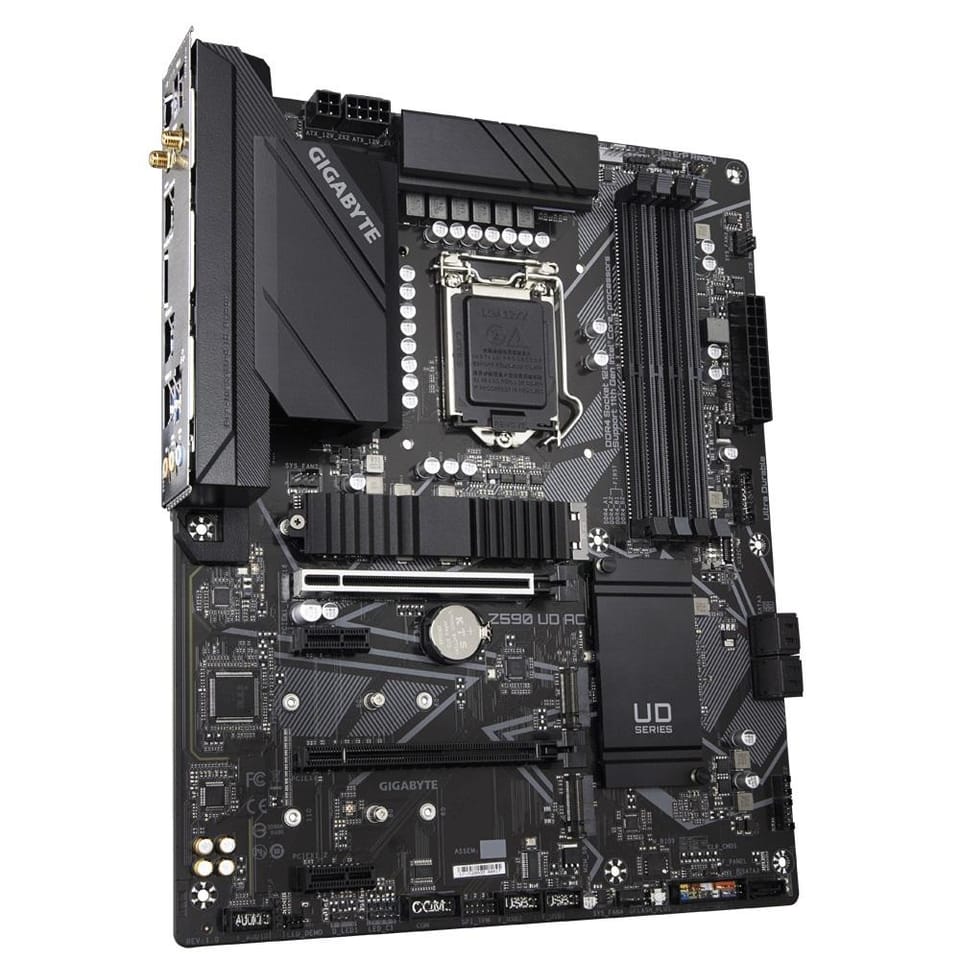

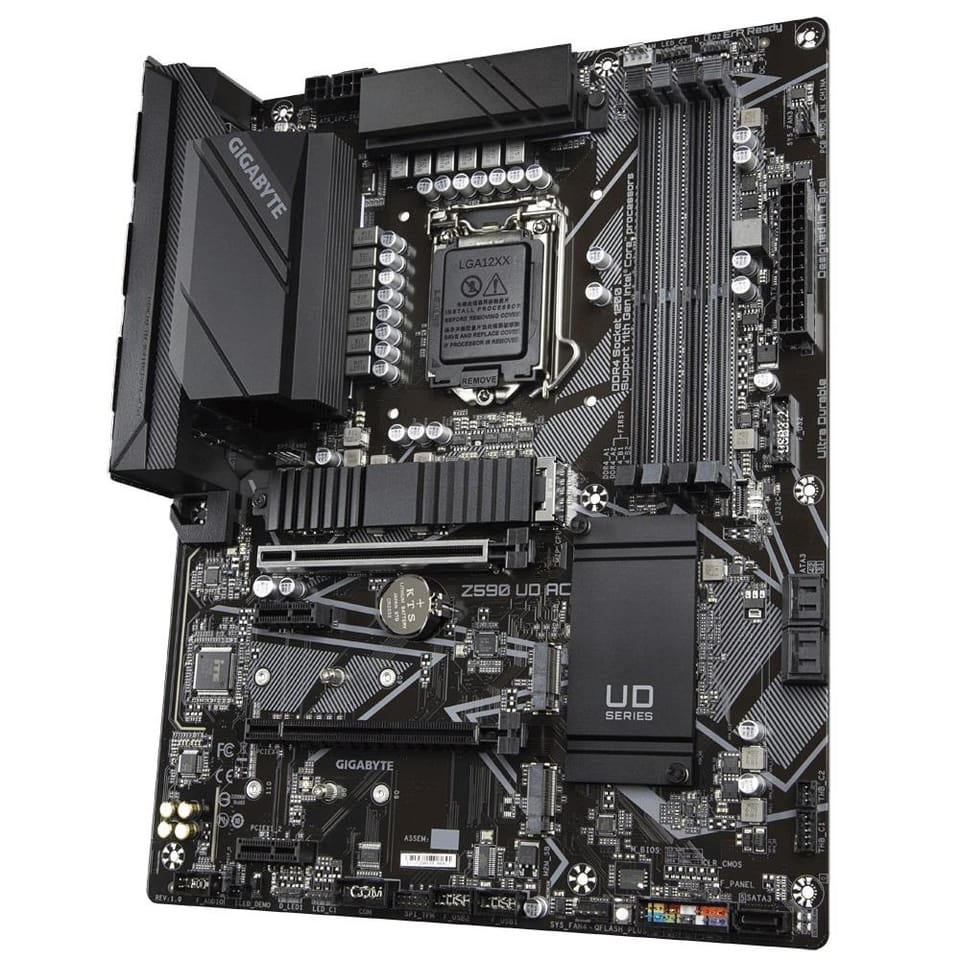

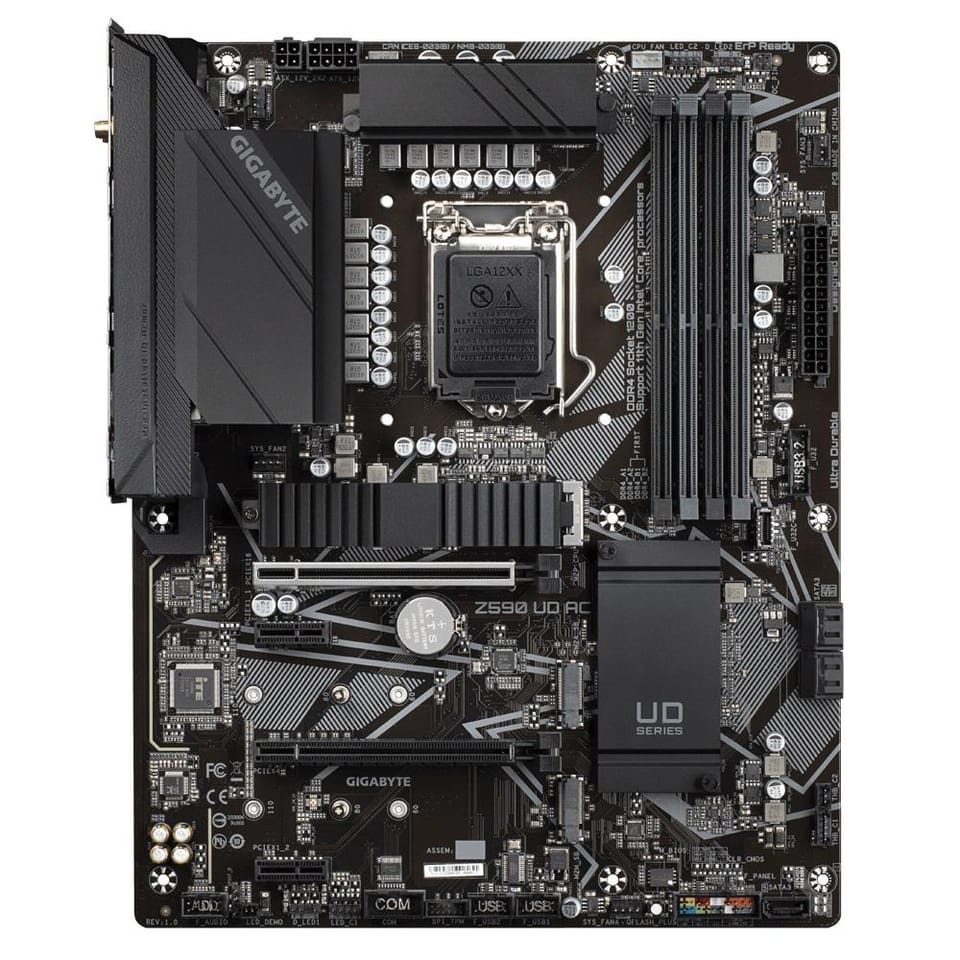

Gigabyte Z590 UD AC motherboard Intel Z590 LGA 1200 ATX

This product is not available

Availability:: expected delivery
Brand:: Gigabyte
Product code:: Z590 UD AC 1.1 / 4719331814878

Specification

Bios type:	UEFI AMI
Bluetooth:	Y
Cables included:	SATA
Compatible processor series:	Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Depth:	244 mm
Displayports quantity:	1
Drivers included:	Y

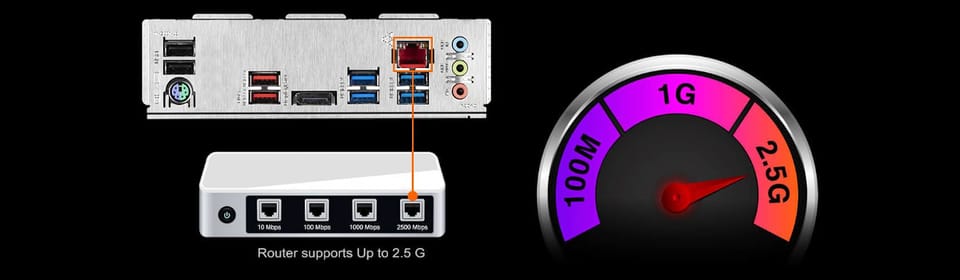

Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Y
Ethernet lan (rj-45) ports:	1
Harmonized system (hs) code:	84733020
Maximum internal memory:	128 GB
Maximum number of smp processors:	1
Memory channels:	Dual-channel
Memory slots type:	DIMM
Motherboard chipset:	Intel Z590
Motherboard chipset family:	Intel
Motherboard form factor:	ATX

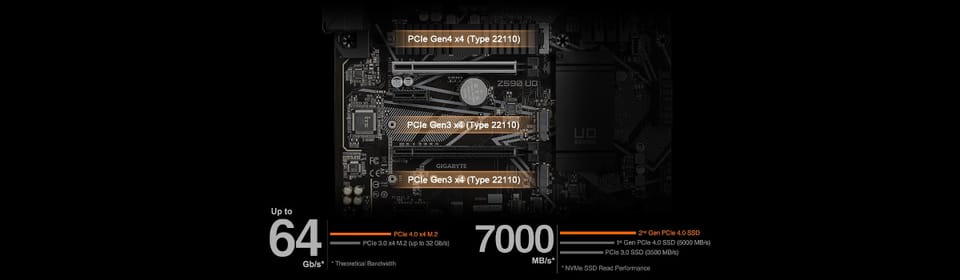

Number of m.2 (m) slots:	3
Number of memory slots:	4
Processor manufacturer:	Intel
Processor socket:	LGA 1200
Ps/2 ports quantity:	1
Supported memory clock speeds:	2933, 3000, 3200 MHz

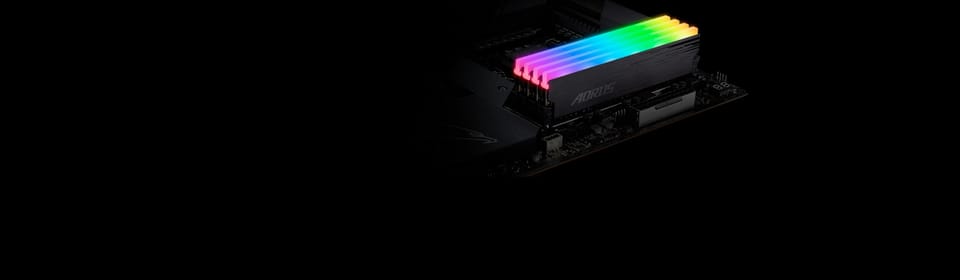

Supported memory types:	DDR4-SDRAM
Supported storage drive interfaces:	SATA III
Supported storage drive types:	HDD & SSD
Top wi-fi standard:	Wi-Fi 5 (802.11ac)
Unbuffered memory:	Y

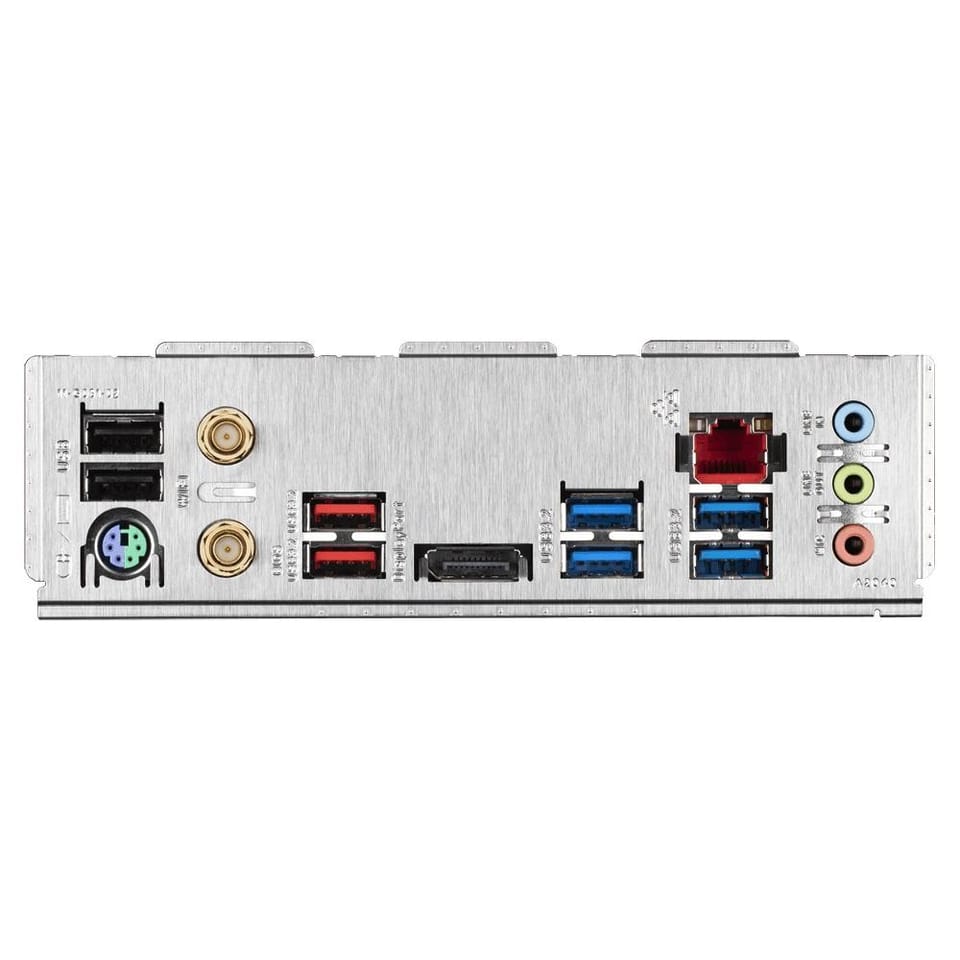

Usb 2.0 ports quantity:	2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	2
Wi-fi:	Y
Wi-fi standards:	Wi-Fi 5 (802.11ac)
Width:	305 mm
Wifi-ap antenna jack:	2

Gwarancja: 36 msc.Opis:

Płyta główna Gigabyte Z590 UD AC

Model:

Z590 UD AC

Chipset:

Intel Z590 Express

Grafika:

Obsługa technologii AMD Quad-GPU CrossFire i 2-Way AMD CrossFire

Karta dźwiękowa:

Kodek Realtek ALC4080
Dźwięk wysokiej jakości
Kanał 2/4 / 5.1 / 7.1
Obsługa wyjścia S / PDIF

Interfejs sieciowy:

WIFI a, b, g, n, ac, obsługujące dwuzakresowe pasmo 2,4 / 5 GHz
Obsługa standardu bezprzewodowego 11ax 160 MHz i szybkości transmisji danych do 2,4 Gb / s

Bios:

256 Mbit flash
Korzystanie z licencjonowanego AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Wymiary:

30,5 cm x 24,4 cm

Oprogramowanie:

Norton Internet Security (wersja OEM)
Narzędzie Realtek 8125 Gaming LAN Bandwidth Control Utility

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
