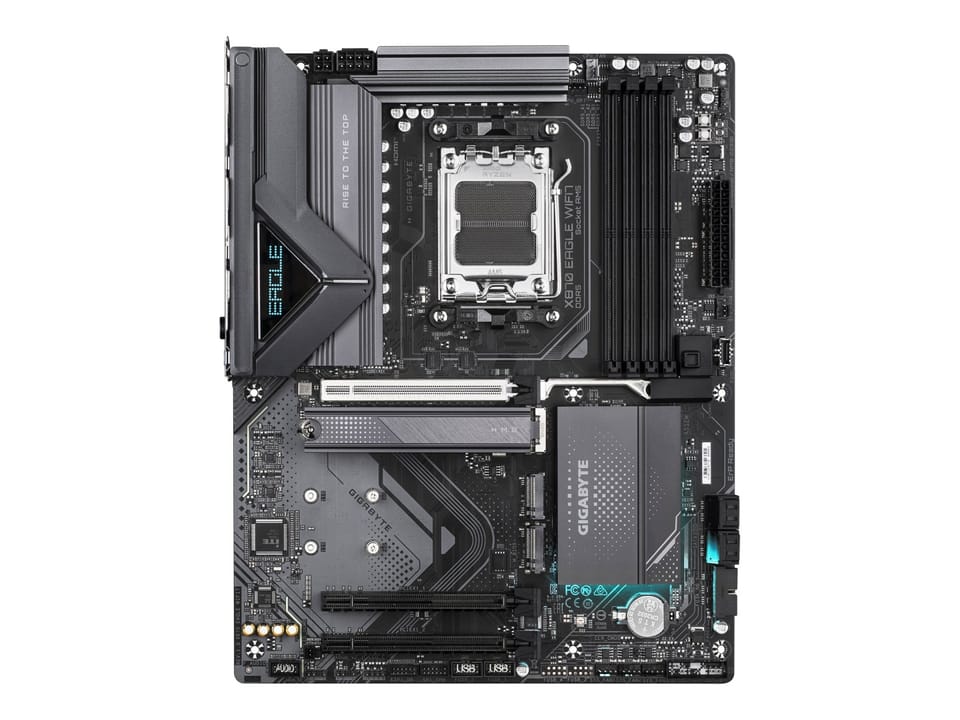

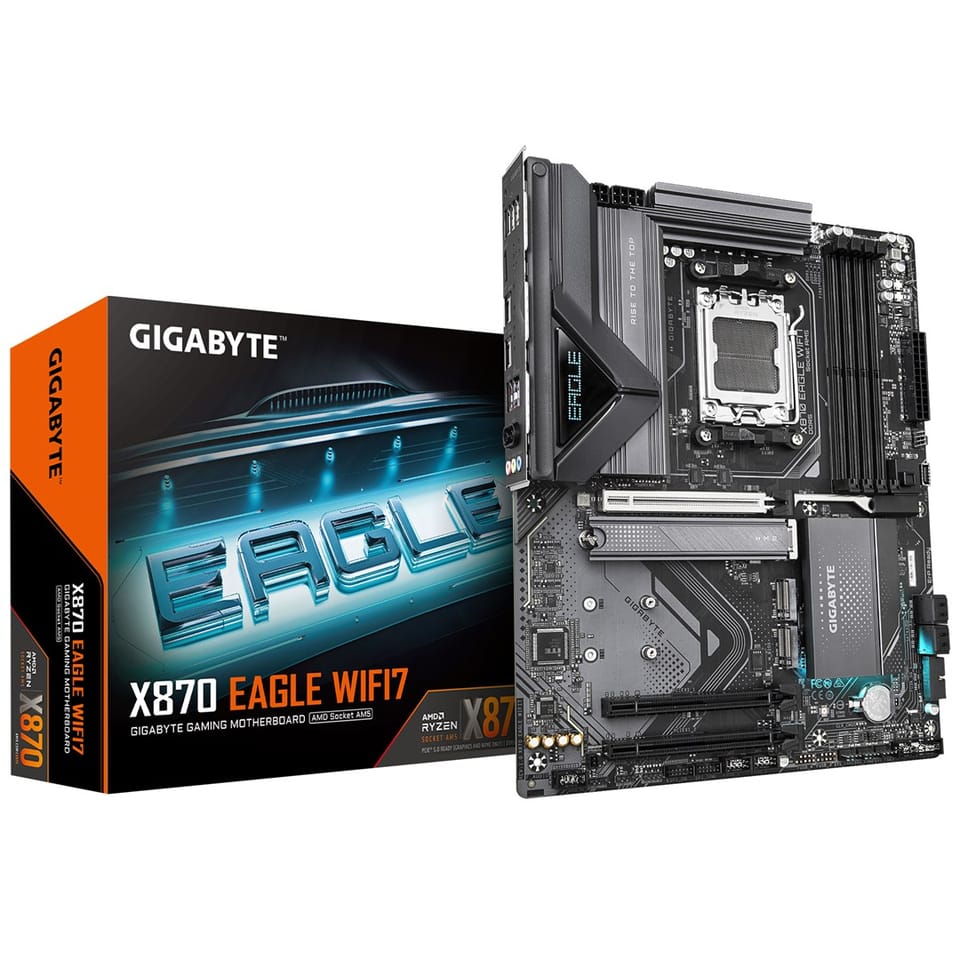

GIGABYTE X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Name: GIGABYTE X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
Brand: Gigabyte
SKU: 2015686
Price: 288.13 EUR
Availability: InStock

€288.13

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Tue, Apr 29 - Fri, May 2

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Gigabyte
Product code:: X870 EAGLE WIFI7 / 4719331864996

Specification

12v power connector:	Yes
1st m.2 highest pci express generation:	5.0
1st m.2 largest key size:	25110
2nd m.2 highest pci express generation:	4.0
2nd m.2 largest key size:	25110
3rd m.2 highest pci express generation:	4.0
3rd m.2 largest key size:	25110
Antenna included:	Yes
Atx power connector (24-pin):	Yes
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Batteries included:	Yes
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Battery type:	CR2032
Battery weight:	3 g
Bios type:	UEFI AMI
Bluetooth:	Yes
Bluetooth version:	5.4
Clear cmos button:	Yes
Clear cmos jumper:	Yes
Compatible processor series:	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Country of origin:	China
Cpu fan connector:	Yes
Depth:	244 mm
Desktop management interface (dmi) version:	2.7
Directx version:	12.0
Displayport version:	1.4
Displayports quantity:	2
Ecc сompatibility:	Non-ECC
Eps power connector (8-pin):	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Hdmi ports quantity:	1
Hdmi version:	2.1
Headphone outputs:	1
Height:	35 mm
Lan controller:	Realtek RTL8125
Lithium weight per battery:	0.07 g
Maximum internal memory:	256 GB
Maximum internal memory per slot:	64 GB
Maximum internal memory supported by processor:	256 GB
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	AMD X870
Motherboard chipset family:	AMD
Motherboard form factor:	ATX
Number of battery cells:	1
Number of chassis fan connectors:	4
Number of cpu fan connectors:	2
Number of eps power connectors (8-pin):	1
Number of hdds supported:	4
Number of m.2 (m) slots:	3
Number of memory slots:	4
Number of rgb led pin headers:	4
Number of sata iii connectors:	4
Number of storage drives supported:	7
Number of water pump connectors:	1
On-board graphics card:	No
Package depth:	270 mm
Package height:	80 mm
Package weight:	1.94 kg
Package width:	335 mm
Parallel processing technology support:	Not supported
Pc health monitoring:	Fan, Temperature, Voltage
Pci express x16 (gen 3.x) slots:	2
Pci express x16 (gen 5.x) slots:	1
Pci express x4 slots:	2
Peripheral (molex) power connectors (4-pin):	1
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Product colour:	Black
Products per shipping (inner) case:	1 pc(s)
Raid levels:	0, 10, 1
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out port:	Yes
Screws included:	Yes
Supported memory clock speed (max):	8200 MHz
Supported memory clock speeds:	8200, 8000, 7200, 7600 MHz, 7800, 5200, 4800 MHz, 5600, 6600, 6000 MHz, 7000, 6800, 4400 MHz, 6400, 6200, 6666
Supported memory module capacities:	24GB, 48GB, 64GB, 32GB, 1GB, 40GB, 16GB, 8GB, 2GB, 4GB
Supported memory types:	DDR5-SDRAM
Supported processor sockets:	Socket AM5
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
Top wi-fi standard:	Wi-Fi 7 (802.11be)
Total number of sata connectors:	4
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	4
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	3
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	1
Usb 3.2 gen 2x2 connectors:	1
Usb4 gen 2x2 ports quantity:	2
Warranty period:	3 year(s)
Weight:	1.74 kg
Wi-fi:	Yes
Wi-fi standards:	Wi-Fi 7 (802.11be)
Width:	305 mm
Wifi-ap antenna jack:	2
Windows operating systems supported:	Windows 11 x64
Wlan controller model:	MediaTek MT7925

X870 EAGLE WIFI7

AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 14+2+2 phases VRM solution
Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Plus Auto Scan in BIOS and SW
New AORUS Power Center in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage: 3*M.2 slots, including 1*PCIe 5.0 x4
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Extention
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

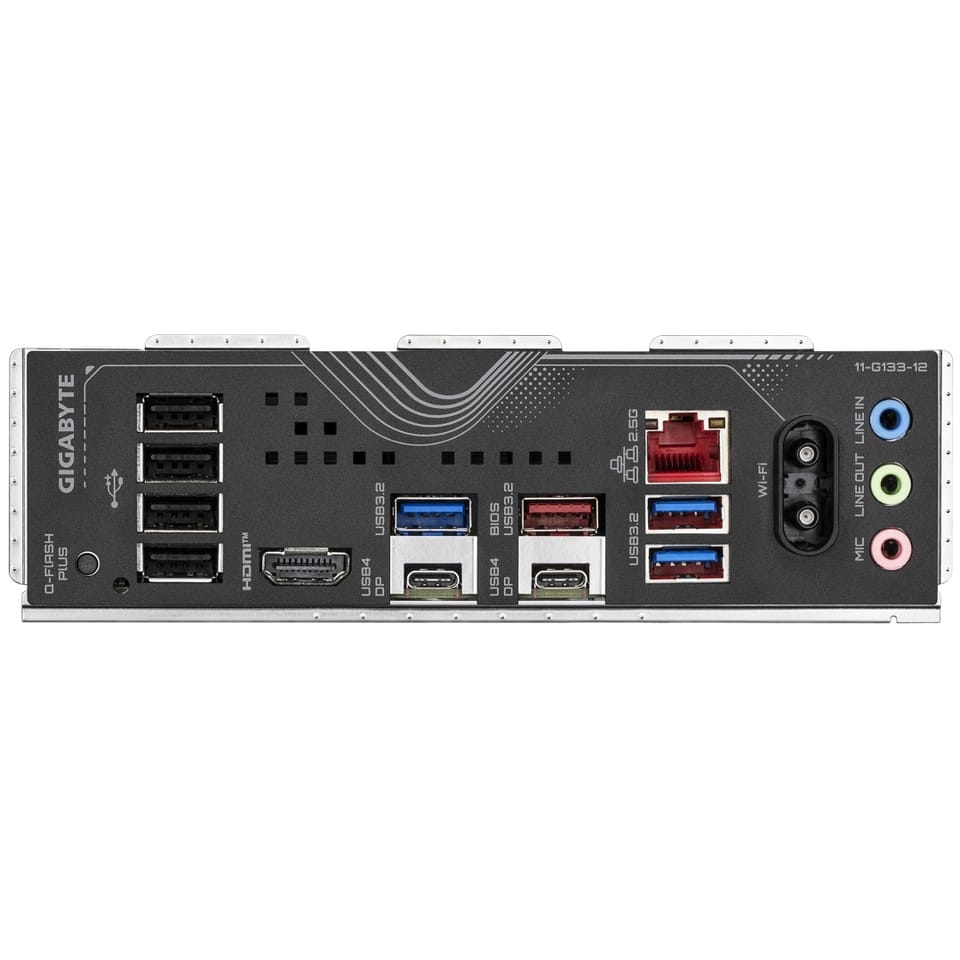

Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

AORUS AI SNATCHAORUS AI SNATCH Bullet PointUnleash Ultimate Performance with One-Click Activation.

Auto DDR5 Memory BoostWith just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration:Enhance DDR5 speeds with a single click.

Durable PerformanceGIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital Twin VRM DesignDelivers consistent, high-powered performance to elevate your overclocking to the next level.

Zenith of the MemoryGIGABYTE Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Comprehensive ThermalEAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
