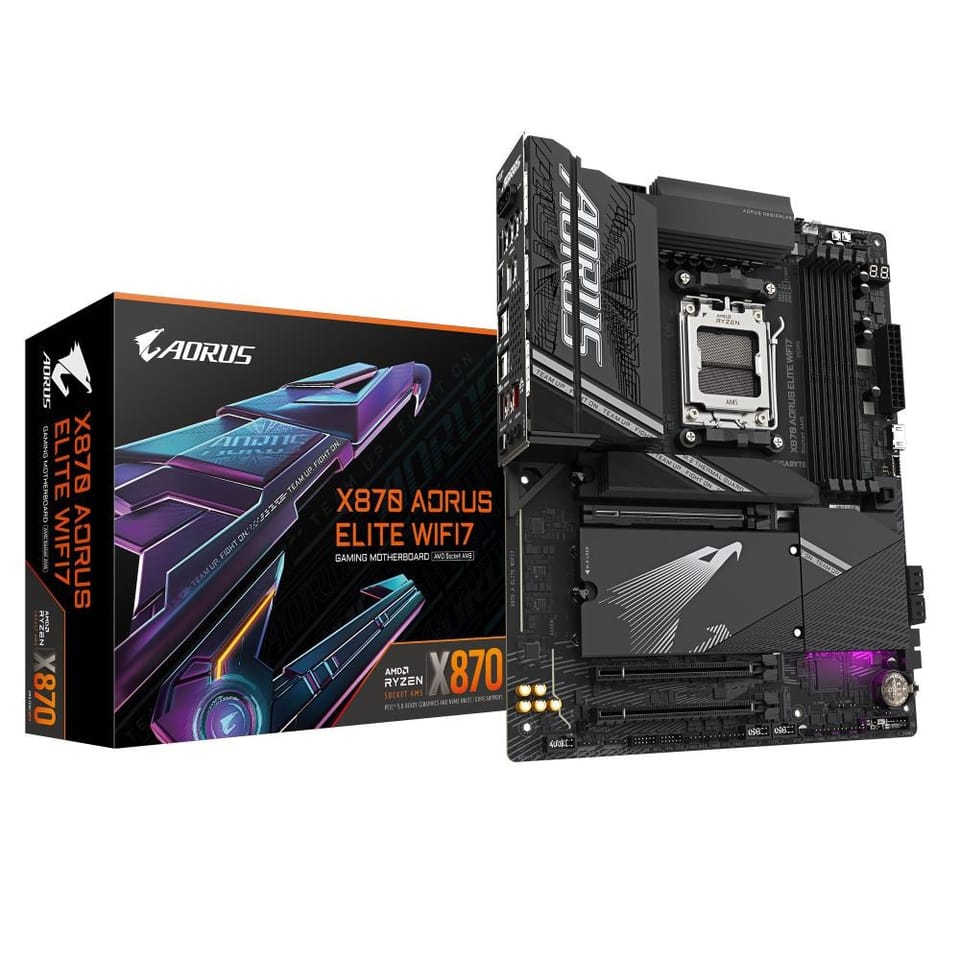

GIGABYTE X870 AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

€315.08
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Tue, Jun 2 - Fri, Jun 5
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Gigabyte
Product code:
X870 AORUS ELITE WIFI7 / 4719331864811

Specification

1st m.2 highest pci express generation:5.0
1st m.2 largest key size:25110
2nd m.2 highest pci express generation:5.0
2nd m.2 largest key size:22110
3rd m.2 highest pci express generation:5.0
3rd m.2 largest key size:22110
4th m.2 highest pci express generation:4.0
4th m.2 largest key size:22110
Antenna included:Yes
Atx power connector (24-pin):Yes
Audio chip:Realtek ALC1220
Audio output channels:7.1 channels
Batteries included:Yes
Battery technology:Lithium-Manganese Dioxide (LiMnO2)
Battery type:CR2032
Battery weight:3 g
Bios type:UEFI AMI
Bluetooth:Yes
Bluetooth version:5.4
Clear cmos button:Yes
Clear cmos jumper:Yes
Compatible processor series:AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Country of origin:China
Cpu fan connector:Yes
Depth:244 mm
Desktop management interface (dmi) version:2.7
Directx version:12.0
Displayport version:1.4
Displayports quantity:2
Ecc сompatibility:Non-ECC
Eps power connector (8-pin):Yes
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Front panel connector:Yes
Hdmi ports quantity:1
Hdmi version:2.1
Headphone outputs:1
Height:35 mm
Lan controller:Realtek RTL8125
Lithium weight per battery:0.07 g
Maximum internal memory:256 GB
Maximum internal memory per slot:64 GB
Maximum internal memory supported by processor:256 GB
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:AMD X870
Motherboard chipset family:AMD
Motherboard form factor:ATX
Number of battery cells:1
Number of chassis fan connectors:6
Number of cpu fan connectors:2
Number of eps power connectors (8-pin):2
Number of hdds supported:4
Number of m.2 (m) slots:4
Number of memory slots:4
Number of rgb led pin headers:4
Number of sata iii connectors:4
Number of storage drives supported:8
Number of water pump connectors:3
On-board graphics card:No
Package depth:270 mm
Package height:80 mm
Package weight:2.74 kg
Package width:335 mm
Parallel processing technology support:Not supported
Pc health monitoring:Fan, Voltage, Temperature
Pci express x16 (gen 3.x) slots:1
Pci express x16 (gen 4.x) slots:1
Pci express x16 (gen 5.x) slots:1
Pci express x4 slots:2
Processor manufacturer:AMD
Processor socket:Socket AM5
Product colour:Black
Products per shipping (inner) case:1 pc(s)
Raid levels:0, 10, 1
Raid support:Yes
Rgb led pin header:Yes
S/pdif out port:Yes
Screws included:Yes
Supported memory clock speed (max):8200 MHz
Supported memory clock speeds:6200, 6666, 6000 MHz, 5200, 6800, 5600, 7200, 4400 MHz, 4800 MHz, 8000, 7000, 8200, 6600, 7600 MHz, 7800, 6400
Supported memory module capacities:2GB, 4GB, 32GB, 8GB, 24GB, 16GB, 1GB
Supported memory types:DDR5-SDRAM
Supported processor sockets:Socket AM5
Supported storage drive interfaces:M.2, SATA III
Supported storage drive types:HDD & SSD
Top wi-fi standard:Wi-Fi 7 (802.11be)
Tpm connector:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:2
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:4
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:3
Usb 3.2 gen 2x2 connectors:1
Usb4 gen 2x2 ports quantity:2
Warranty period:3 year(s)
Weight:2.4 kg
Wi-fi:Yes
Wi-fi standards:Wi-Fi 7 (802.11be)
Width:305 mm
Wifi-ap antenna jack:2
Windows operating systems supported:Windows 11 x64
Wlan controller model:MediaTek MT7925

X870 A ELITE WIFI7 AM5 4DDR5 HDMI/USB-C ATX Motherboard

  • AMD Socket AM5: Supports AMD Ryzen 9000/8000/7000 Series Processors
  • 16+2+2 Phase VRM Digital Twin Solution
  • Dual Channel DDR5: 4*DIMM with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and Easy Design for Wi-Fi Antenna Installation
  • EZ-Latch Plus: Quick Release PCIe and M.2 Slots with Screwless Design
  • EZ-Latch Click: M.2 Heatsinks with Screwless Design
  • Sensor Panel Link: Built-in Video Port for Hassle-Free Panel Configuration in Case
  • Friendly UI: Multi-Theme, AIO Fan Control and Q-Flash Plus Auto Scan in BIOS and Software
  • New AORUS Power Center in HWinfo for Real-Time CPU Power Phase Monitoring
  • Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard L
  • High-speed networking: 2.5GbE LAN and Wi-Fi 7 with ultra-high gain directional antenna
  • Expanded connectivity: Two USB4 Type-C ports with DP-Alt, HDMI
  • Reliable audio: Realtek ALC1220 HD Audio and audiophile-grade capacitors
  • Ultra-durable PCIe shield: Metal backplate for PCIe x16 slot for increased durability
  • PCIe UD X slot: PCIe 5.0 x16 slot with 10x more durability for graphics cards
