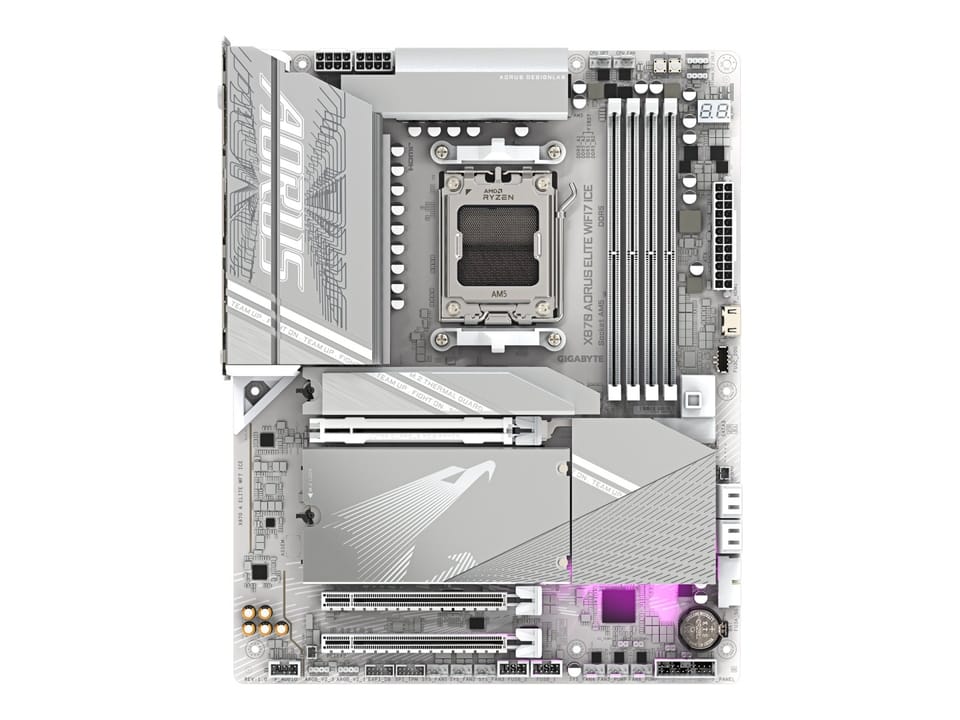

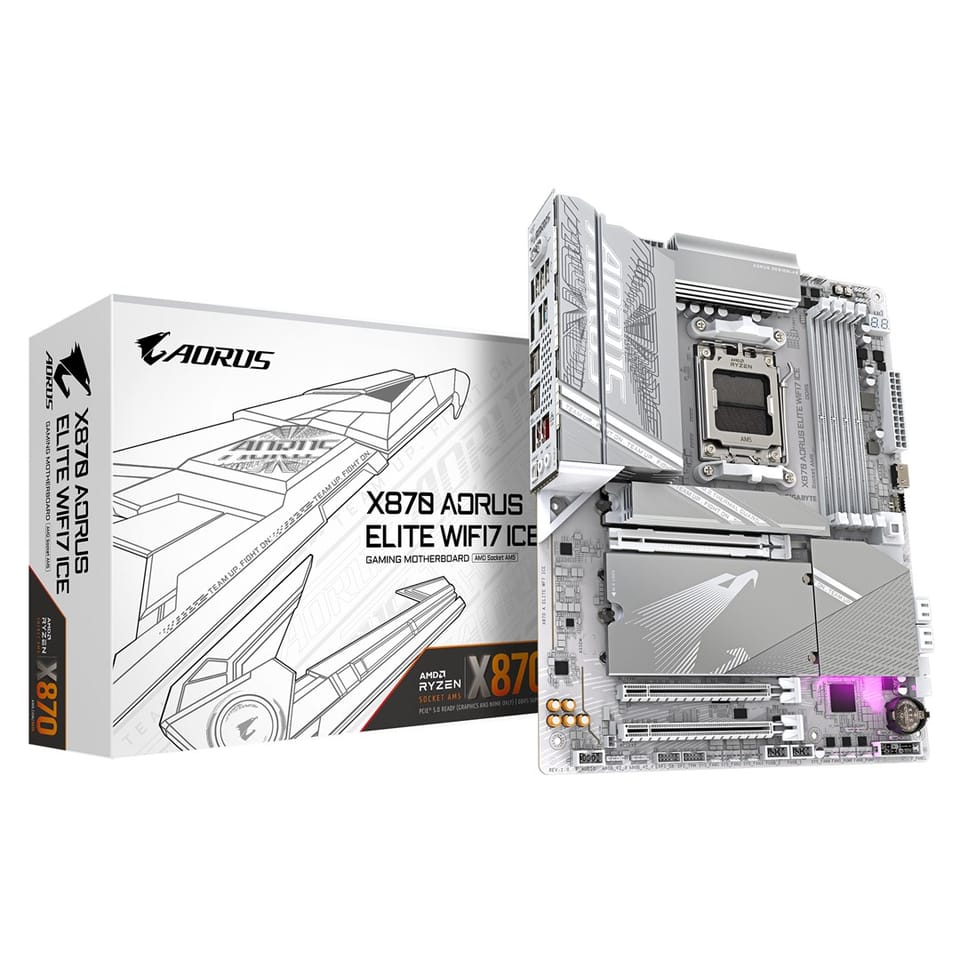

GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
PLN 1,297.67
Shipping from warehouse: M7
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- X870 AORUS ELITE WF7 ICE / 4719331864682
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| 1st m.2 highest pci express generation: | 5.0 |
| 1st m.2 largest key size: | 25110 |
| 2nd m.2 highest pci express generation: | 5.0 |
| 2nd m.2 largest key size: | 22110 |
| 3rd m.2 highest pci express generation: | 5.0 |
| 3rd m.2 largest key size: | 22110 |
| 4th m.2 highest pci express generation: | 4.0 |
| 4th m.2 largest key size: | 22110 |
| Antenna included: | Yes |
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC1220 |
| Audio output channels: | 7.1 channels |
| Batteries included: | Yes |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3 g |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Clear cmos button: | Yes |
| Clear cmos jumper: | Yes |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Country of origin: | China |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Directx version: | 12.0 |
| Displayport version: | 1.4 |
| Ecc сompatibility: | Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Height: | 35 mm |
| Lan controller: | Realtek RTL8125 |
| Lithium weight per battery: | 0.07 g |
| Maximum internal memory: | 256 GB |
| Maximum internal memory per slot: | 64 GB |
| Maximum internal memory supported by processor: | 256 GB |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD X870 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of battery cells: | 1 |
| Number of chassis fan connectors: | 6 |
| Number of cpu fan connectors: | 2 |
| Number of displays supported: | 4 |
| Number of eps power connectors (8-pin): | 2 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 4 |
| Number of memory slots: | 4 |
| Number of rgb led pin headers: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 8 |
| Number of water pump connectors: | 3 |
| On-board graphics card: | Yes |
| On-board graphics card model: | AMD Radeon Graphics |
| Package depth: | 270 mm |
| Package height: | 80 mm |
| Package weight: | 2.74 kg |
| Package width: | 335 mm |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Voltage, Noise, Water cooling, Fan, Temperature |
| Pci express x16 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Pci express x16 (gen 5.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Product colour: | White |
| Products per shipping (inner) case: | 1 pc(s) |
| Raid levels: | 0, 1, 10 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Screws included: | Yes |
| Supported memory clock speed (max): | 8200 MHz |
| Supported memory clock speeds: | 7600 MHz, 7800, 7000, 8200, 5600, 7200, 4800 MHz, 6400, 5200, 6000 MHz, 6800, 6200, 6666, 6600, 4400 MHz, 8000 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2 |
| Supported storage drive types: | HDD & SSD |
| Top wi-fi standard: | Wi-Fi 7 (802.11be) |
| Total number of sata connectors: | 4 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Usb 3.2 gen 2x2 connectors: | 1 |
| Usb4 gen 3x2 ports quantity: | 2 |
| Warranty period: | 3 year(s) |
| Weight: | 2.4 kg |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n) |
| Width: | 305 mm |
| Wifi-ap antenna jack: | 2 |
| Windows operating systems supported: | Windows 11 x64 |
| Wlan controller model: | MediaTek MT7925 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
